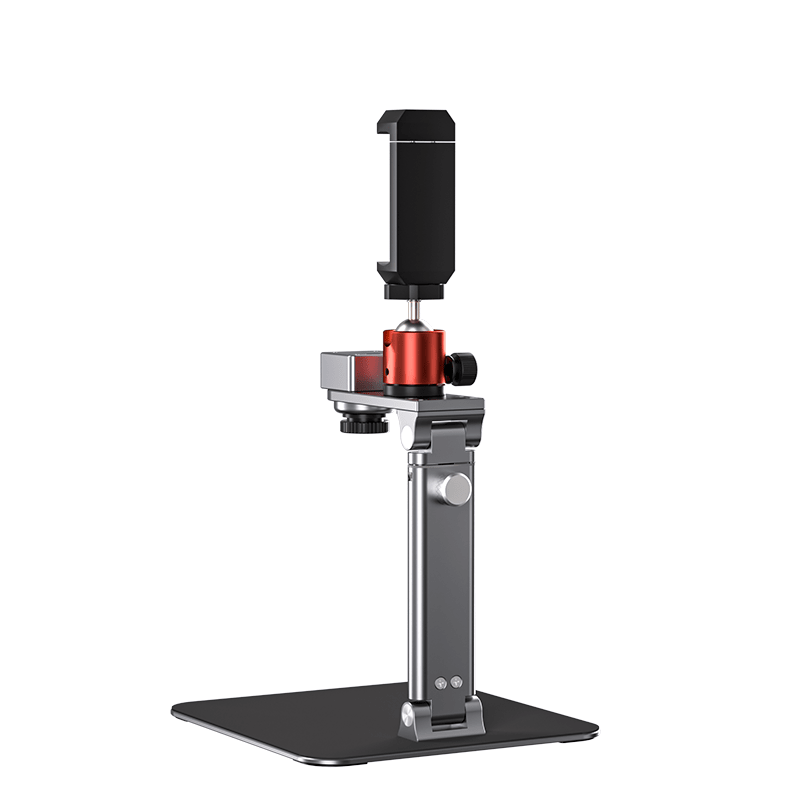

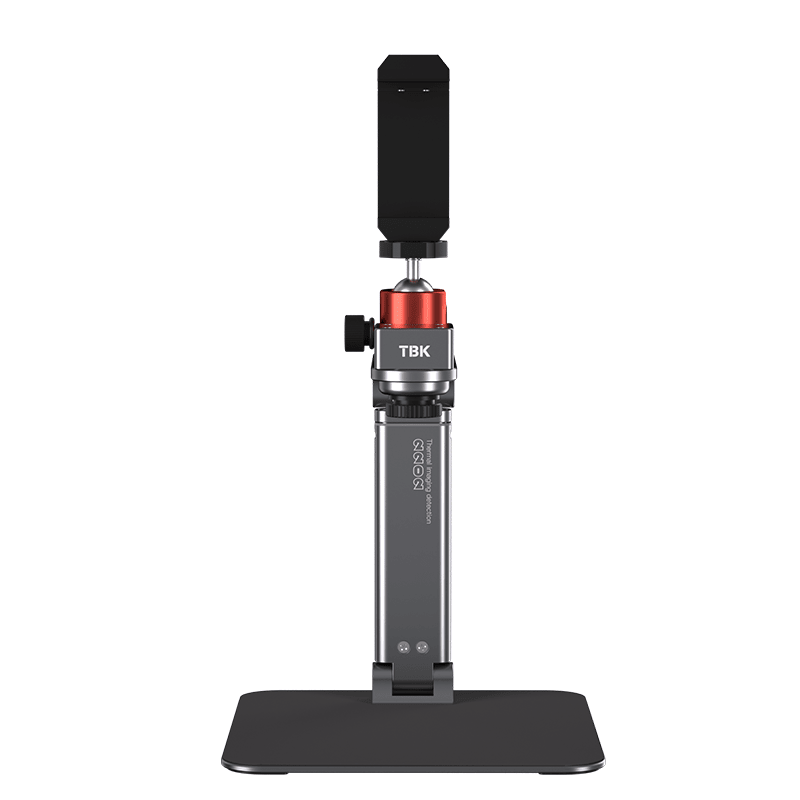

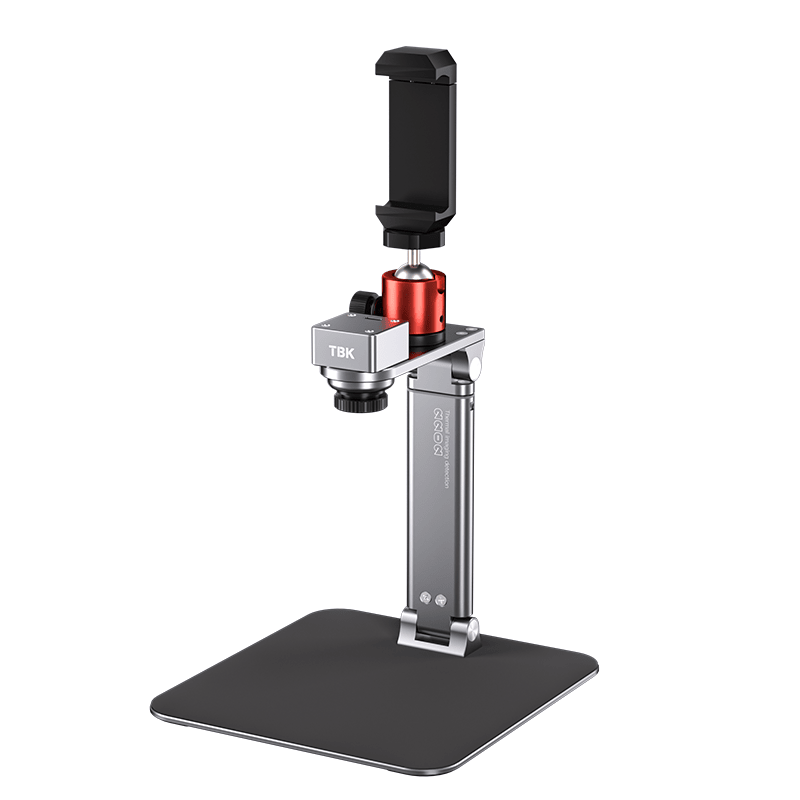

TBK R2202 Infrared Thermal Imaging Camera for PCB Short Circuit & Fault Diagnosis

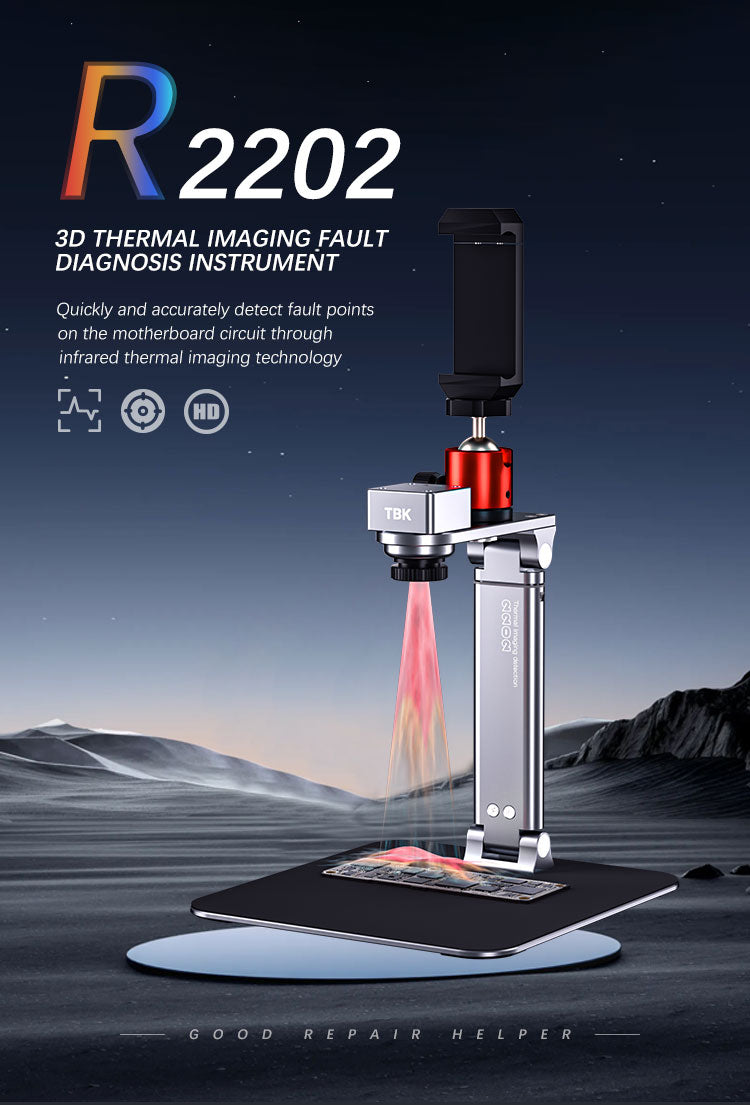

The TBK R2202 is a professional diagnostic instrument developed for electronics repair technicians and engineers. Utilizing advanced infrared thermal imaging technology, it rapidly detects thermal anomalies on printed circuit boards (PCBA), efficiently identifying issues such as short circuits and current leakage. By visualizing temperature variations and heat patterns, this tool significantly streamlines the fault diagnosis process for mobile phone motherboard repairs and electronic development.

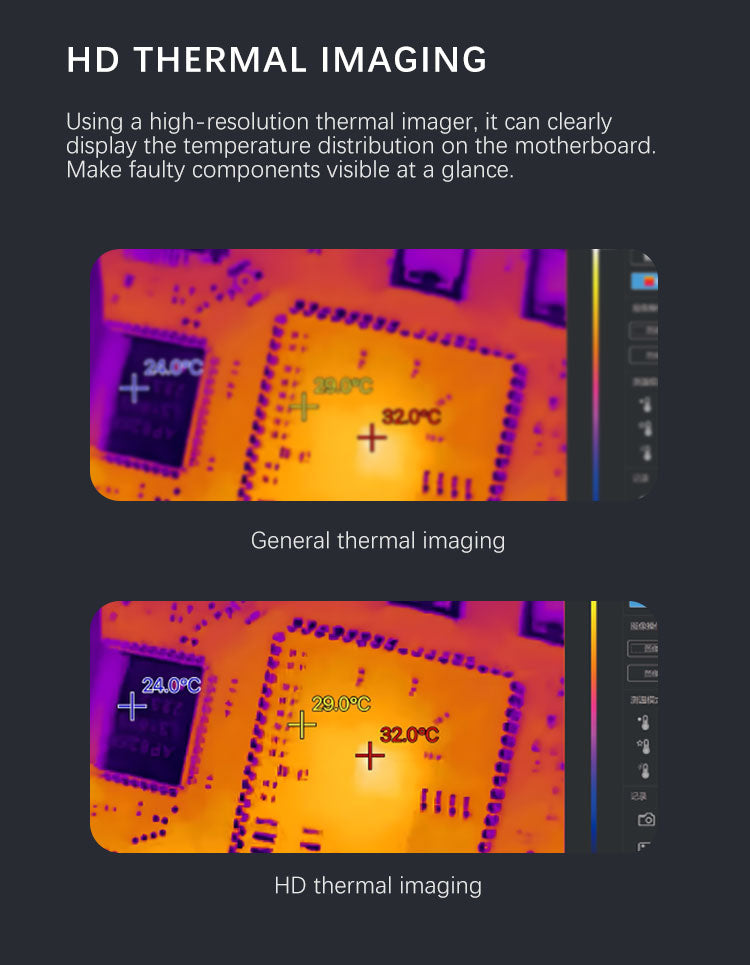

High-Definition Thermal Imaging: Equipped with a high-resolution infrared sensor that accurately displays temperature distribution across the motherboard, facilitating the identification of overheating or faulty components.

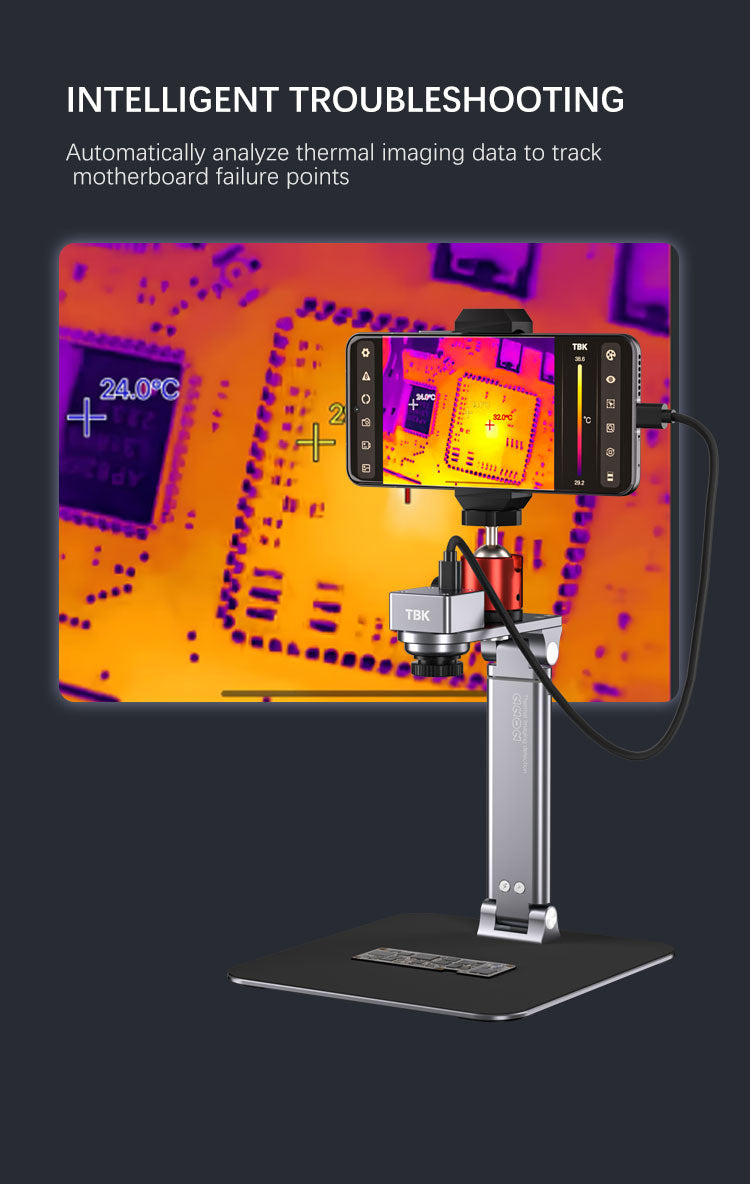

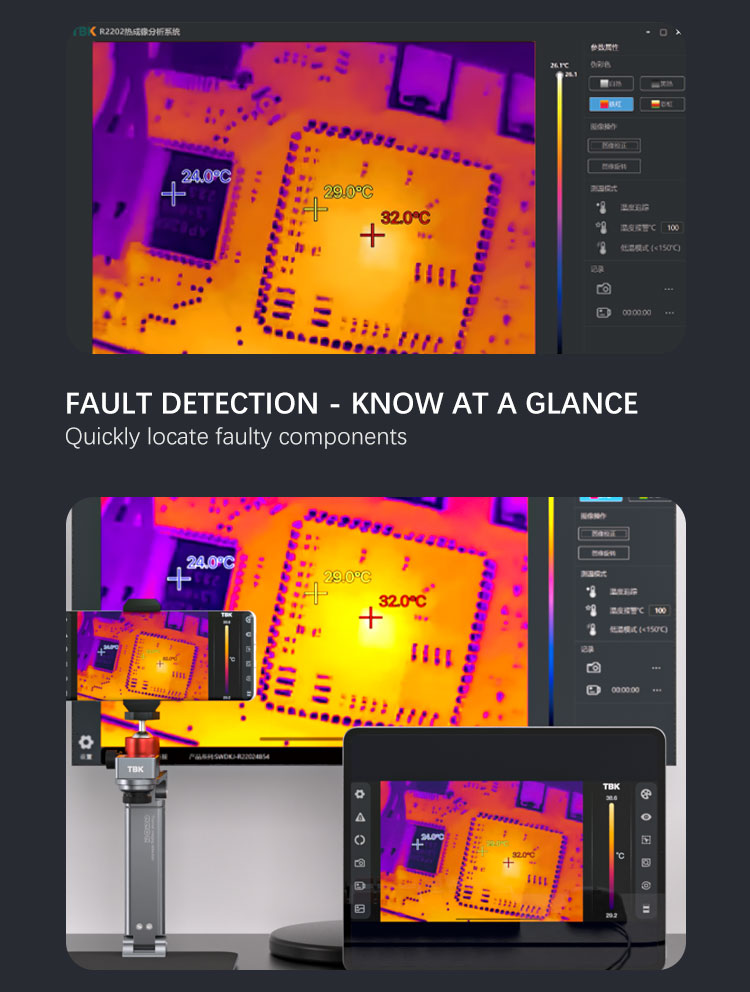

Intelligent Data Analysis: Features software-assisted thermal data analysis to aid technicians in tracking down specific failure points and circuit abnormalities rapidly.

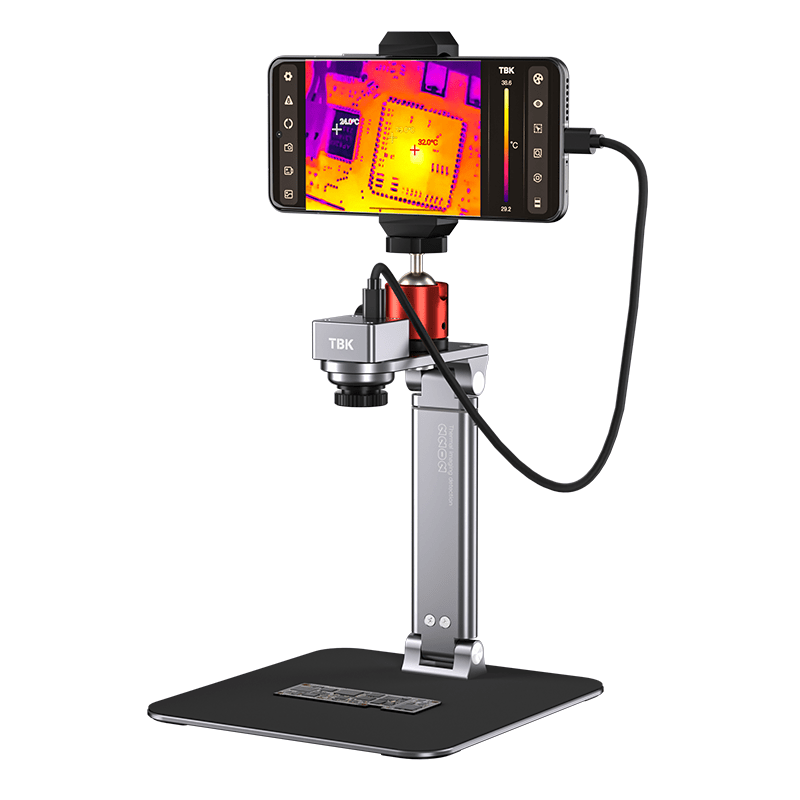

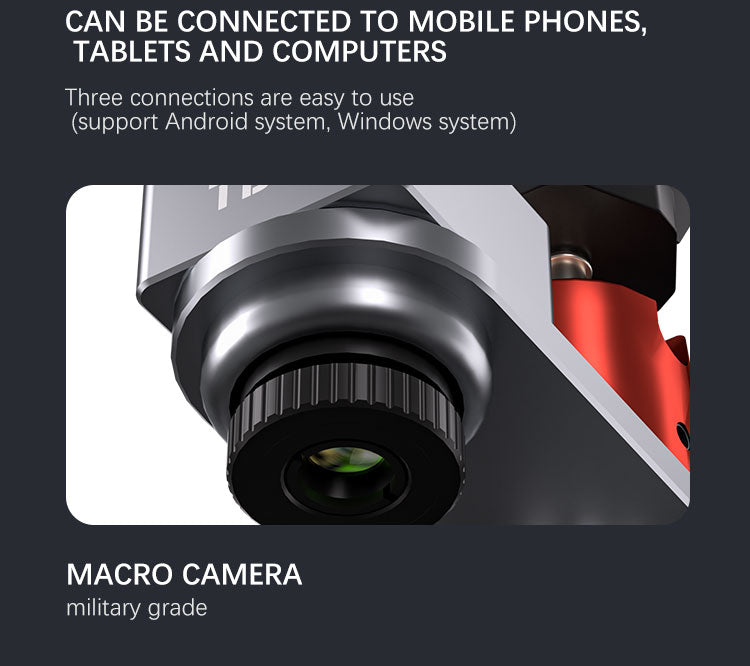

Multi-Platform Compatibility: Supports seamless connection and display output on Android devices (mobile phones and tablets) and Windows computers for versatile workflow integration.

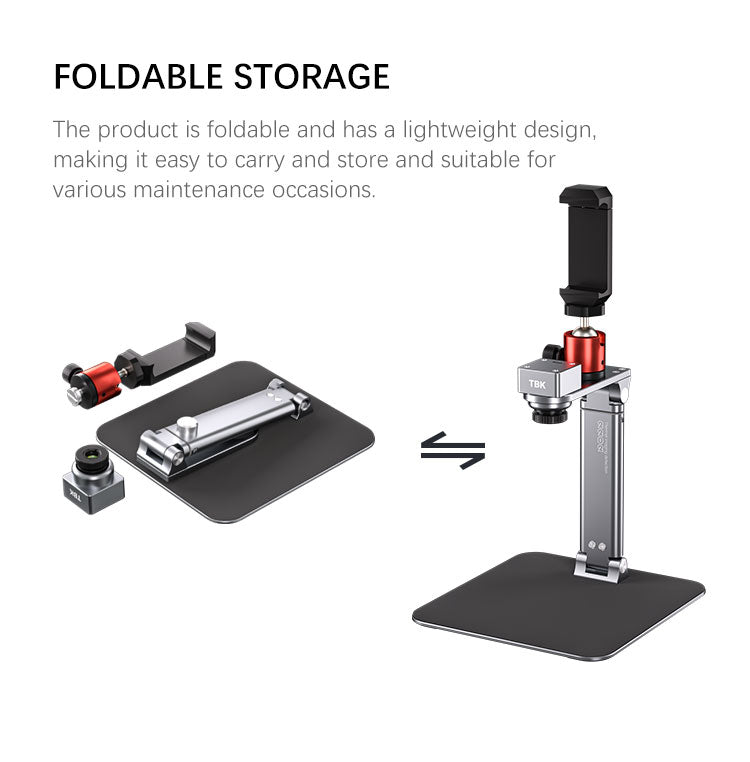

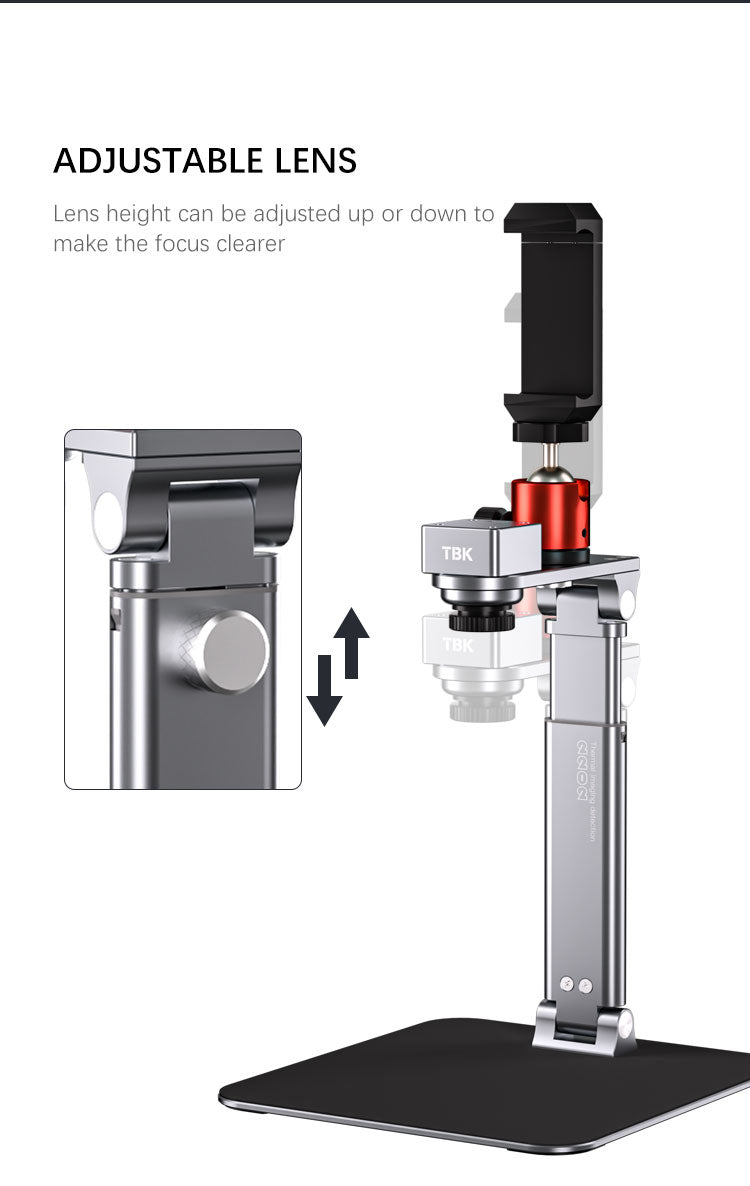

Adjustable & Compact Design: Offers an adjustable lens height mechanism for precise focusing on components of varying sizes, combined with a lightweight, foldable structure for convenient storage and portability.

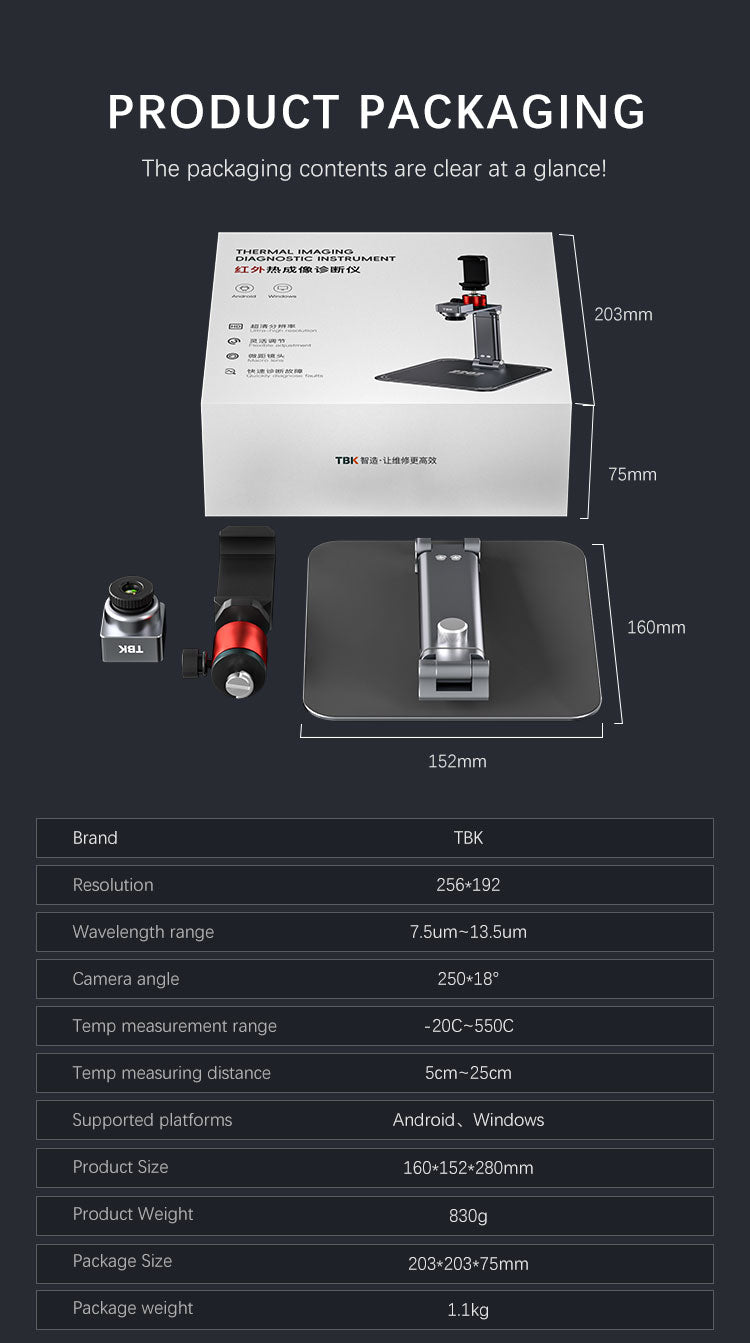

• Brand: TBK
• Resolution: 256×192 pixels
• Wavelength Range: 7.5μm – 13.5μm
• Camera Angle: 25∘×18∘
• Temperature Range: −20∘C to 550∘C
• Optimal Measuring Distance: 5 cm to 25 cm
• Supported Systems: Android, Windows
• Product Dimensions: 160 × 152 × 280 mm
• Product Weight: 830 g

Q1: What operating systems are compatible with the TBK R2202 thermal imaging camera?
A1: The TBK R2202 is designed with broad compatibility, supporting connections to Android mobile phones, Android tablets, and Windows computers.

Q2: What specific types of motherboard faults can this device help diagnose?
A2: This instrument utilizes thermal imaging to visualize heat patterns, effectively helping technicians locate thermal anomalies such as short circuits, current leakage, and overheating components on PCBAs.

Q3: Is the TBK R2202 suitable for mobile technicians who need to travel?
A3: Yes, the unit features a foldable and lightweight design, making it highly portable and easy to store for technicians who require mobility.

Q4: Does the camera allow for focus adjustment during inspection?
A4: Yes, the lens height is adjustable, allowing the user to achieve a sharp focus on the circuit board for detailed inspection and precise diagnosis.
