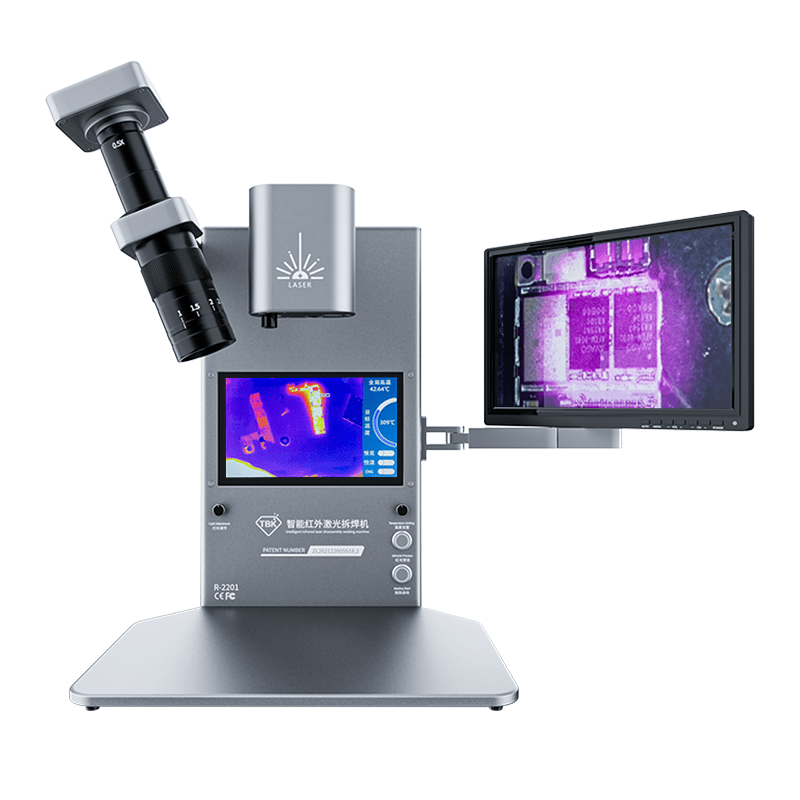

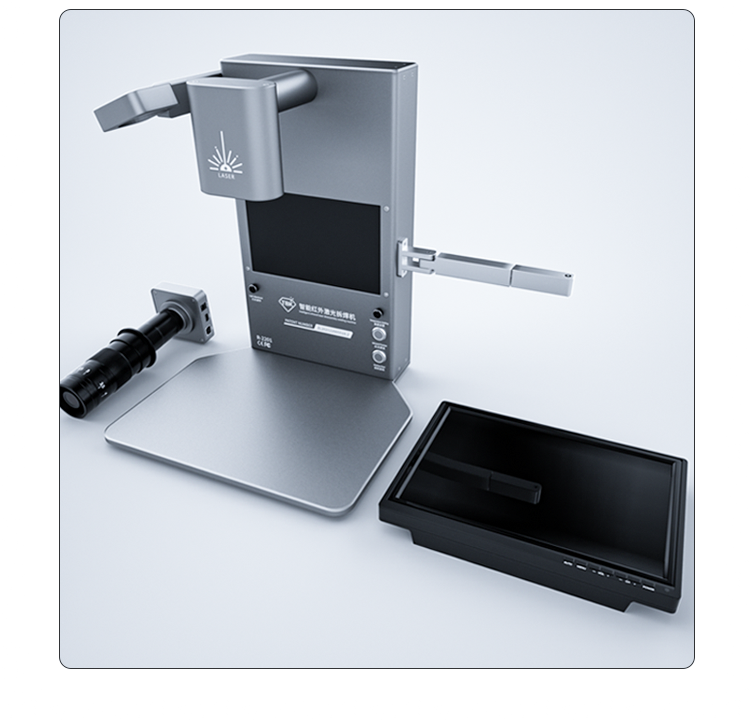

TBK R-2201 3-in-1 Laser Soldering Machine with Thermal Camera & 4K Microscope

The TBK R-2201 is a multi-functional laser soldering station engineered for high-precision electronics diagnostic and repair tasks. This system integrates three critical workflows into a single unit: thermal fault detection, high-definition visual inspection, and non-contact laser soldering. Utilizing a focused laser beam, it allows for the accurate soldering and desoldering of delicate components without the risks associated with hot air convection. The machine features an adjustable heating spot, precise temperature regulation, and a dual-display interface, providing a comprehensive solution for complex logic board and micro-component rework.

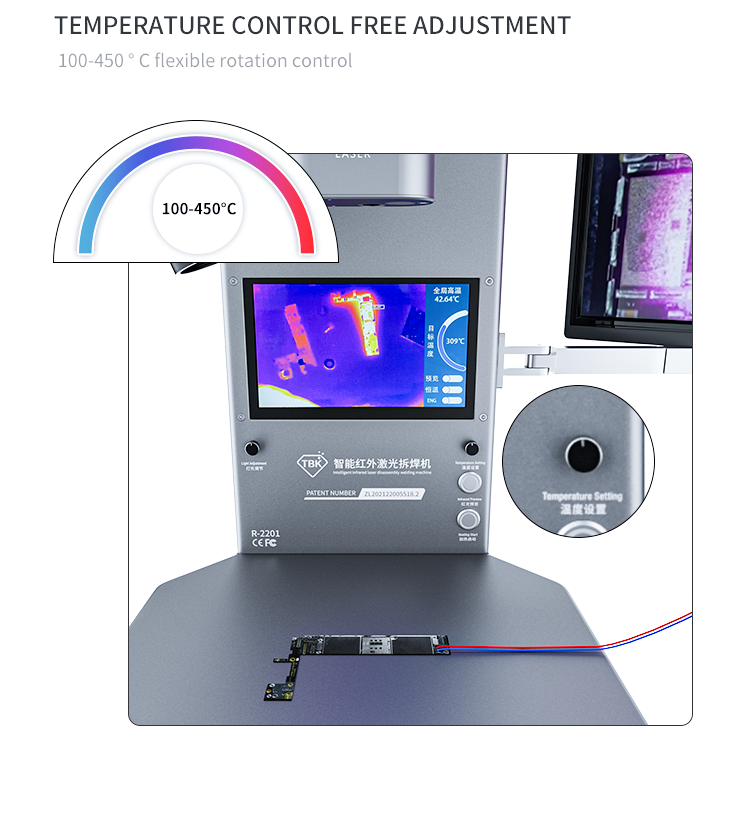

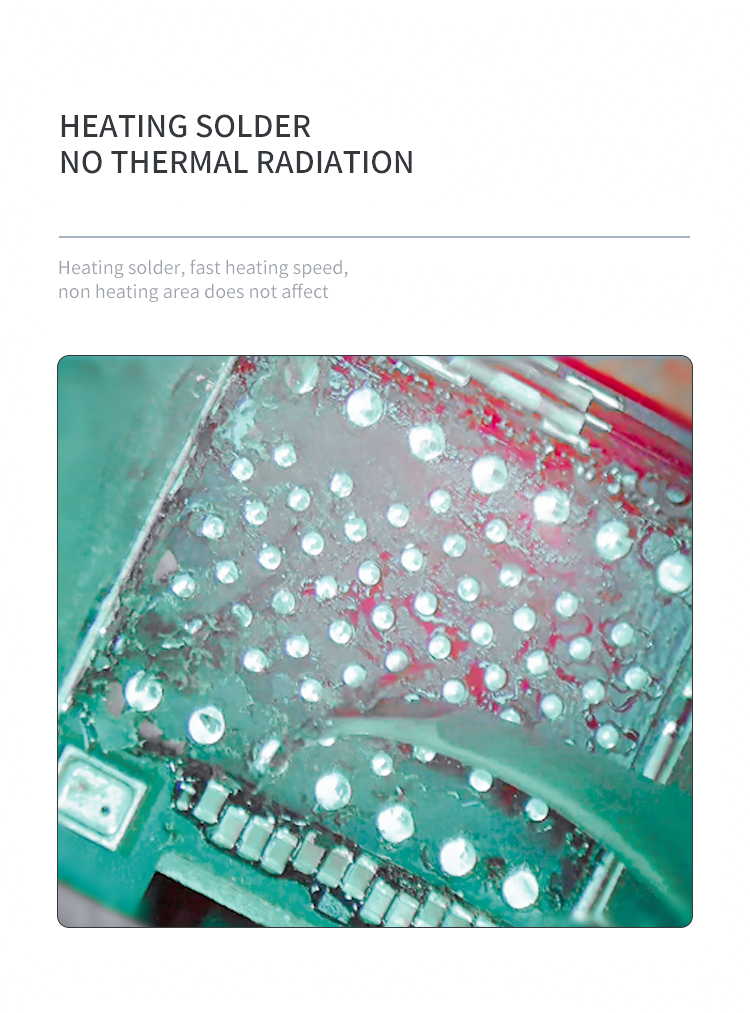

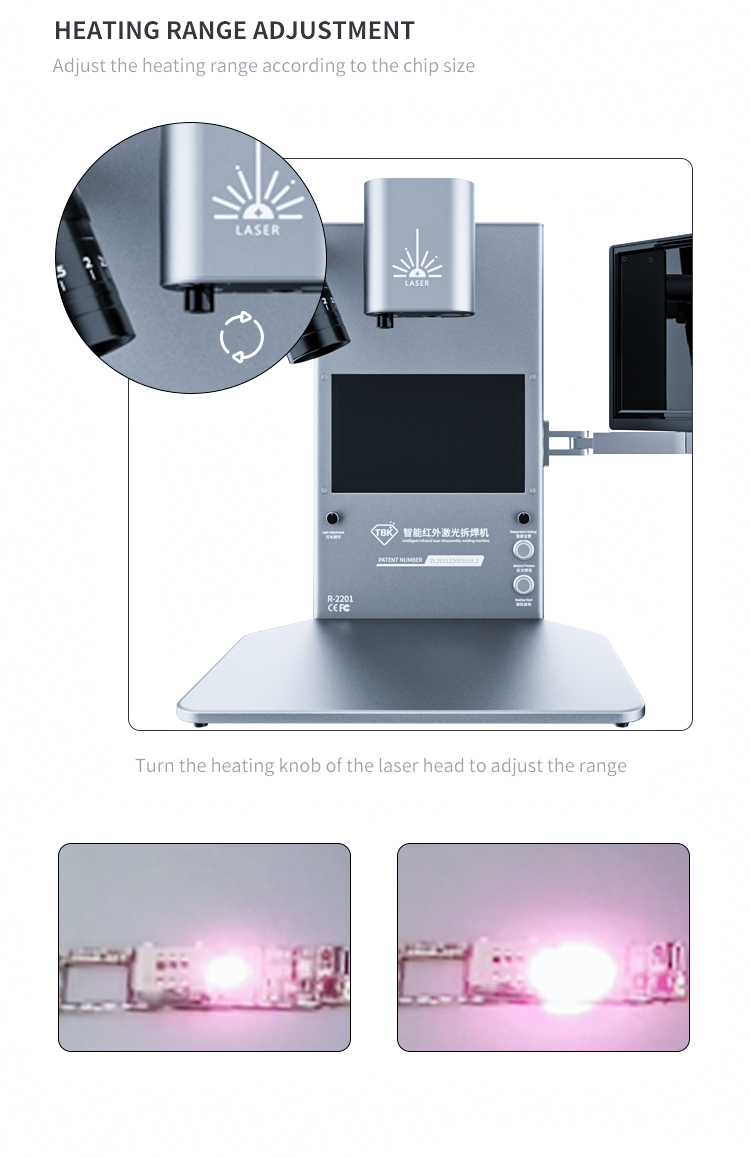

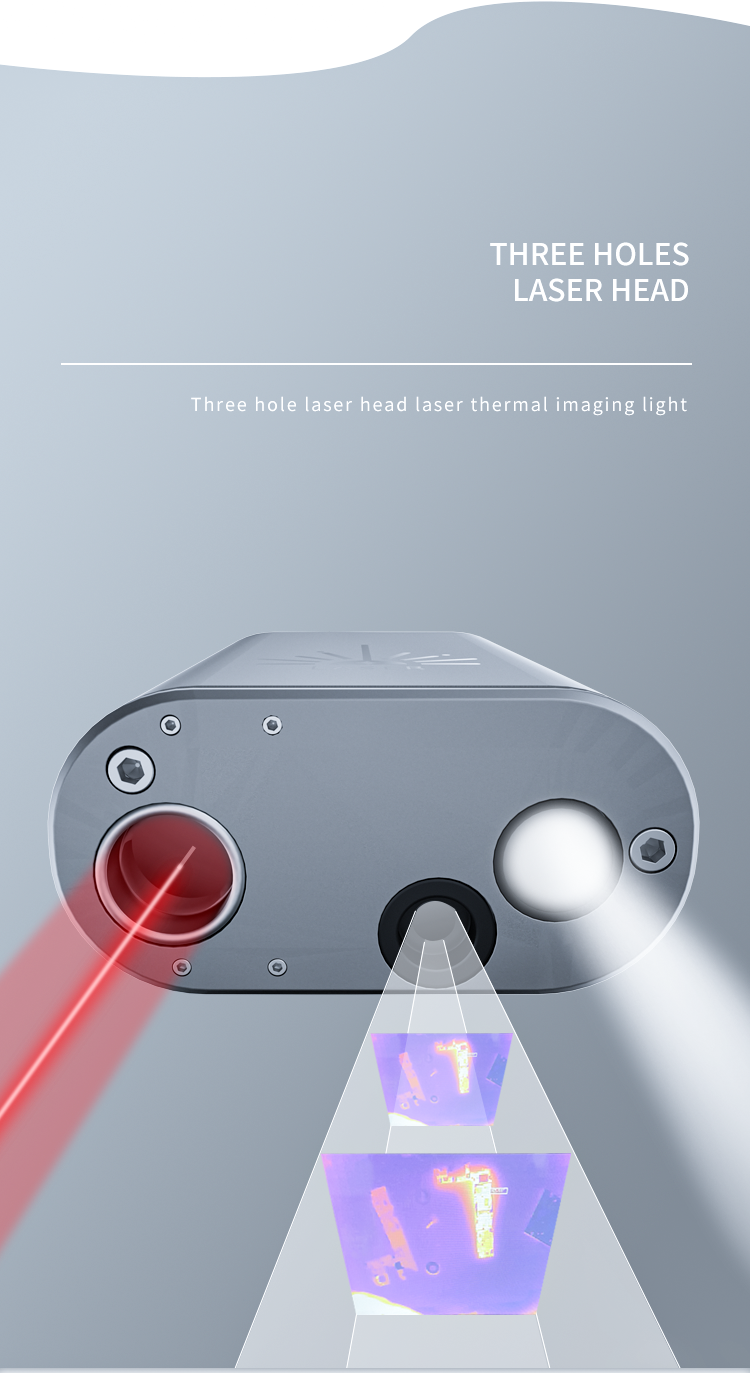

Precision Non-Contact Laser Heating: Utilizes a focused laser to concentrate heat strictly on the target area, preventing thermal damage to surrounding components. The heating spot size is adjustable, with a temperature control range of 100°C to 450°C.

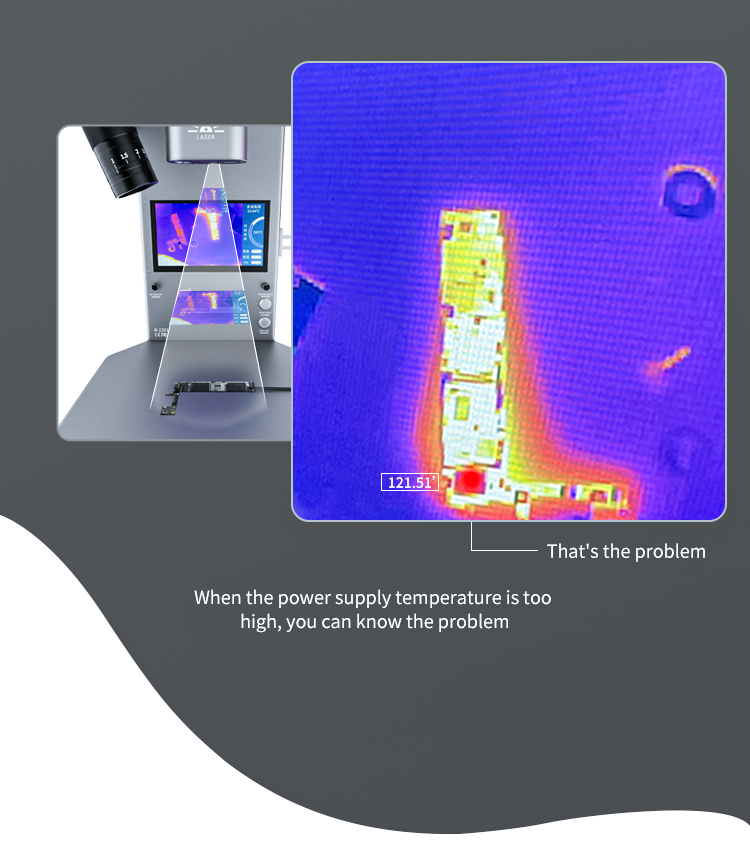

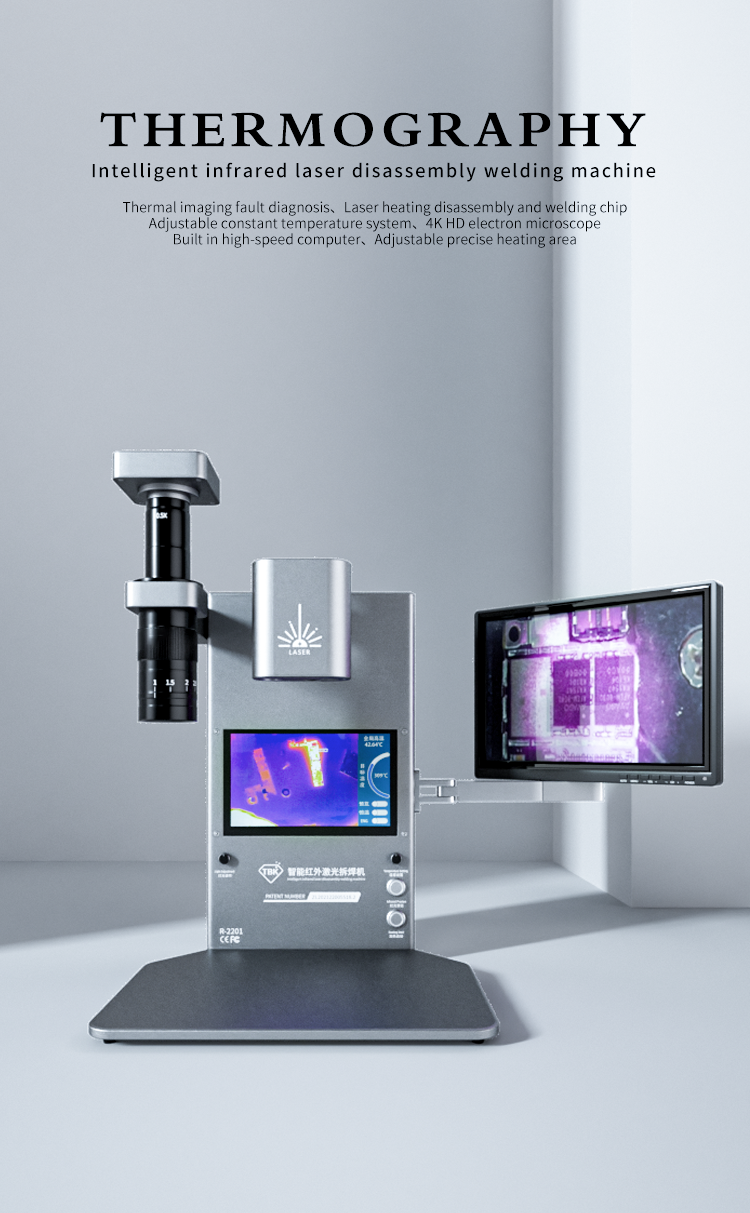

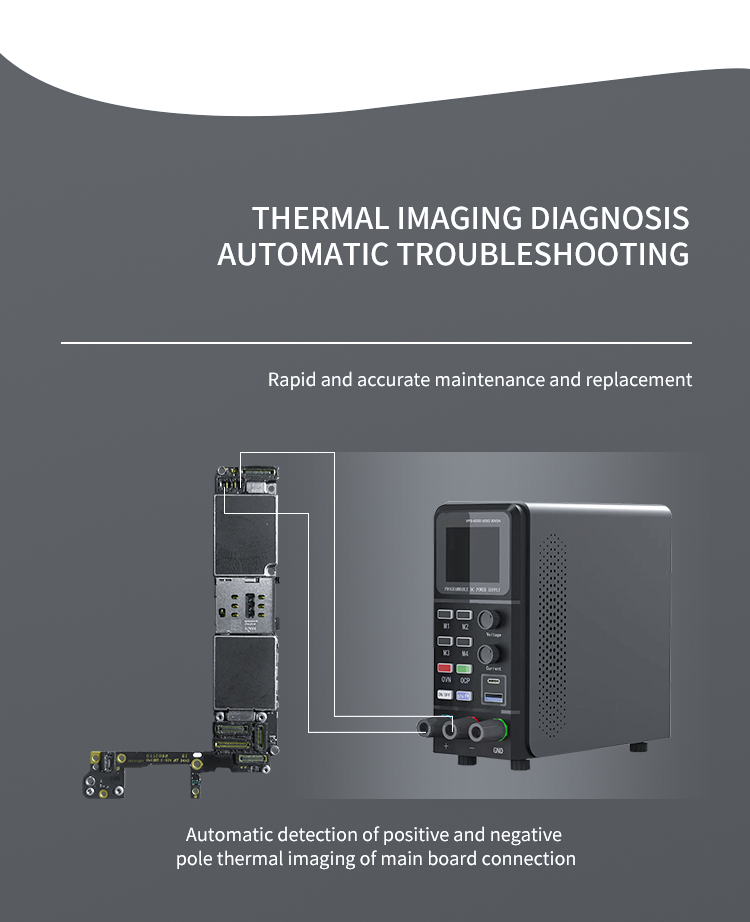

Infrared Thermal Imaging Diagnostics: Features an integrated thermal camera that rapidly identifies temperature anomalies on powered motherboards, such as short circuits and current leaks, to expedite the diagnostic process.

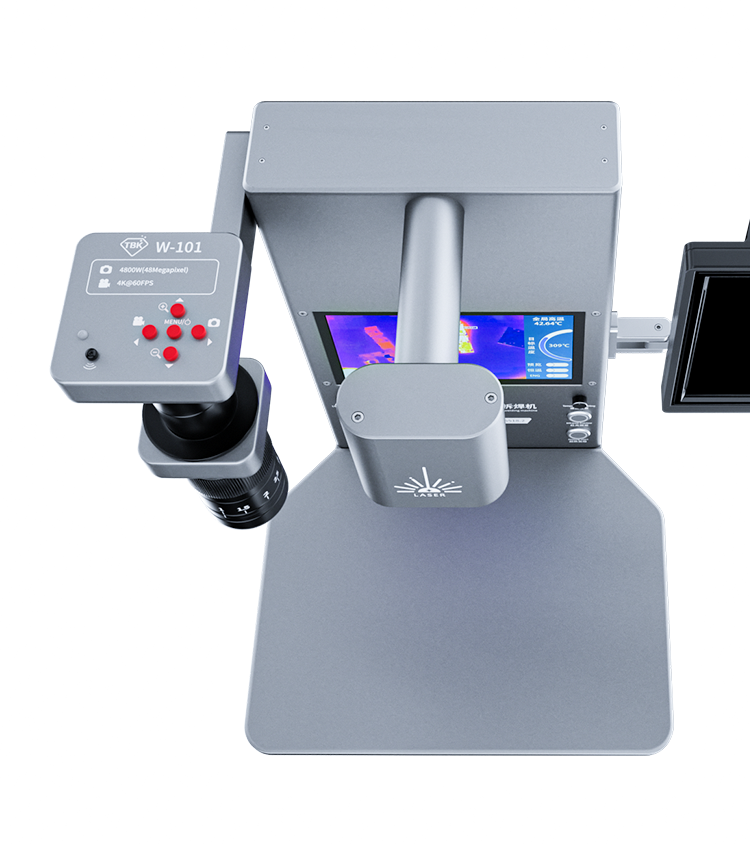

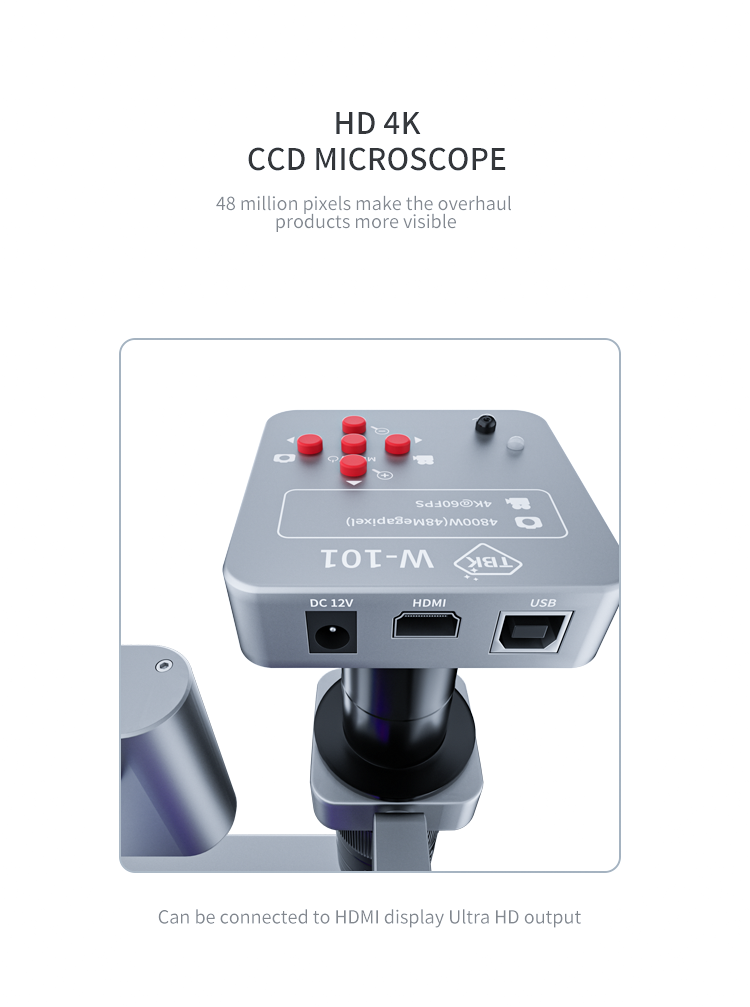

4K Ultra-HD Visual System: Equipped with a 48-megapixel industrial-grade CCD camera supporting 4K resolution at 60FPS. This provides high-magnification, lag-free video output for clear visualization of minute details.

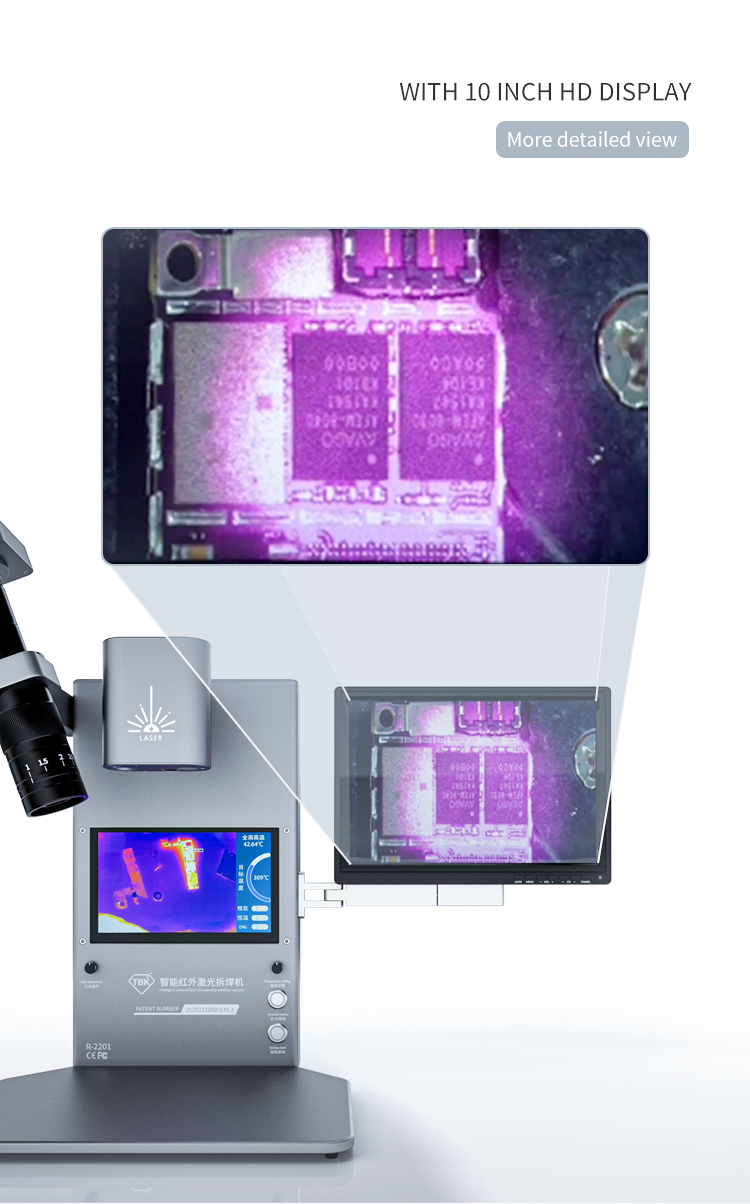

Dual-Screen Display Interface: Includes a 7-inch built-in control screen and a 10-inch external HD monitor, allowing operators to simultaneously view thermal diagnostic data and the live microscope feed.

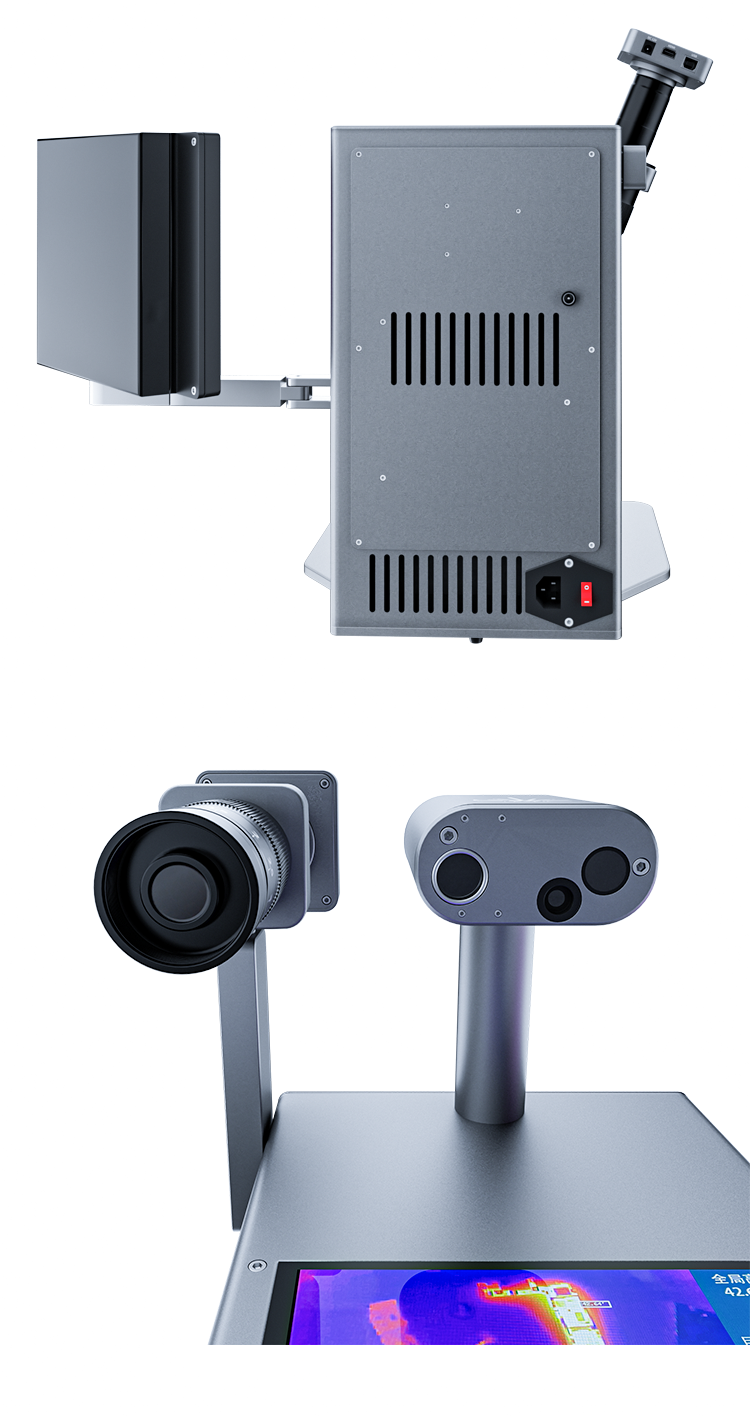

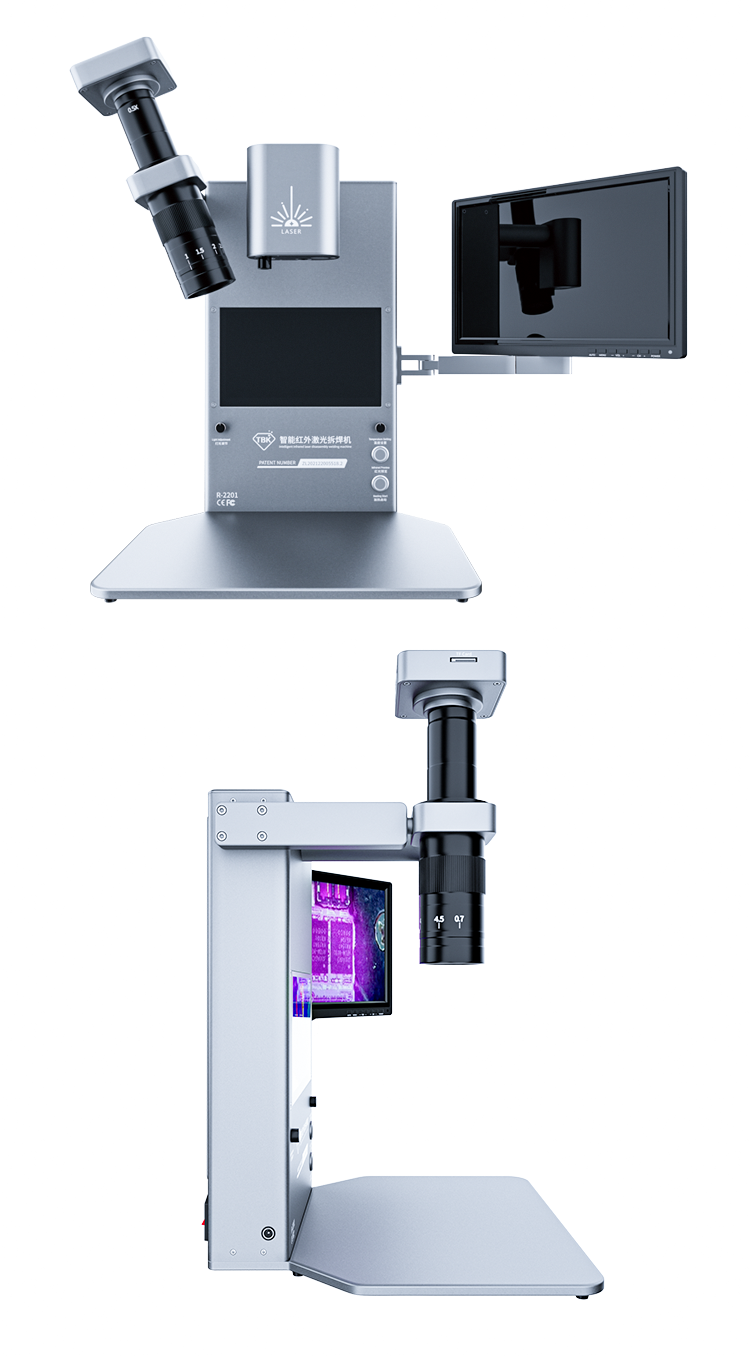

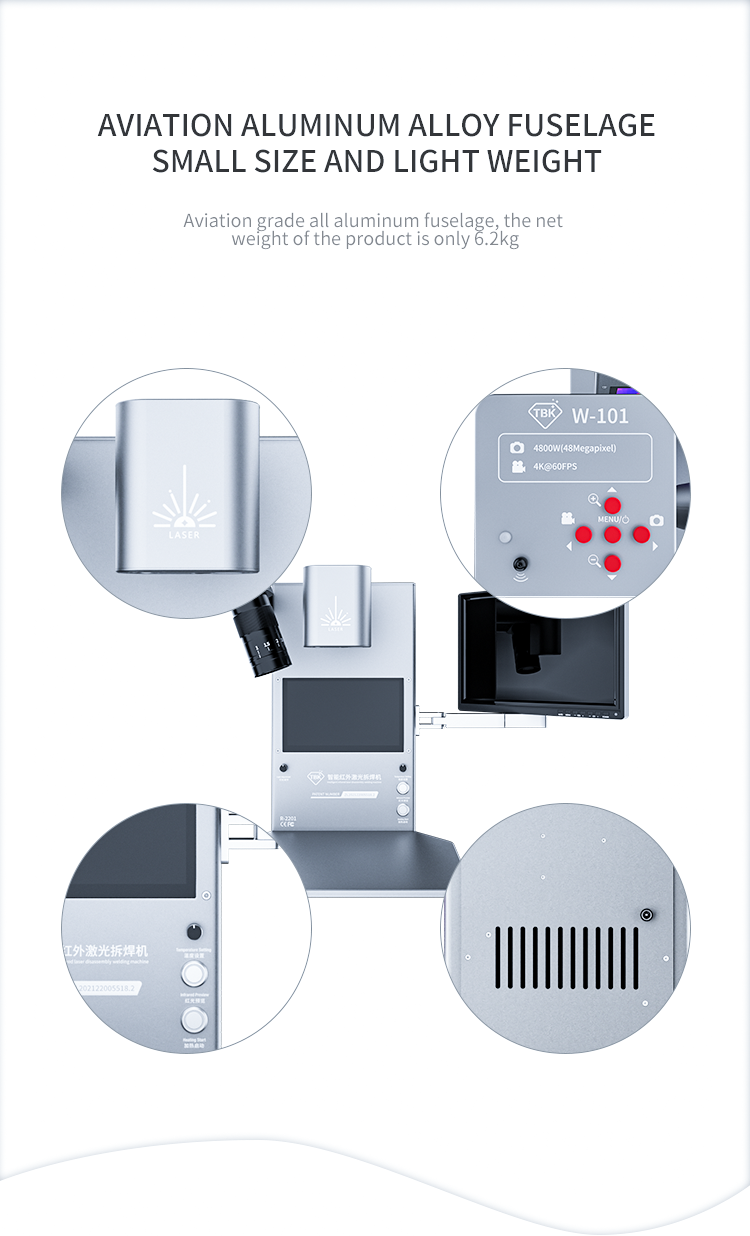

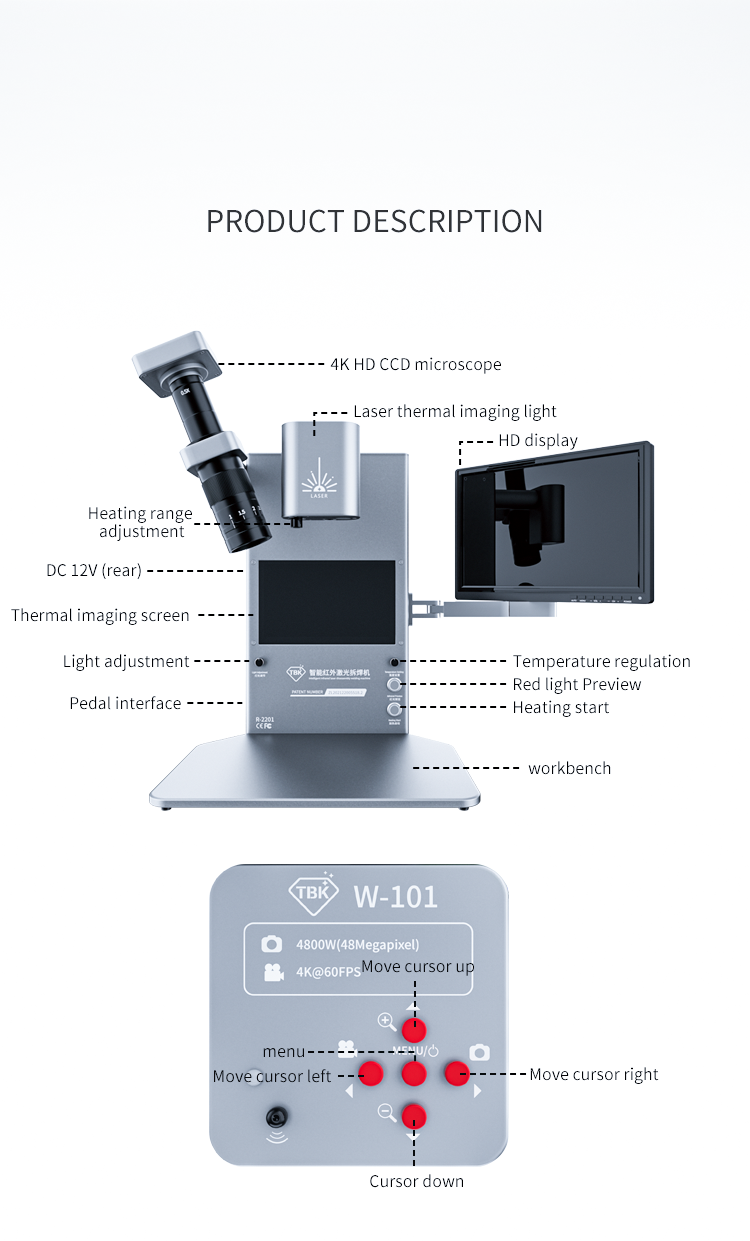

Integrated Workstation Design: Combines diagnostic, soldering, and inspection capabilities into a single unit constructed from aviation-grade aluminum alloy for durability and heat dissipation.

Hands-Free Control: Supplied with a foot switch to activate the laser, allowing technicians to keep both hands free for precise component manipulation during repairs.

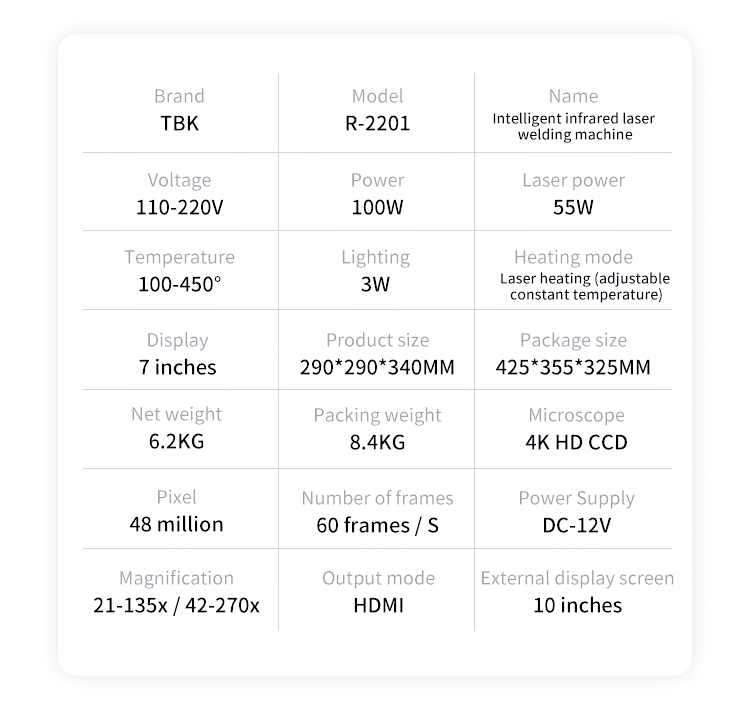

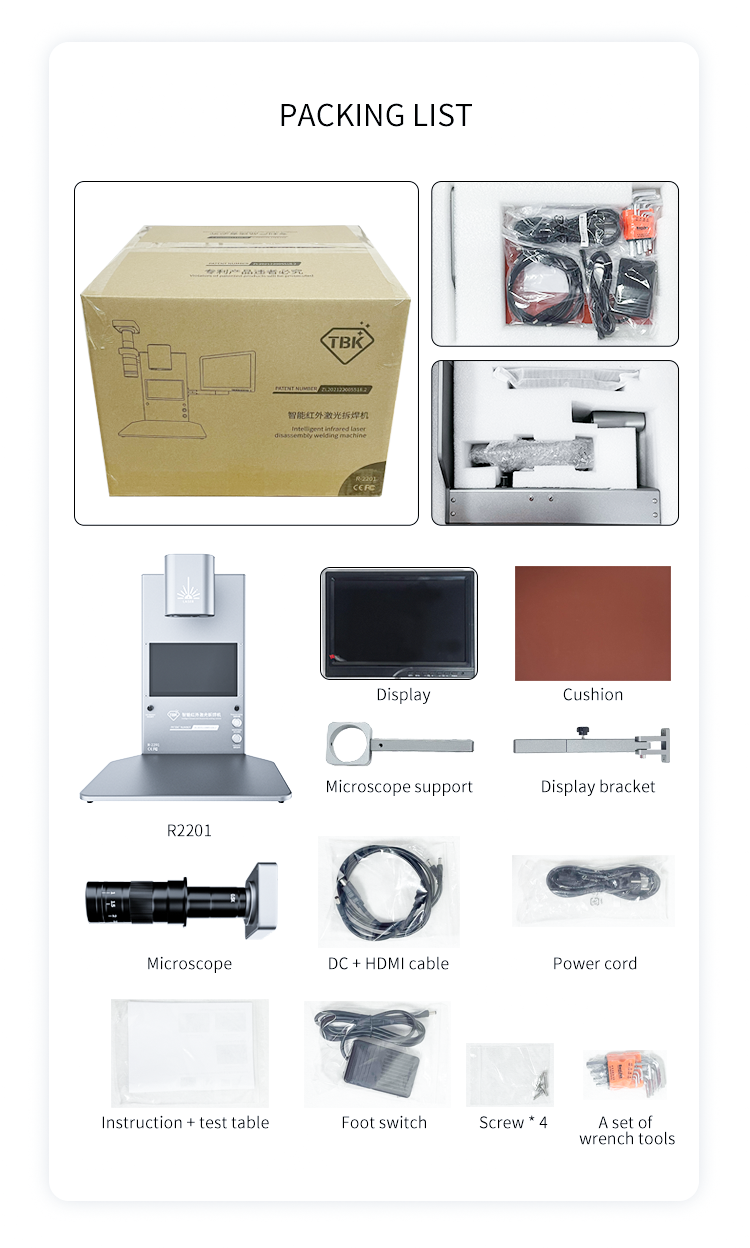

Brand, TBK

Model, R-2201

Name, Intelligent infrared laser welding machine

Laser Power, 55W

Total Power, 100W

Voltage, 110-220V

Temperature Range, 100-450°C

Display, 7 inches (built-in)

External Display, 10 inches

Microscope, 4K HD CCD

Pixel, 48 Million

Frame Rate, 60 frames / S

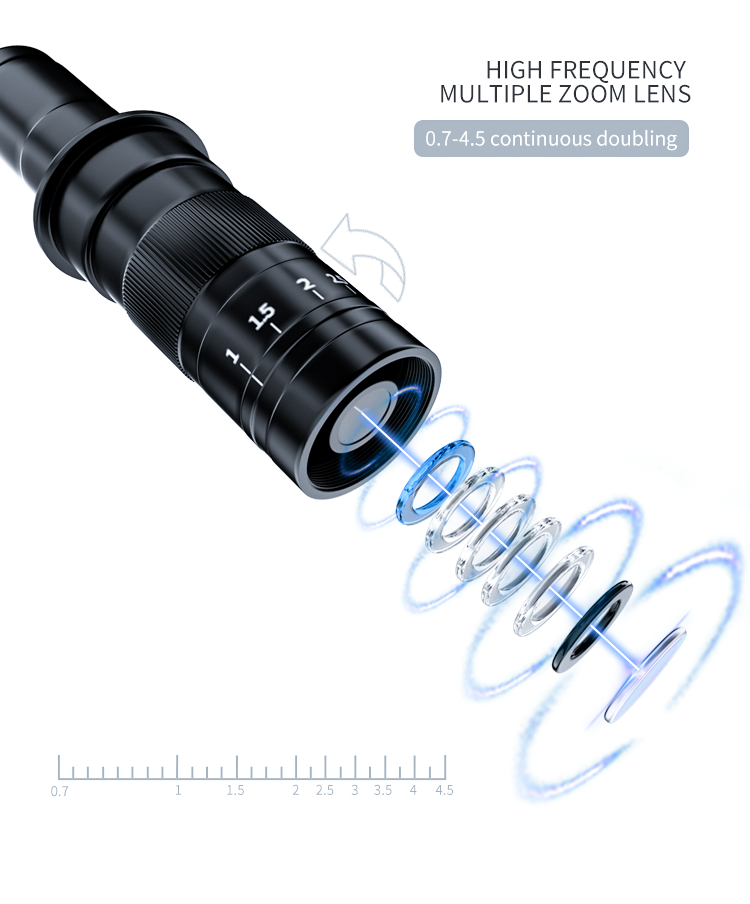

Magnification, 21-135x / 42-270x

Output Mode, HDMI

Net Weight, 6.2KG

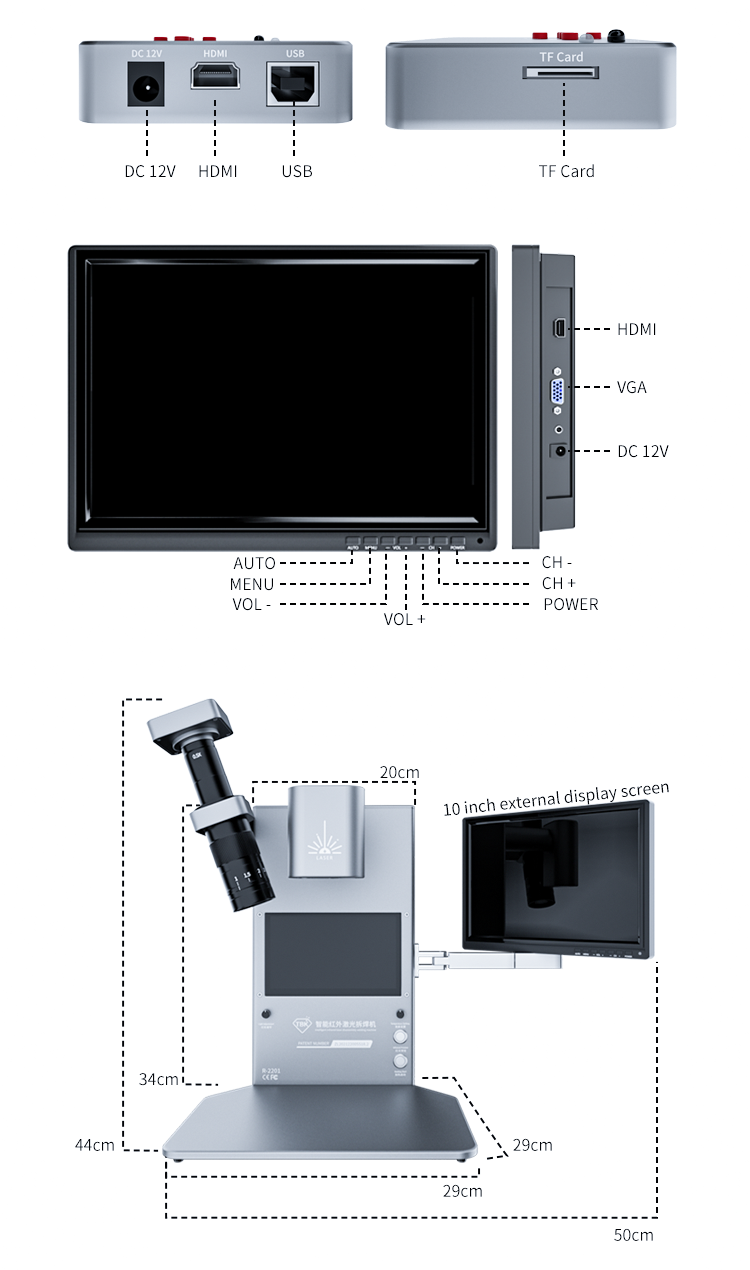

Product Size, 290 * 290 * 340MM

Q1: What are the three core functions of the TBK R-2201?
A1: The TBK R-2201 integrates three main functions: laser soldering for repair, infrared thermal imaging for diagnostics, and a 4K microscope for visual inspection.

Q2: What is the resolution of the built-in microscope camera?
A2: The machine features a 48-megapixel industrial-grade CCD camera that supports 4K Ultra-HD video output at 60FPS for clear and smooth imaging.

Q3: How does the non-contact laser heating benefit motherboard repair?
A3: Non-contact laser heating concentrates energy precisely on the solder joint (adjustable spot size), which prevents heat from spreading to and damaging adjacent sensitive components.

Q4: Can the thermal imager and microscope be viewed at the same time?
A4: Yes, the machine utilizes a dual-screen setup (a 7-inch built-in screen and a 10-inch external display) to allow simultaneous viewing of thermal diagnostics and live optical images.

Q5: What is the adjustable temperature range of the laser?
A5: The laser soldering system allows for precise temperature adjustments from 100°C to 450°C to accommodate various soldering and desoldering requirements.
