TBK Microscope Phone Adapter | Smartphone Camera Mount for Trinocular Microscopes | Magnetic Wireless Charging & Cooling

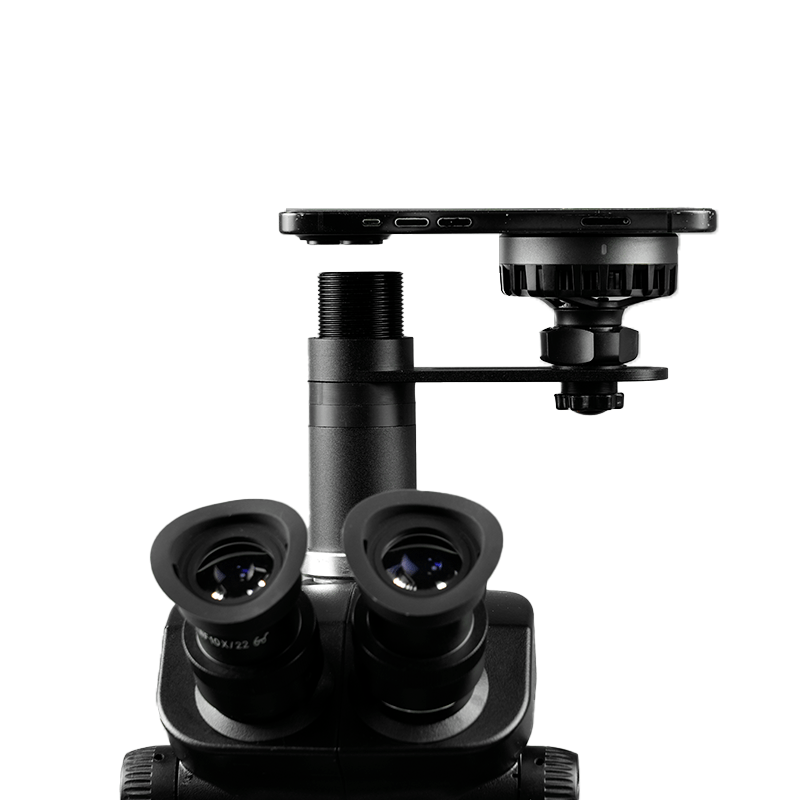

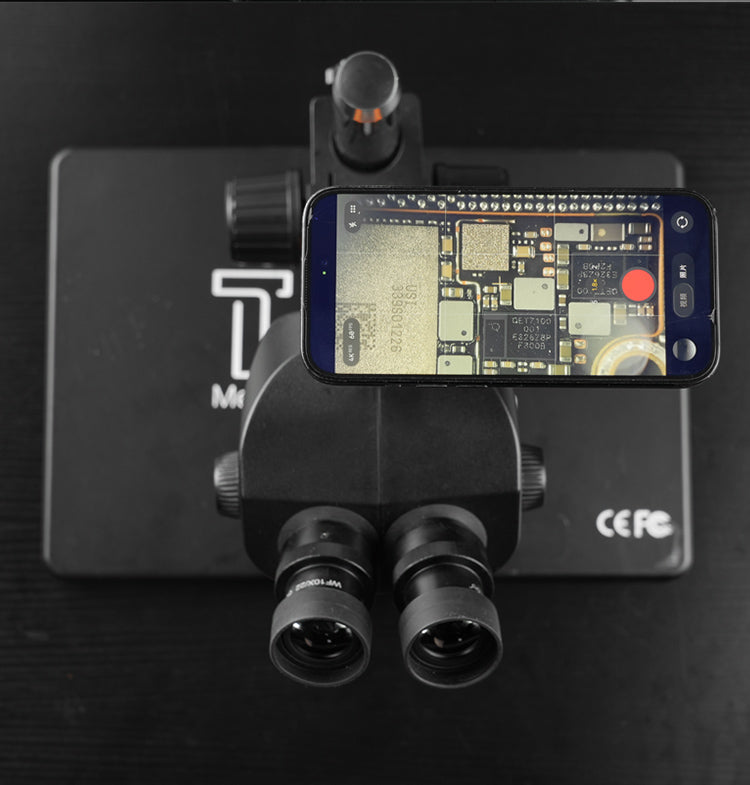

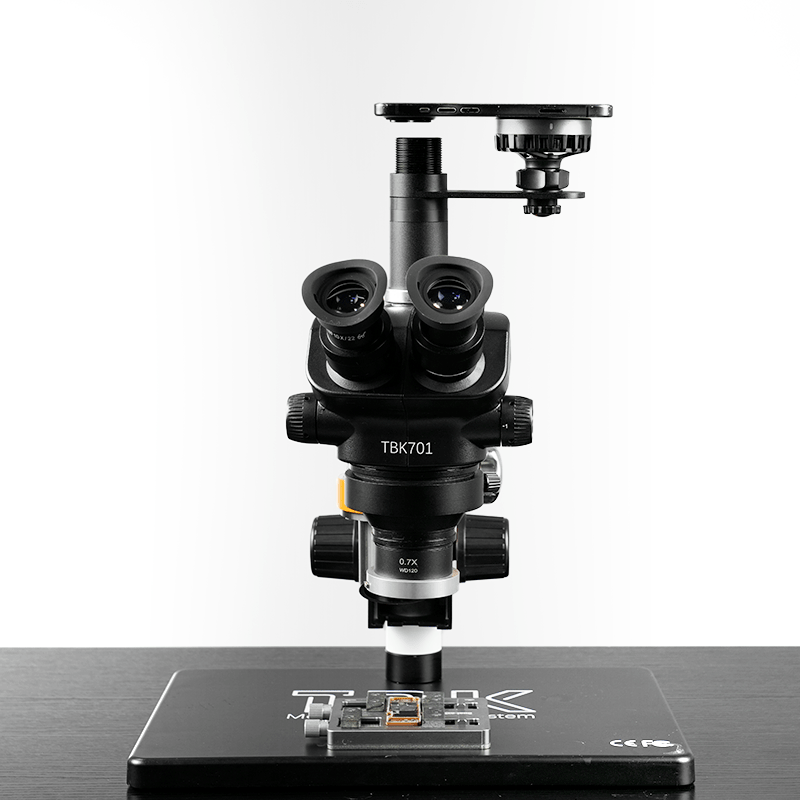

The TBK Microscope Phone Adapter is designed to interface smartphones directly with trinocular microscopes. By securing a mobile device to the microscope's optical port, technicians can utilize the phone's high-definition display as a monitor for inspecting circuit boards and micro-soldering work. This configuration facilitates real-time viewing and digital video documentation of repair procedures without obstructing the optical path. The adapter is offered in two configurations: the Smart Version features a magnetic alignment system integrated with wireless charging and an active cooling fan to maintain device performance during extended recording, while the Standard Model utilizes a mechanical clamp for physical retention.

Dual Model Options: Available as a Smart Version with magnetic mounting or a Standard Model with an adjustable mechanical clamp to accommodate different user preferences.

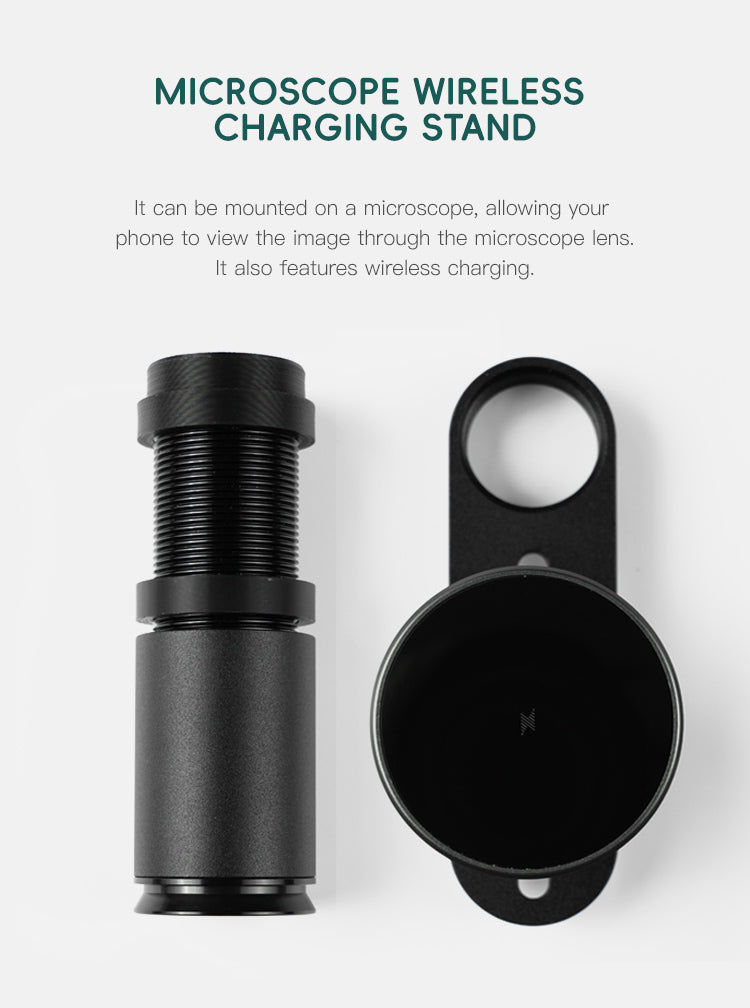

Integrated Wireless Charging: The Smart Version supports wireless charging (up to 15W), allowing the mobile device to maintain battery levels while in use as a display monitor.

Active Cooling System: The Smart Version incorporates a built-in cooling fan designed to dissipate heat, helping to prevent the phone from overheating during continuous video recording.

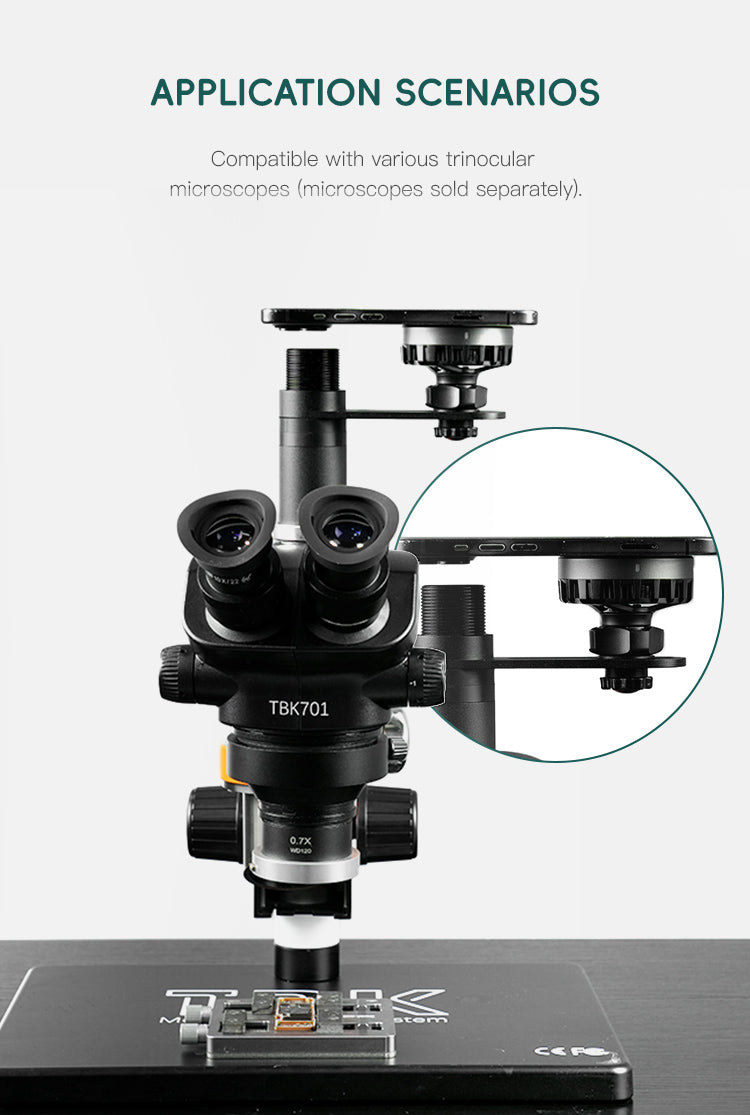

Standard Interface Compatibility: Engineered to fit standard interfaces on trinocular microscopes, functioning as a compatible adapter for most optical setups.

Durable Construction: Fabricated with metal components to provide the structural stability and durability required for professional workshop environments.

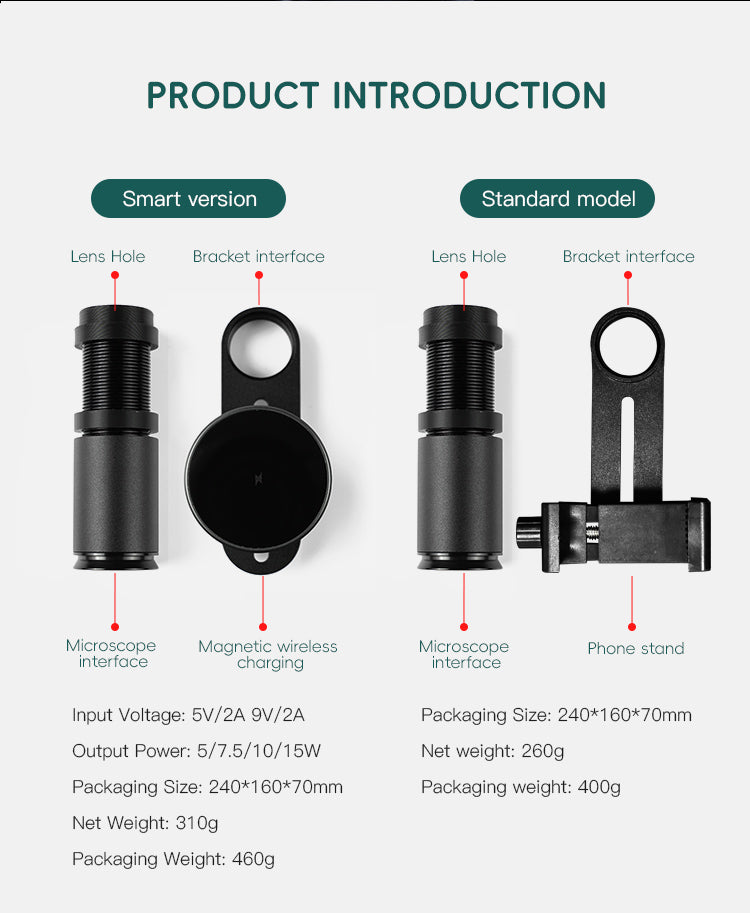

Smart Version Specifications

• Mounting Type: Magnetic Adhesion (MagSafe compatible)
• Input Voltage: 5V/2A or 9V/2A
• Output Power: 5W / 7.5W / 10W / 15W
• Cooling System: Built-in active cooling fan
• Net Weight: 310g
• Gross Weight: 460g

Standard Model Specifications

• Mounting Type: Adjustable Mechanical Clamp
• Function: Pure mechanical support (no charging or cooling)
• Net Weight: 260g
• Gross Weight: 400g

General Specifications (Both Models)

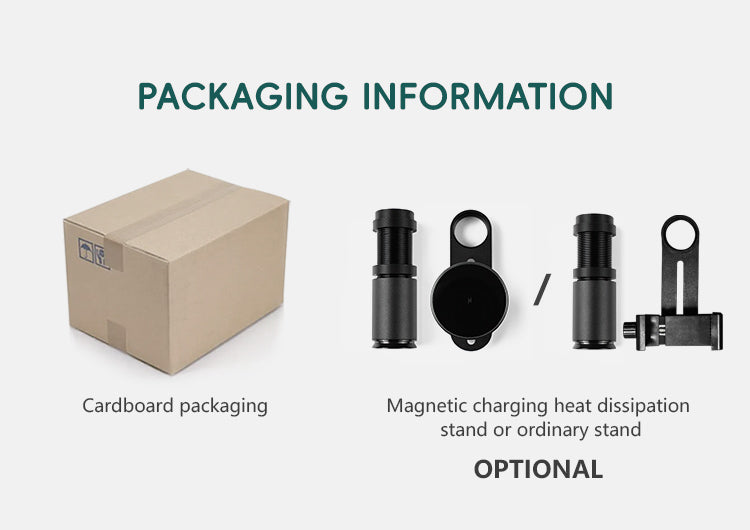

• Packaging Size: 240mm x 160mm x 70mm

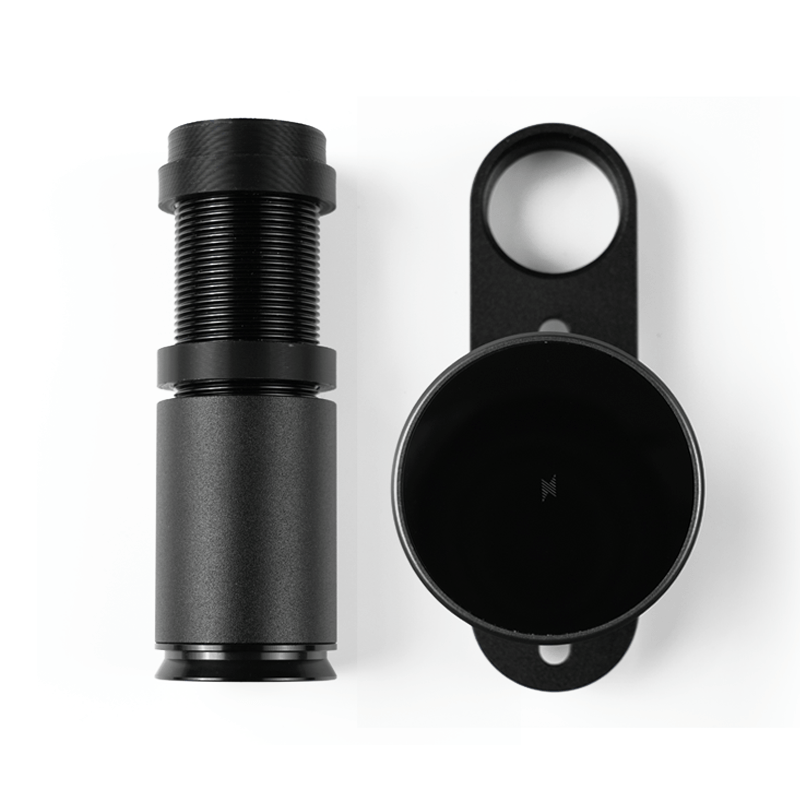

• Material: Durable metal construction
• Compatibility: Standard trinocular microscope camera ports

Q1: What are the primary differences between the Smart Version and the Standard Model?
A1: The Smart Version features magnetic mounting, wireless charging, and an active cooling fan. The Standard Model uses a traditional mechanical clamp to hold the phone and does not include electronic features.

Q2: Why does the Smart Version include a cooling fan?
A2: The built-in fan is designed to actively dissipate heat generated by the smartphone, which is beneficial during long periods of high-definition video recording or screen use to prevent thermal throttling.

Q3: Is this adapter compatible with all microscopes?
A3: The adapter is designed to fit the standard camera port interface found on most trinocular microscopes used in electronics repair.

Q4: Does the wireless charging feature require an external power source?
A4: Yes, the Smart Version requires a connection to a power source (via Type-C cable) to operate the wireless charging and cooling fan functions.
