TBK F001 3-in-1 Soldering Fume Extractor Fan | UV Curing Lamp & Cooling System | Portable Repair Tool

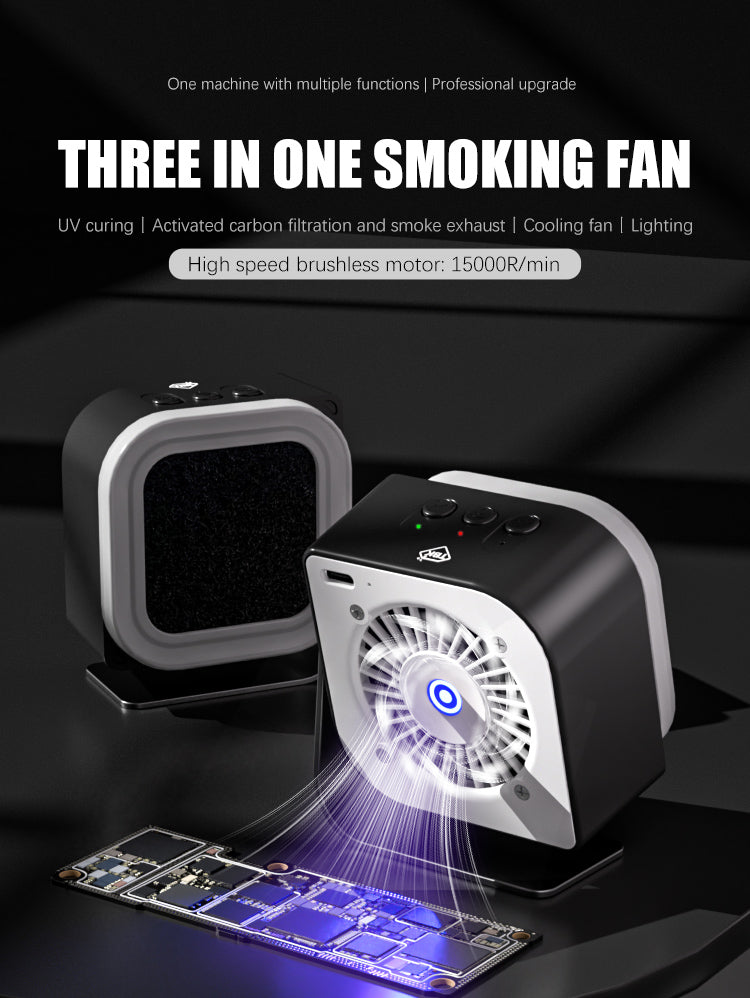

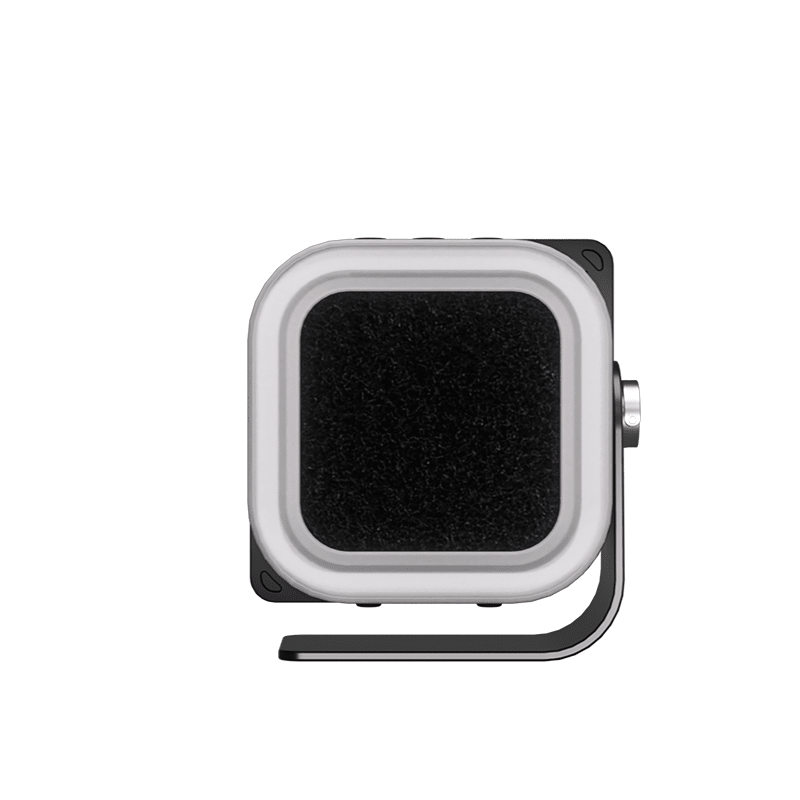

The TBK F001 is a multi-functional desktop unit engineered to enhance the efficiency and safety of electronics repair workspaces. While compact in size, this device integrates four essential functions: soldering fume extraction, component cooling, UV adhesive curing, and auxiliary lighting. Powered by a high-speed brushless motor capable of 15,000 RPM, the fan system supports bidirectional airflow to switch between smoke absorption and heat dissipation. It features a built-in activated carbon filter to mitigate harmful soldering fumes and dual UV lamps for curing repair adhesives. The unit is battery-operated and designed with a small footprint, making it compatible with microscope setups and crowded workbenches.

Multi-Functional Integration: Combines a smoke exhaust system, cooling fan, UV curing lamp, and LED illumination into a single compact chassis.

High-Speed Brushless Motor: Features a motor capable of reaching 15,000 RPM, ensuring strong airflow for both extraction and cooling tasks.

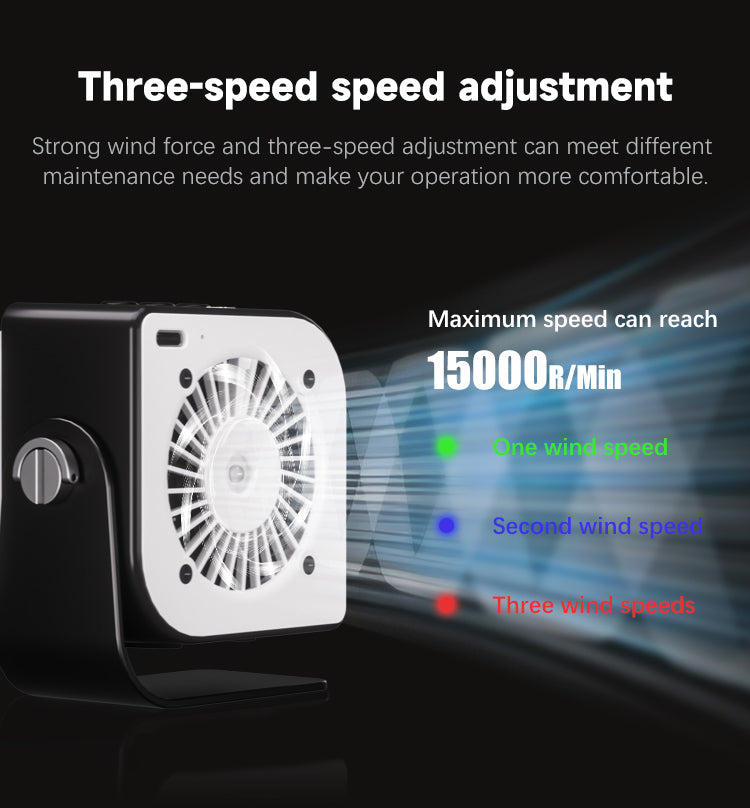

3-Speed Adjustable Control: Offers three distinct speed settings to tailor the airflow intensity to the specific requirements of the repair task.

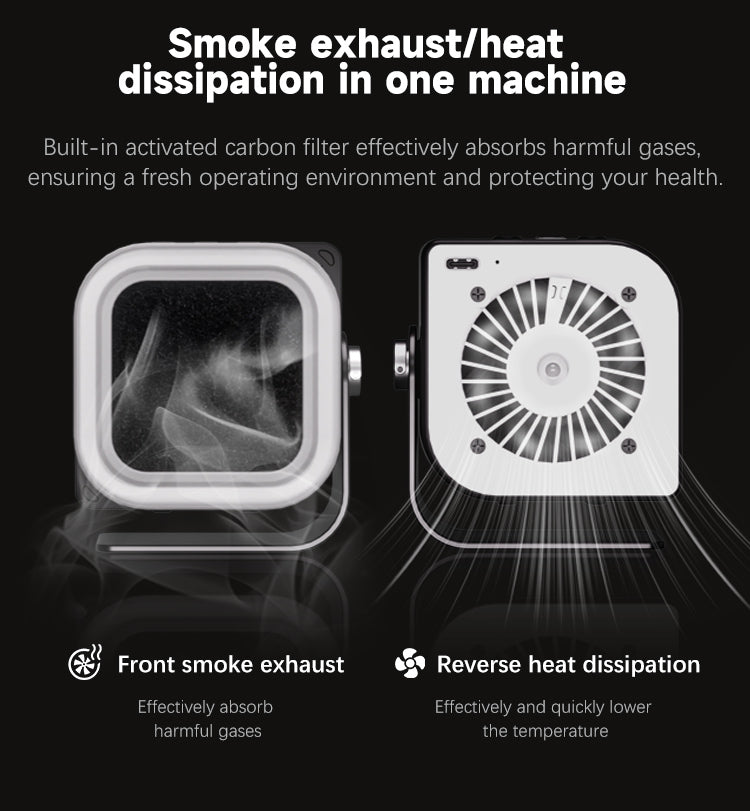

Bidirectional Airflow System:

Forward Mode (Exhaust): Pulls soldering fumes away from the technician through an integrated activated carbon filter.

Reverse Mode (Cooling): Directs airflow towards the component to rapidly dissipate heat after soldering.

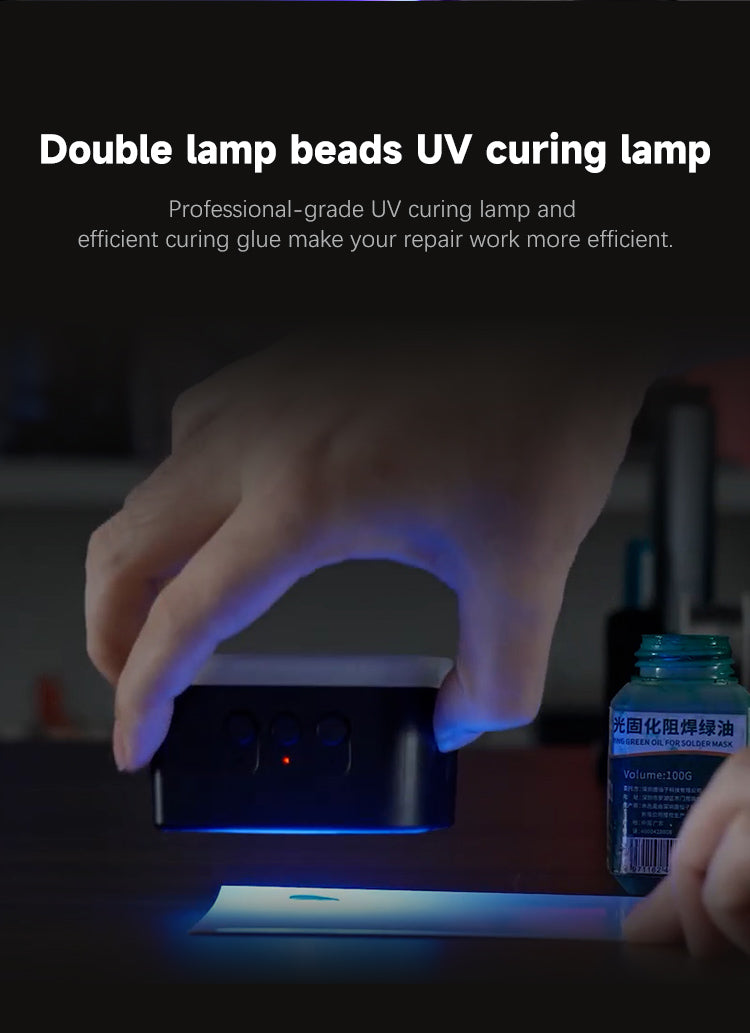

Dual-Bead UV Curing: Equipped with professional-grade double UV lamp beads designed for the rapid curing of optical adhesives (OCA) and solder masks.

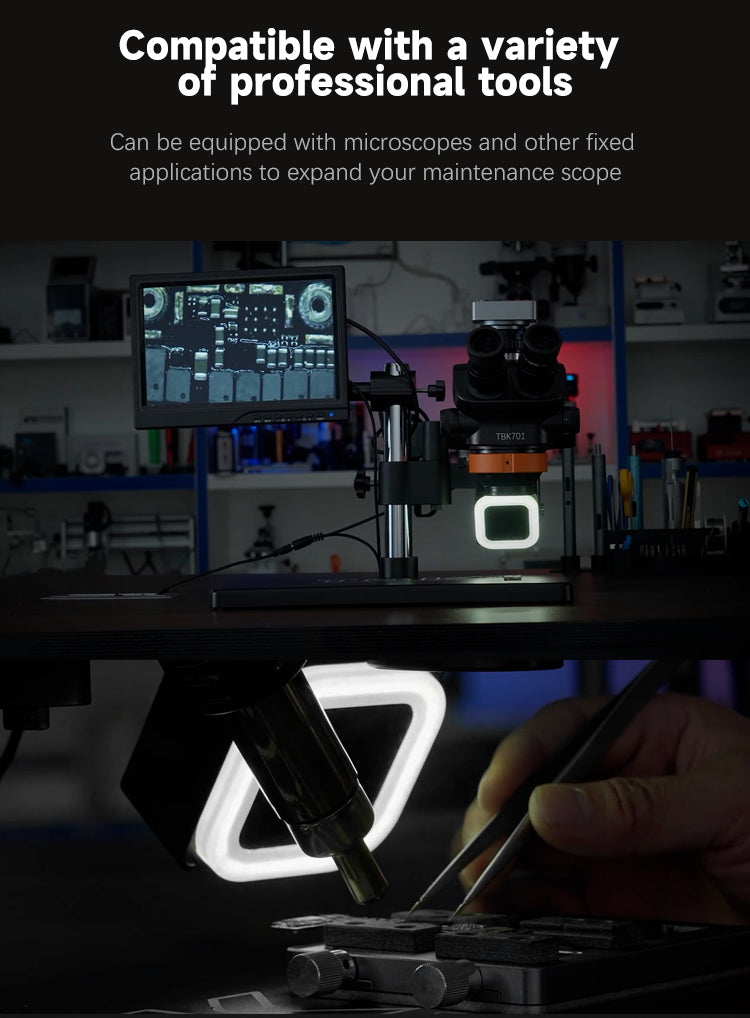

Cordless & Portable: Powered by two 500mAh batteries (10W), allowing for cordless operation and easy positioning around other equipment like microscopes.

Compact Specifications:

Dimensions: 80 x 45 x 80 mm

Net Weight: 230g

Charging: DC 5V 2A

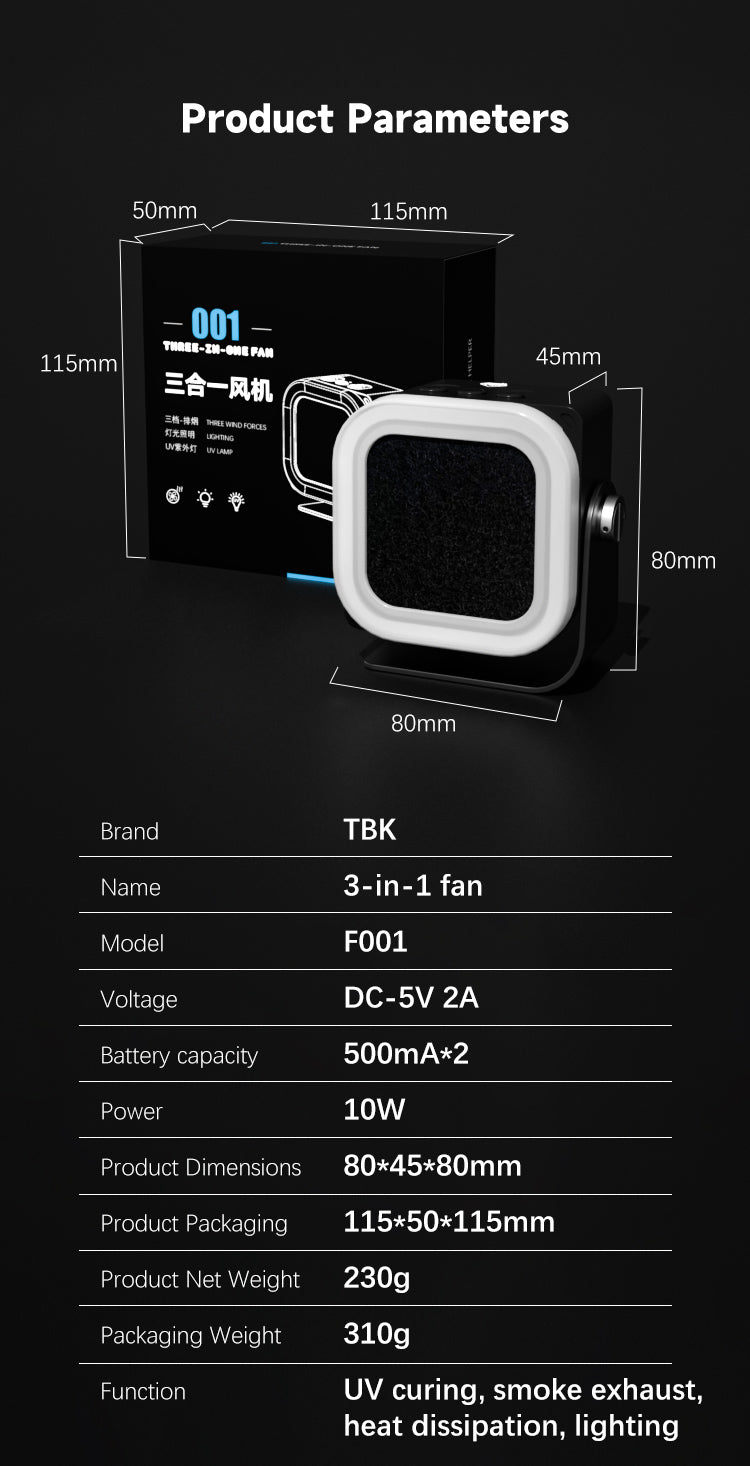

• Brand: TBK
• Name: 3-in-1 Fan
• Model: F001
• Voltage: DC 5V 2A
• Battery Capacity: 500mAh x 2
• Power: 10W
• Product Dimensions: 80 x 45 x 80 mm
• Product Net Weight: 230g
• Packaging Weight: 310g
• Functions: UV Curing, Smoke Exhaust, Heat Dissipation, Lighting

Q1: How do I switch between the smoke exhaust and cooling fan functions?
A1: The fan direction is reversible. To use it as a smoke extractor, set the airflow to blow forward through the filter. To use it as a cooling fan for heat dissipation, switch the direction to reverse.

Q2: Does the smoke extractor have a filter?
A2: Yes, the intake section is equipped with a built-in activated carbon filter designed to trap soldering particulates and absorb fumes.

Q3: How many speed settings are there?
A3: The device features three adjustable speed settings, allowing technicians to control the noise level and suction/cooling power based on the task at hand.

Q4: Is the device portable?
A4: Yes, the unit is highly portable. It weighs only 230g, has compact dimensions (80x45x80mm), and is powered by internal rechargeable batteries (2x 500mAh), eliminating the need for a constant cable connection during use.

Q5: How powerful is the UV curing lamp?
A5: The unit utilizes dual UV lamp beads integrated into the housing. It provides sufficient intensity for the effective and quick curing of standard UV glues, green oil, and solder masks used in phone logic board repairs.
