TBK 958ZU AI-Controlled UV Laser Machine | Standalone System for Back Glass, Screen Separation & Power IC Repair

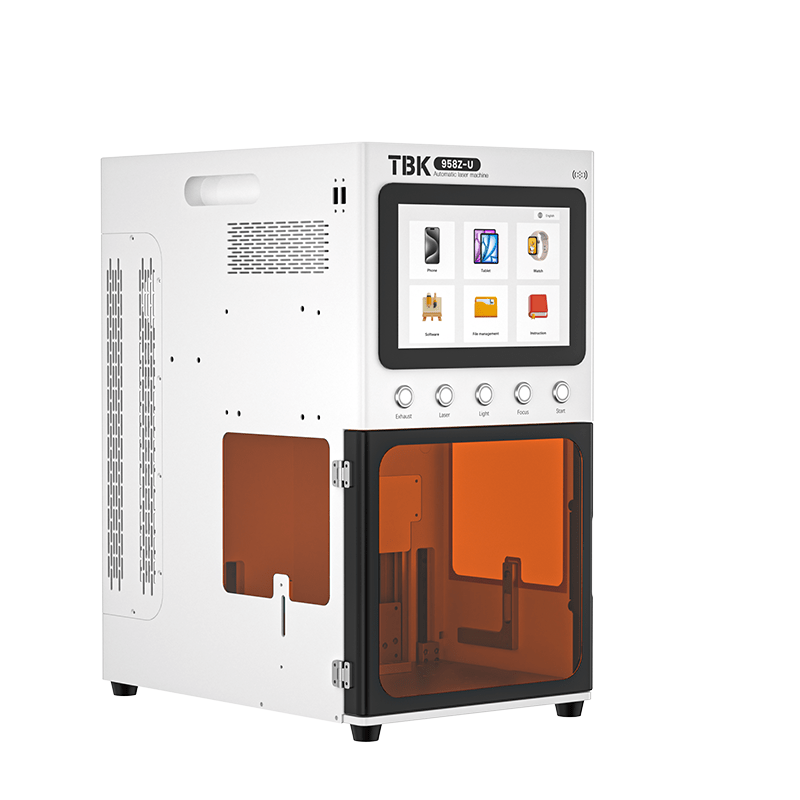

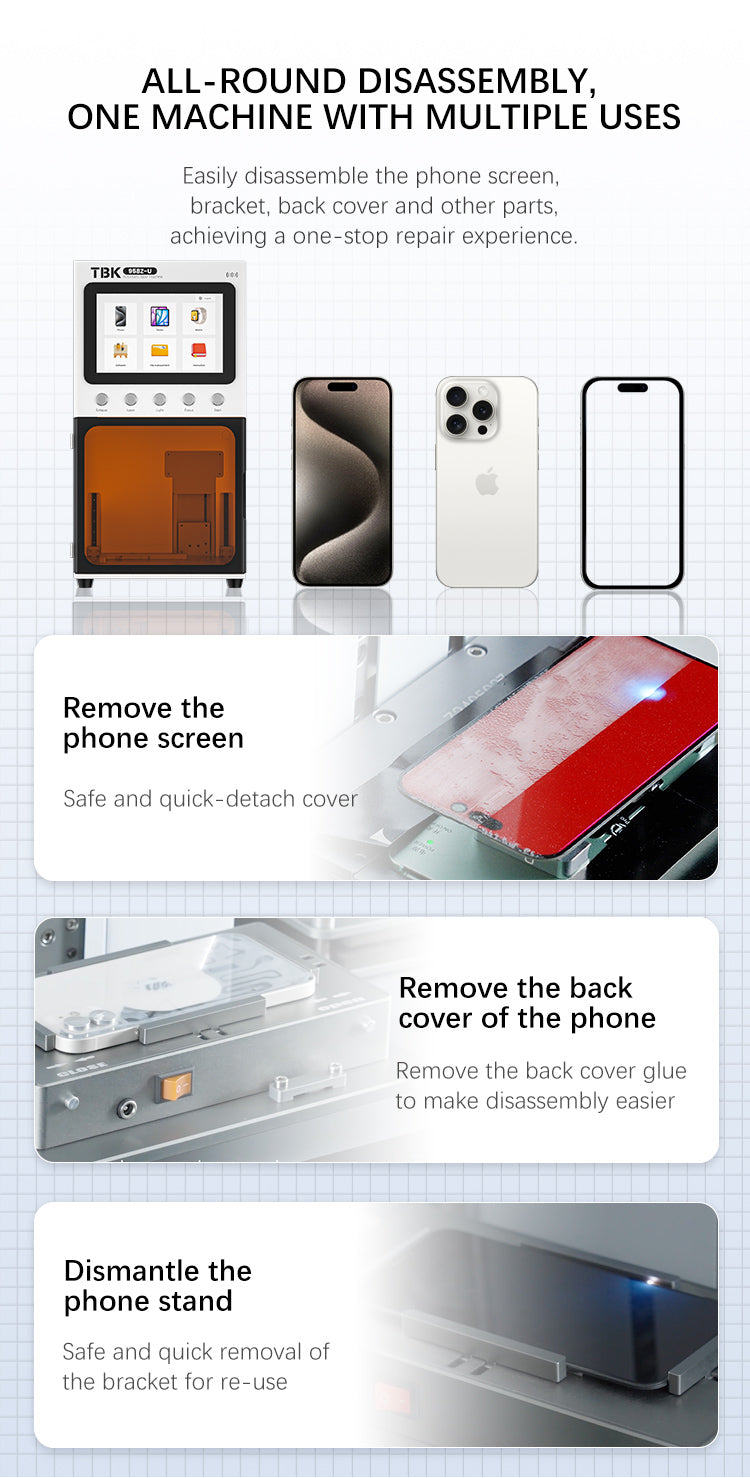

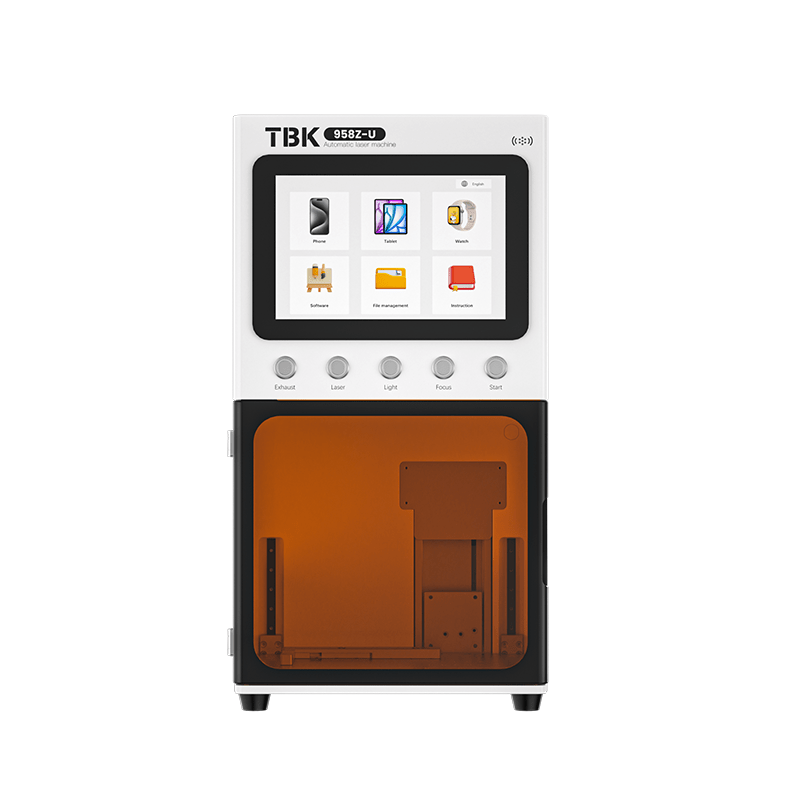

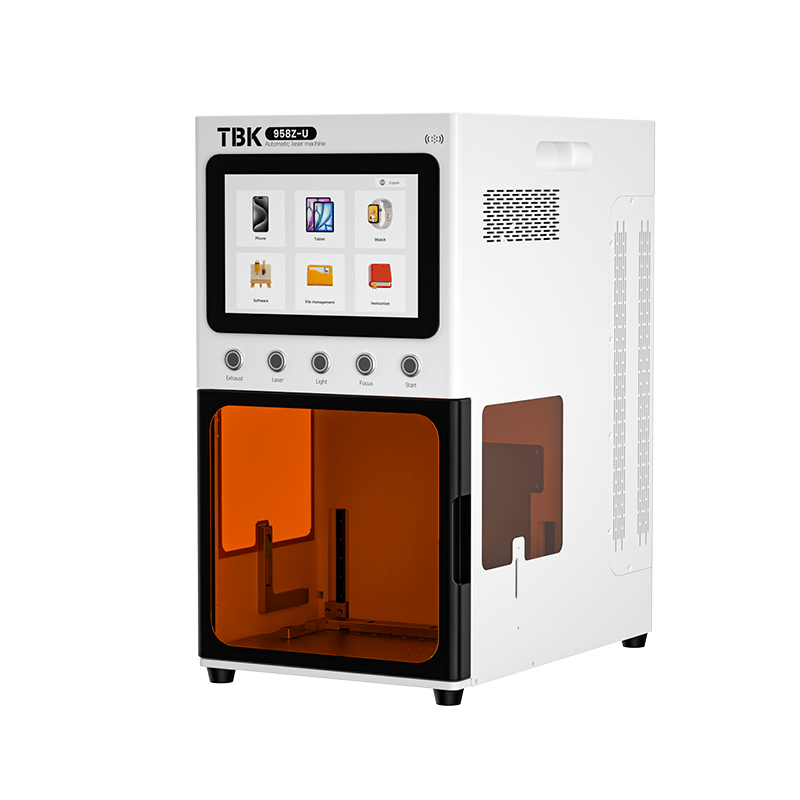

The TBK-958ZU is a standalone UV laser machine engineered for precision mobile device maintenance. It specializes in back glass removal, screen and bracket separation, and power IC repair without requiring an external computer connection. The unit features an integrated operating system accessed via a 10.1-inch HD touch screen, allowing users to edit drawings and manage files directly on the device. Equipped with AI voice control and a high-speed automatic focusing system, the machine ensures operational accuracy. The cold UV laser source supports back glass removal cycles of 4-8 minutes and is compatible with a wide range of mobile phone models. For operator safety, the design includes a protective vision shield and a built-in activated carbon fume extractor to filter smoke and particulates.

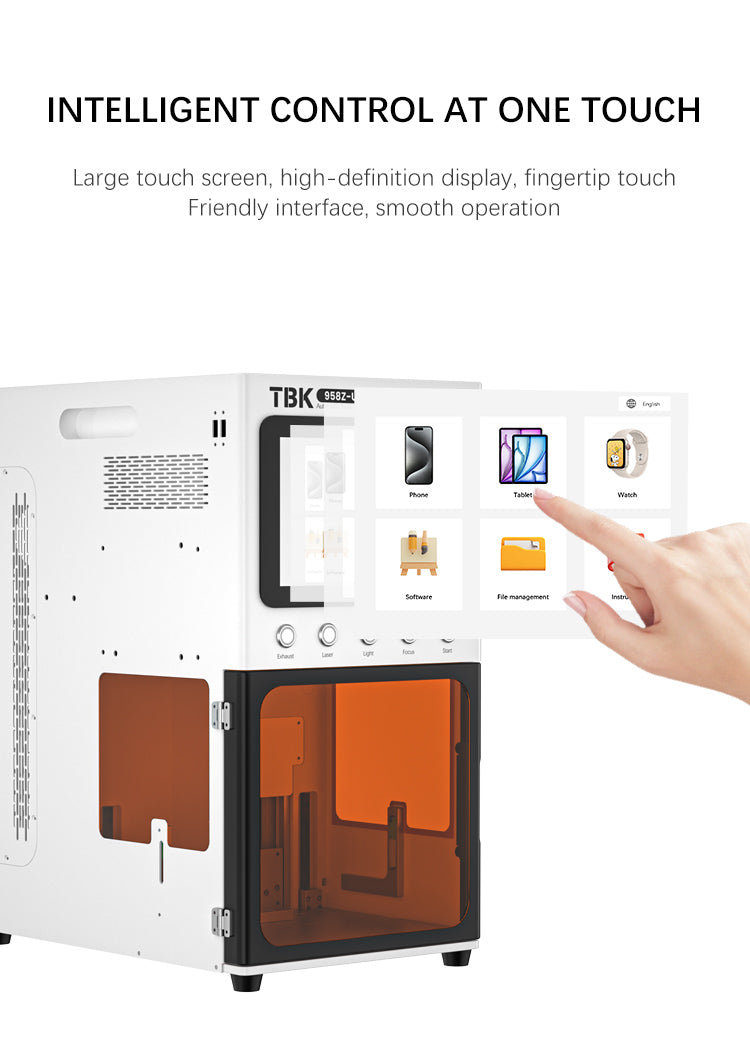

Standalone Operating System: Equipped with a built-in OS and a 10.1-inch HD touch screen, enabling complete file editing and machine operation without connecting to an external PC.

Precision Cold UV Laser: The cold light source minimizes thermal stress, allowing for safe back glass removal, screen separation, and delicate Power IC repair.

AI Voice Command: Features intelligent voice control capabilities, allowing operators to execute commands hands-free for improved workflow efficiency.

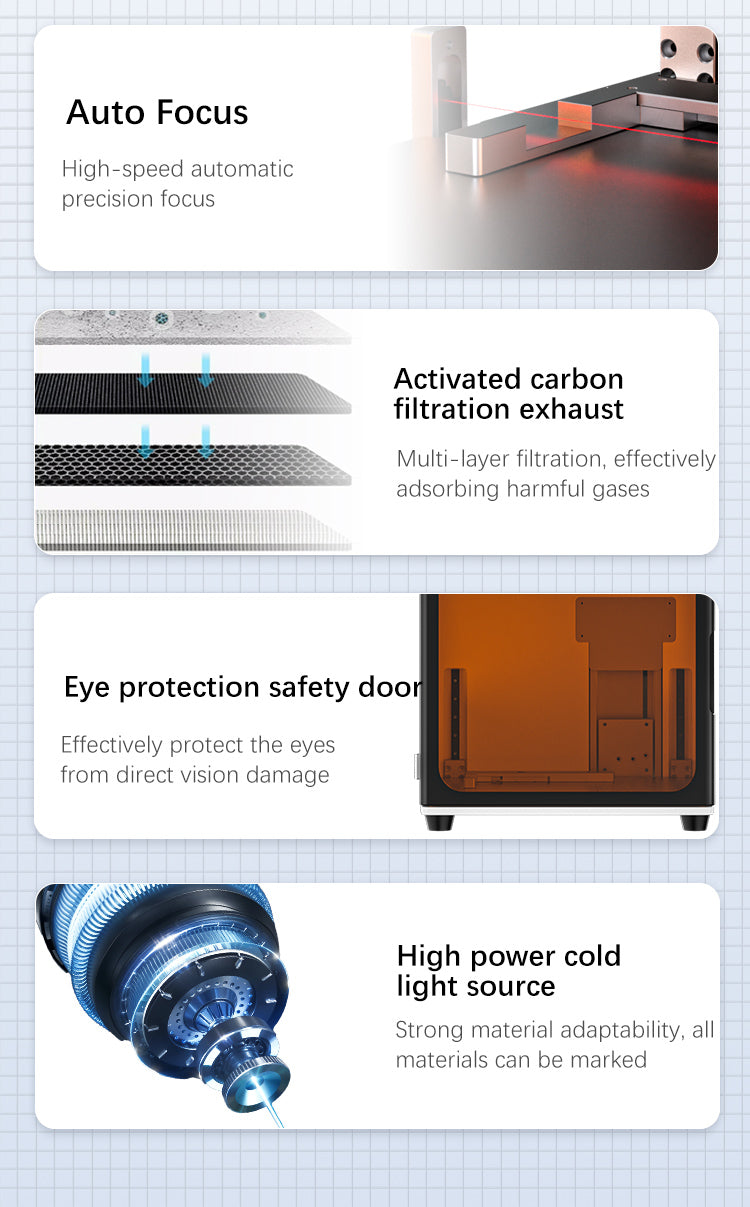

High-Speed Auto Focus: Automatically adjusts the laser focal point to ensure consistent precision across different device thicknesses.

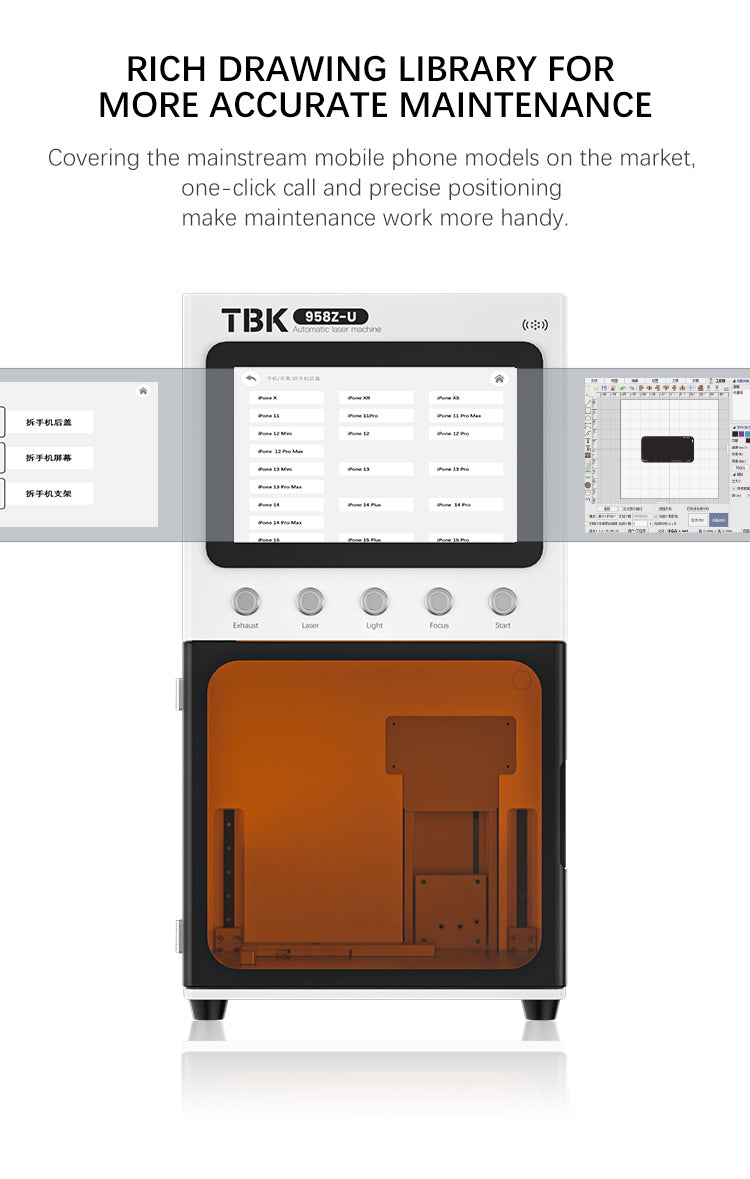

Pre-Installed Drawing Library: Includes a comprehensive database of templates for mainstream mobile phone models, simplifying the repair process.

Integrated Safety System: Designed with an eye-protection door to block UV radiation and an activated carbon fume extractor to filter smoke and odors.

Multi-Material Marking: Capable of engraving and marking on various materials including metal, plastic, glass, ceramics, and silicone.

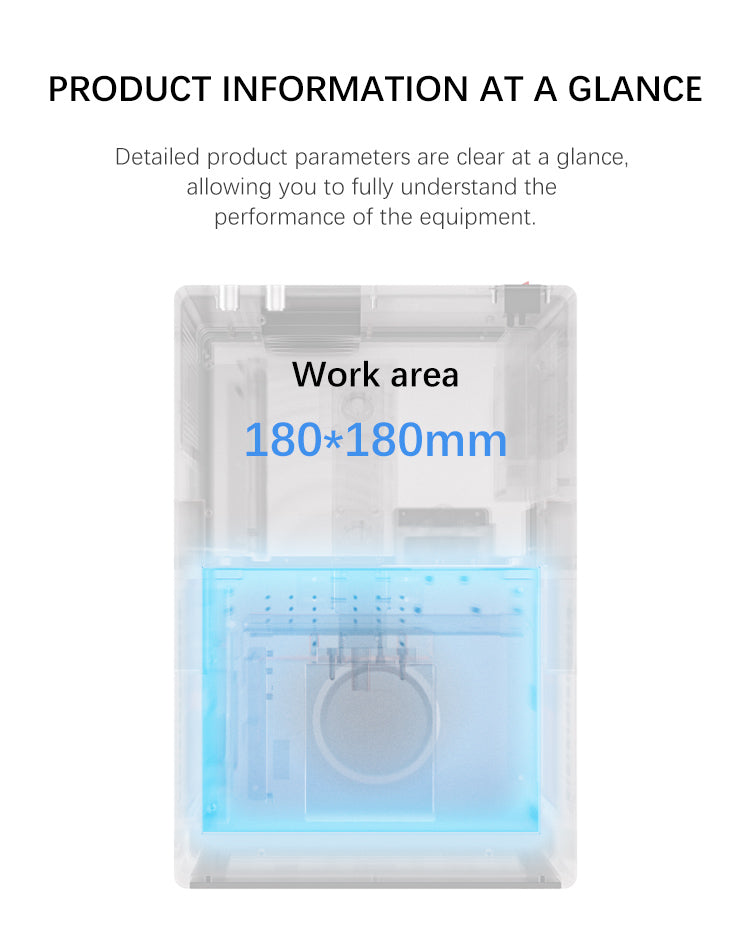

Standard Work Area: Provides a working range of 180mm x 180mm, specifically dimensioned for mobile phone maintenance tasks.

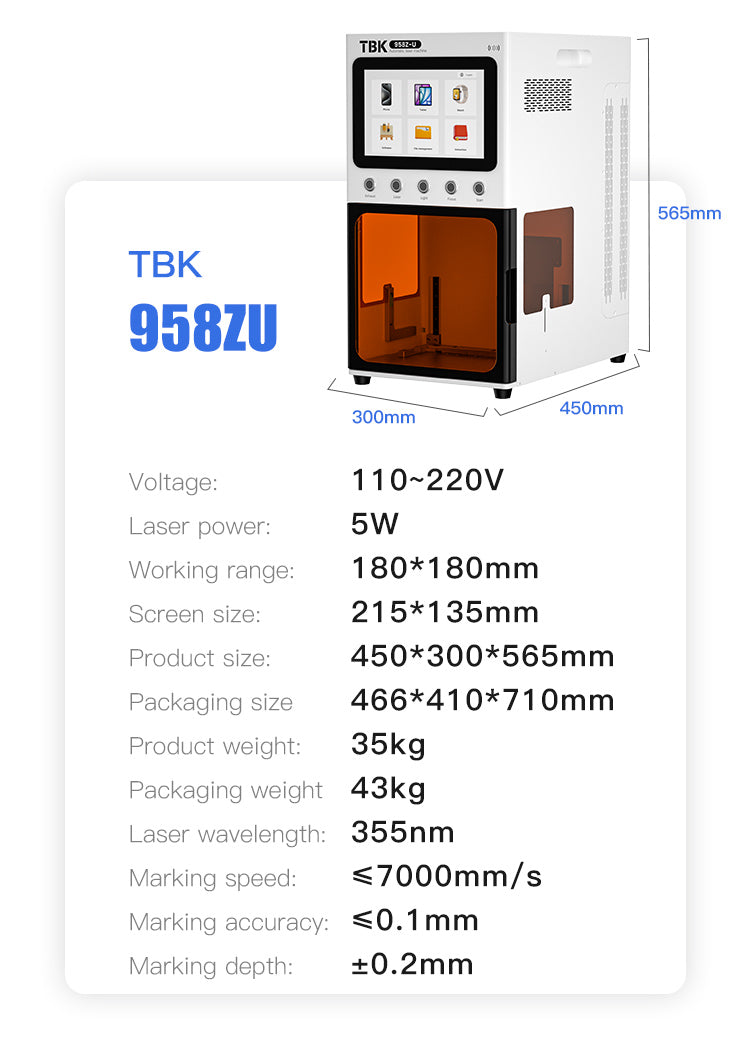

• Model: TBK 958ZU
• Voltage: 110V ~ 220V
• Laser Power: 5W
• Laser Wavelength: 355nm
• Working Range: 180 x 180 mm
• Screen Size: 215 x 135 mm
• Marking Speed: ≤7000 mm/s
• Marking Accuracy: ≤0.1 mm
• Marking Depth: ±0.2 mm
• Product Dimensions: 450 x 300 x 565 mm
• Packaging Size: 466 x 410 x 710 mm
• Product Weight: 35 kg
• Packaging Weight: 43 kg

Q1: Do I need a computer to use the TBK-958ZU?
A1: No, the TBK-958ZU is a standalone unit with a built-in operating system and touch screen. You can edit files and control the laser directly on the machine without an external computer.

Q2: What types of repairs is this machine suitable for?
A2: It is optimized for back glass removal, screen and bracket separation, and due to its cold laser precision, it is also suitable for Power IC repair.

Q3: How effective is the smoke extraction?
A3: The machine features a built-in activated carbon fume extractor that absorbs and filters smoke and fumes generated during the laser process, ensuring a cleaner work environment.

Q4: How long does it take to remove a phone's back glass?
A4: Depending on the specific phone model and adhesive type, the laser process for back glass removal typically takes between 4 to 8 minutes.

Q5: Is the machine difficult to operate for new users?
A5: The machine is designed for ease of use with an intuitive touch interface, AI voice control, and automatic focusing. It also comes with pre-installed drawings for common phone models to assist operation.
