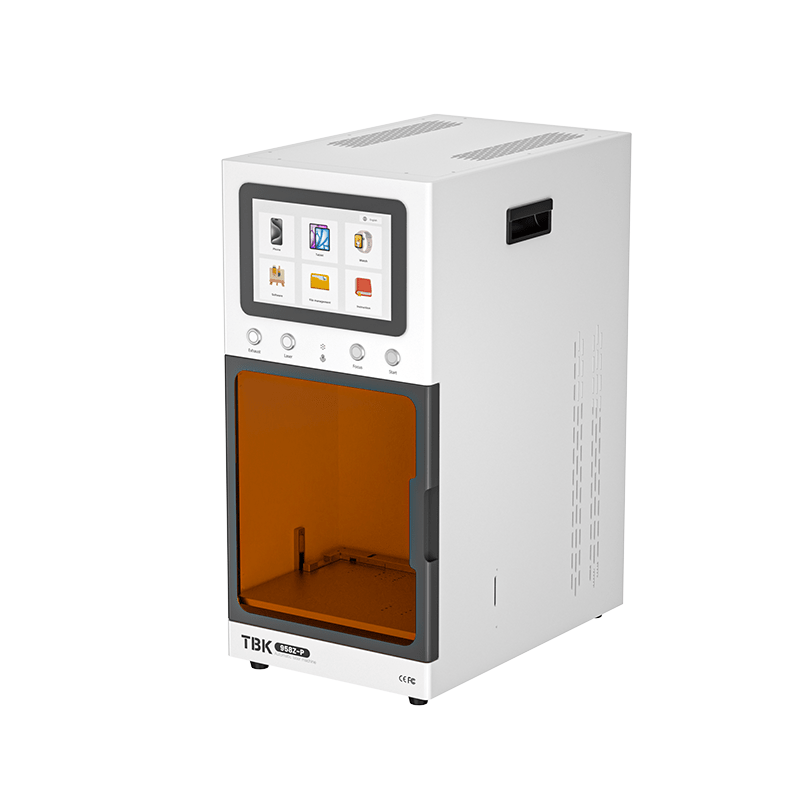

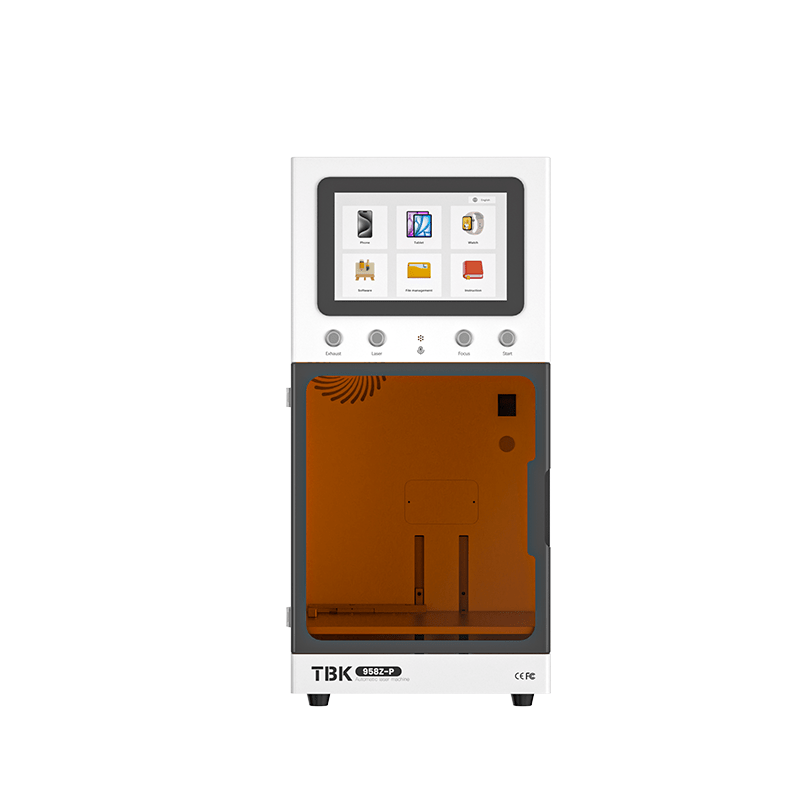

TBK 958ZP All-in-One UV Laser Machine | Large Workspace for Back Glass Repair, Screen Separation & Engraving

The TBK-958ZP utilizes advanced UV cold laser technology designed for the precise separation of mobile device components. This machine facilitates the removal of back glass, LCD screens, and brackets for mobile phones, tablets, and watches without causing thermal damage to the device body or flex cables. Engineered for larger devices, it features a 310mm x 250mm work area capable of accommodating tablets up to 12.9 inches. The all-in-one system integrates a built-in computer with AI language support, enabling back glass removal cycles of approximately 4-8 minutes. Additionally, the unit is equipped with a built-in smoke exhaust system and UV safety shield to maintain a compliant workspace. Beyond repair applications, the UV laser supports engraving on materials such as metal, plastic, and glass.

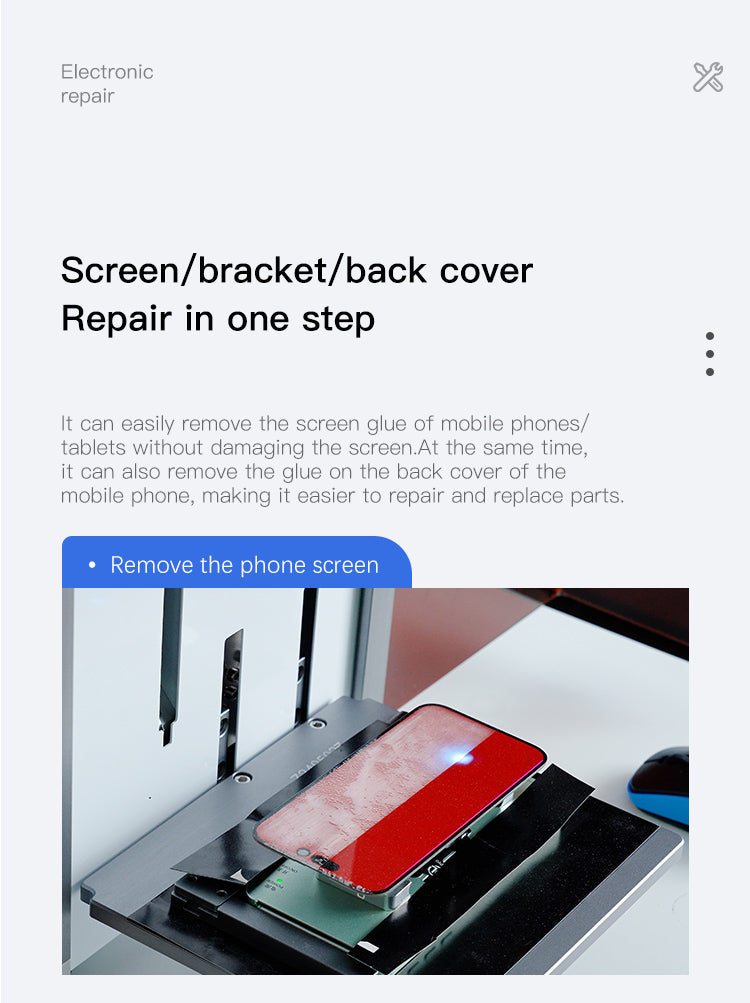

Cold Light Laser Technology: Effectively separates LCD screens, brackets, and back glass without damaging the device frame, screen components, or flex cables.

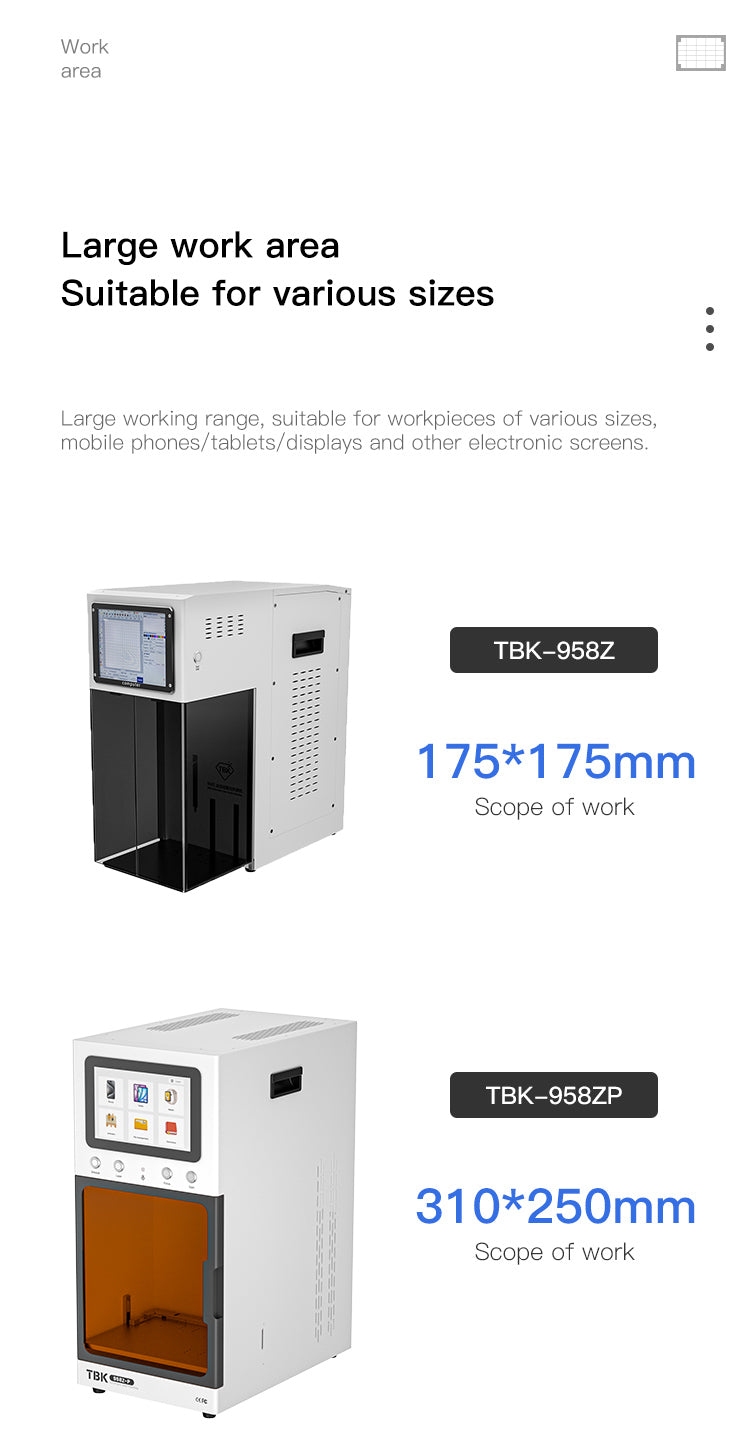

Expanded Work Area: Features a 310mm x 250mm platform, specifically engineered to support maintenance on mobile phones and tablets up to 12.9 inches.

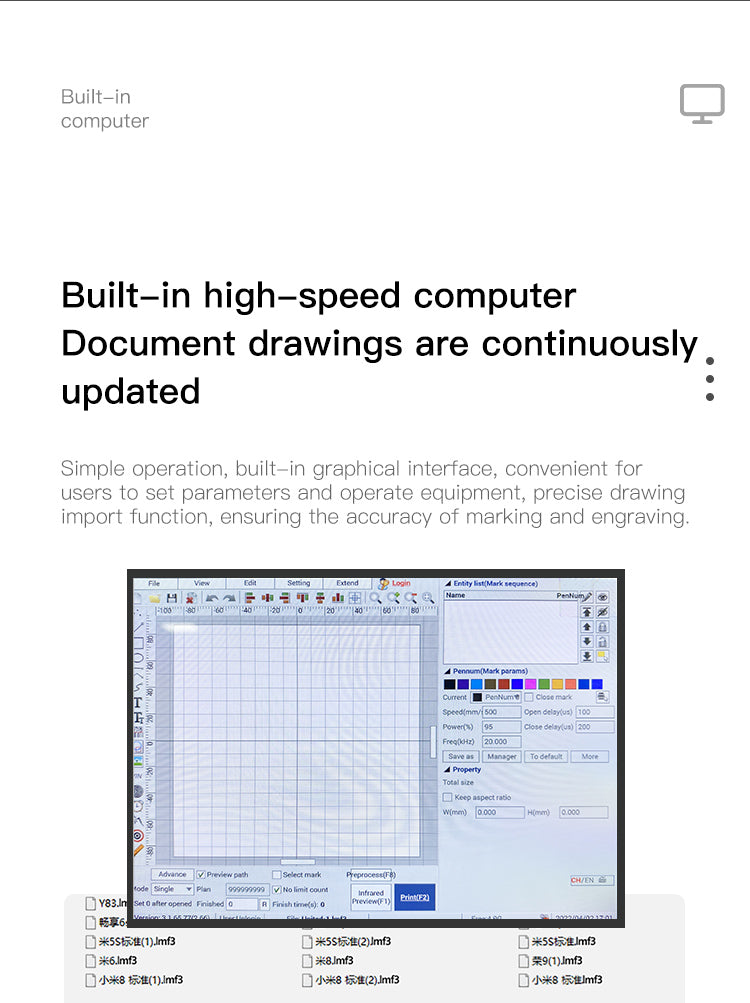

Integrated All-in-One Design: Includes a built-in computer system with AI language capabilities, eliminating the need for external PC connections.

Automated Calibration: Equipped with an Auto Focus function that automatically adjusts the laser focal point for consistent precision.

Multi-Material Engraving: Supports marking and engraving on diverse materials including metal, plastic, ceramic, and glass.

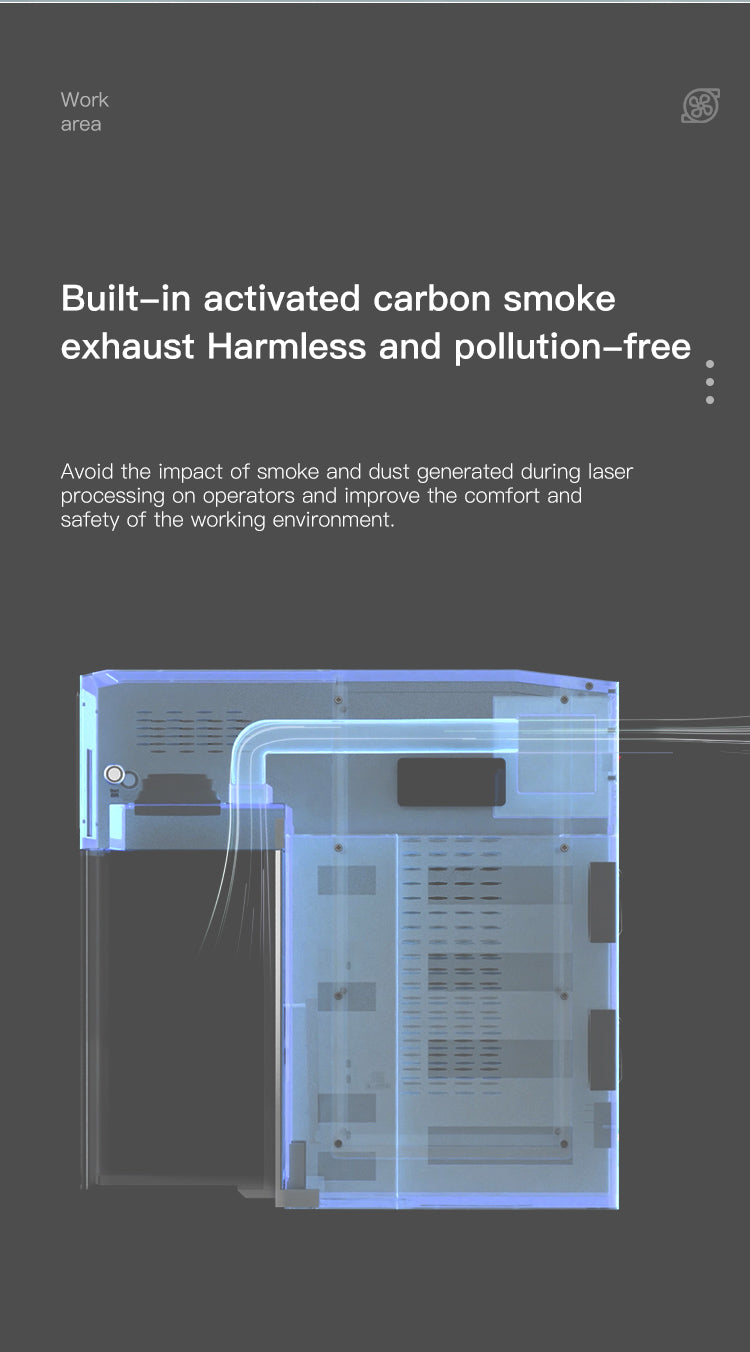

Built-in Fume Extraction: Incorporates an activated carbon filtration system to manage smoke and odors during operation.

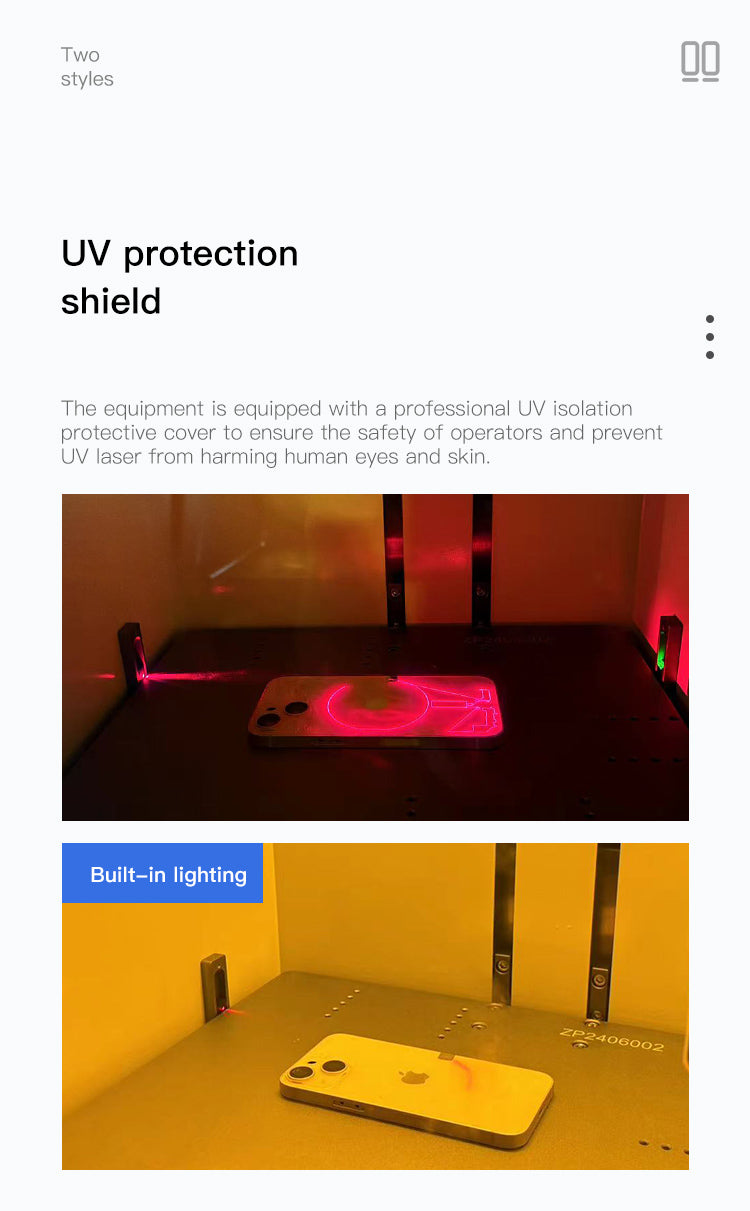

Safety Protection: Designed with an integrated UV shield and internal lighting to ensure operator safety during the laser process.

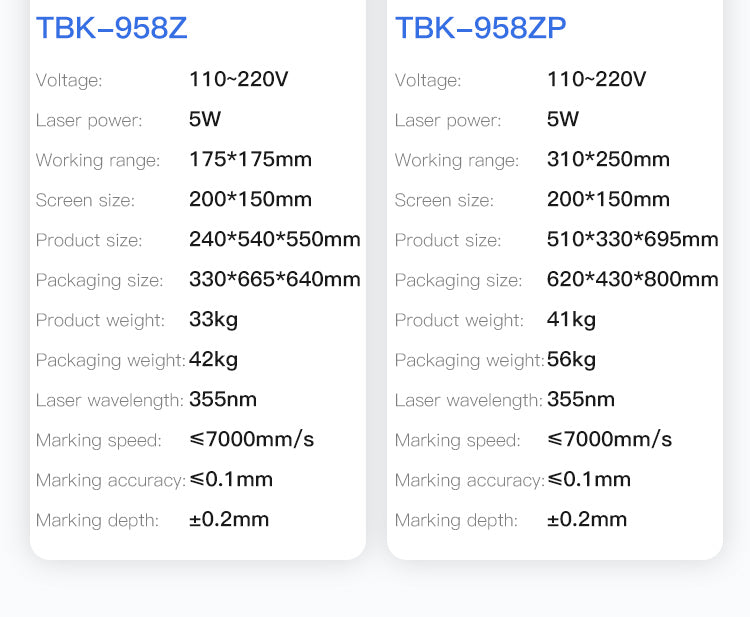

• Model: TBK-958ZP
• Product Name: UV Cold Light Laser Machine

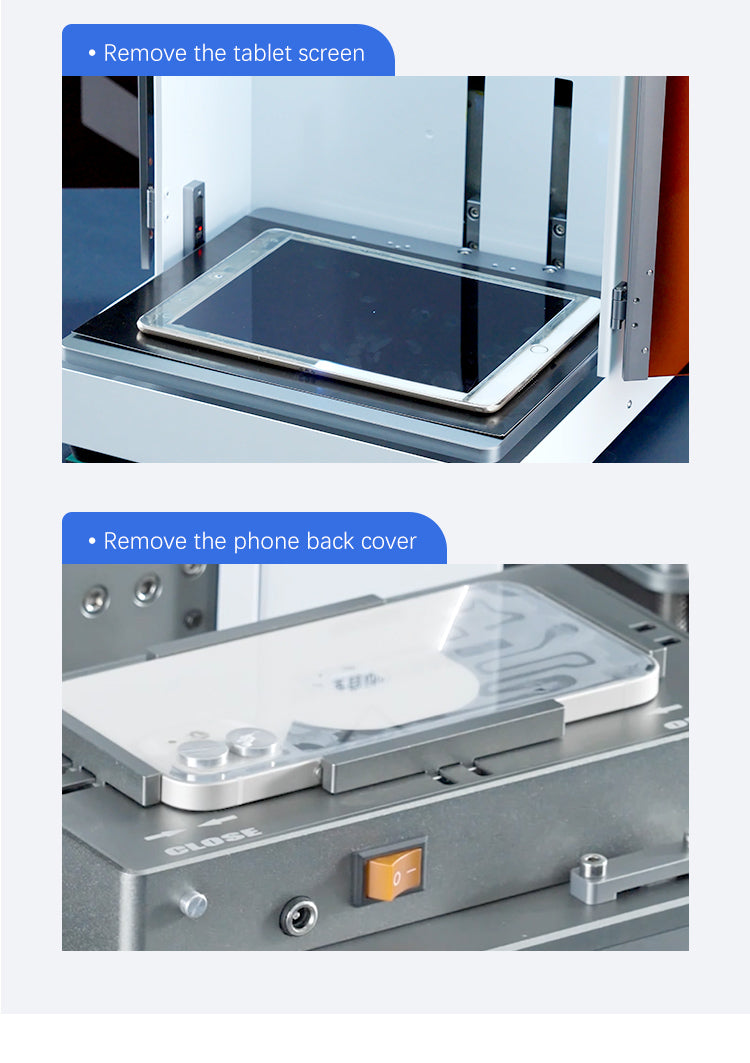

• Function: Screen & back glass removal (phones, tablets, watches), marking, & engraving
• Laser Type: UV Laser
• Laser Wavelength: 355 nm
• Laser Power: 3W / 5W (Typically Optional)
• Working Area: 310 mm x 250 mm
• Focusing Method: Auto Focus
• Cooling Method: Air Cooling
• Operating System: Built-in All-in-One System
• Smoke Filtration: Built-in Activated Carbon Smoke Filtration System
• Input Voltage: AC 110V / 220V (Optional)
• Total Power: ≈ 500 W
• Dimensions: Approx. 595 x 380 x 600 mm
• Net Weight: Approx. 45 kg
• Gross Weight: Approx. 55 kg

Q1: What is the maximum device size the TBK-958ZP can accommodate?
A1: The TBK-958ZP features a large work area of 310mm x 250mm, which supports devices up to 12.9 inches, making it suitable for both mobile phones and large tablets.

Q2: Does the UV cold laser technology damage the phone's internal components or flex cables?
A2: No. The machine uses cold light technology designed to separate screens and back glass without generating excessive heat, protecting the device body, screen, and sensitive flex cables from damage.

Q3: Do I need to connect an external computer or smoke extractor to operate this machine?
A3: No, the TBK-958ZP is an all-in-one system. It comes with a built-in computer for operation and an integrated activated carbon smoke exhaust system, requiring no external peripherals.

Q4: How long does the laser process take for removing a phone's back glass?
A4: The typical processing time for removing a mobile phone back glass is approximately 4 to 8 minutes, depending on the specific model and adhesive condition.

Q5: Can this machine be used for tasks other than repair?
A5: Yes, in addition to repair functions like screen and back glass separation, the UV laser is capable of engraving and marking on various materials, including metal, plastic, ceramic, and glass.
