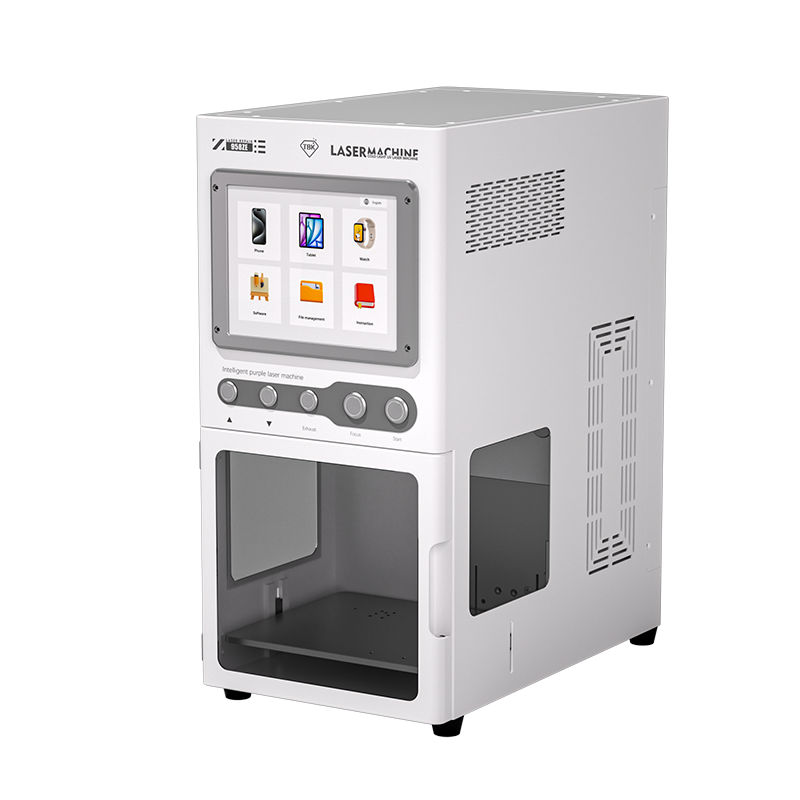

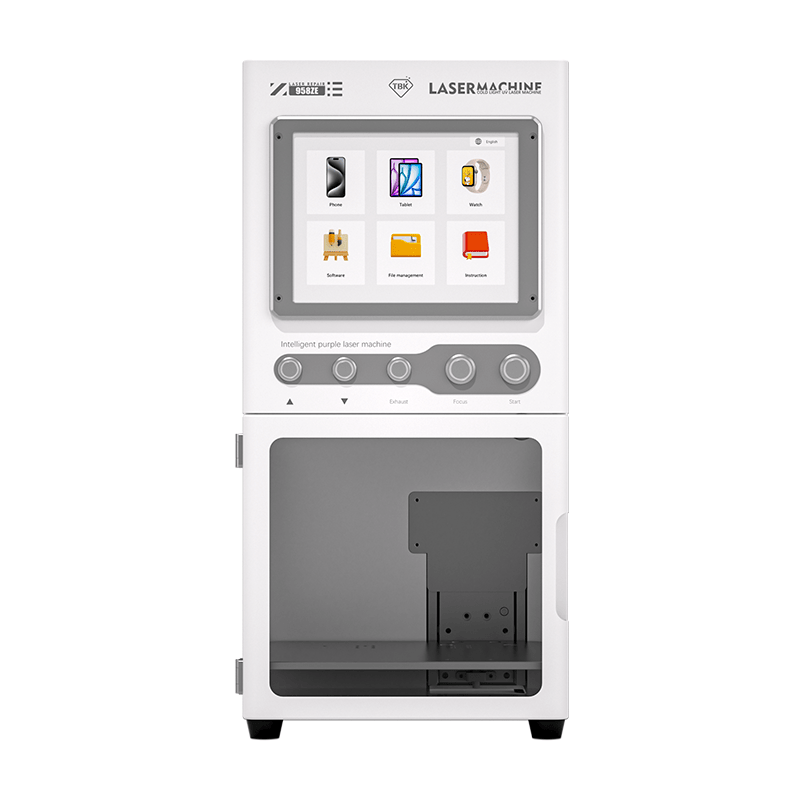

TBK 958ZE UV Laser Machine for Back Glass Removal & LCD Screen Separation | Built-in Fume Extractor

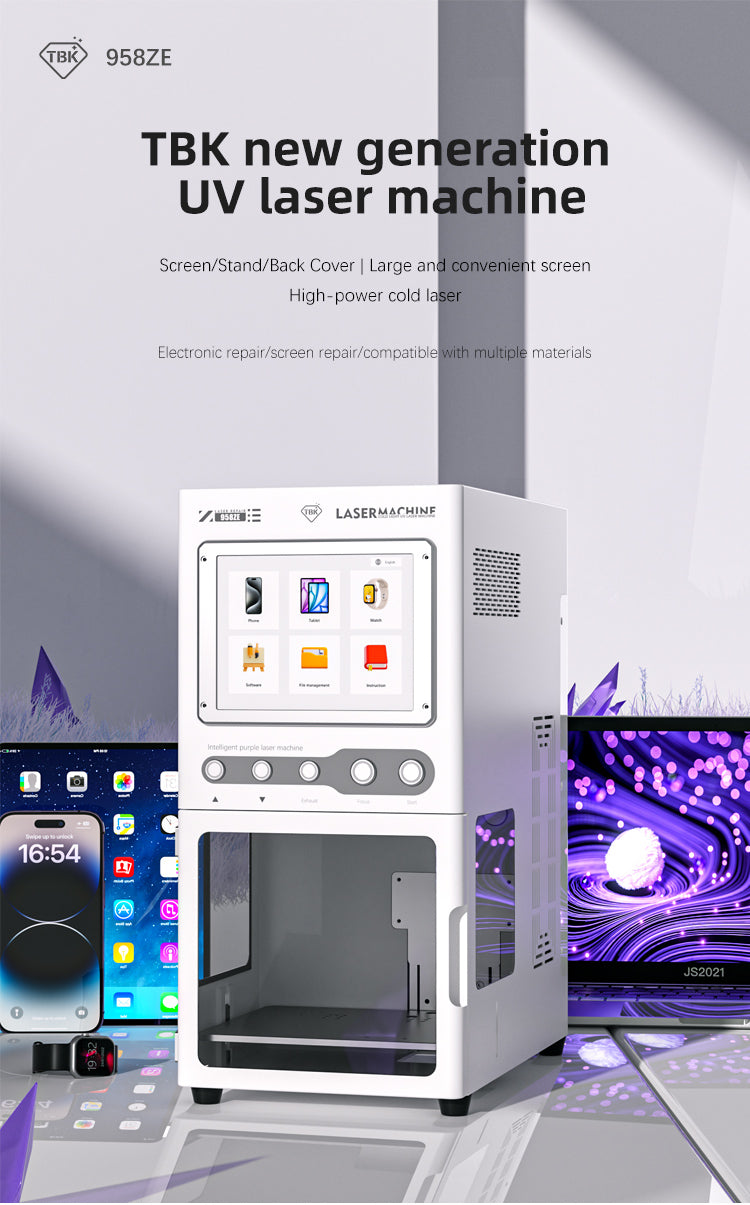

The TBK-958ZE is a compact UV laser system engineered for professional mobile device refurbishment. Designed to optimize workbench space, this unit features a small footprint while maintaining the capability to process mobile phone back glass removal in approximately 4 to 8 minutes. It serves as a multi-functional station capable of separating LCD screens, removing back glass panels, and detaching frame brackets. Beyond repairs, the unit supports industrial marking and engraving on materials including metal, plastic, and glass. The system integrates essential workflow features such as a pre-loaded drawing library, automatic focusing, and a built-in activated carbon fume extractor to manage repair byproducts effectively.

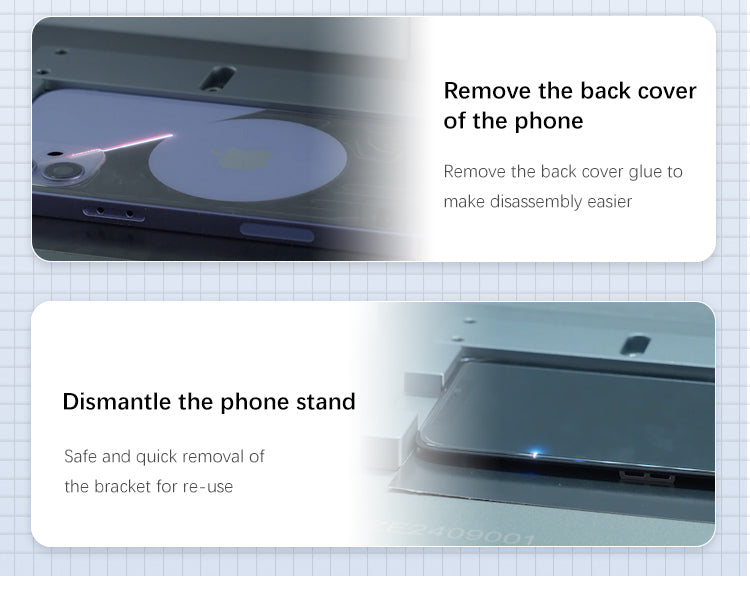

Efficient Back Glass Removal: Completes back glass laser removal cycles in 4-8 minutes. The system also functions as a separator for LCD screens and frame brackets.

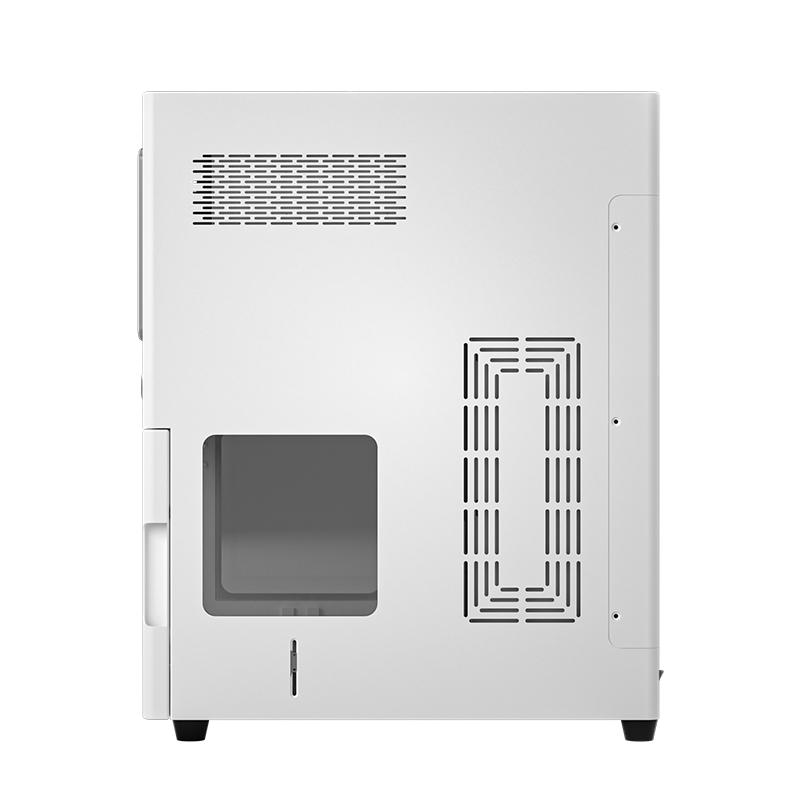

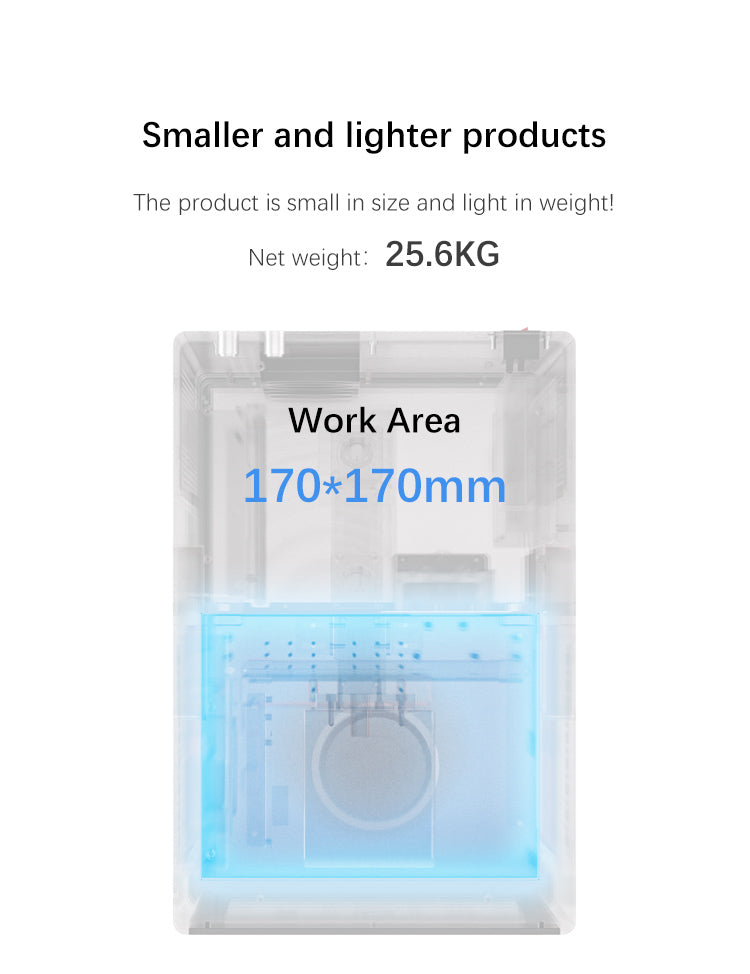

Space-Saving Design: Features a compact chassis (240 × 400 × 500mm) with a net weight of 25.6 kg, suitable for repair shops with limited operational space.

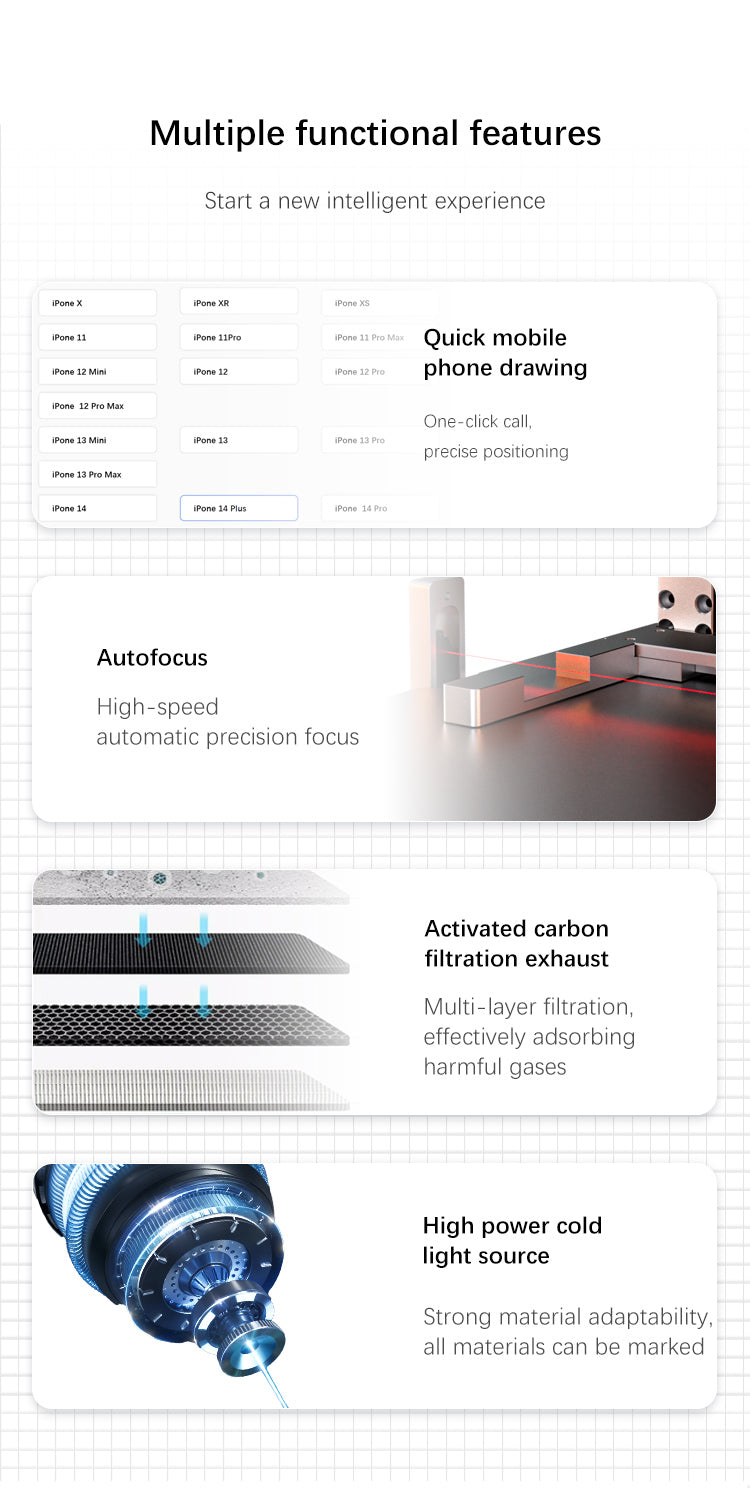

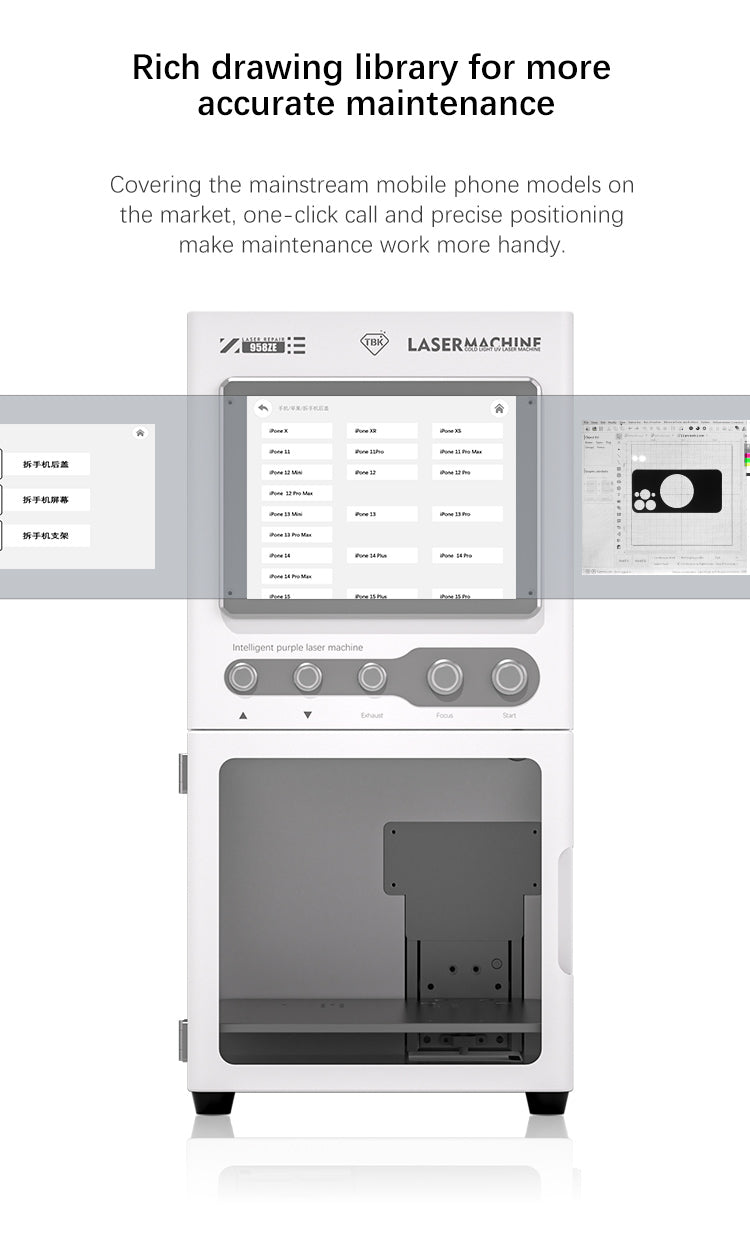

Integrated Schematics Library: The operating system includes a pre-loaded database of drawings for mainstream mobile phone models, facilitating precise alignment and operation.

Automatic Focus System: Equipped with a high-speed sensor for automated focal length adjustment, ensuring consistent laser precision without manual calibration.

Multi-Material Versatility: Supports laser marking and etching on diverse substrates including metal, plastic, glass, silicone, and ceramics.

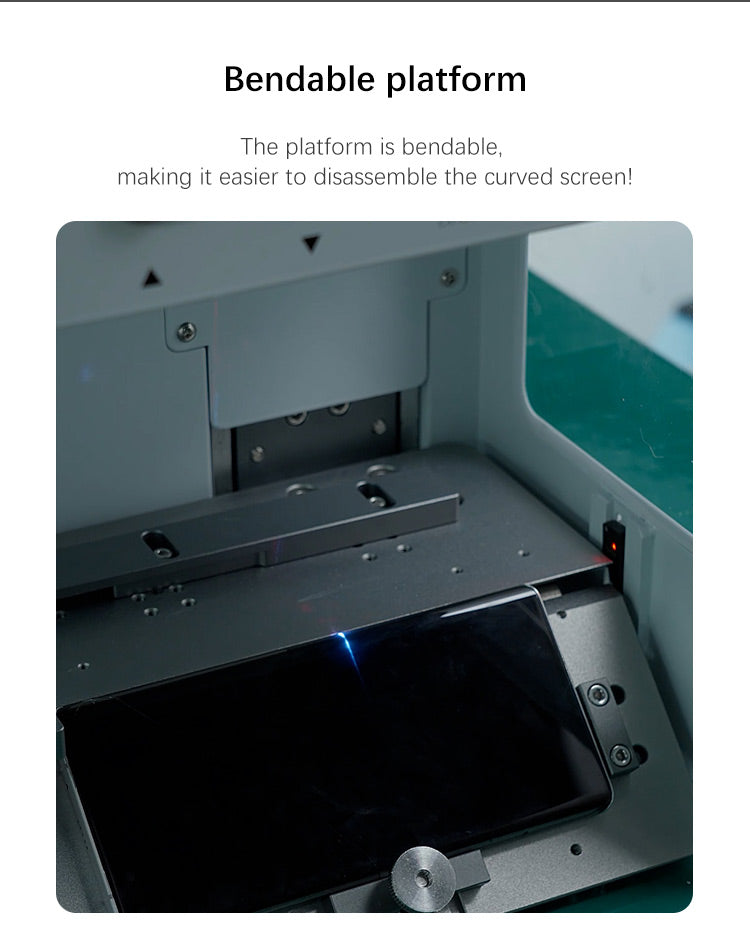

Adjustable Platform: The specialized platform design accommodates various screen types, allowing for safe and effective separation of display assemblies.

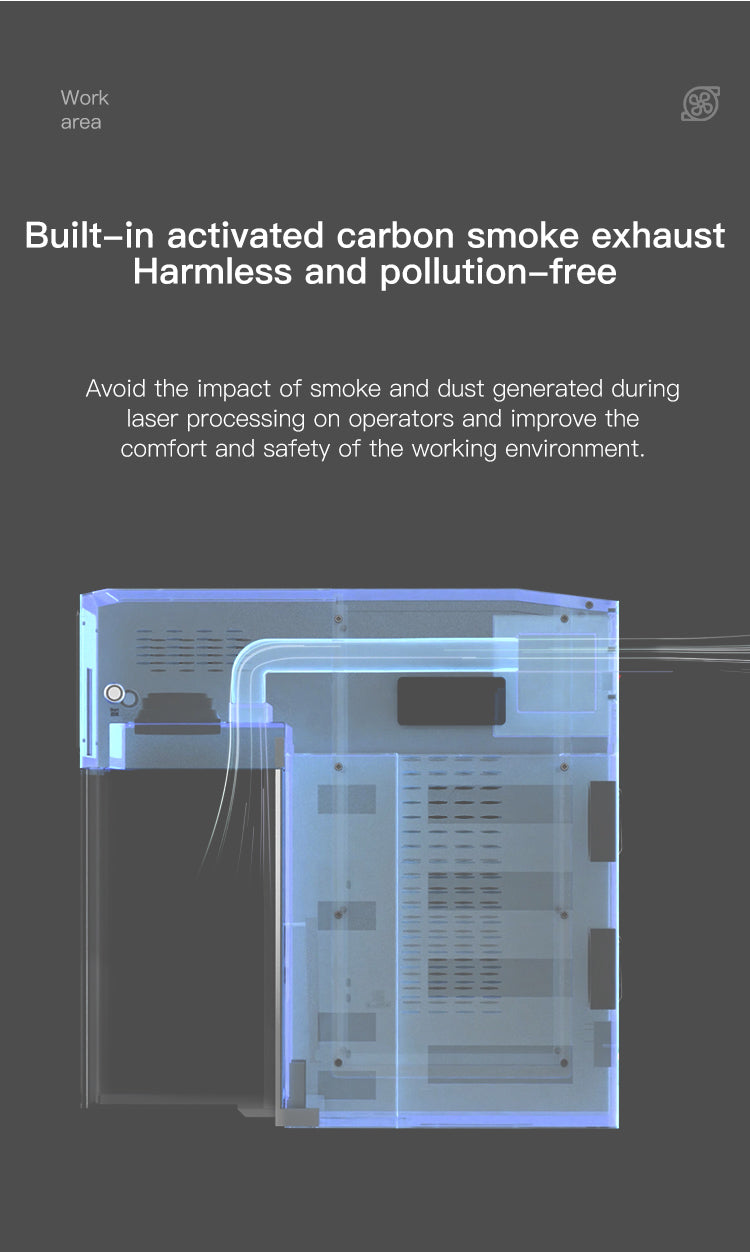

Built-in Air Filtration: Features an integrated fume extraction system with activated carbon filtration to absorb smoke and particulates during laser operation.

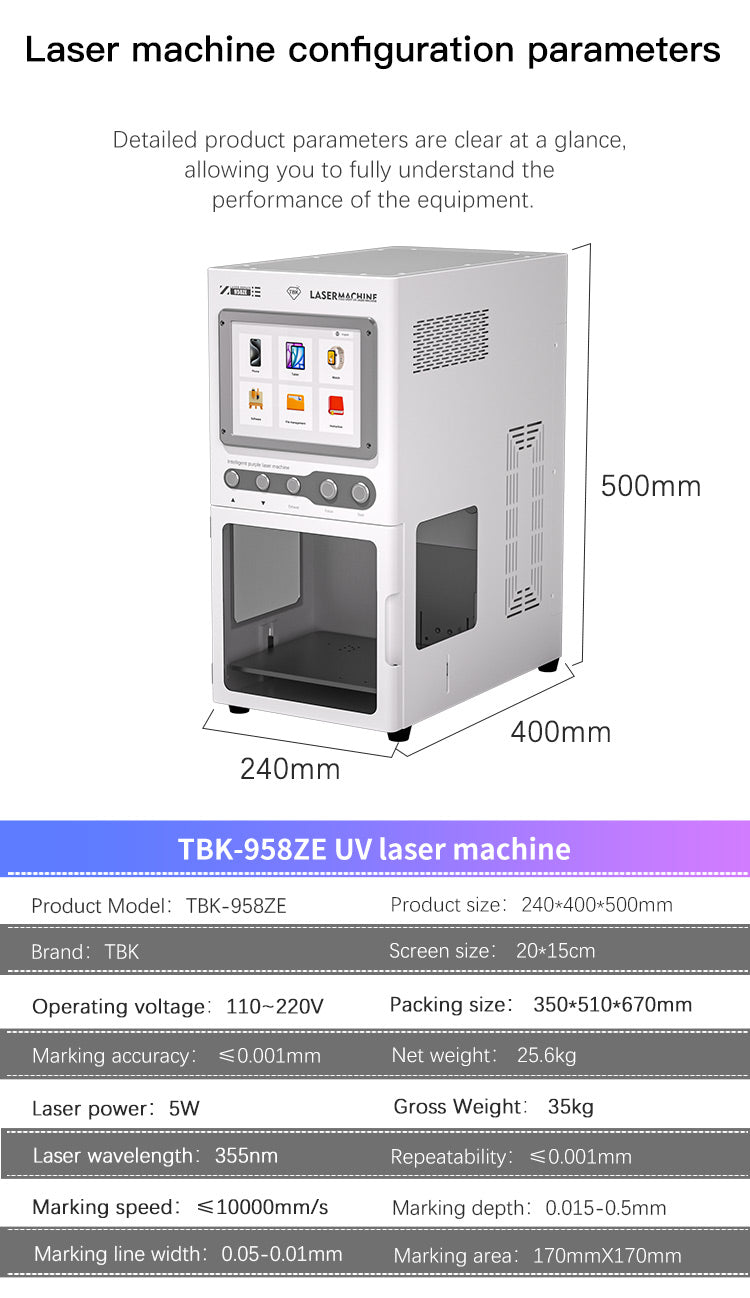

• Product Model: TBK-958ZE
• Brand: TBK
• Operating Voltage: 110-220V
• Laser Power: 5W
• Laser Wavelength: 355nm
• Marking Area: 170mm x 170mm
• Marking Speed: ≤10000mm/s
• Marking Line Width: 0.05-0.01mm
• Marking Depth: 0.015-0.5mm
• Marking Accuracy: ≤0.001mm
• Repeatability: ≤0.001mm
• Screen Size: 20cm x 15cm
• Product Size: 240mm x 400mm x 500mm
• Net Weight: 25.6 kg
• Gross Weight: 35 kg
• Packing Size: 350mm x 510mm x 670mm

Q1: Does the TBK 958ZE support curved screen separation?
A1: Yes, the machine features an adjustable platform specifically designed to enable the separation of curved LCD screens.

Q2: What is the typical processing time for back glass removal?
A2: The TBK 958ZE is capable of removing a mobile phone's back glass within a range of 4 to 8 minutes, depending on the specific model and condition.

Q3: Is an external fume extractor required for this machine?
A3: No, the unit is equipped with an integrated activated carbon filtration system that absorbs smoke and dust during the laser process.

Q4: Does the machine require manual input for phone model drawings?
A4: The system comes with a built-in drawing library containing data for mainstream mobile phone models, allowing for direct selection and use.
