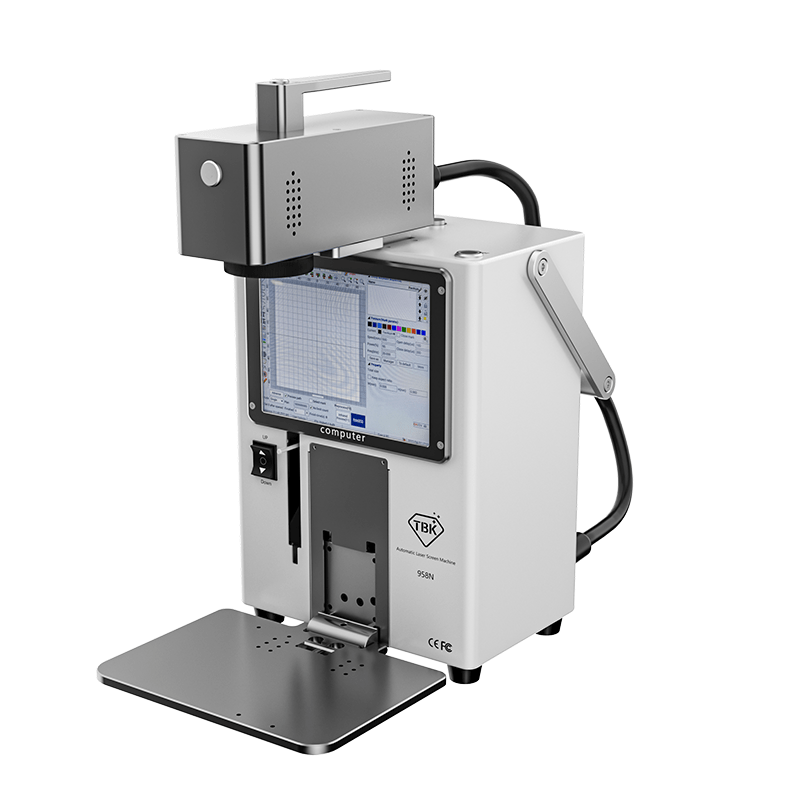

TBK 958N Portable Laser Machine | Detachable Handheld Head for Back Glass Removal & Rotary Engraving

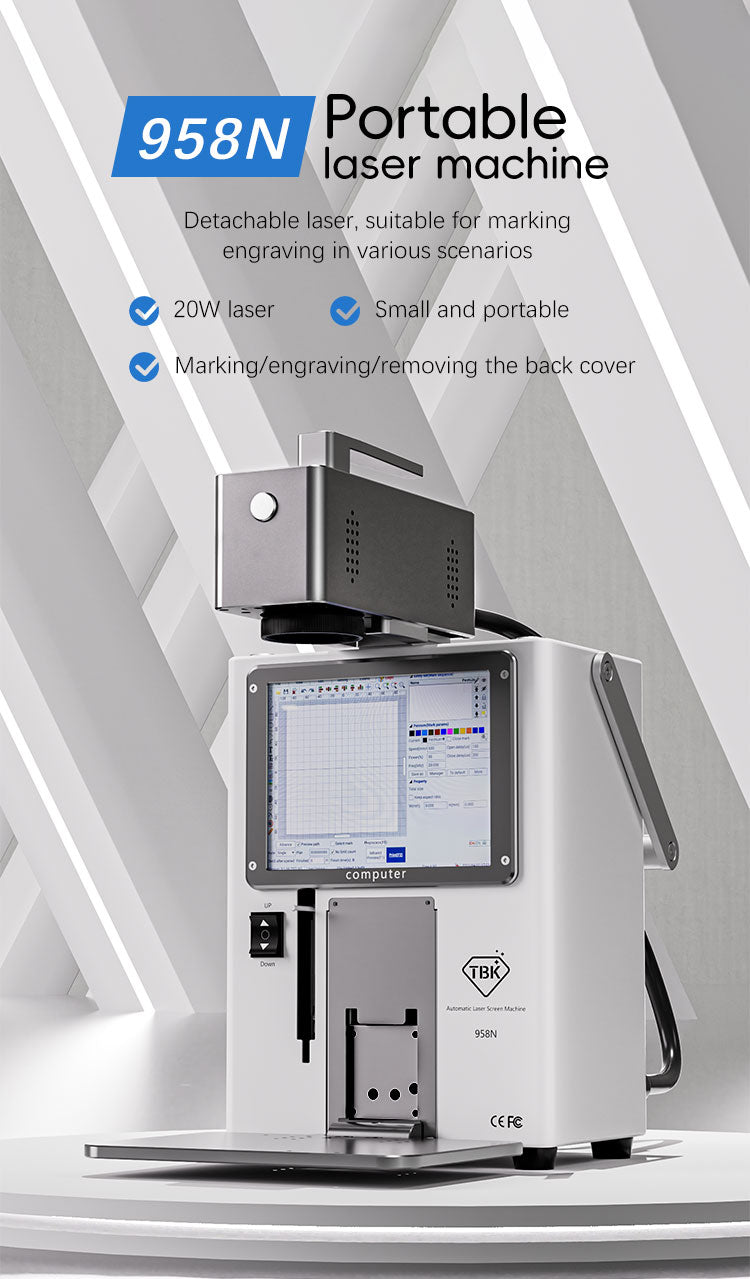

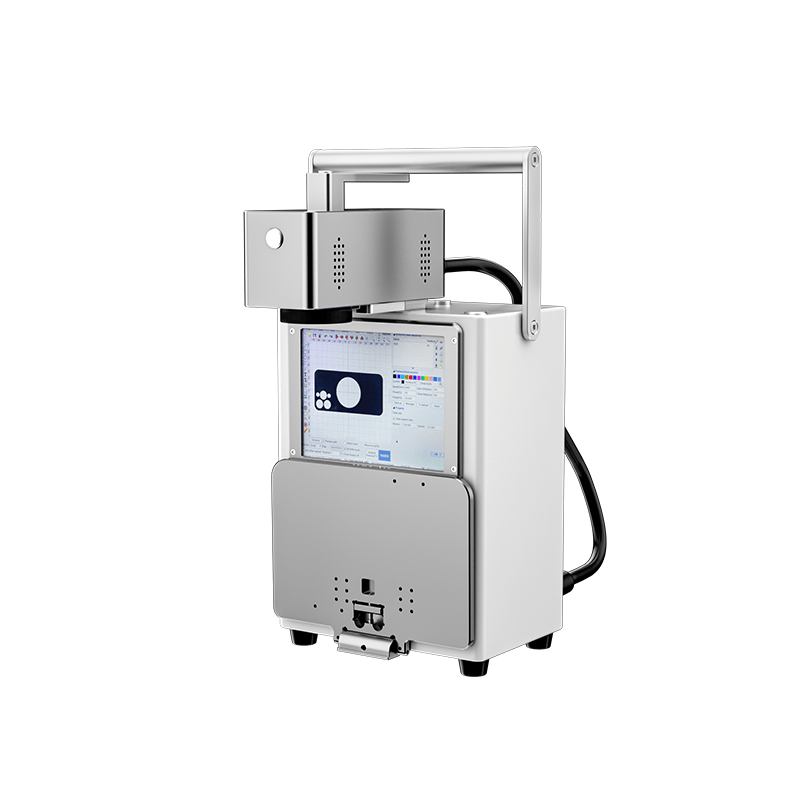

The TBK-958N is a modular laser separation system engineered for mobile phone repair and custom fabrication. Its primary application facilitates the rapid removal of mobile phone back glass, with a processing cycle of approximately two minutes. The unit operates as an all-in-one station featuring a built-in computer pre-loaded with schematics for mainstream phone models and a one-key auto-focus system for operational precision. Uniquely, the TBK-958N features a detachable laser head, transforming the desktop unit into a portable handheld marker. This allows for flexible marking on large, immobile, or irregular objects. The system supports engraving on materials such as metal, plastic, and leather. Additionally, it is compatible with an optional rotating fixture, enabling 360° engraving on cylindrical objects like cups and rings.

High-Speed Back Glass Processing: Optimized for efficiency, the laser prepares mobile phone back glass for removal in approximately two minutes.

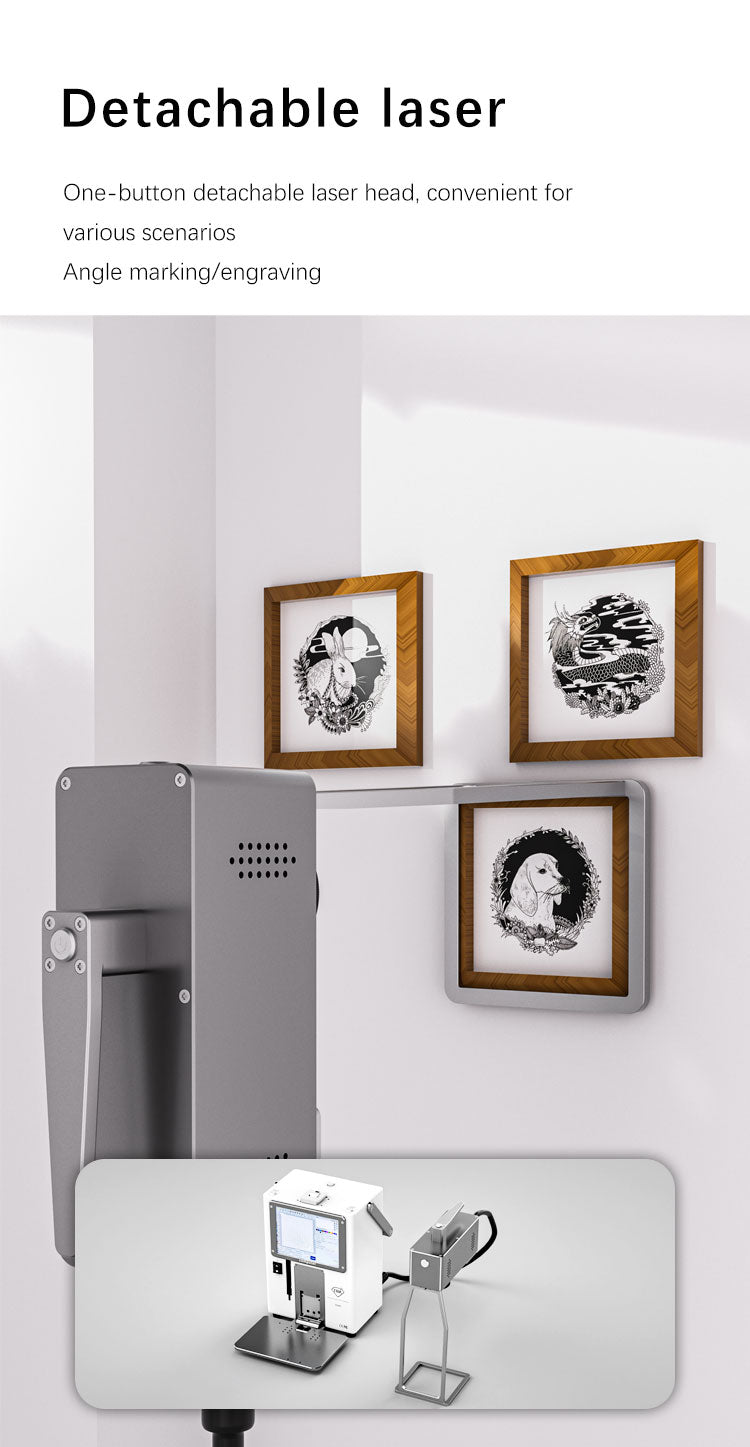

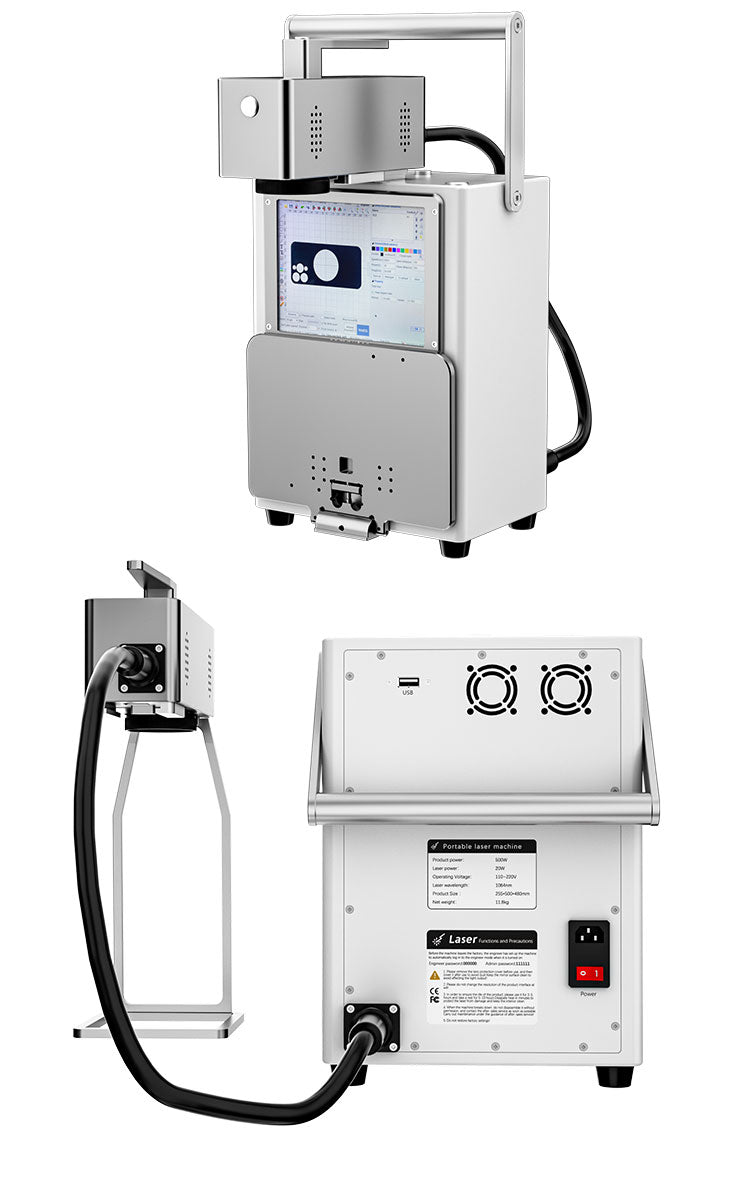

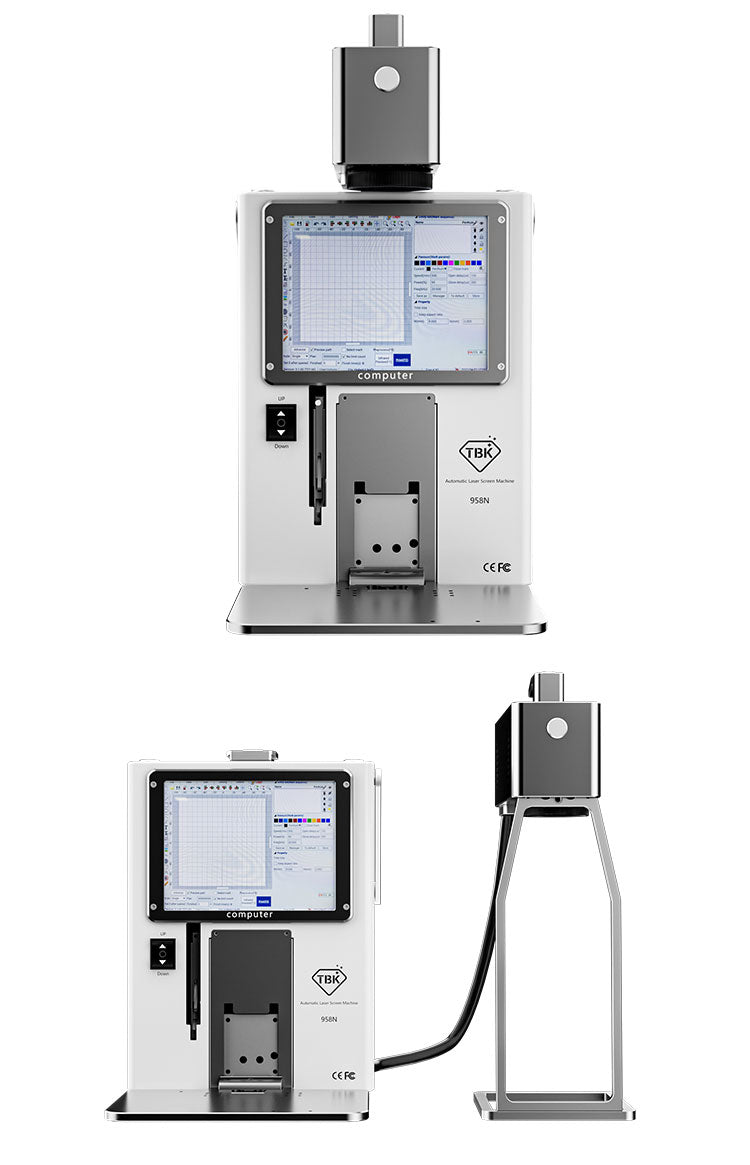

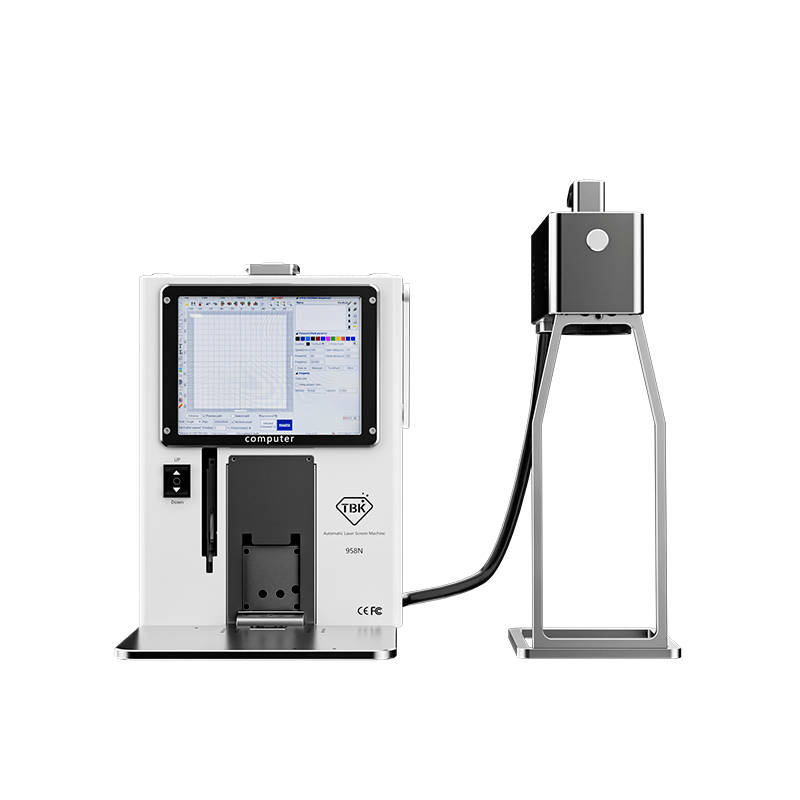

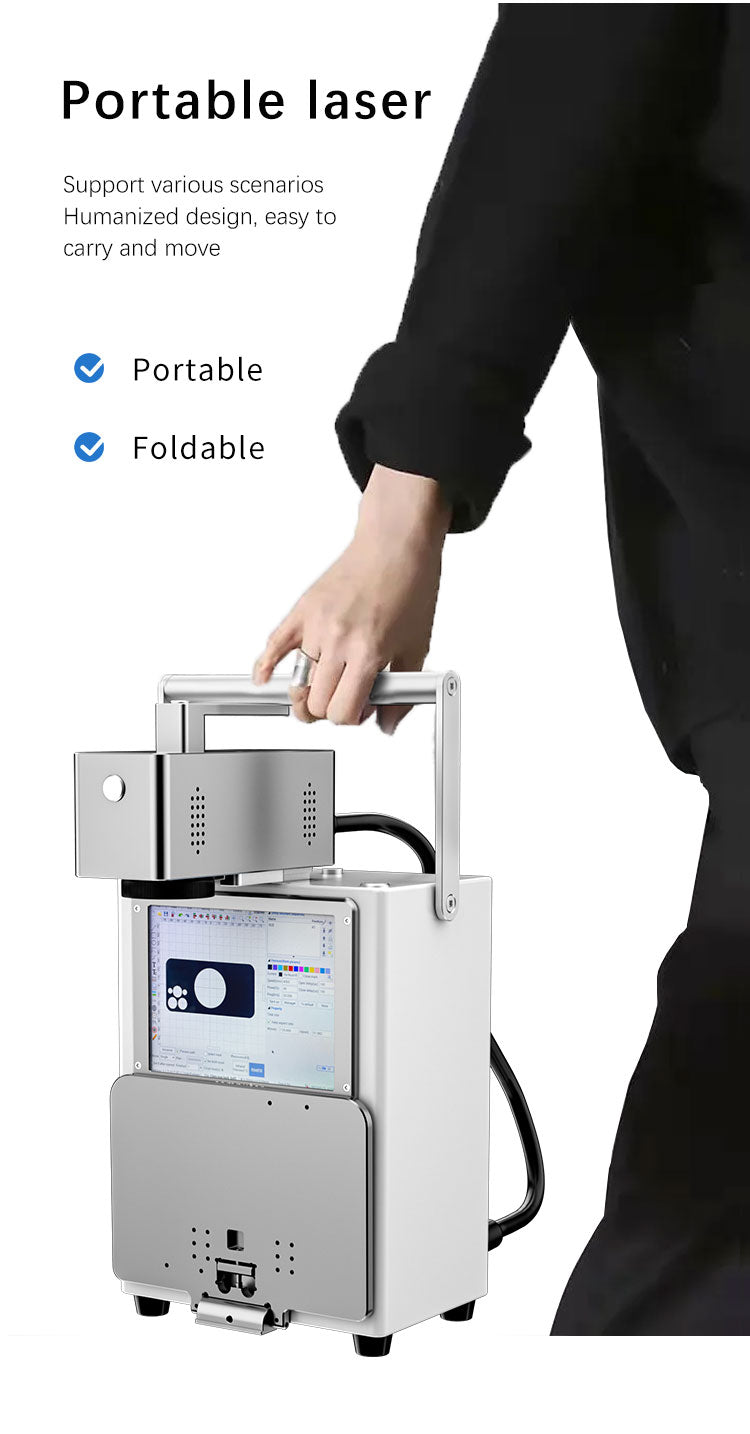

Modular Detachable Design: Features a removable laser head that converts the machine into a handheld unit, enabling flexible marking on objects that cannot fit on a standard worktable.

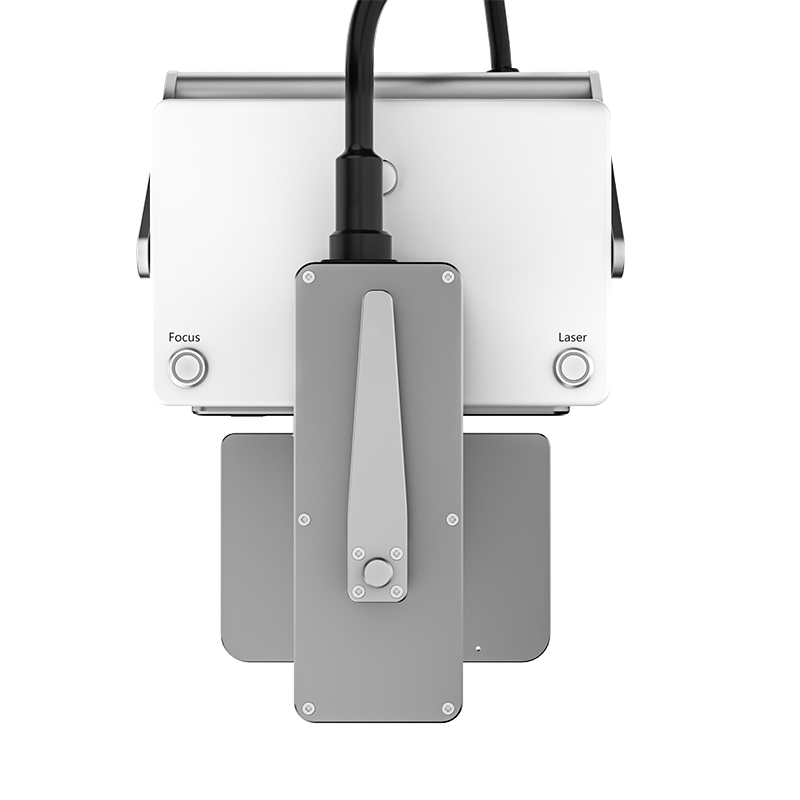

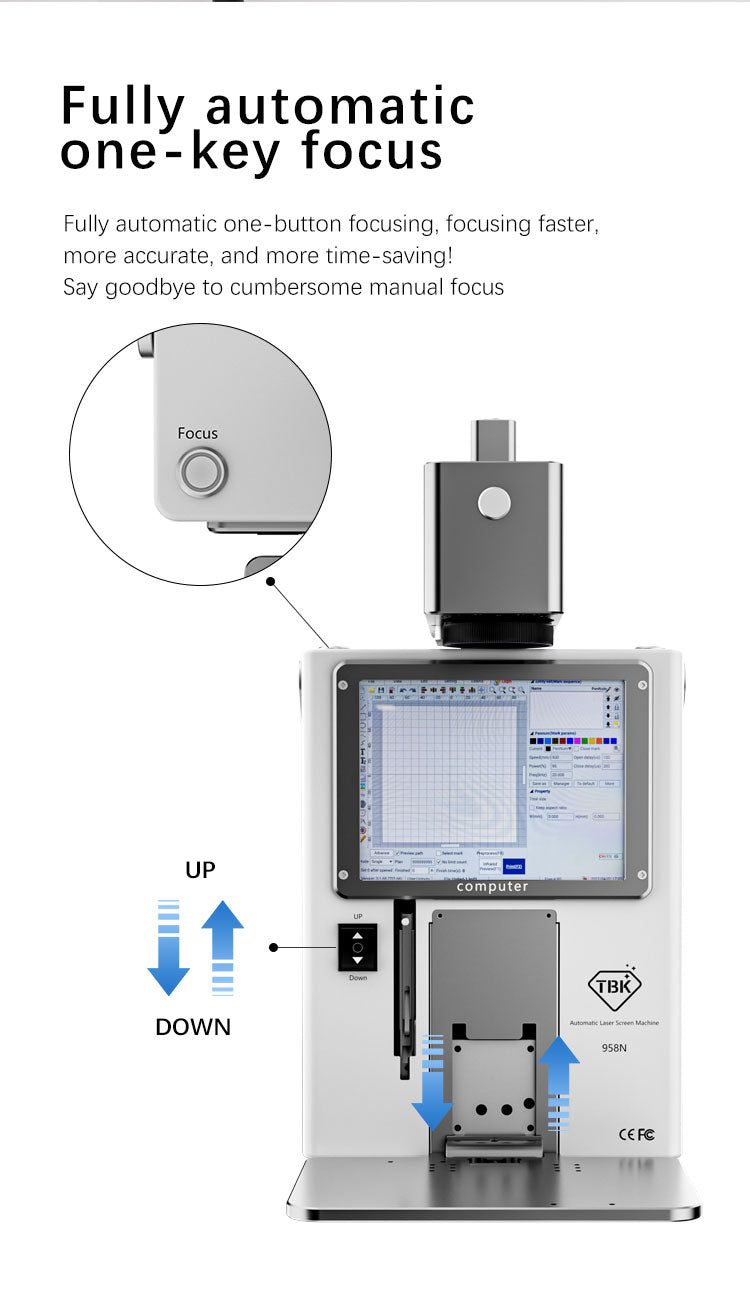

One-Key Auto-Focus: Equipped with an automated focusing mechanism that quickly calibrates the focal distance without manual adjustments.

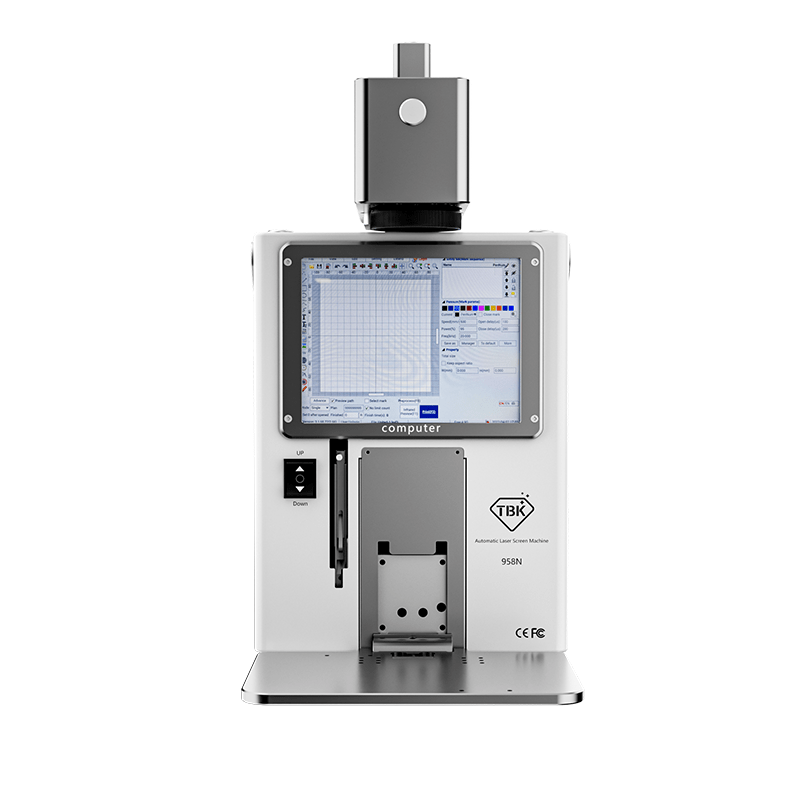

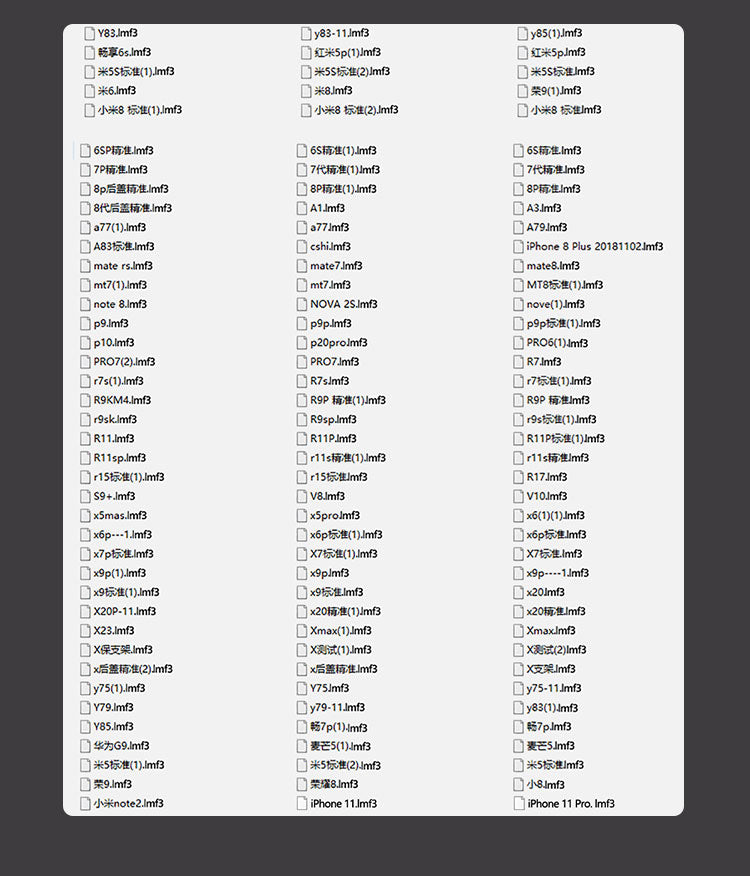

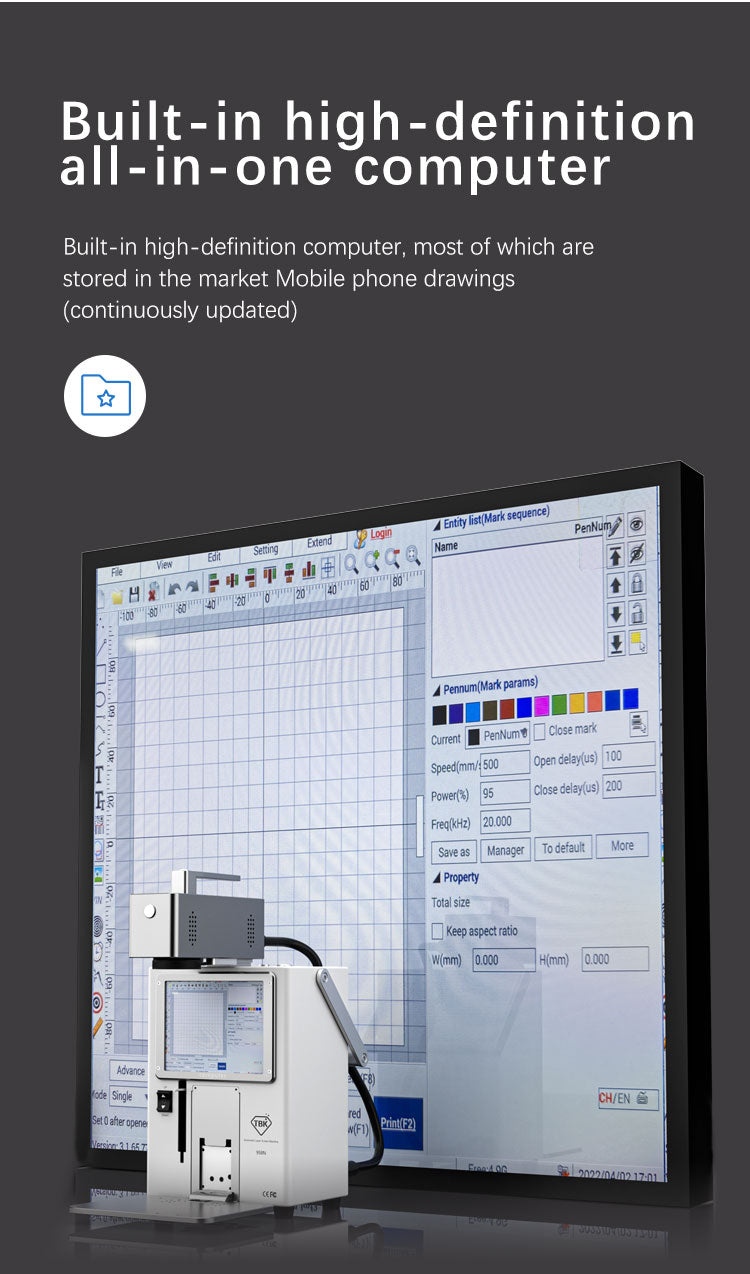

Integrated Computer System: Includes a built-in computer with pre-installed drawings for a wide range of mobile phone models, eliminating the need for external devices.

Multi-Material Engraving: Capable of precise marking and engraving on diverse materials including metal, plastic, and leather.

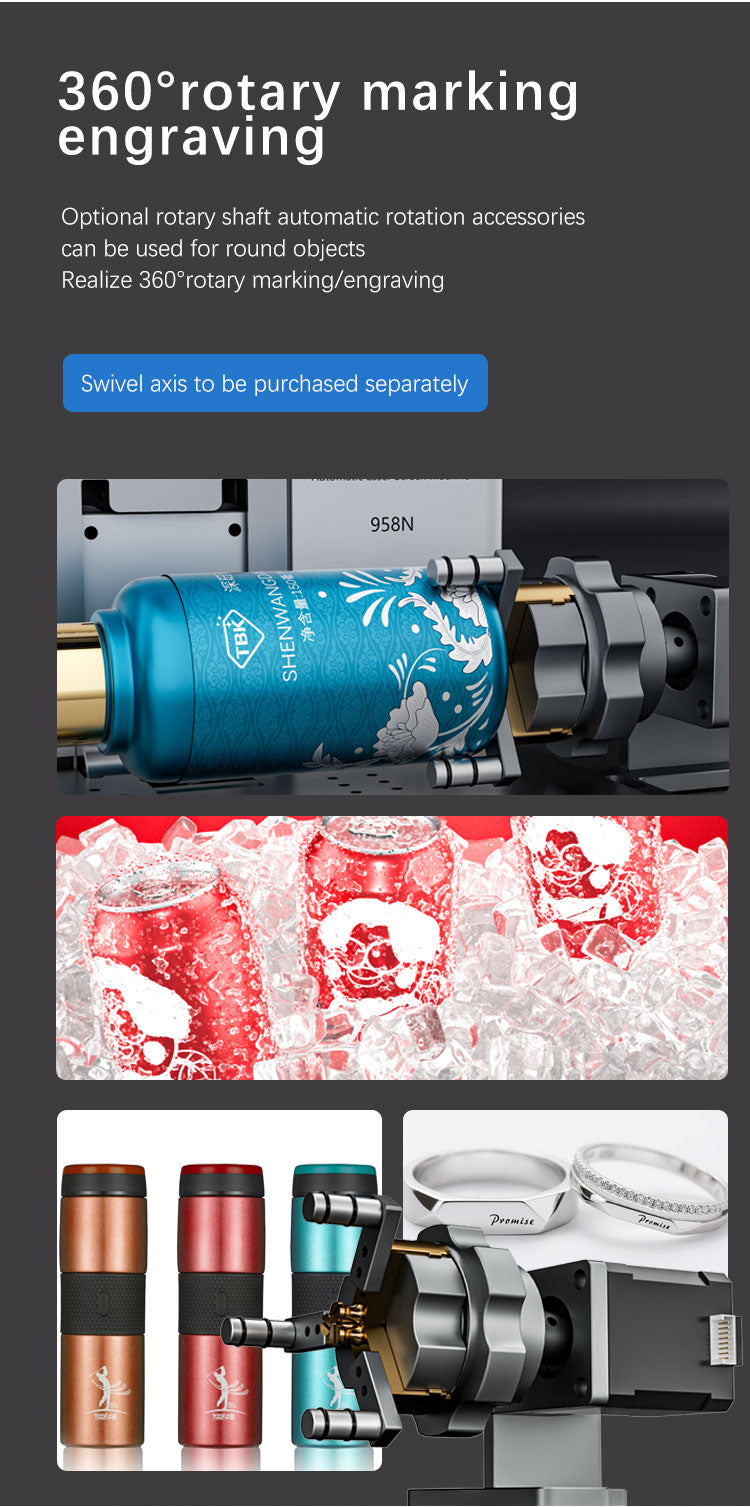

Rotary Fixture Compatibility: Supports an external rotating fixture (sold separately) to facilitate 360° engraving on cylindrical items such as tumblers and jewelry.

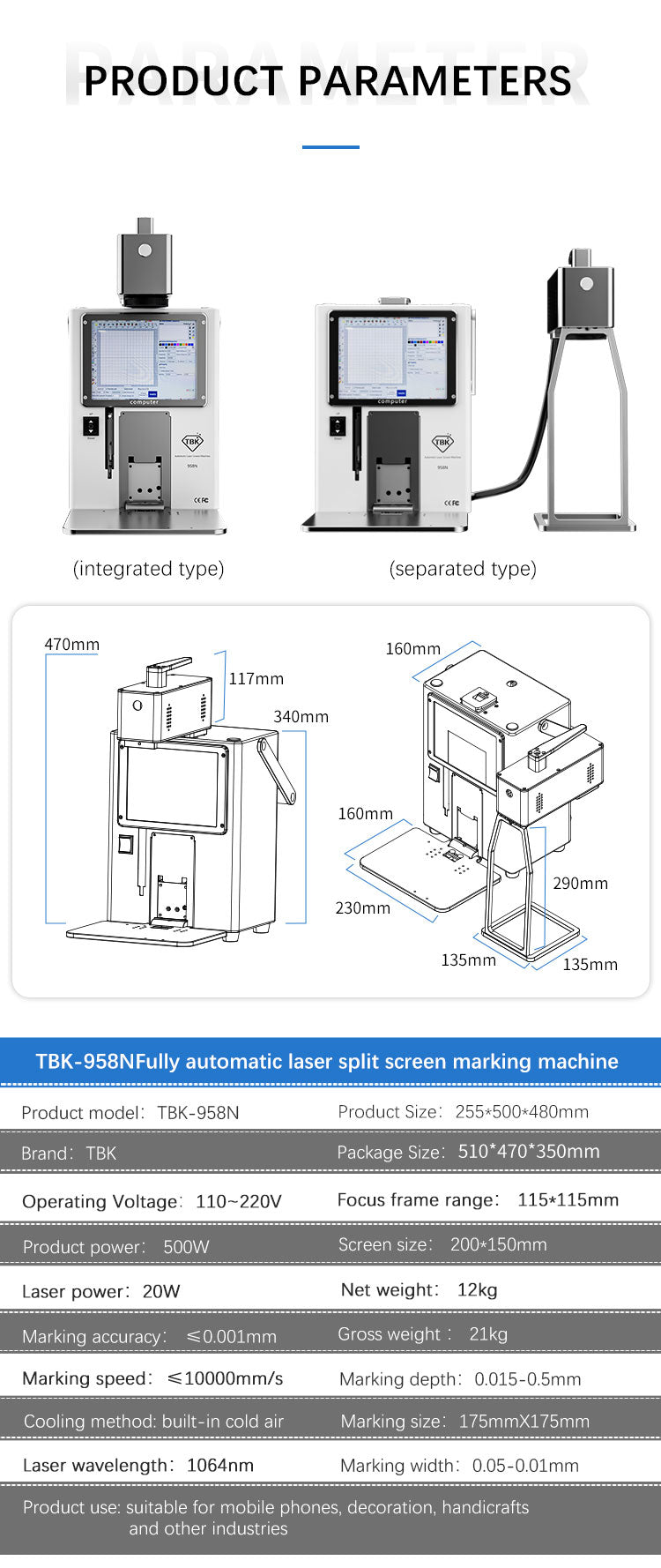

Technical Specifications

• Product Model: TBK-958N
• Brand: TBK
• Product Power: 500W
• Operating Voltage: 110V–220V
• Cooling Method: Built-in Cold Air

Laser & Marking Performance

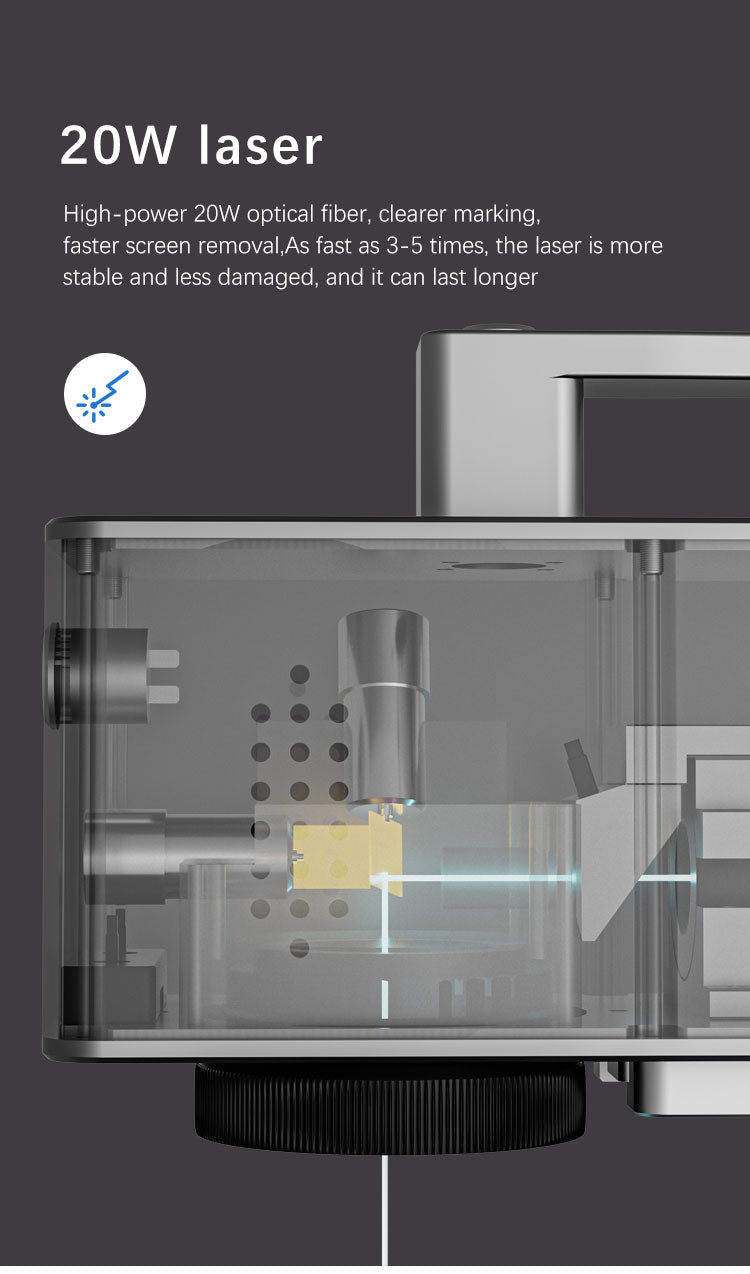

• Laser Power: 20W
• Laser Wavelength: 1064nm
• Marking Speed: ≤10000mm/s
• Marking Accuracy: ≤0.001mm
• Marking Depth: 0.015–0.5mm
• Marking Width: 0.05–0.01mm
• Marking Area: 175mm x 175mm

Physical Dimensions & Display

• Screen Size: 200mm x 150mm
• Product Size: 255mm x 500mm x 480mm
• Net Weight: 12kg
• Gross Weight: 21kg

Applications

• Product Use: Mobile phones, decoration, handicrafts, and others

Q1: How fast can the TBK-958N remove a phone's back glass?
A1: The TBK-958N is designed for rapid processing, typically completing the laser cycle to prepare a phone's back glass for removal in approximately two minutes.

Q2: What is the benefit of the detachable laser head?
A2: The detachable head transforms the stationary machine into a handheld portable laser, allowing users to engrave or mark on large, heavy, or immovable objects that fit on a standard machine bed.

Q3: Do I need to buy a separate computer to run this machine?
A3: No, the TBK-958N is an all-in-one system with a built-in computer and pre-loaded software/drawings, ready for immediate use.

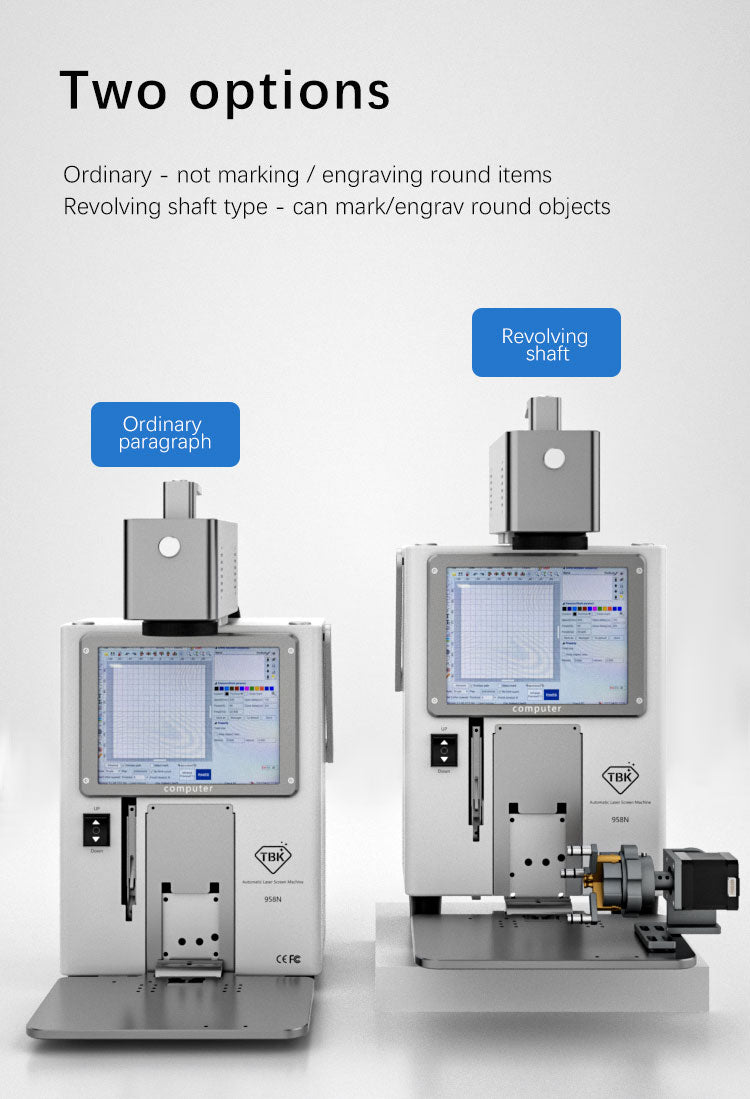

Q4: Can this machine engrave on curved surfaces like cups?
A4: Yes, the machine supports an optional rotating fixture, which allows for 360° engraving on cylindrical objects like cups, bottles, and rings.

Q5: Is the auto-focus difficult to set up?
A5: The machine features a "one-key" auto-focus system, which automatically measures and adjusts the focal distance, simplifying the setup process for operators.
