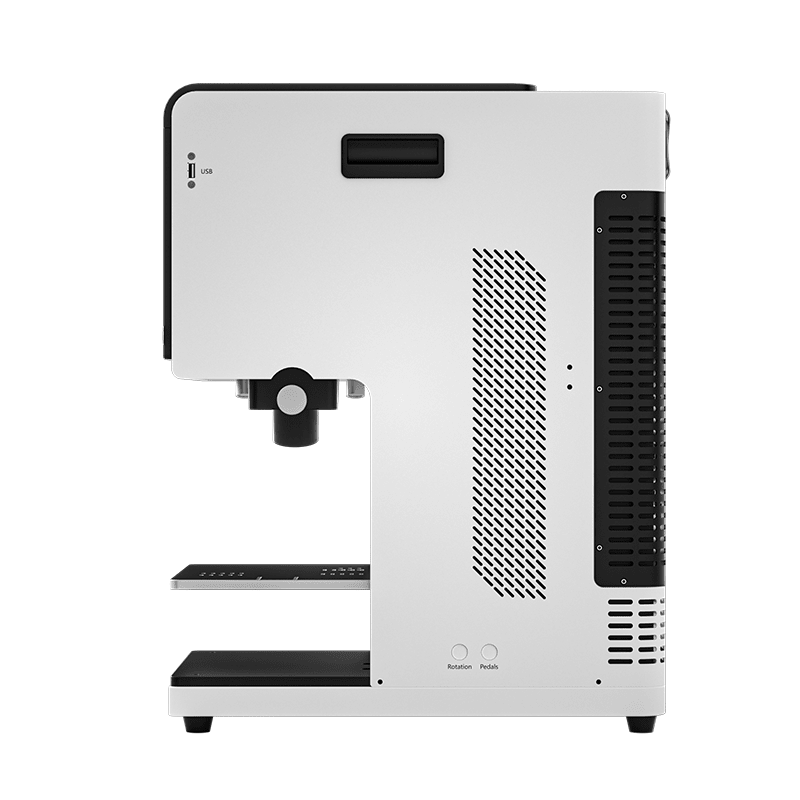

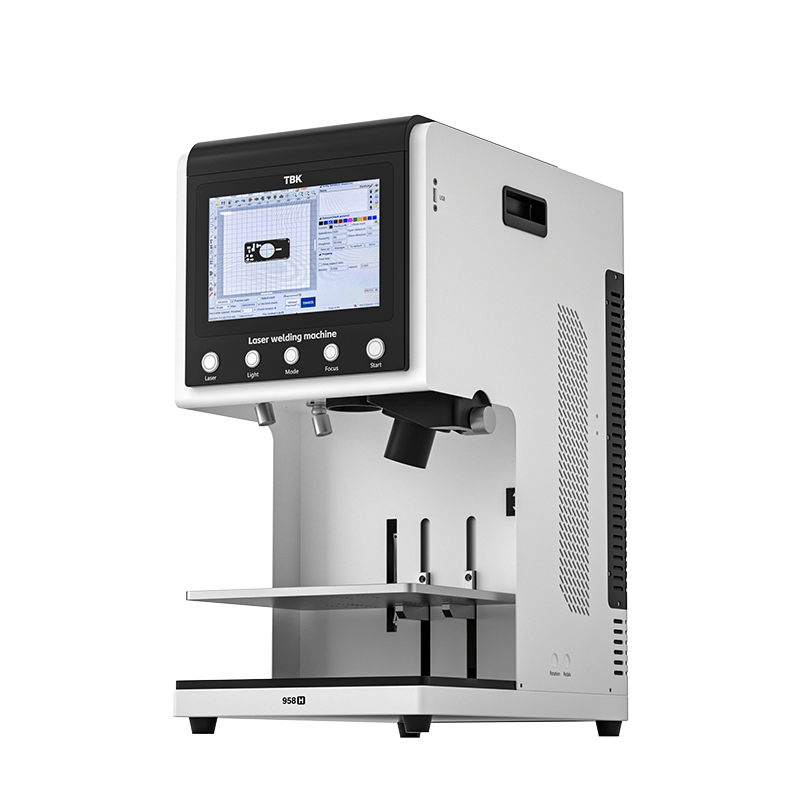

TBK 958H All-in-One MOPA Fiber Laser Machine | Back Glass Removal, Battery Welding & Color Engraving

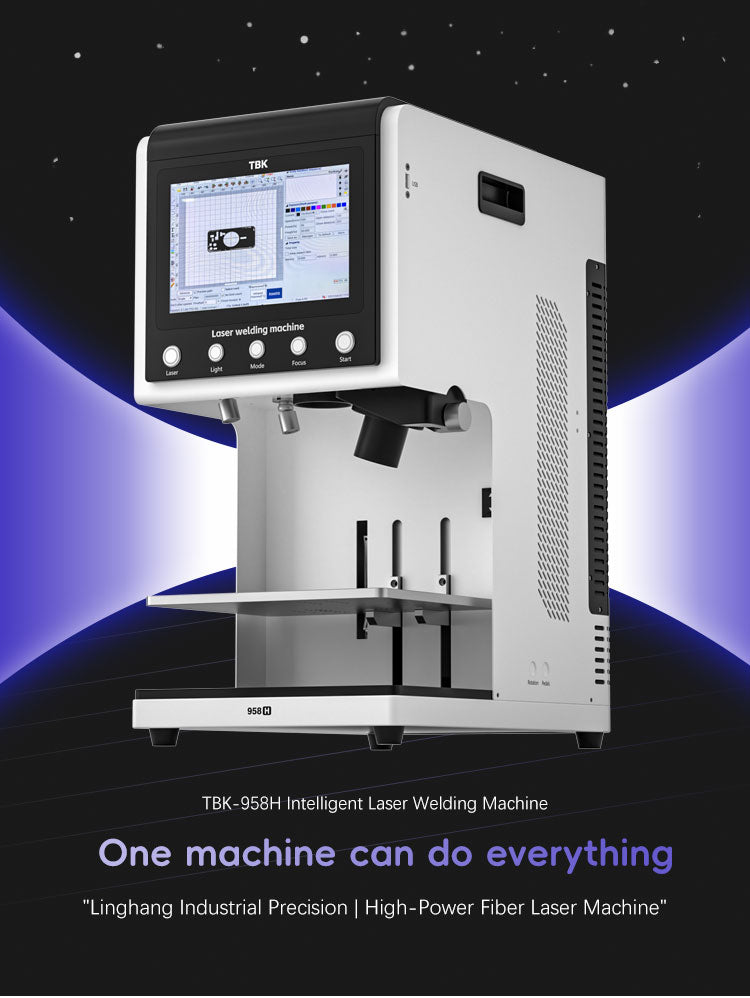

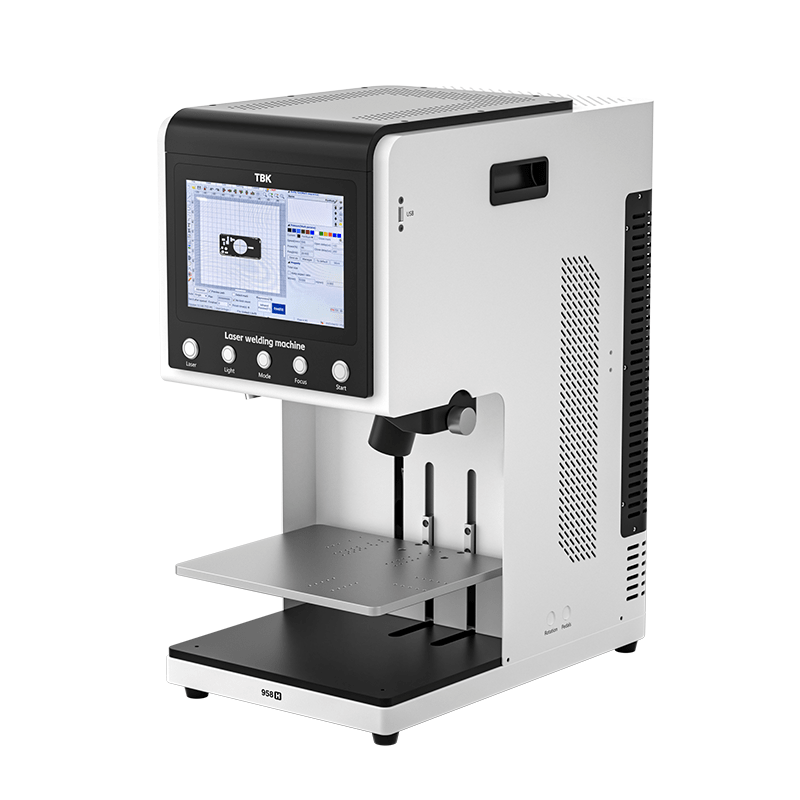

The TBK 958H is an integrated MOPA fiber laser workstation designed for professional mobile phone repair and precision customization. This comprehensive unit combines multiple capabilities, including rear glass removal for smartphones, laser welding for battery nickel tabs, and high-definition color marking. Featuring a built-in computer system with a pre-loaded library of repair drawings, the machine operates independently without the need for an external PC. Engineered for accuracy, the TBK 958H includes an automatic focus system and a high-definition microscope, ensuring precise alignment for intricate electronics repair and engraving tasks.

Integrated MOPA Laser Technology: Utilizes MOPA fiber laser technology, which allows for adjustable pulse widths to perform diverse applications such as back glass removal and multi-color marking on stainless steel.

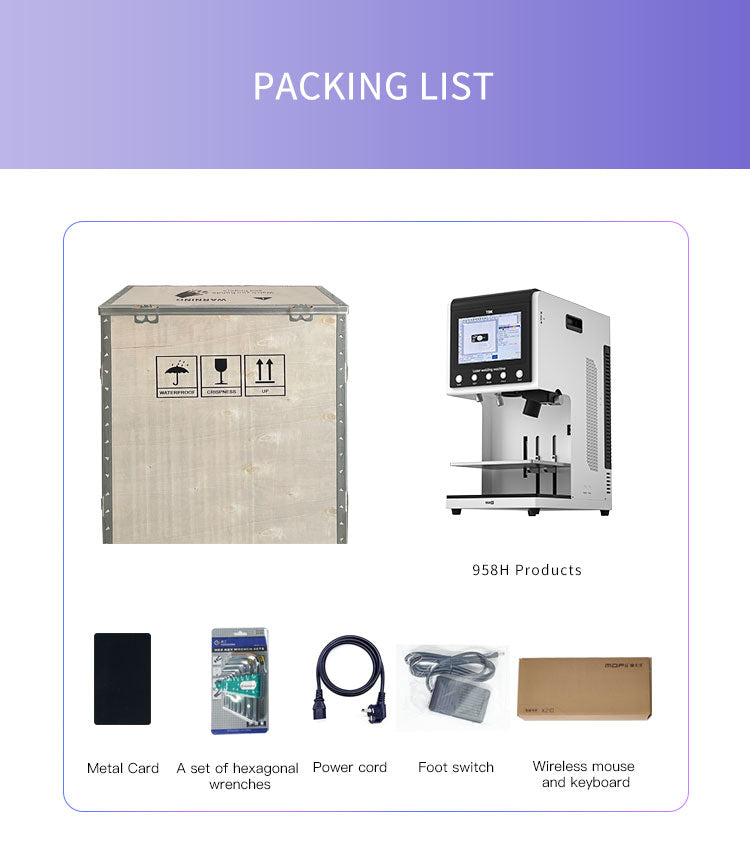

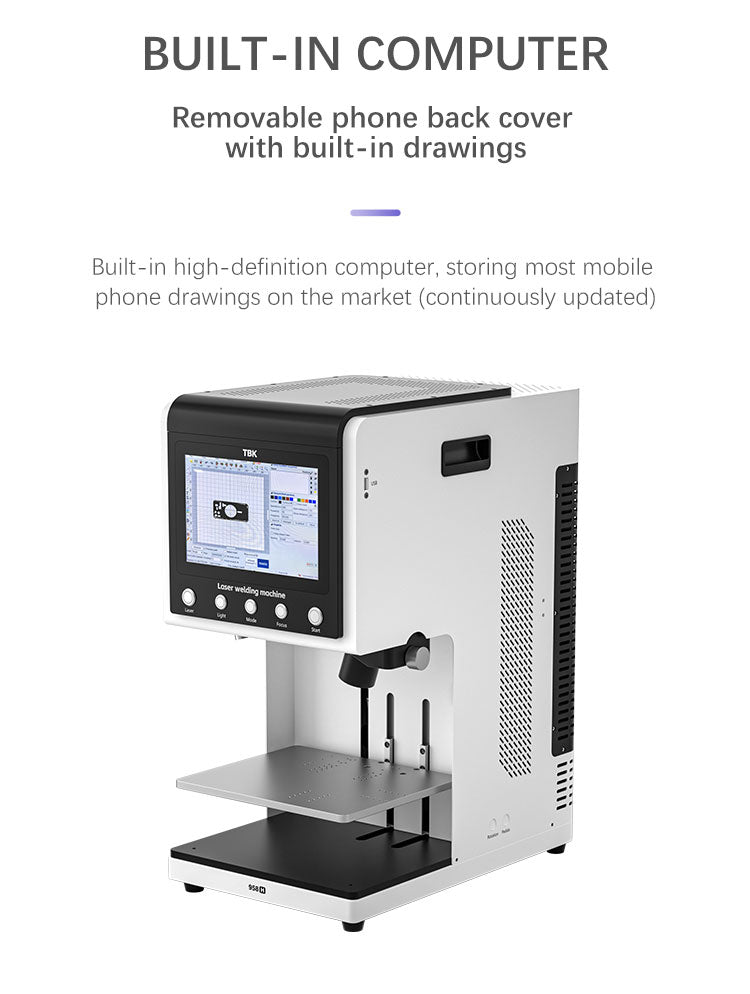

Standalone Operation System: Equipped with a built-in computer, HD screen, wireless mouse, and keyboard. The system includes a continually updated database of drawings for thousands of mobile phone models.

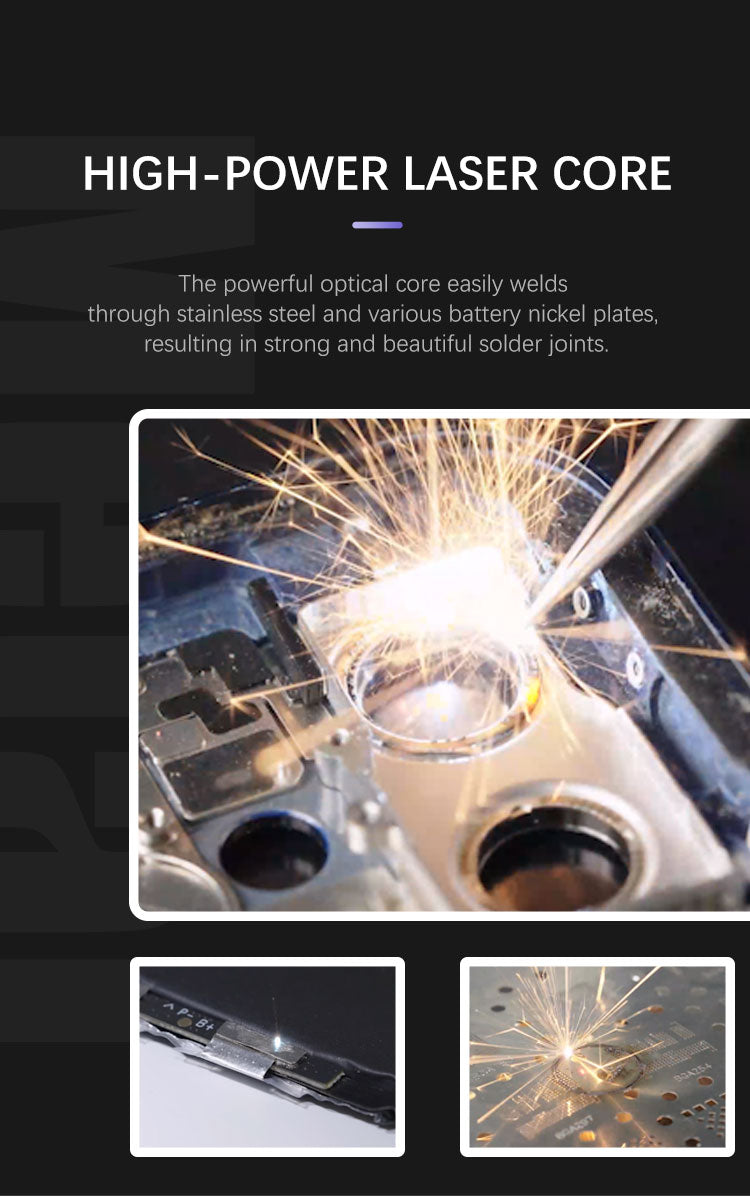

High-Power Micro-Welding: Features a 70W laser power source capable of strong, clean welds, specifically optimized for attaching battery nickel sheets and other delicate metal components during refurbishment.

Precision Autofocus System: Automatically adjusts the focal length to the optimal distance for the specific task, ensuring consistent laser performance and reducing setup time.

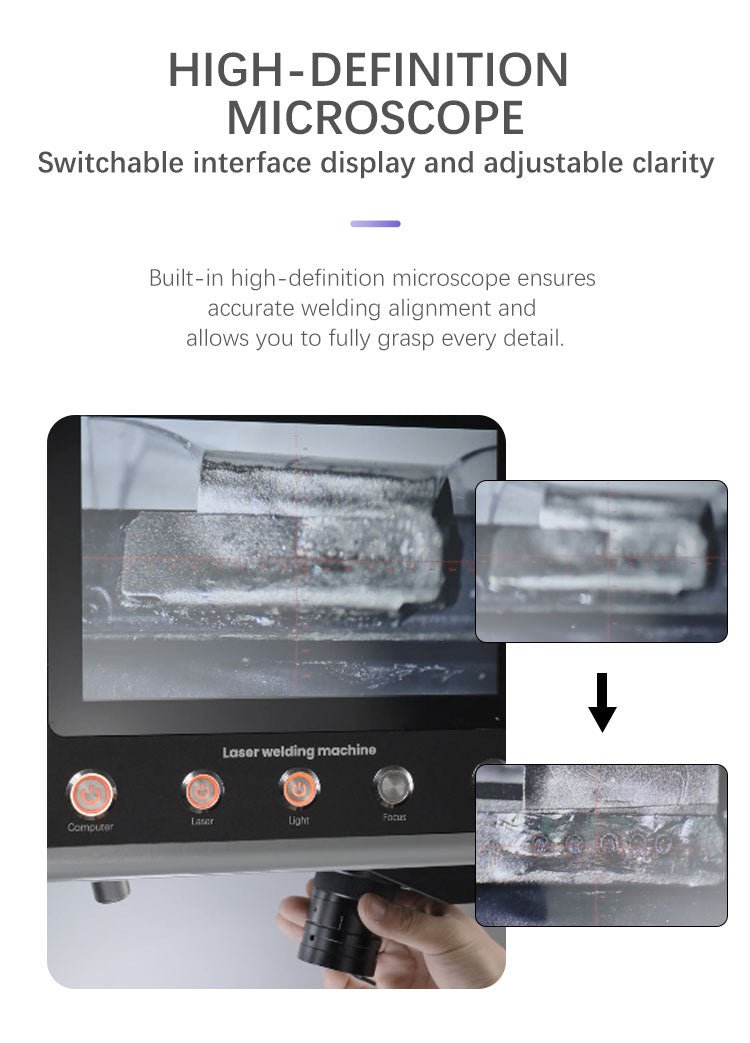

HD Microscope Alignment: An integrated high-definition microscope provides a magnified view of the workspace, facilitating precise alignment for micro-welding and fine engraving operations.

Advanced Color Marking: Capable of producing permanent color markings on stainless steel surfaces and high-contrast engravings on various metals and plastics.

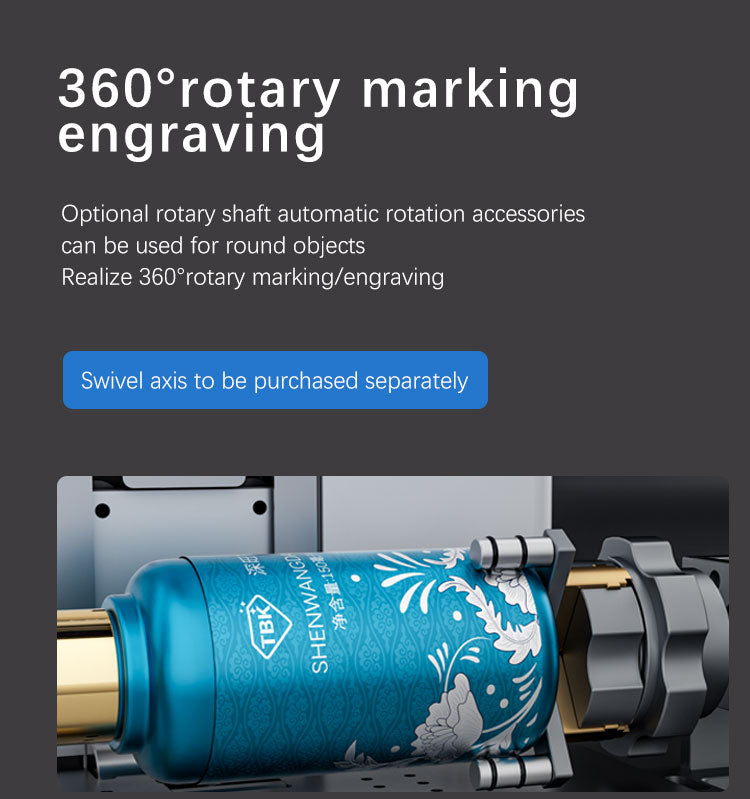

Rotary Expansion Support: Compatible with an optional 360° rotary axis fixture (sold separately), enabling engraving on cylindrical objects such as rings and pens.

Versatile Material Application: Suitable for processing a wide range of materials including metals and plastics, serving industries from electronics repair to jewelry customization.

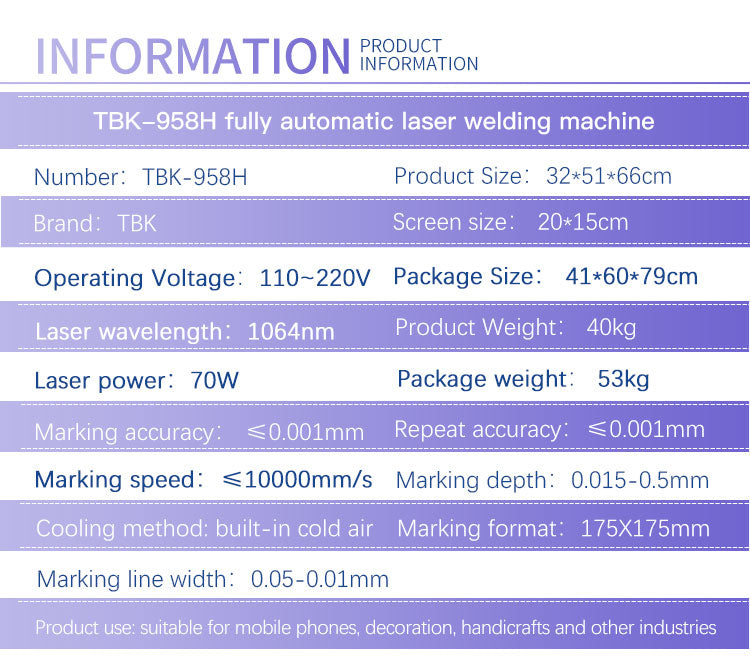

• Model: TBK-958H
• Brand: TBK
• Laser Power: 70W
• Operating Voltage: 110V~220V
• Laser Wavelength: 1064nm
• Marking Speed: ≤10000mm/s
• Marking Accuracy: ≤0.001mm
• Repeat Accuracy: ≤0.001mm
• Marking Depth: 0.015-0.5mm
• Marking Format (Area): 175mm x 175mm
• Marking Line Width: 0.05-0.01mm

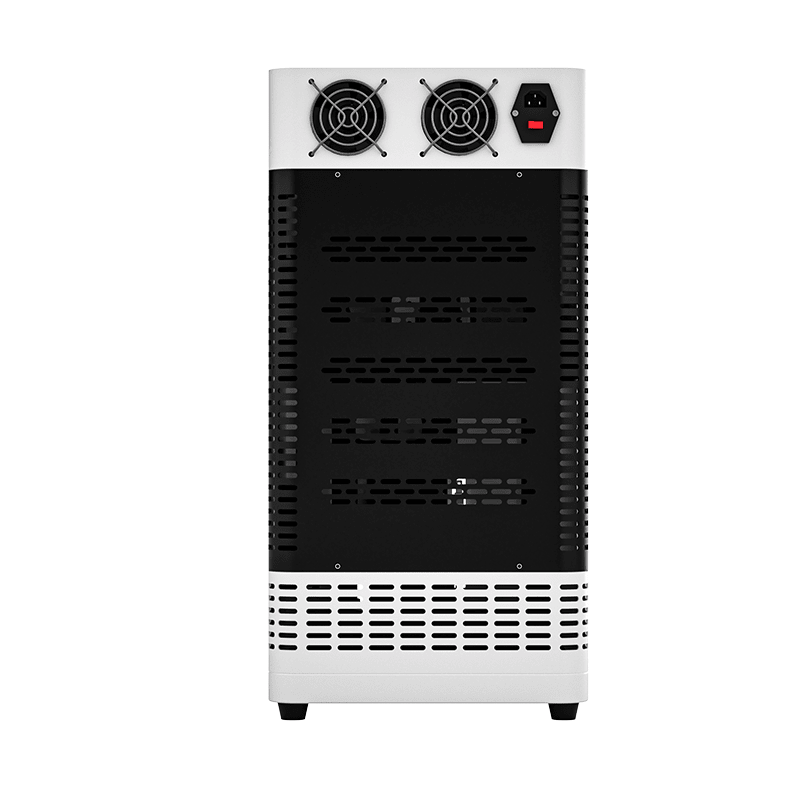

• Cooling Method: Built-in cold air
• Product Weight: 40kg (88 lbs)
• Package Weight: 53kg (117 lbs)
• Product Size: 32 x 51 x 66cm
• Package Size: 41 x 60 x 79cm

Q1: What are the primary functions of the TBK 958H for phone repair?
A1: The TBK 958H is primarily used for laser separating (removing back glass from phones) and laser micro-welding (specifically for welding battery nickel tabs).

Q2: Does the TBK 958H require an external computer to run?
A2: No, the machine features a fully integrated computer system with a built-in monitor, keyboard, and mouse, allowing it to function completely independently.

Q3: What is the advantage of the MOPA laser technology in this machine?
A3: MOPA (Master Oscillator Power Amplifier) technology allows for adjustable pulse widths, enabling advanced capabilities like color marking on stainless steel, which standard fiber lasers cannot achieve.

Q4: Can this machine weld chips or components on a motherboard?
A4: While it allows for micro-welding, it is specifically designed for welding battery nickel sheets and tabs. It is not typically used for soldering BGA chips on logic boards (which requires a soldering station).

Q5: Is the rotary attachment included with the machine?
A5: The machine supports 360° rotary engraving for cylindrical items, but the rotary axis attachment is usually sold separately.
