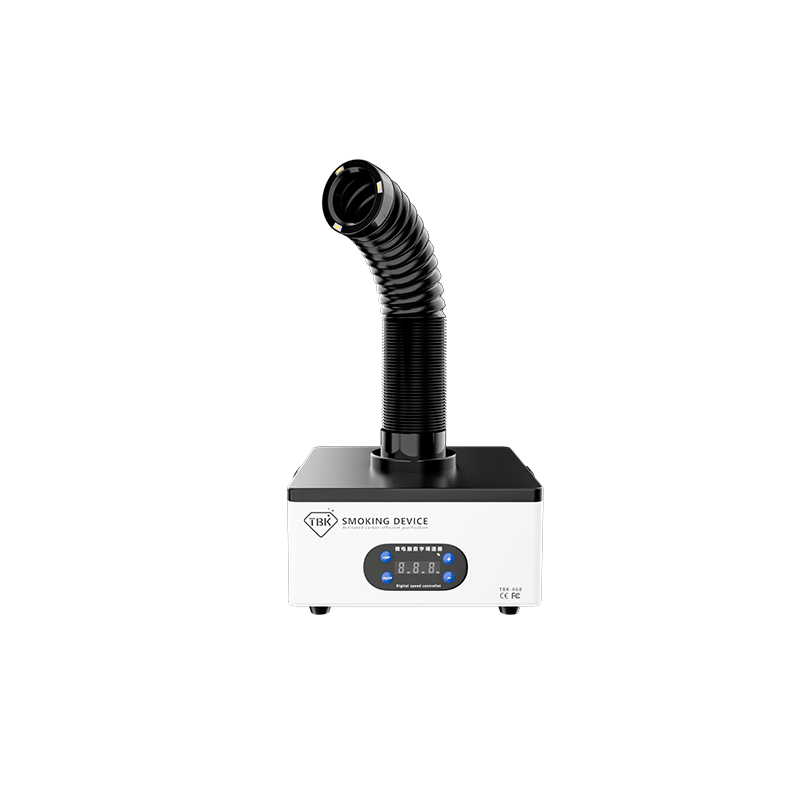

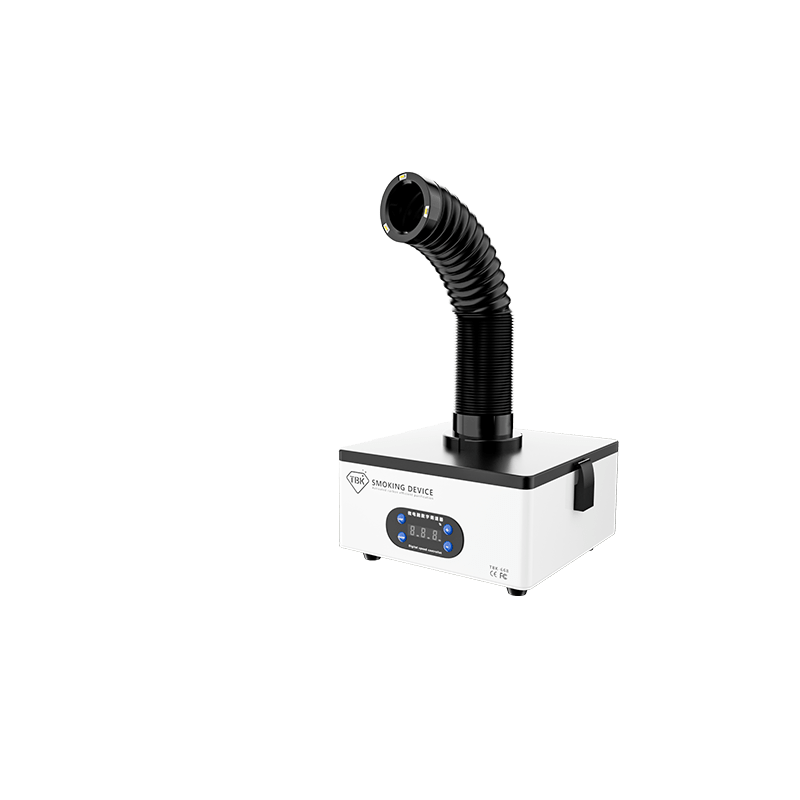

TBK 668 Desktop Solder Fume Extractor | 4-Layer Filtration & Digital Control | Smoke Absorber for Soldering & Laser

The TBK-668 is a desktop-grade air purification system engineered for electronics workshops and repair stations. It addresses the removal of harmful particulates and volatile gases produced during technical procedures such as soldering and laser marking. The unit utilizes a high-torque brushless centrifugal fan to generate consistent suction pressure at the source of emission. Air is processed through a 4-stage filtration module containing activated carbon to neutralize odors and trap dust effectively. The system features a digital control interface for precise suction adjustment and includes a 56cm semi-rigid universal arm with integrated LED lighting for precise positioning over the work area.

Brushless Centrifugal Fan: Powered by a high-performance brushless motor that ensures strong, consistent suction for immediate smoke absorption while maintaining operational stability.

4-Layer Filtration System: Incorporates a multi-stage integrated filter element consisting of primary cotton, high-efficiency activated carbon, medium-efficiency cotton, and a deodorizing layer for comprehensive air purification.

Digital Control Interface: Features a digital display and control panel, allowing technicians to easily monitor status and adjust the suction power to match the specific task intensity.

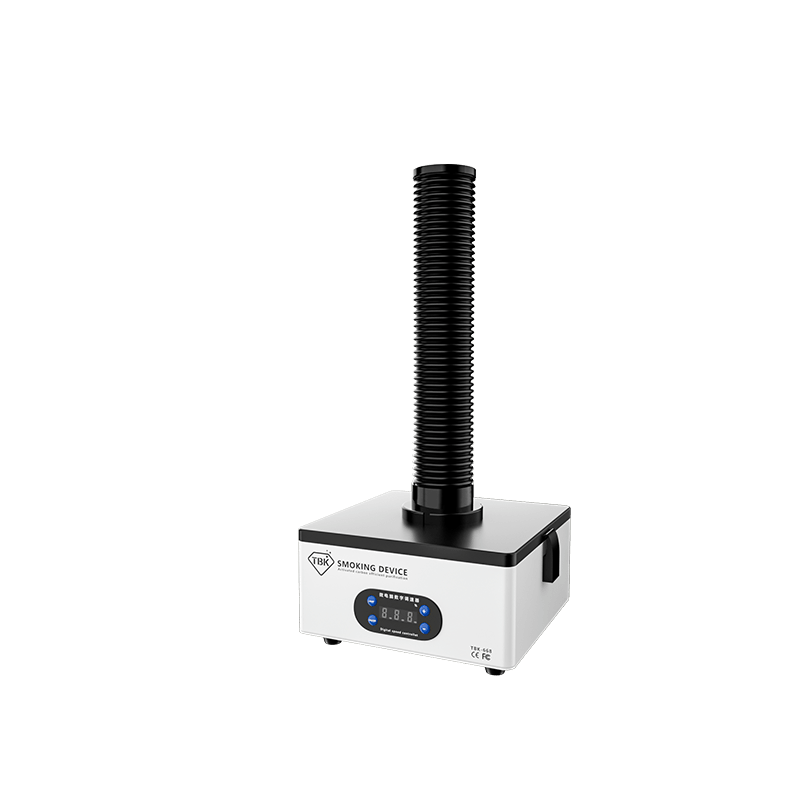

360° Universal Extraction Pipe: Equipped with a 56cm long semi-rigid tube that can be bent and angled in any direction without requiring external support.

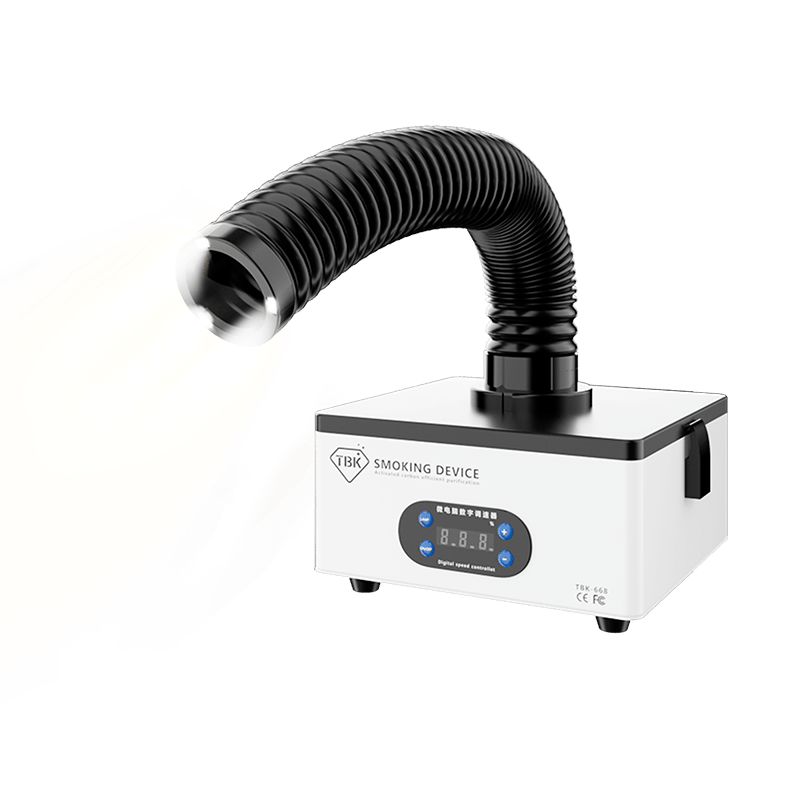

Integrated LED Lighting: The extraction nozzle includes a built-in energy-saving LED light source, providing direct illumination to the soldering or marking area.

Compact Desktop Design: With dimensions of 220 x 220 x 120 mm and a net weight of 3.2 kg, the unit fits securely on workbenches without occupying excessive space.

Model: TBK-668

Voltage: AC 110-260V

Power: 150W

Device Size: 22cm x 22cm x 12cm

Tube Length: 56 cm

Net Weight (N.W.): 3.2 kg

Gross Weight (G.W.): 4 kg

Package Size: 29cm x 29cm x 24cm

Q1: What is the primary application for the TBK-668?
A1: The TBK-668 is designed to extract and filter smoke and fumes generated during electronics repair tasks, specifically soldering, welding, and desktop laser marking.

Q2: How does the filtration system work?
A2: The unit uses a 4-layer integrated filter. This includes primary filtration for large particles, activated carbon for gas and odor adsorption, and secondary cotton layers for fine dust and deodorization.

Q3: Is the suction power adjustable?
A3: Yes, the device features a digital control panel that allows the user to adjust the suction intensity based on the volume of smoke being generated.

Q4: Does the extraction pipe require a stand?
A4: No, the 56cm universal pipe is self-supporting. It can be bent 360 degrees to the desired angle and will maintain its position independently.

Q5: What are the dimensions and weight of the unit?
A5: The main unit measures 220 x 220 x 120 mm and has a net weight of 3.2 kg, making it a stable yet portable solution for desktop use.
