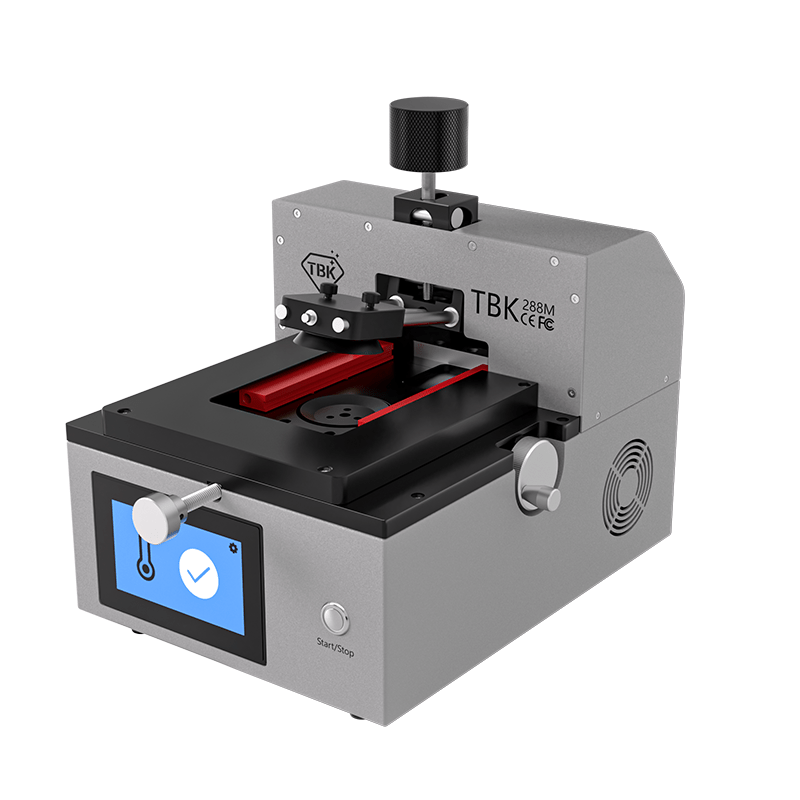

TBK 288M Semi-Automatic Mobile Screen Separator with Precision Manual Lift Control

The TBK 288M is engineered as a semi-automatic screen separator, designed to balance automated efficiency with operator control. This unit utilizes an intelligent control system to automate the heating process while retaining a manual mechanism for the physical separation of the screen assembly.

The operation begins with the smart chip regulating the heating cycle. It applies a constant, precise temperature specifically to the phone's frame to soften the adhesive effectively. This localized heating method is designed to minimize thermal impact on internal components, such as the battery.

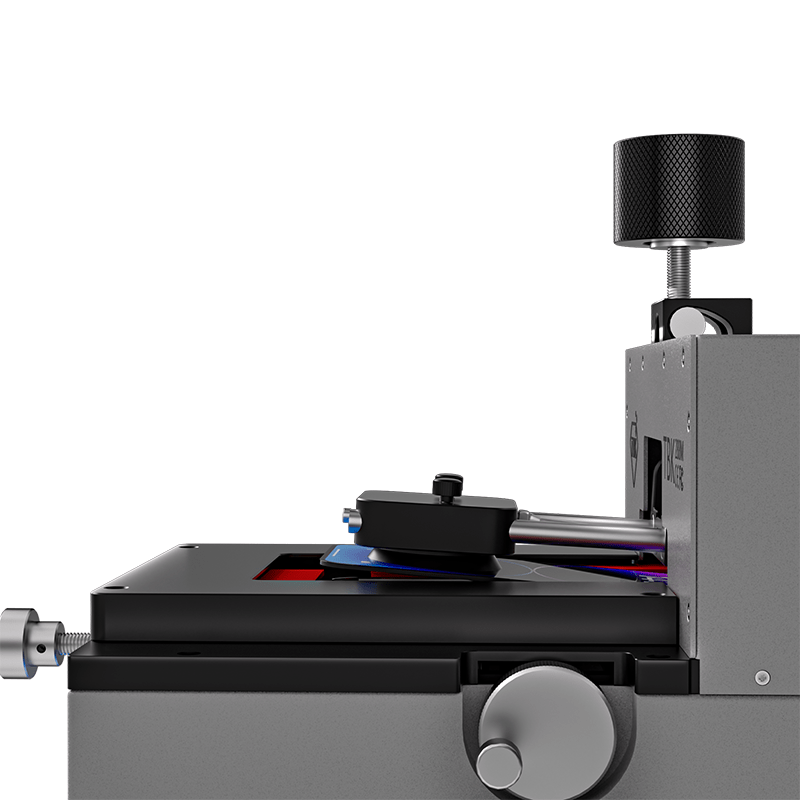

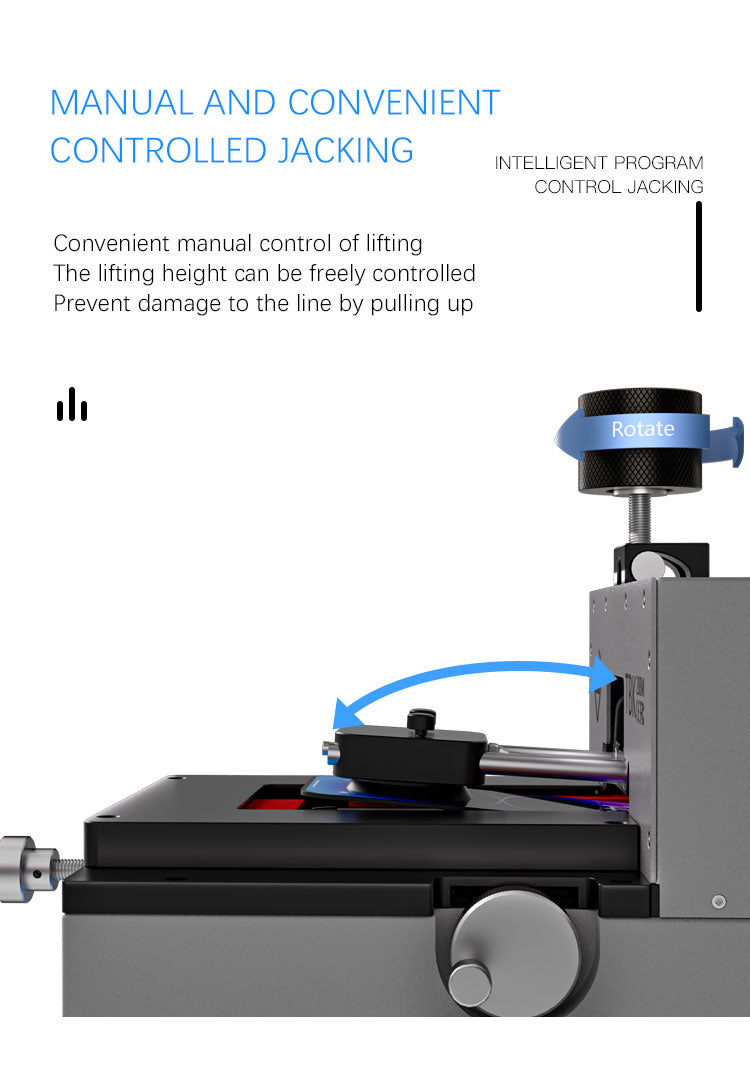

Following the heating phase, the separation process is managed manually via a "jacking" knob. This allows the technician to regulate the lifting speed and height with precision. This manual feedback is essential for monitoring the tension on delicate flex cables during separation, reducing the risk of damage compared to fully automated extraction methods. The TBK 288M serves as a specialized tool for technicians requiring consistent heating combined with tactile control.

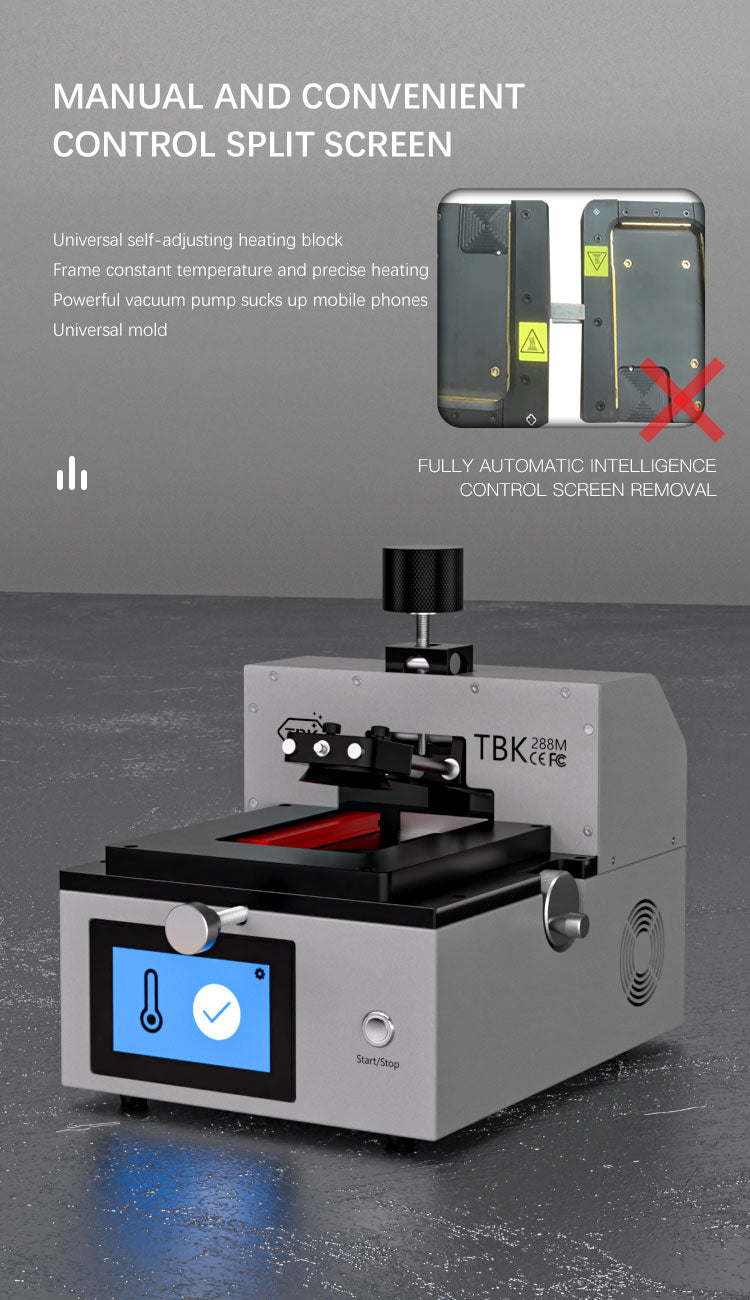

Semi-Automatic Operation: Combines a one-click automated heating cycle with a manual lifting knob, allowing for standardized temperature application and controlled screen removal.

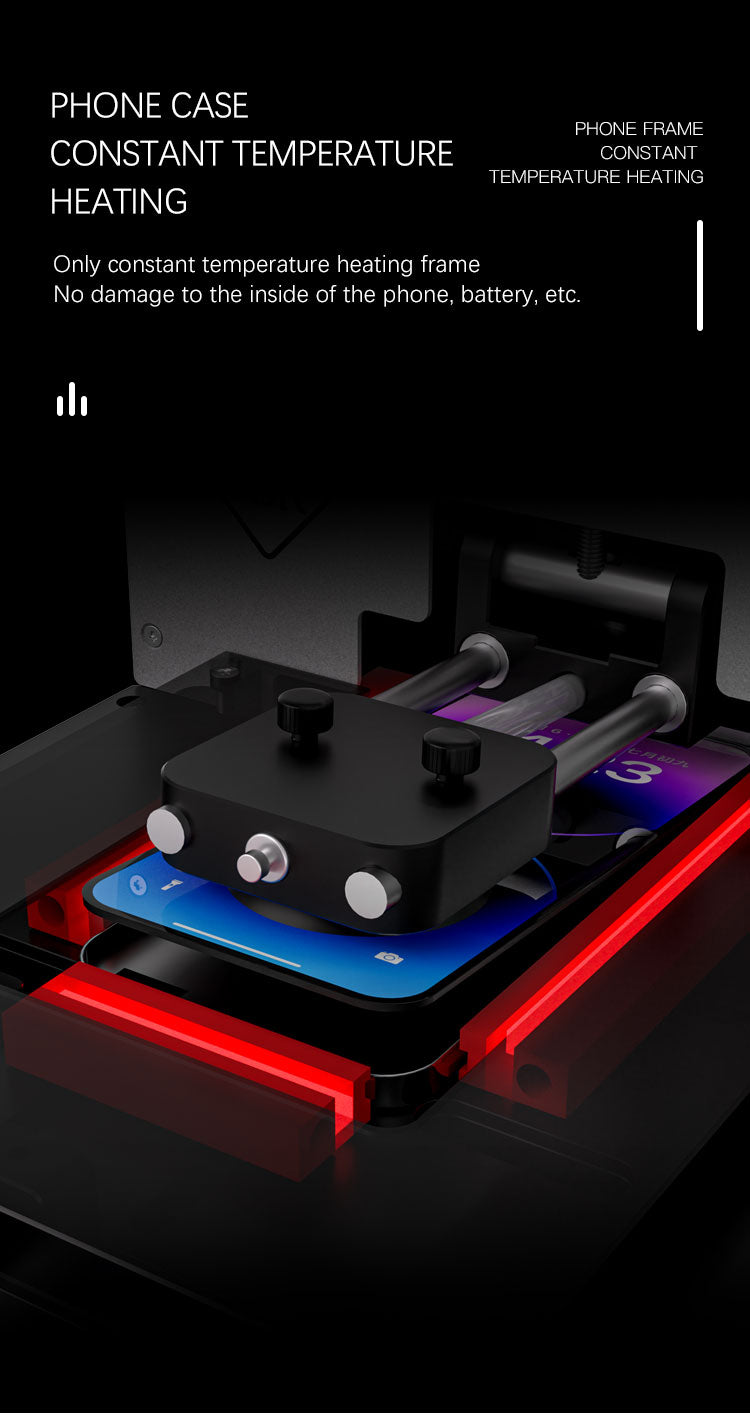

Constant Temperature Heating: Equipped with an intelligent sensor chip that directs heat primarily to the phone's frame, facilitating adhesive softening while protecting sensitive electronics.

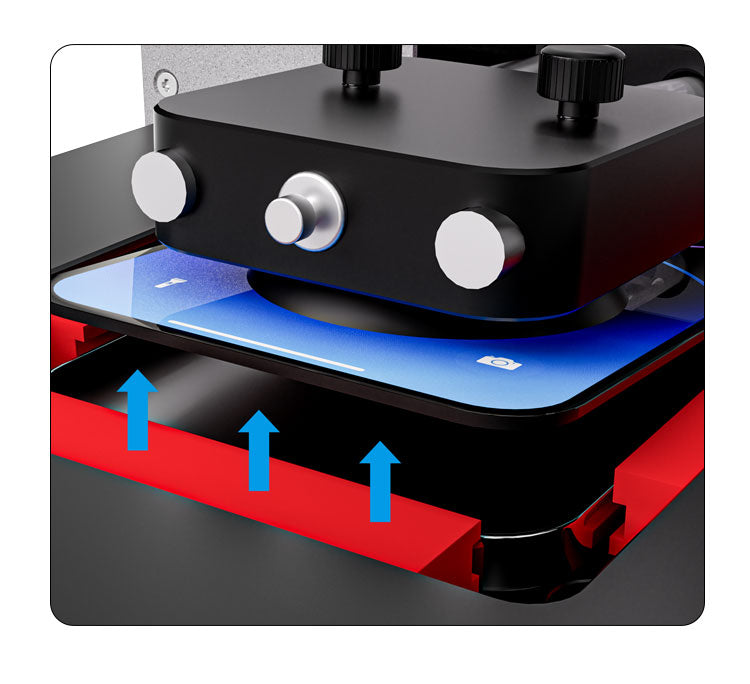

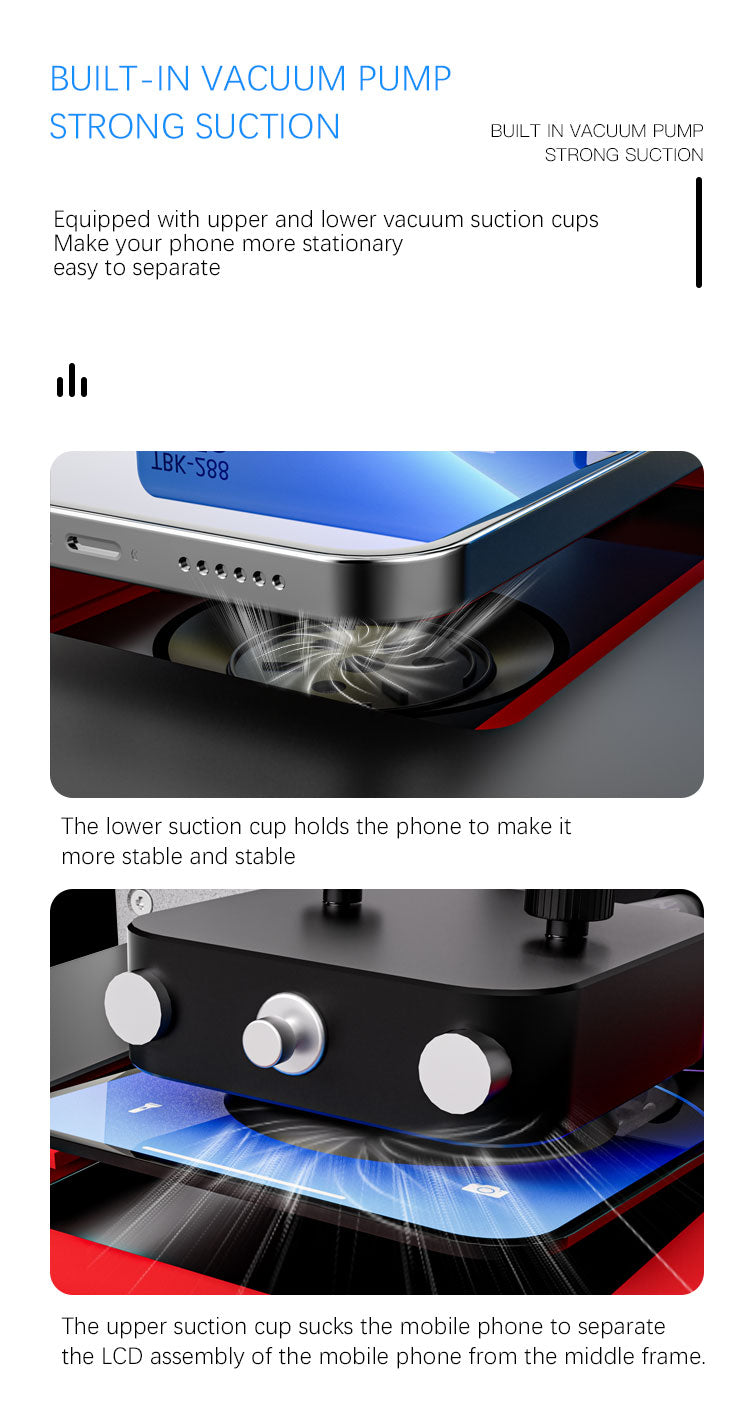

Built-in Dual Vacuum Pump: Features a high-power pump system that provides independent suction to the upper and lower sections. The lower suction stabilizes the phone body, while the upper suction secures the screen assembly for separation.

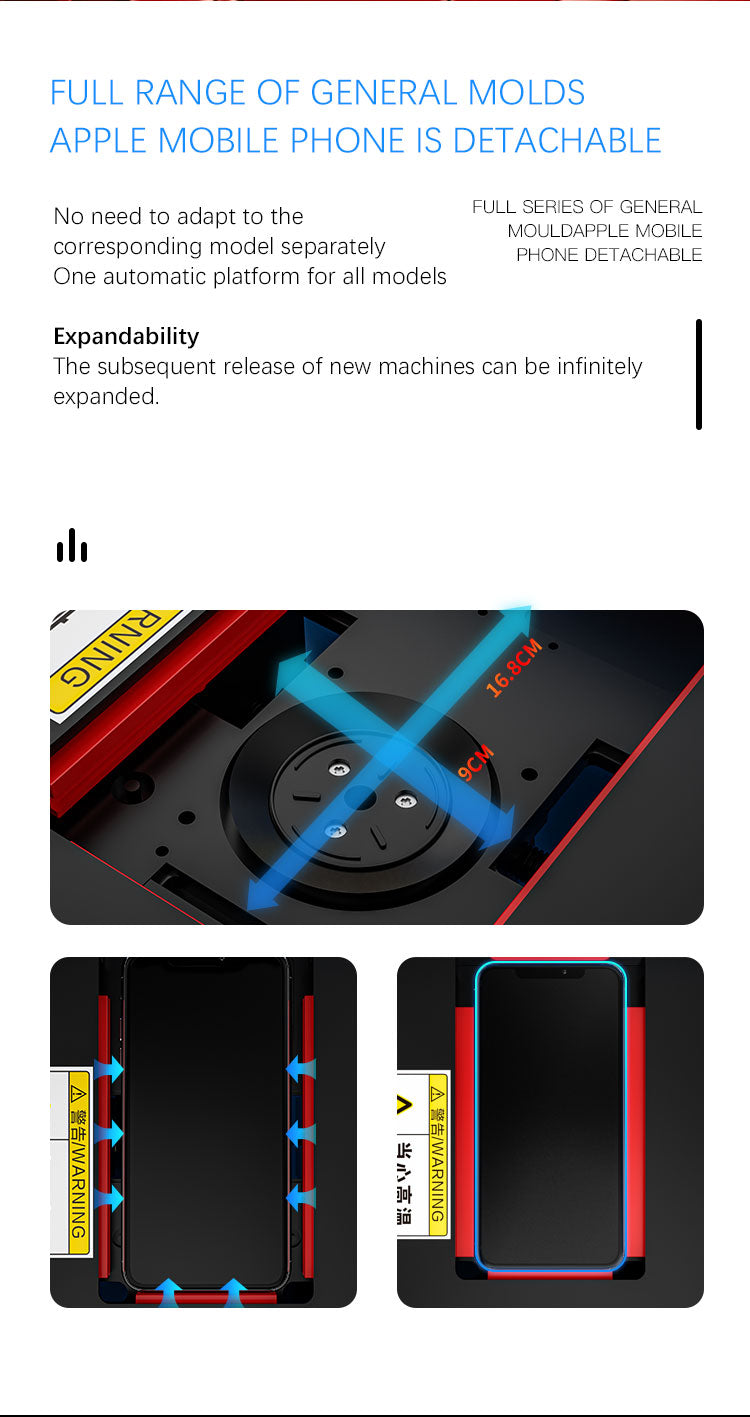

Universal Mold Platform: The heating platform is designed with a universal fit, reducing the requirement for multiple specific molds for different mobile phone models.

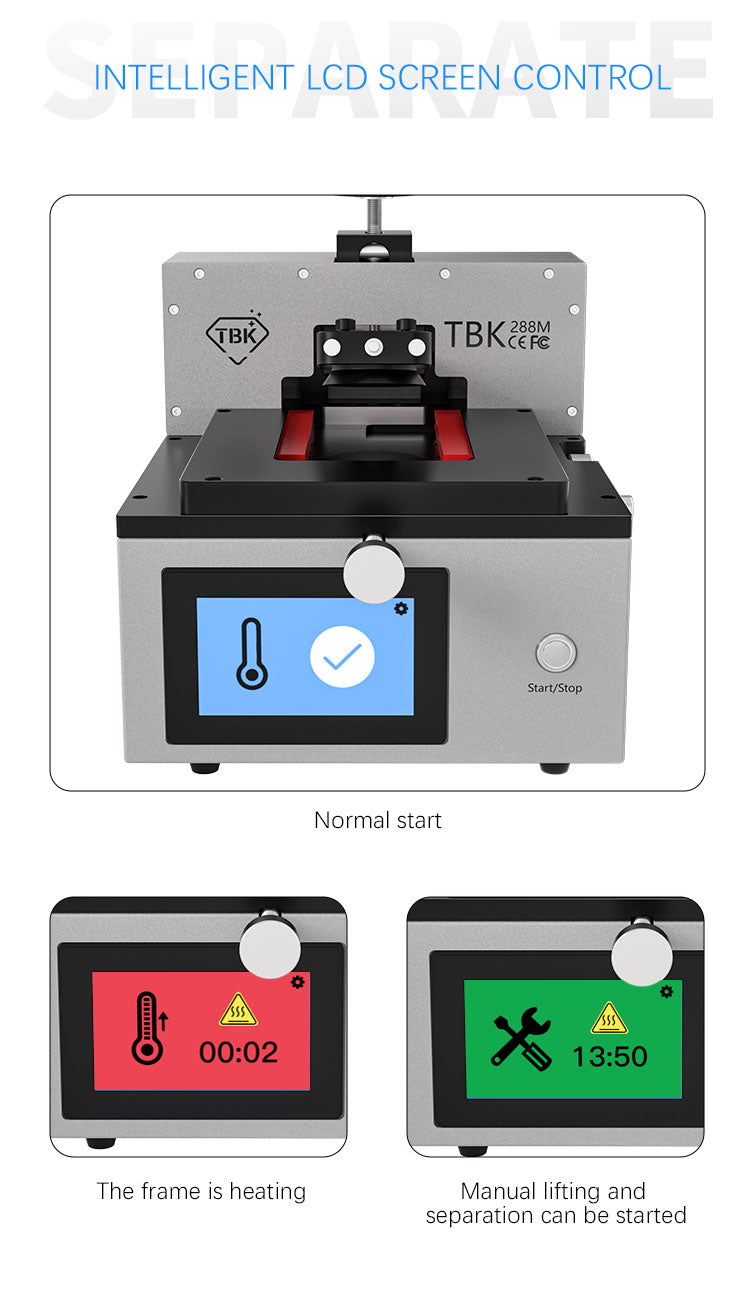

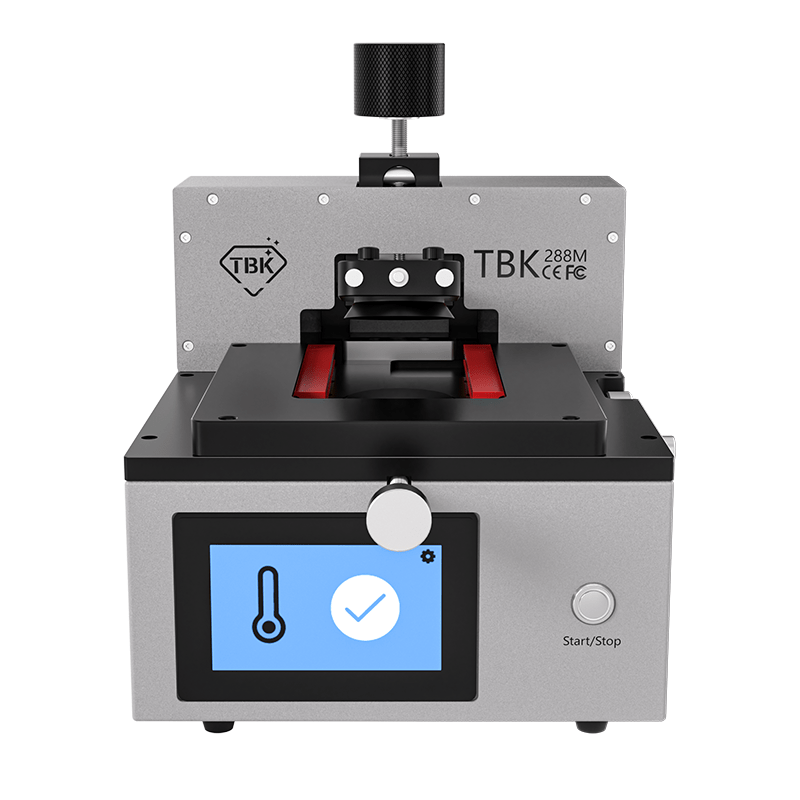

Intelligent LCD Interface: Includes a digital display that provides real-time data on machine status, operating temperature, and cycle timers for process monitoring.

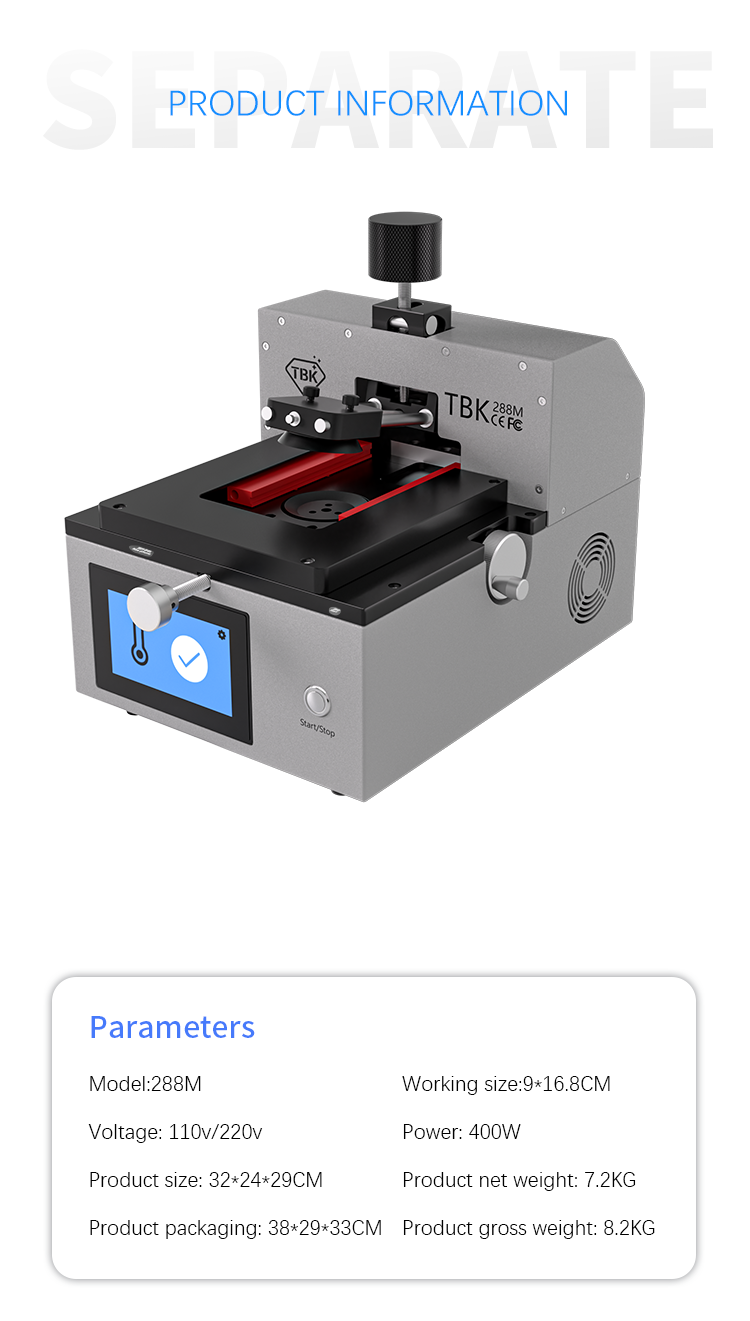

• Model: 288M
• Voltage: 110V / 220V
• Power: 400W
• Working size: 9 cm x 16.8 cm
• Product net weight: 7.2 KG
• Product gross weight: 8.2 KG

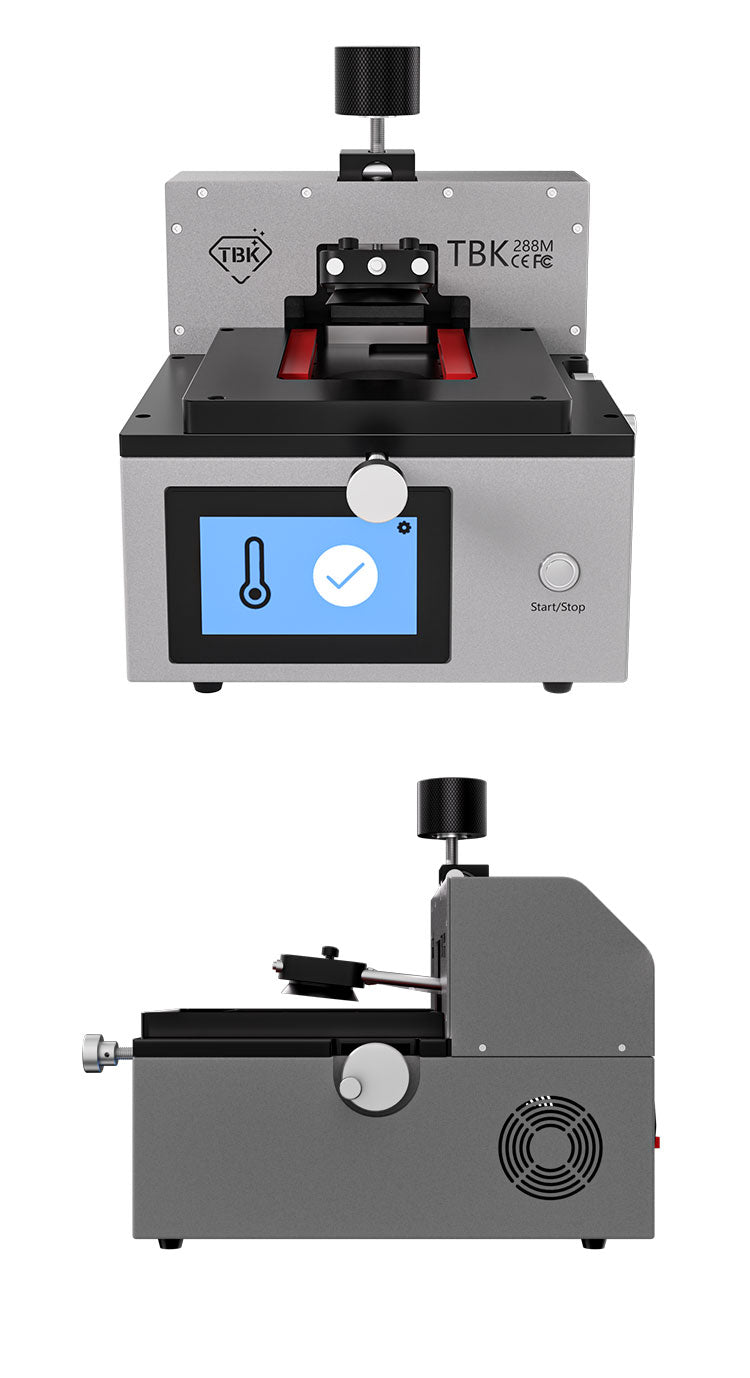

• Product size: 32 x 24 x 29 CM
• Product packaging: 38 x 29 x 33 CM

Q1: How does the TBK 288M protect the phone's internal battery during the heating process?
A1: The TBK 288M utilizes a constant temperature heating method controlled by a smart chip. It focuses heat specifically on the frame of the phone where the adhesive is located, rather than heating the entire device, which helps minimize heat exposure to the battery and other internal components.

Q2: What is the advantage of the manual lifting knob compared to fully automatic separation?
A2: The manual lifting knob provides the technician with tactile control over the separation speed and height. This allows the operator to pause or adjust the lift if resistance is felt, which is critical for preventing damage to delicate flex cables that might be torn by a fully automated machine lacking tension feedback.

Q3: Do I need to purchase separate molds for different phone models to use with this machine?
A3: No, the TBK 288M features a universal platform design. It is engineered to accommodate most mobile phone models without the need to purchase or swap specific molds for each device.

Q4: How does the machine ensure the phone stays in place during separation?
A4: The unit is equipped with a built-in dual vacuum pump system. It applies strong suction to both the bottom platform to hold the phone body stable and the top cup to grip the screen assembly, ensuring a secure hold during the lifting process.
