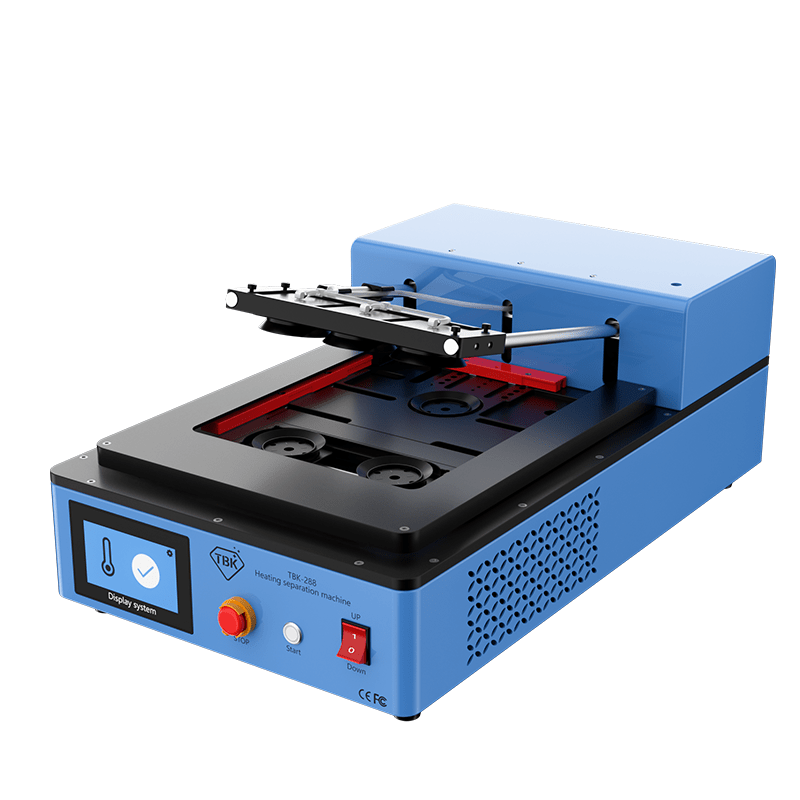

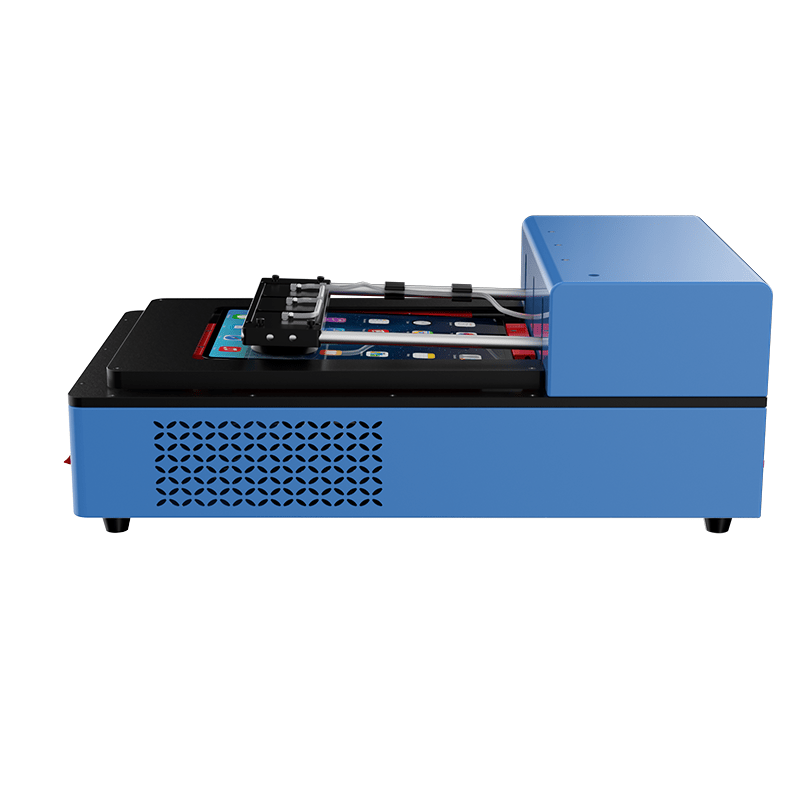

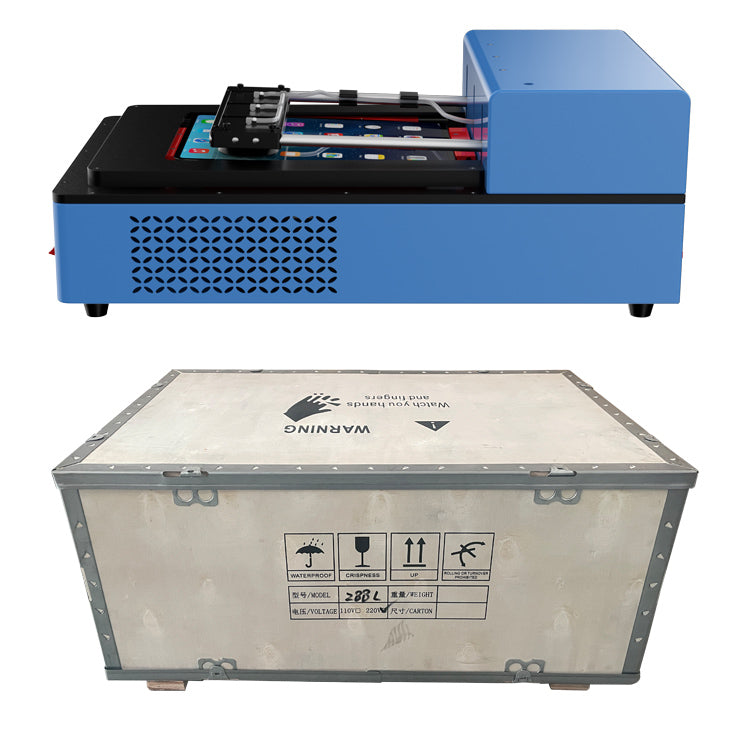

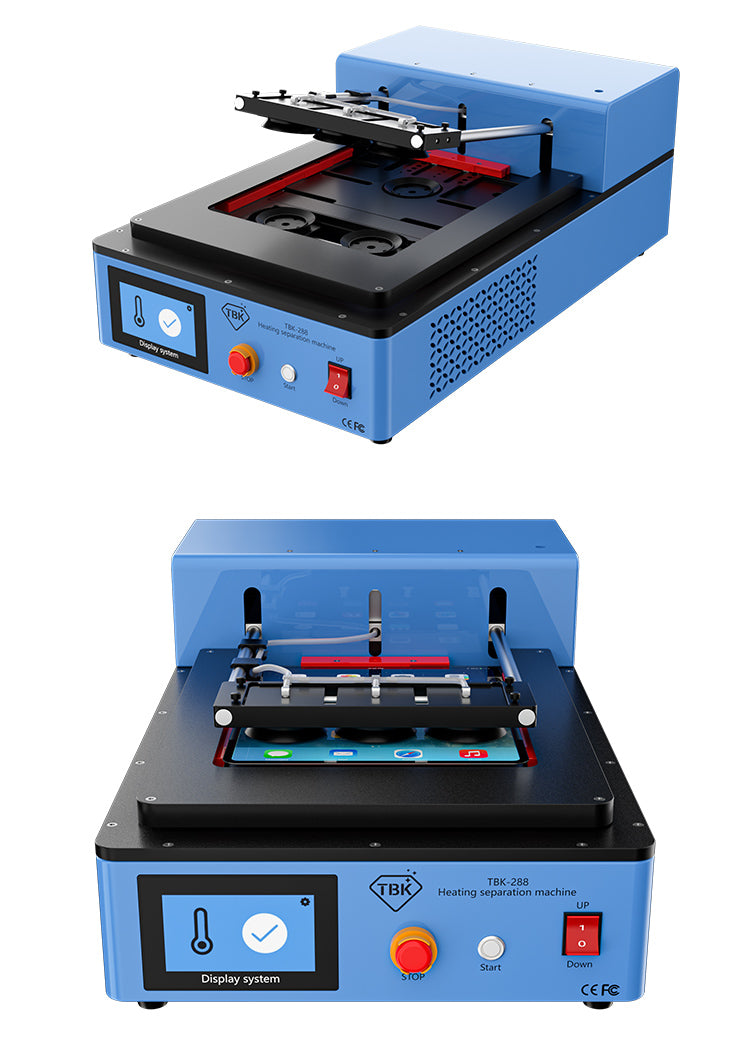

TBK 288L Automatic Tablet Screen Separator with Universal Heating Platform

The TBK 288L is an intelligent, fully automatic screen separator engineered specifically for the disassembly of iPads and other tablet devices. It is designed to provide a systematic solution for large-screen removal tasks in professional repair environments.

The unit features an adjustable universal mold mechanism capable of fitting various device sizes, effectively eliminating the requirement for multiple model-specific molds. The system utilizes accurate, constant temperature heating directed specifically at the device frame. This localized heating method softens the adhesive effectively while minimizing thermal exposure to the internal battery and components.

Equipped with a built-in vacuum pump for high-stability suction and an intelligent jacking system, the TBK 288L ensures precise separation. The machine supports dual operating modes, allowing technicians to switch between fully automatic execution and manual control depending on specific repair requirements. All operational parameters are managed through an integrated LCD interface, streamlining the tablet screen repair workflow.

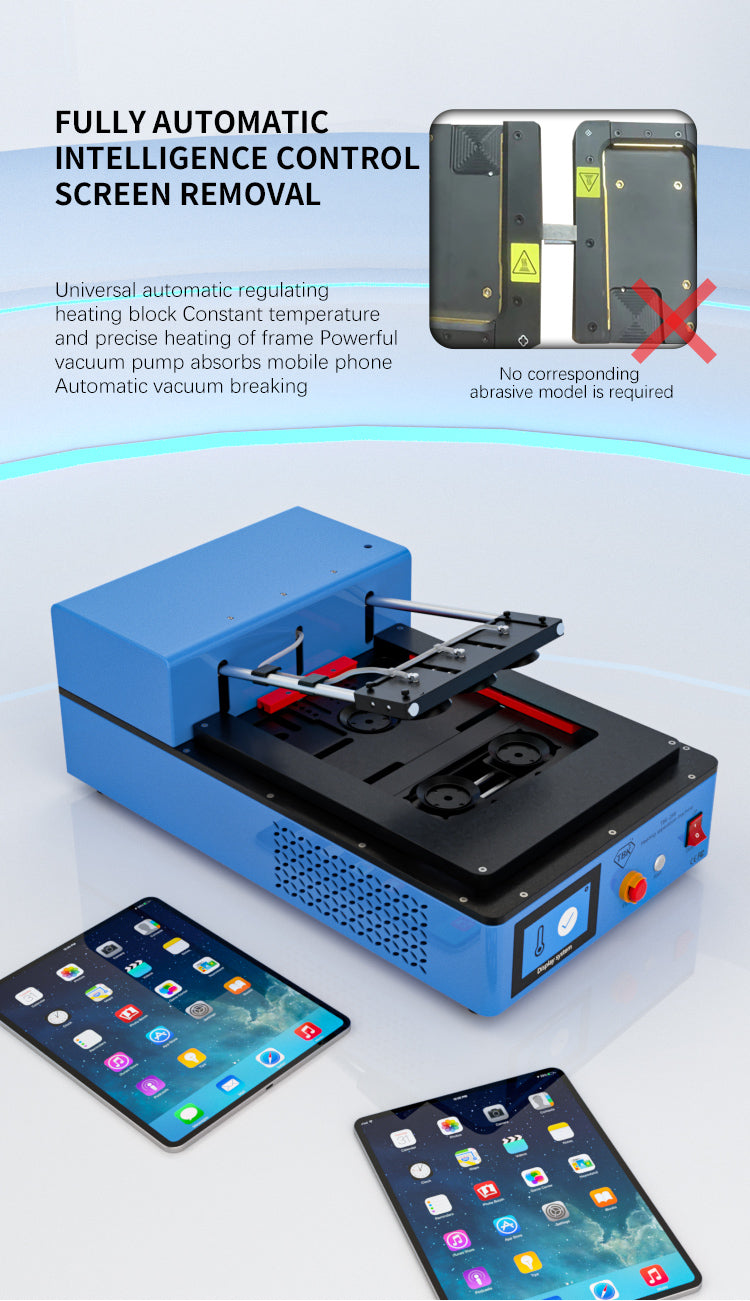

Fully Automatic Operation: Features a one-key start function that initiates the automated heating and screen separation cycle for consistent results.

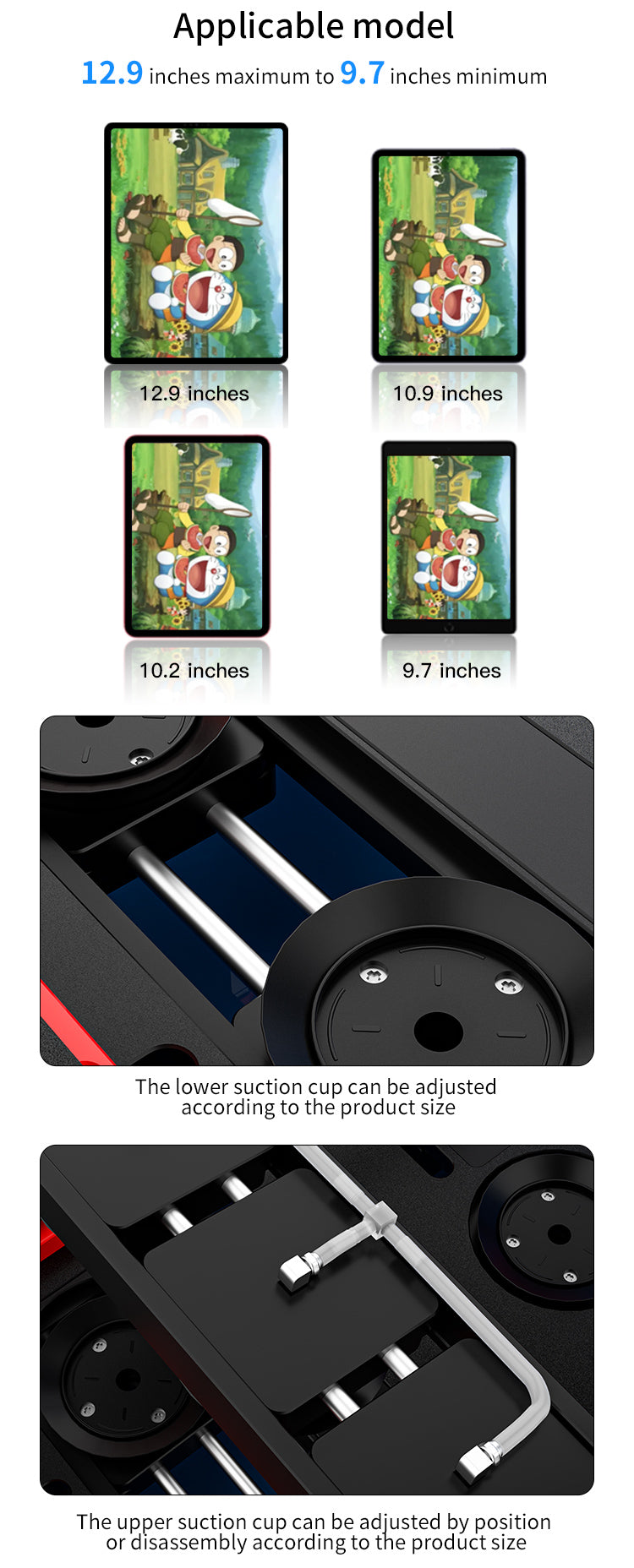

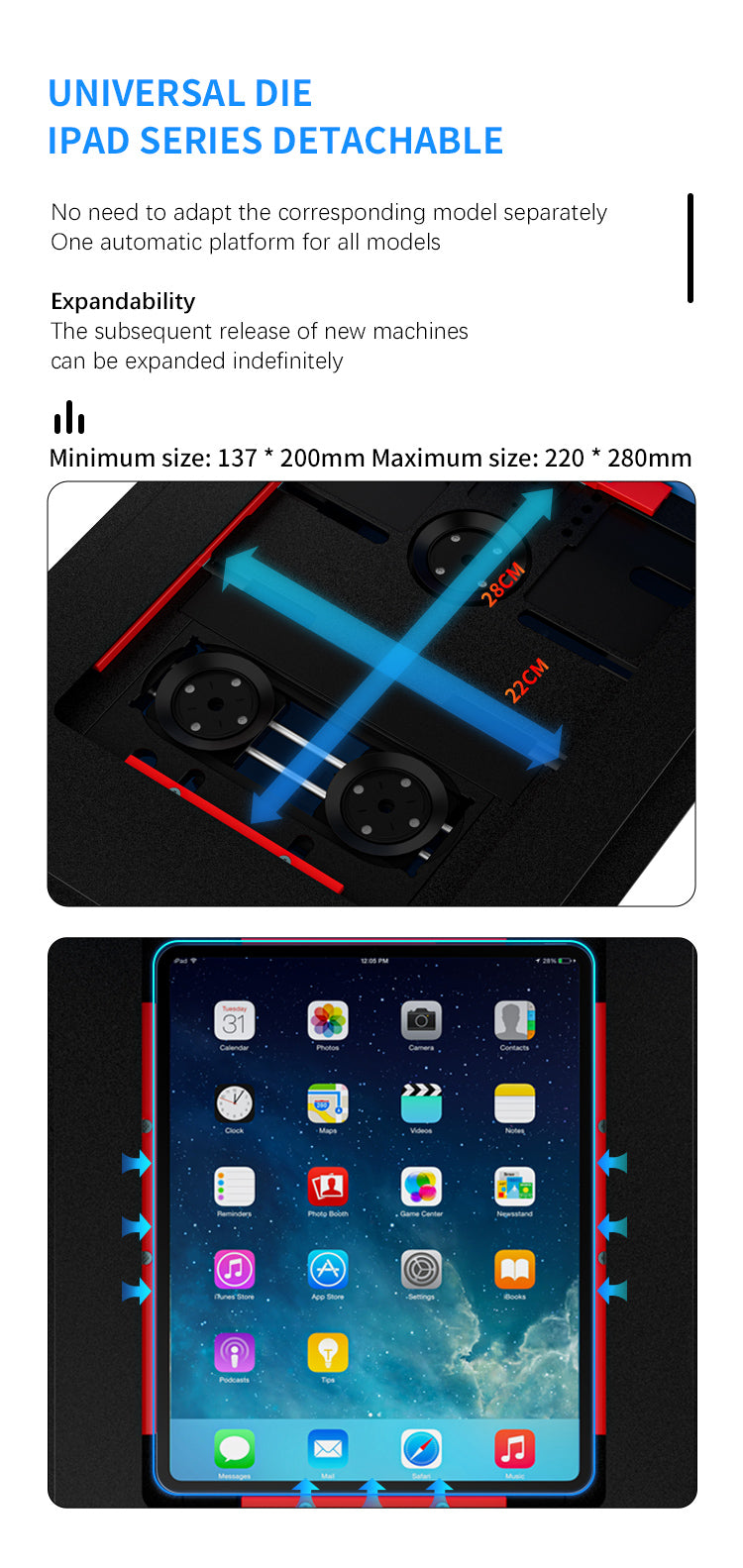

Universal Platform: Designed with a single, expandable platform that adjusts to fit all compatible tablet models, removing the need for separate molds.

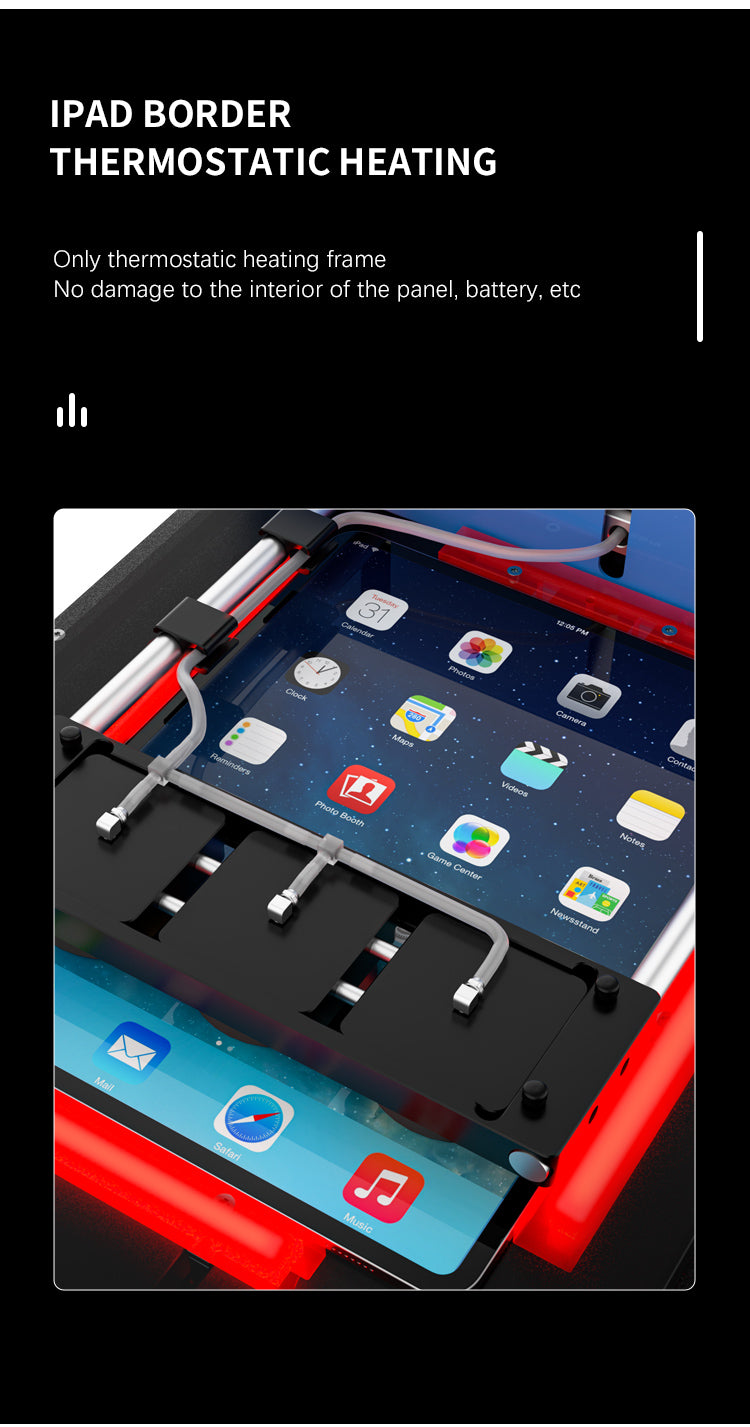

Thermostatic Frame Heating: Applies constant heat strictly to the device frame, aiding in adhesive removal while protecting the LCD panel and battery from heat damage.

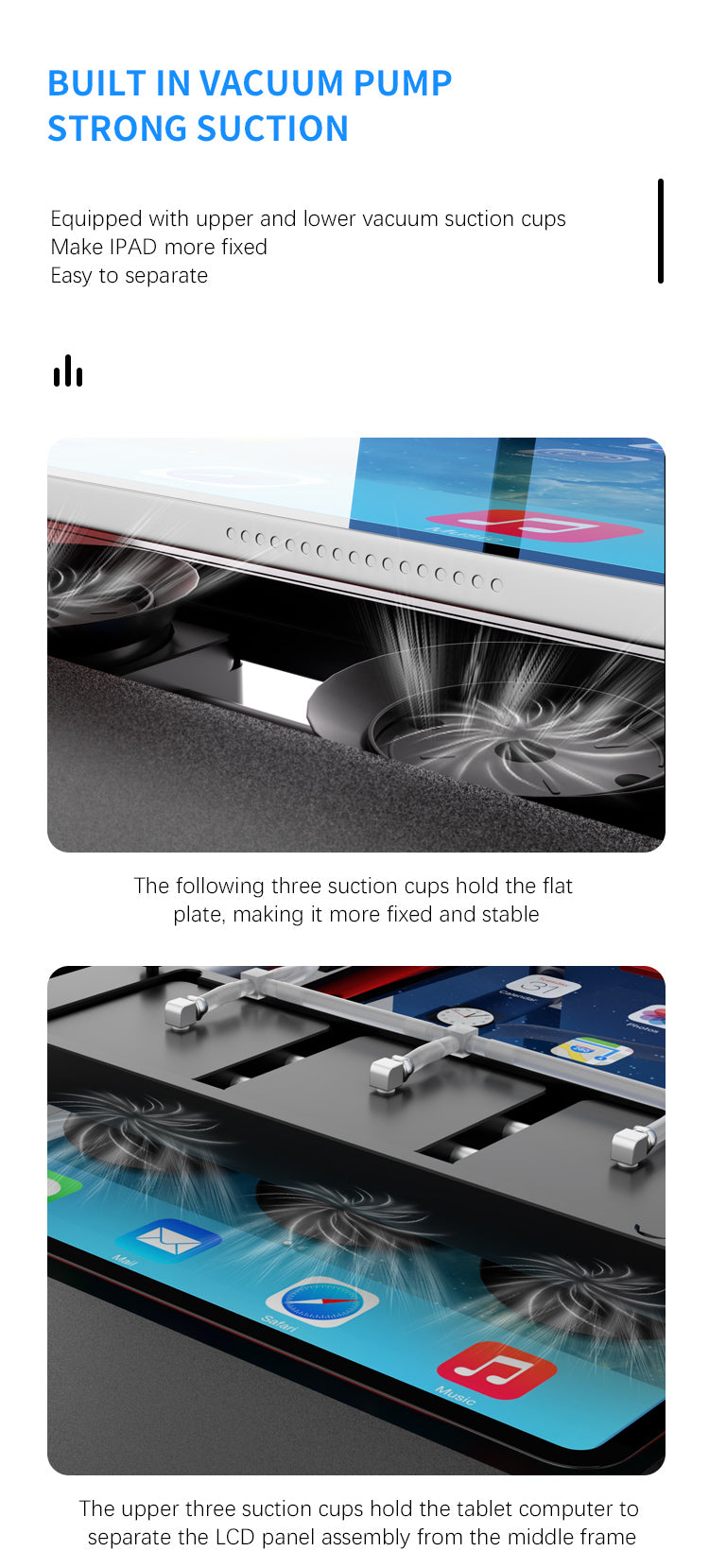

Built-in Vacuum Pump: Utilizes upper and lower suction cups to provide a strong, stable grip on both the tablet body and the screen assembly during operation.

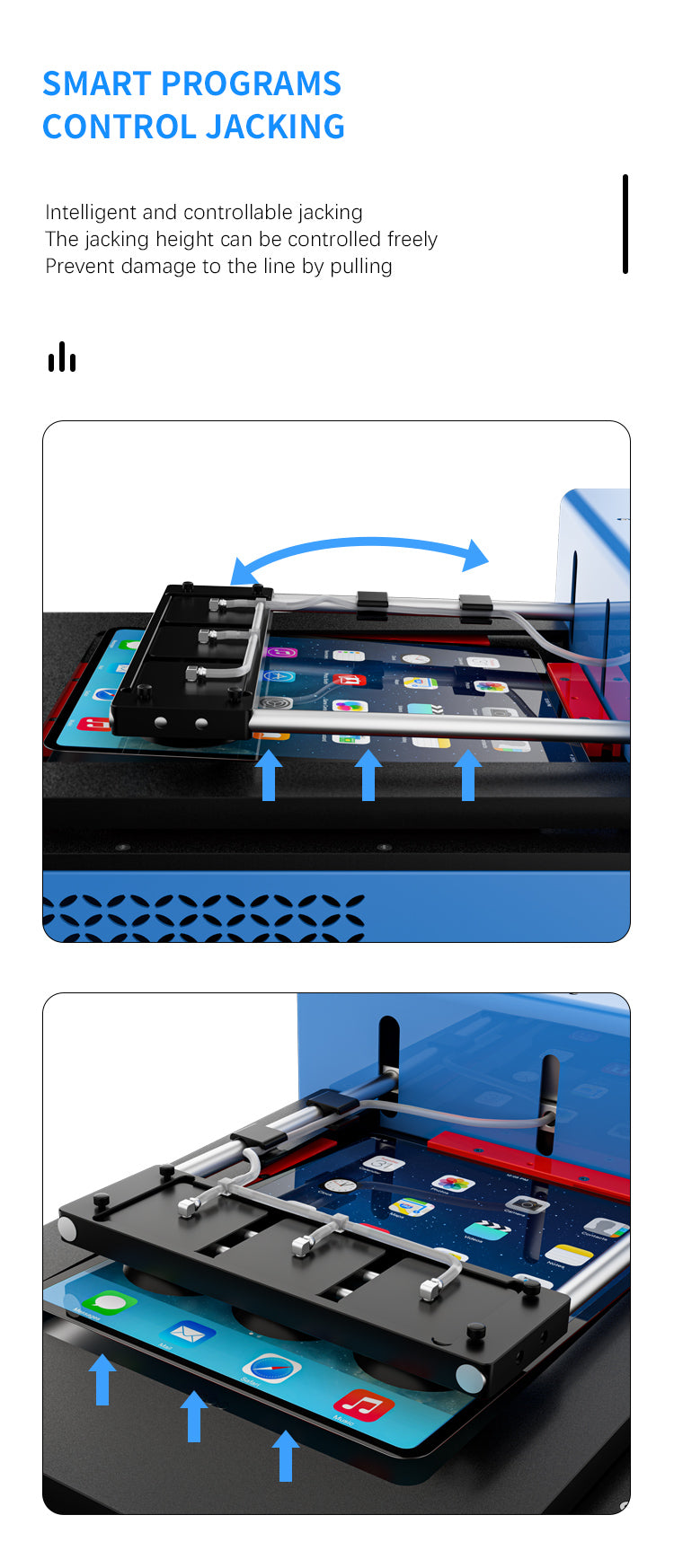

Intelligent Controlled Jacking: The smart control program regulates the lifting height to manage tension, designed to prevent damage to internal flex cables.

Dual Operation Modes: Offers the flexibility to switch between automatic operation for efficiency and manual control for specialized or delicate tasks.

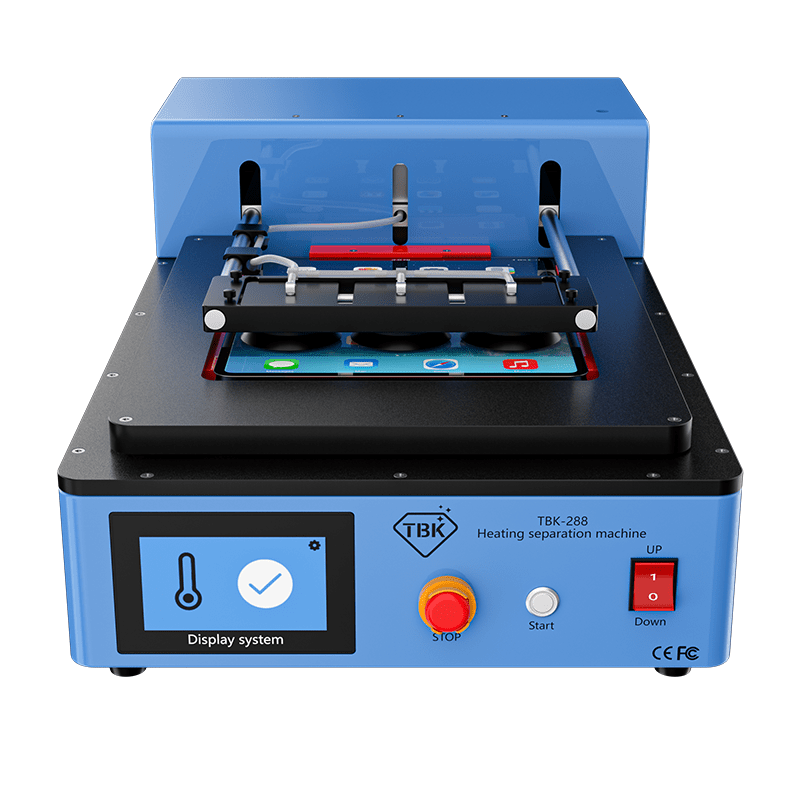

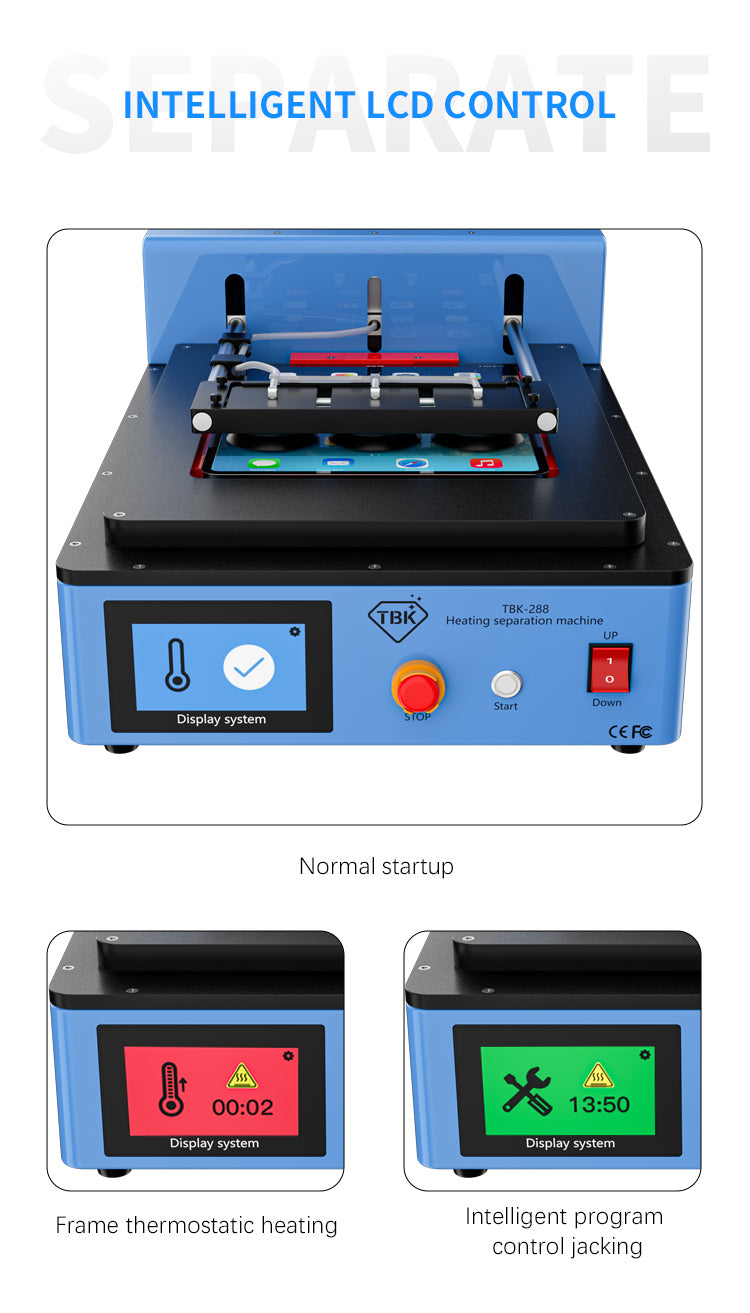

LCD Control Interface: Equipped with a clear display system that allows for simple operation and real-time monitoring of temperature and status.

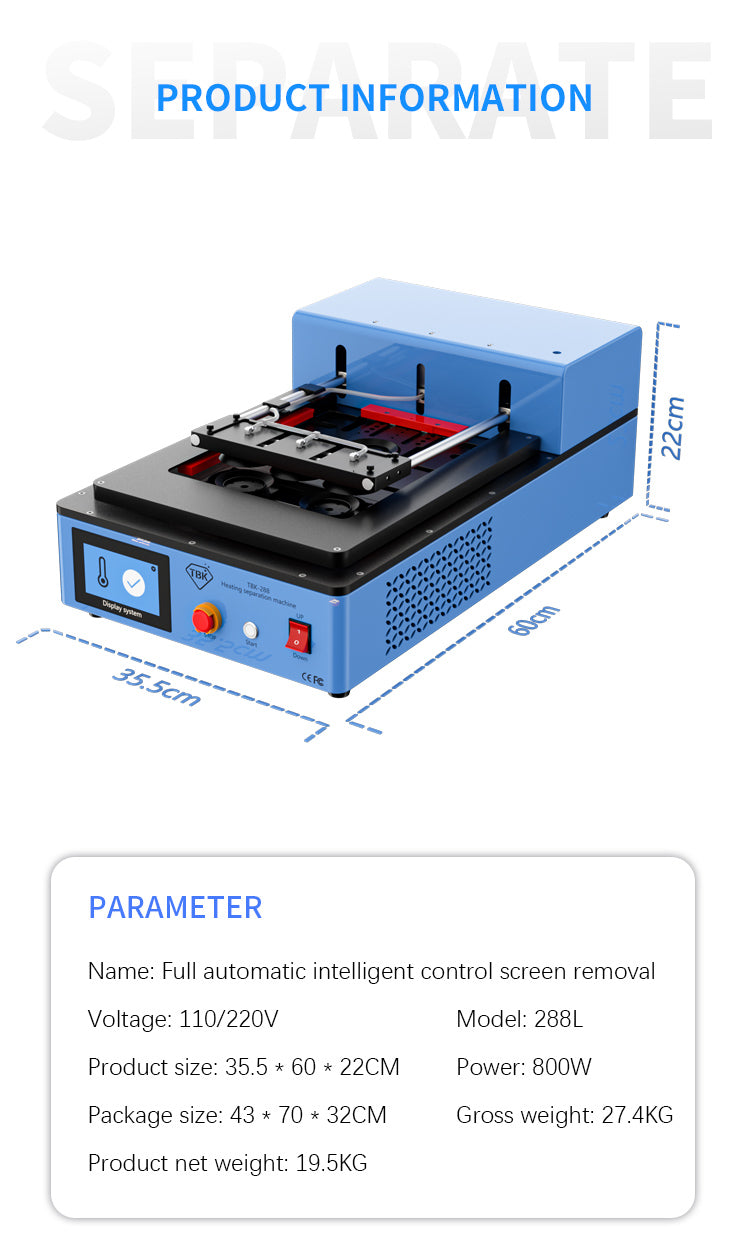

• Name: Fully Automatic Intelligent Control Screen Removal
• Model: 288L
• Voltage: 110V / 220V
• Power: 800W

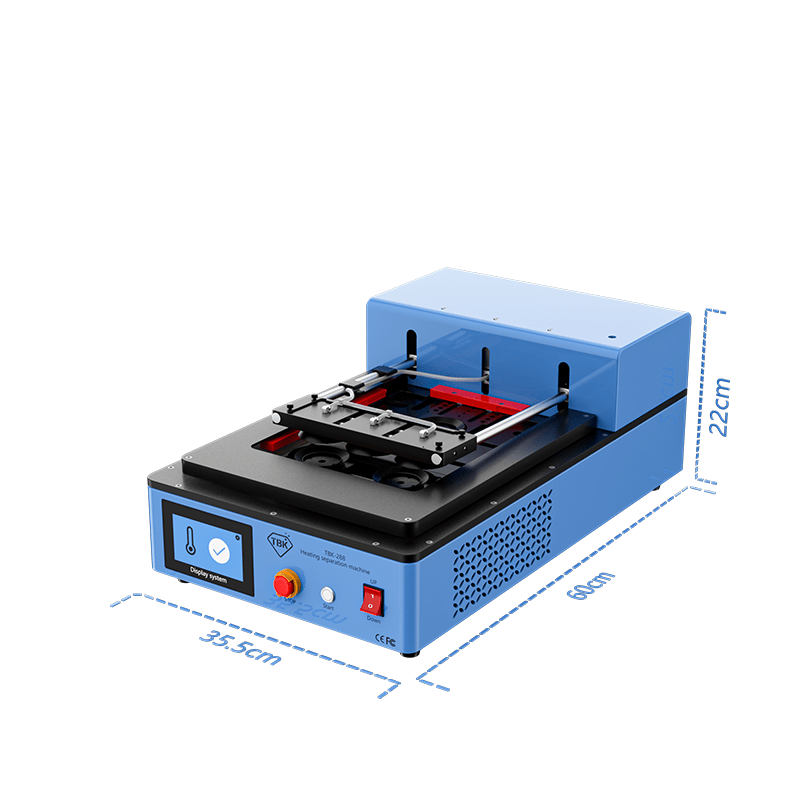

• Product Size: 35.5 * 60 * 22 CM
• Package Size: 43 * 70 * 32 CM
• Product Net Weight: 19.5 KG
• Gross Weight: 27.4 KG

Q1: Do I need to purchase specific molds for different iPad or tablet models to use the TBK 288L?
A1: No, the TBK 288L features a universal expandable platform. It is designed to adjust and fit a wide range of tablet sizes, eliminating the need to buy or swap separate molds for different models.

Q2: How does the TBK 288L prevent damage to the tablet's battery and LCD during heating?
A2: The machine employs thermostatic frame heating technology. This method directs heat precisely to the outer frame where the adhesive is located, rather than heating the entire device, thereby protecting the central LCD panel and internal battery from excessive heat exposure.

Q3: Can I control the separation process manually if needed?
A3: Yes, the TBK 288L features dual operating modes. While it offers fully automatic operation for efficiency, technicians can switch to manual control mode to handle delicate jobs or specific repair scenarios that require operator intervention.

Q4: How does the machine ensure flex cables are not torn during the automatic separation process?
A4: The machine utilizes an intelligent controlled jacking system. This program regulates the lifting height and speed to ensure the screen is separated without over-extending, which helps prevent damage to the delicate flex cables connecting the screen to the logic board.
