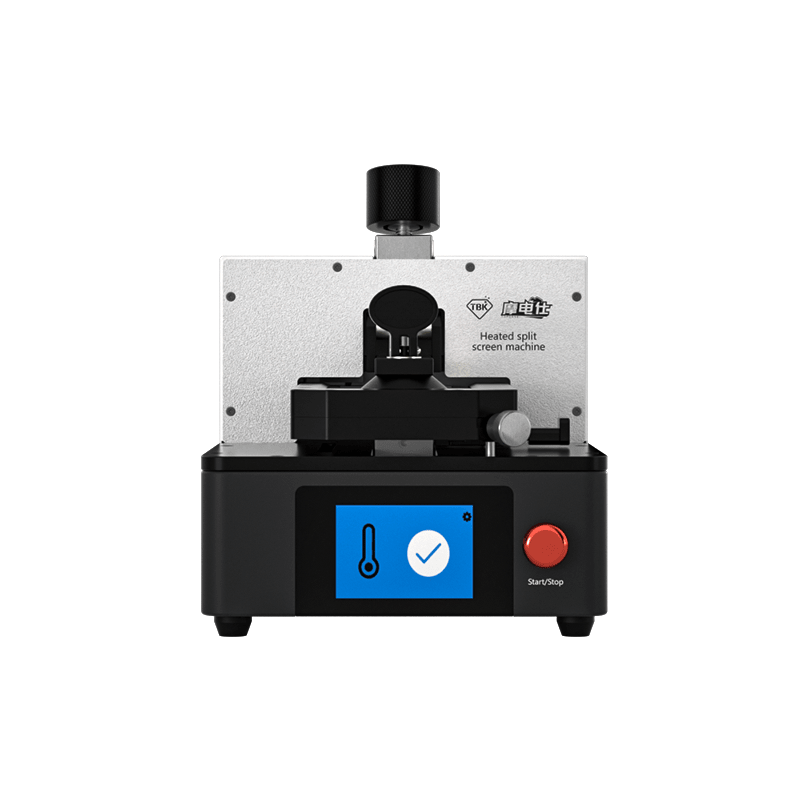

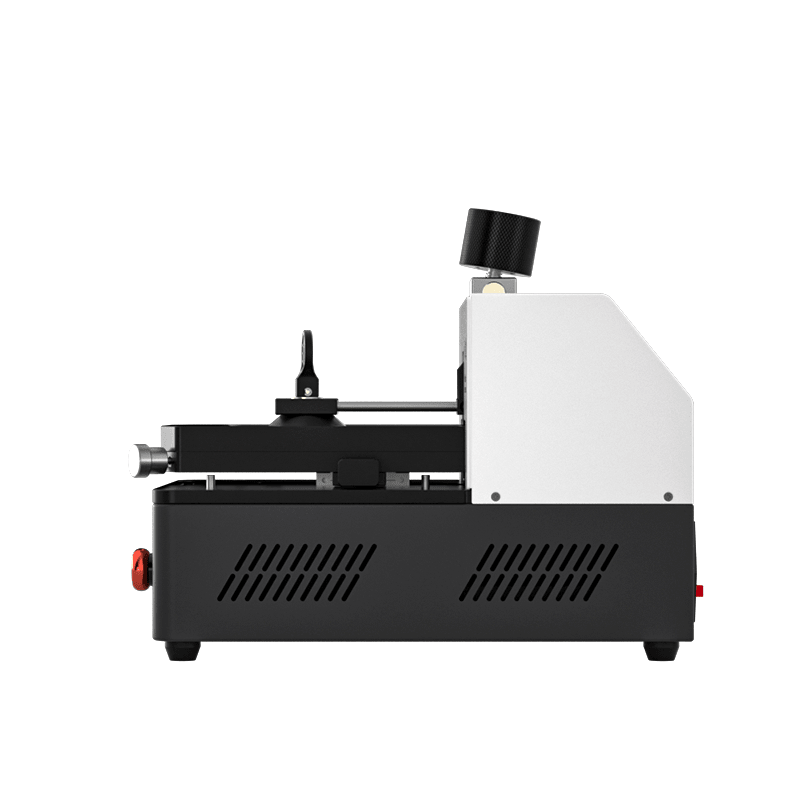

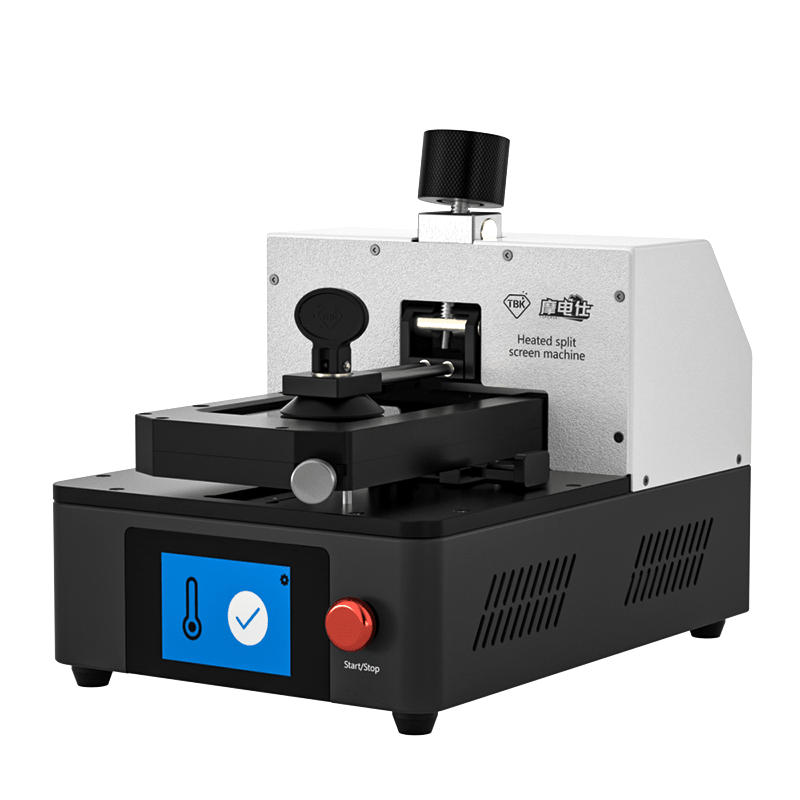

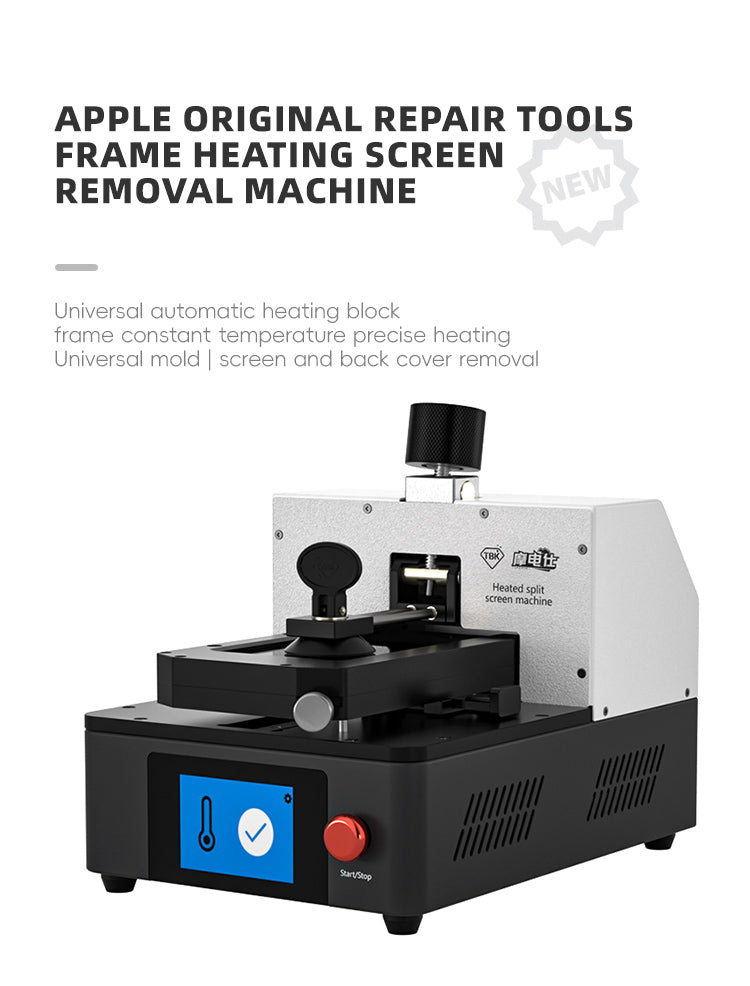

TBK 288H Professional Screen & Back Cover Separator for iPhone (Frame-Clamping System)

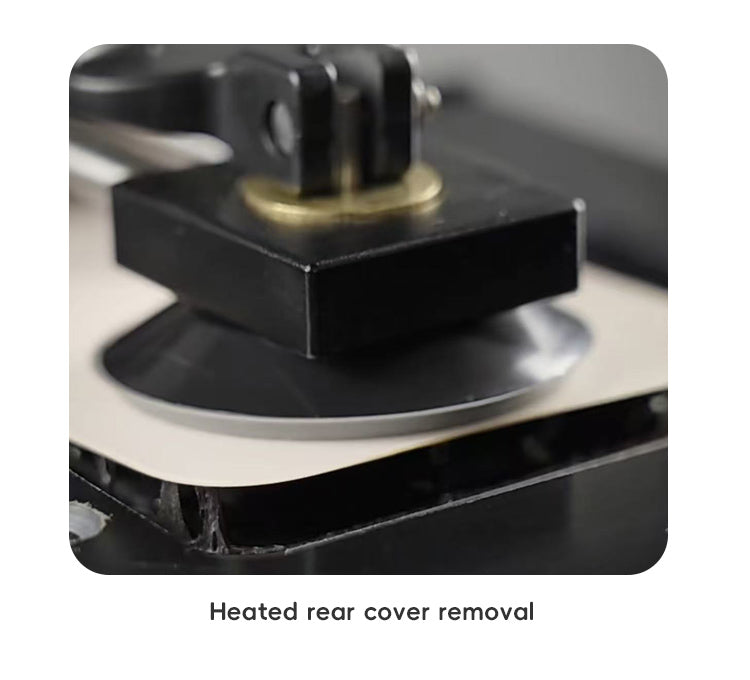

The TBK-288H is a professional-grade separator engineered for iPhone screen and back cover repairs, specifically addressing common repair challenges. A primary feature is its frame-clamping system, which secures the device by the frame rather than relying on bottom vacuum suction. This design allows technicians to effectively separate screens even when the back cover glass is severely shattered, a scenario where traditional suction methods often fail. The system is calibrated to support back cover removal operations for models up to the iPhone 17 series.

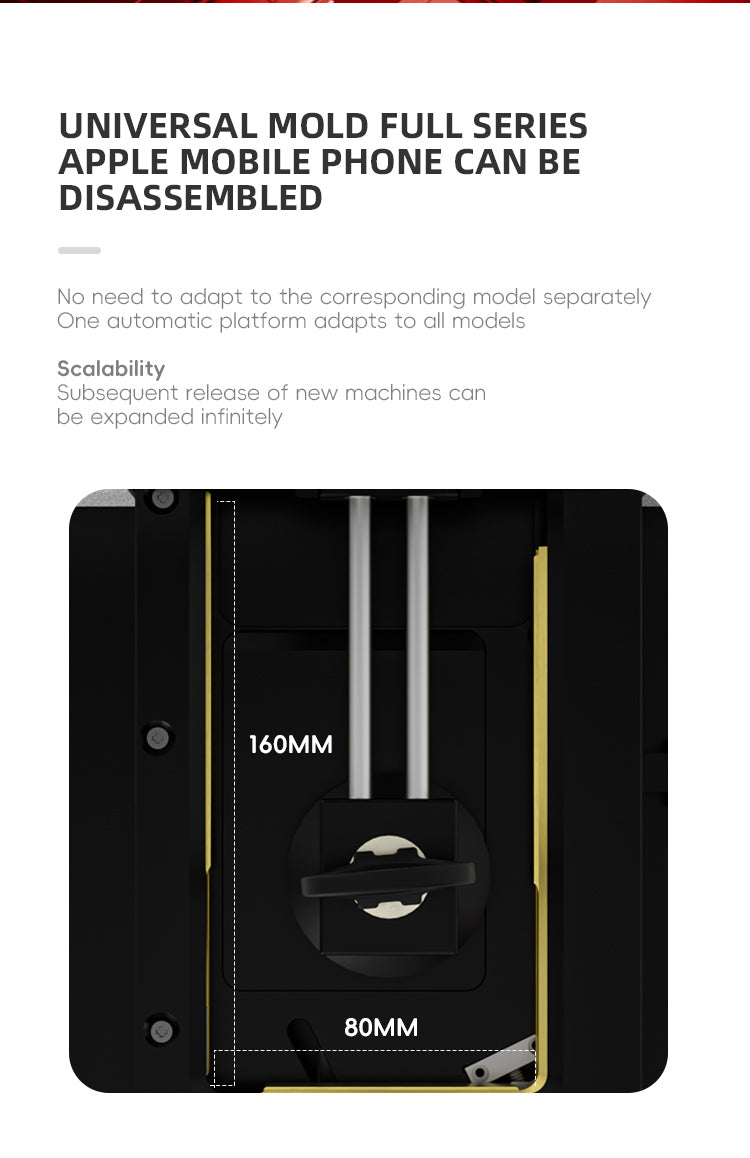

Designed with a universal jig, the TBK-288H accommodates all Apple iPhone generations. The adjustable mechanism adapts to legacy models through the current iPhone 17 lineup and is engineered for expandability to support future releases. The jig operates on a smooth push-pull guide rail system, facilitating efficient device loading and unloading.

The heating unit utilizes a pure copper strip to ensure rapid and uniform thermal conduction. This targeted heating approach applies constant temperature exclusively to the device frame, thereby reducing thermal impact on sensitive internal components. The separation process is controlled via a robust manual lifting mechanism, providing technicians with precise, tactile feedback during operation.

Frame-Clamping System: Mechanically secures the iPhone by its frame, eliminating reliance on back glass integrity.

Shattered Glass Support: Enables effective screen separation on devices with completely broken back covers where vacuum suction is ineffective.

Universal iPhone Jig: A single, adjustable module compatible with all Apple iPhone series, designed for current and future model dimensions.

Push-Pull Guide Rail: Engineered for smooth operation, allowing for rapid device placement and removal.

Pure Copper Heating: Facilitates efficient thermal transfer for consistent adhesive softening around the bezel.

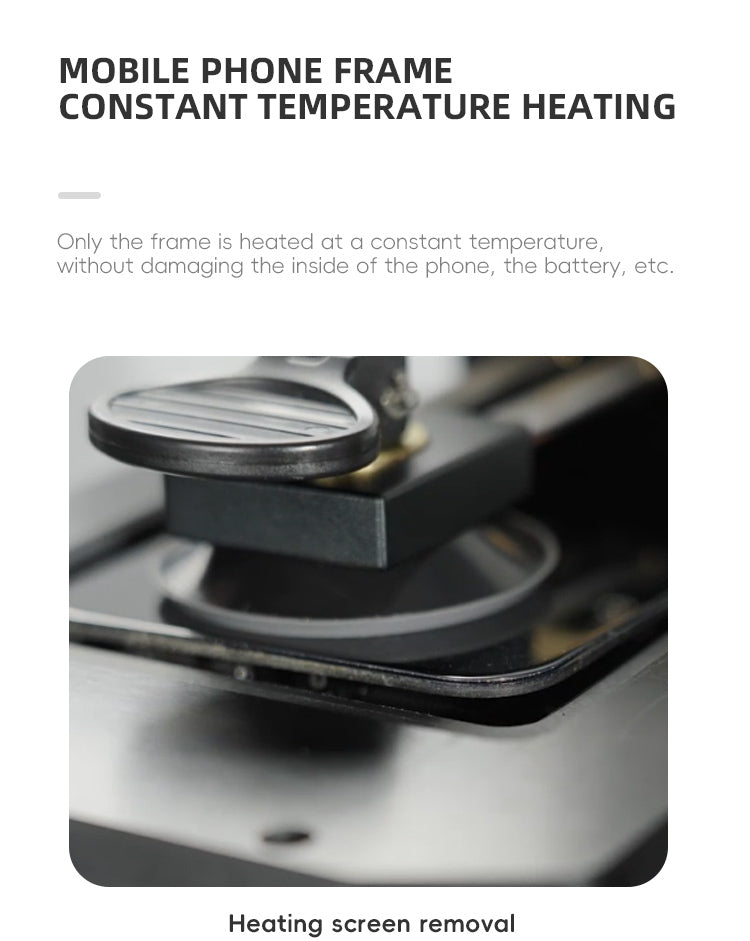

Targeted Frame Heating: Directs constant temperature specifically to the frame perimeter, aiding in the protection of internal electronics.

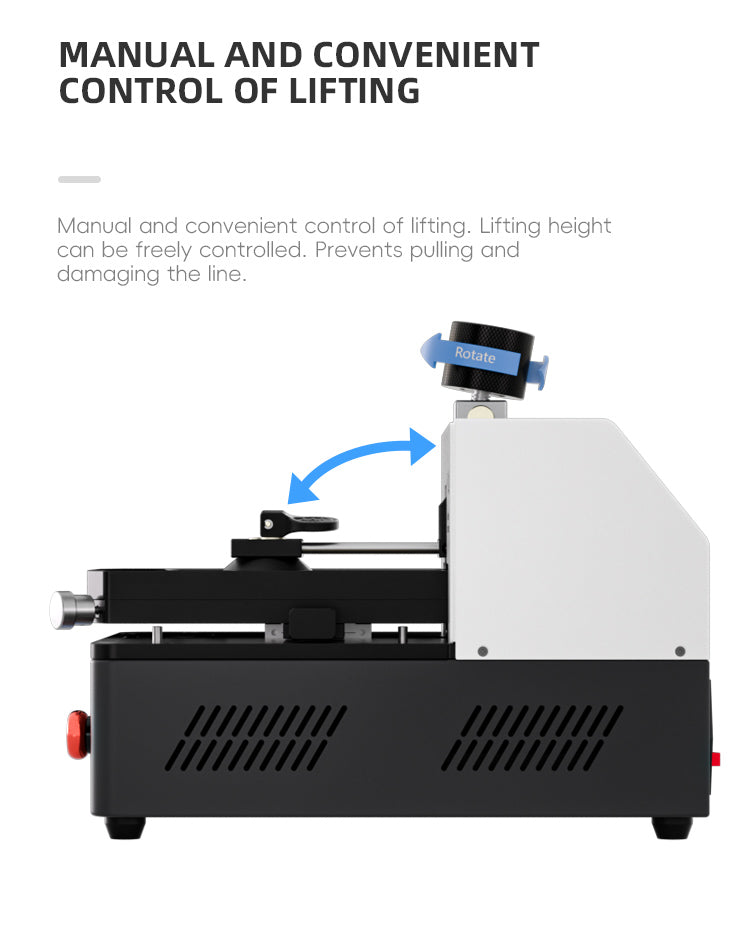

Manual Control: Equipped with a manual lifting mechanism for precise control over the separation force and speed.

Forward Compatibility: Structured to handle upcoming device form factors, including support for iPhone 16 and 17 back cover removal.

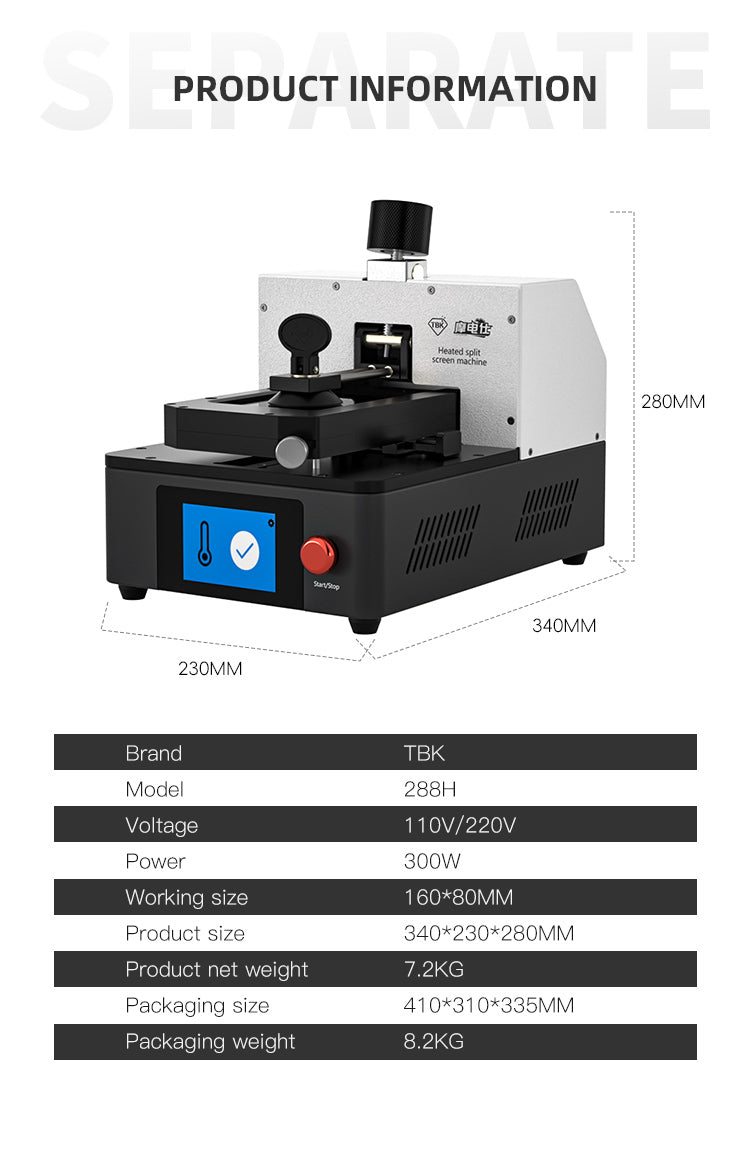

• Brand: TBK
• Model: 288H
• Voltage: 110V/220V
• Power: 300W
• Working Size: 160 * 80mm
• Product Size: 340 * 230 * 280mm
• Product Net Weight: 7.2KG
• Packaging Size: 410 * 310 * 335mm
• Packaging Weight: 8.2KG

Q1: How does the TBK-288H handle iPhones with shattered back glass?
A1: The TBK-288H utilizes a frame-clamping system instead of bottom vacuum suction. This allows the machine to securely hold the device by its metal frame, enabling screen separation even if the back glass is compromised or missing.

Q2: Which iPhone models are compatible with the universal jig?
A2: The built-in universal jig is adjustable and supports all iPhone series, ranging from early generations up to the iPhone 17. It is designed to be expandable for future model releases.

Q3: Does the machine heat the entire phone during the separation process?
A3: No. The machine features a targeted heating system using a pure copper strip that applies heat primarily to the frame. This design helps protect internal components by minimizing their exposure to high temperatures.

Q4: Is the separation process automated or manual?
A4: While the heating and holding are system-assisted, the separation utilizes a manual lifting mechanism. This provides the technician with tactile control over the pressure applied during the screen or back cover removal process.
