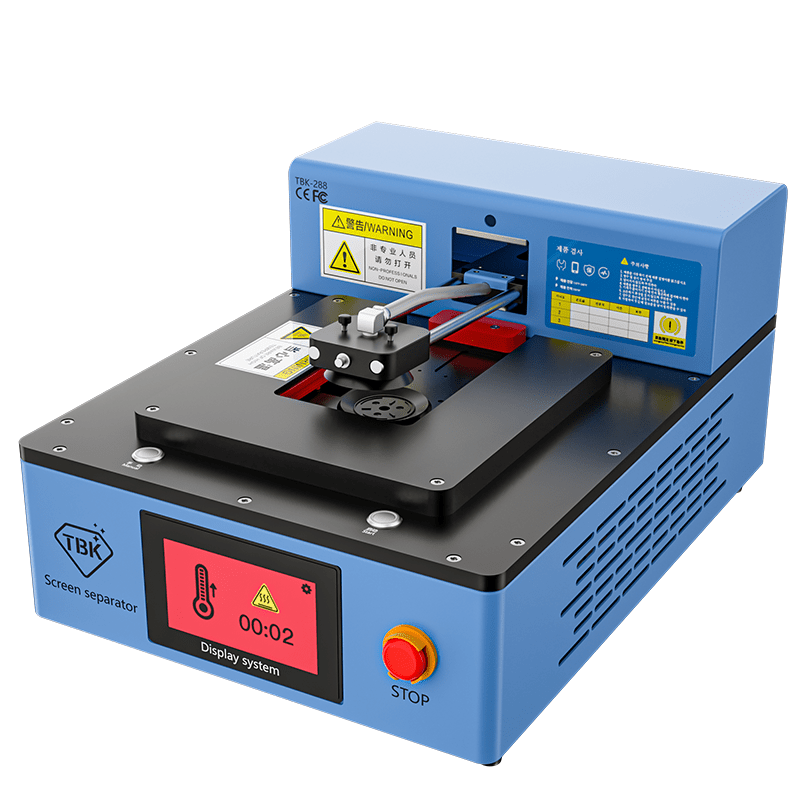

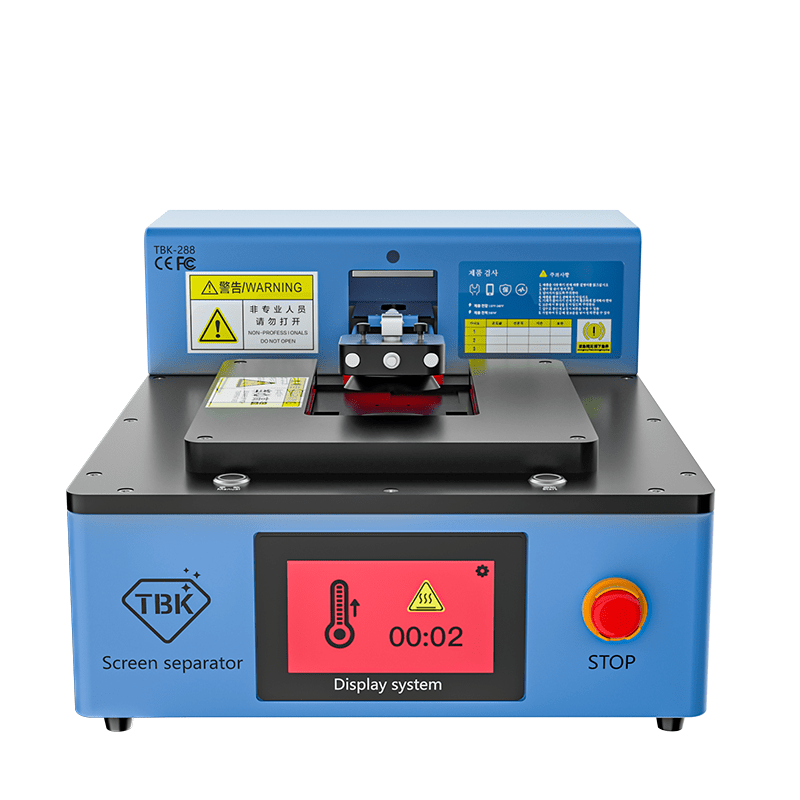

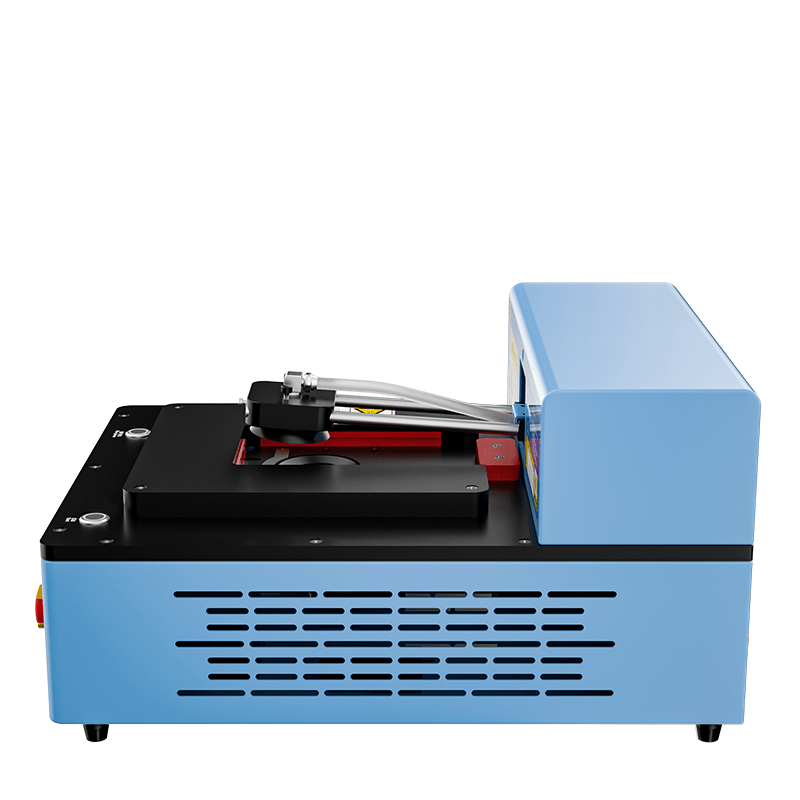

TBK 288 Automatic Screen Separator for iPhone (Mold-Free Universal Platform)

The TBK-288 is an automated screen separation system engineered for the removal of Apple iPhone screens. It is designed to streamline the repair workflow through a fully automatic process that combines heating and separation into a single operation.

A key feature of this device is its universal, mold-free platform. This design ensures compatibility with all current Apple iPhone models without requiring specific molds for each device, simplifying the tooling requirements for repair shops.

Device stability during operation is maintained by a built-in vacuum pump featuring both upper and lower suction cups. The heating mechanism utilizes constant temperature control, specifically targeting the frame adhesive to minimize thermal transfer to the battery and internal components. To ensure safety, the intelligent jacking system lifts the screen to a pre-programmed, controlled height, designed to prevent tension damage to delicate flex cables. The machine is equipped with an LCD interface and offers both fully automatic and manual operation modes, providing technicians with flexibility depending on repair requirements.

Fully Automatic Operation: Initiates the complete heating and separation cycle with a single command for streamlined workflow.

Universal Mold-Free Platform: A single platform design accommodates all iPhone models, eliminating the need for model-specific molds.

Targeted Frame Heating: Applies constant temperature specifically to the frame adhesive, reducing heat exposure to the LCD panel and battery.

Controlled Jacking Height: The automated system controls the lifting height to protect flex cables from over-extension or damage.

Dual Vacuum Suction: Equipped with upper and lower vacuum cups to securely hold the device assembly during separation.

Dual Operation Modes: Provides the option to switch between program-controlled automatic mode and manual operation.

LCD Control Interface: Features a digital display for monitoring temperature, operating status, and process progress.

Wide Voltage Support: Compatible with $110\text{V}-240\text{V}$ power inputs for global usability.

Integrated Smart Chip: Utilizes a control chip to maintain thermal stability and precise process management.

• Product Name: Automatic Intelligent Control Screen Removal
• Model: 288
• Voltage: 110-240V
• Power: 400W
• Product Size: 42cm * 30cm * 21cm
• Net Weight: 9.2kg
• Gross Weight: 15kg
• Package Size: 48cm * 38cm * 30cm

Q1: Do I need to buy separate molds for different iPhone models for the TBK-288?
A1: No, the TBK-288 features a universal, mold-free platform. It is designed to fit all current iPhone models and adapt to future devices without the need for additional, specific molds.

Q2: How does the machine prevent damage to the screen flex cables during automatic separation?
A2: The machine utilizes an intelligent jacking system that lifts the screen to a precise, controlled height. This prevents the screen from being pulled too far, protecting the delicate flex cables from tension damage.

Q3: Does the TBK-288 heat the entire phone to soften the adhesive?
A3: No, the system uses targeted frame heating. It applies constant temperature primarily to the frame area where the adhesive is located, safeguarding internal components like the battery from excessive heat.

Q4: Can the machine be operated manually if needed?
A4: Yes, while the TBK-288 is designed for fully automatic operation, it also offers a manual mode, allowing technicians to take control of the jacking process when required.
