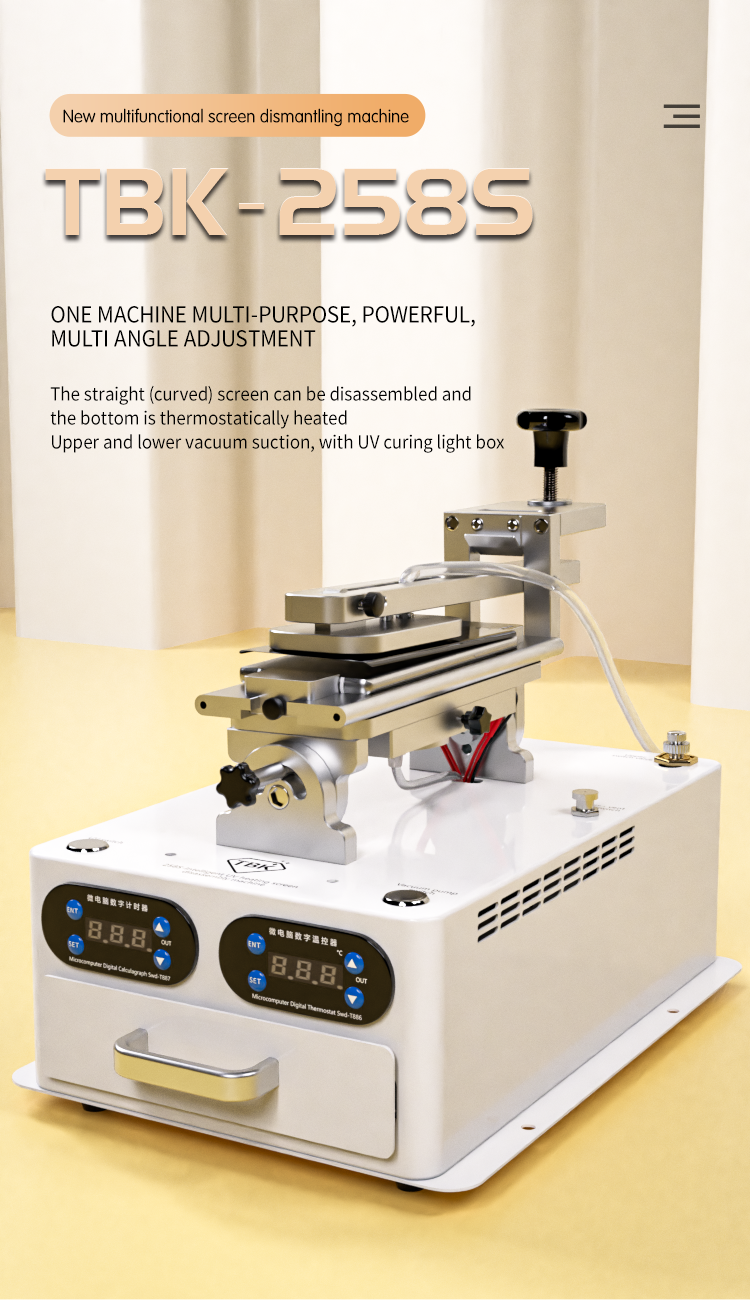

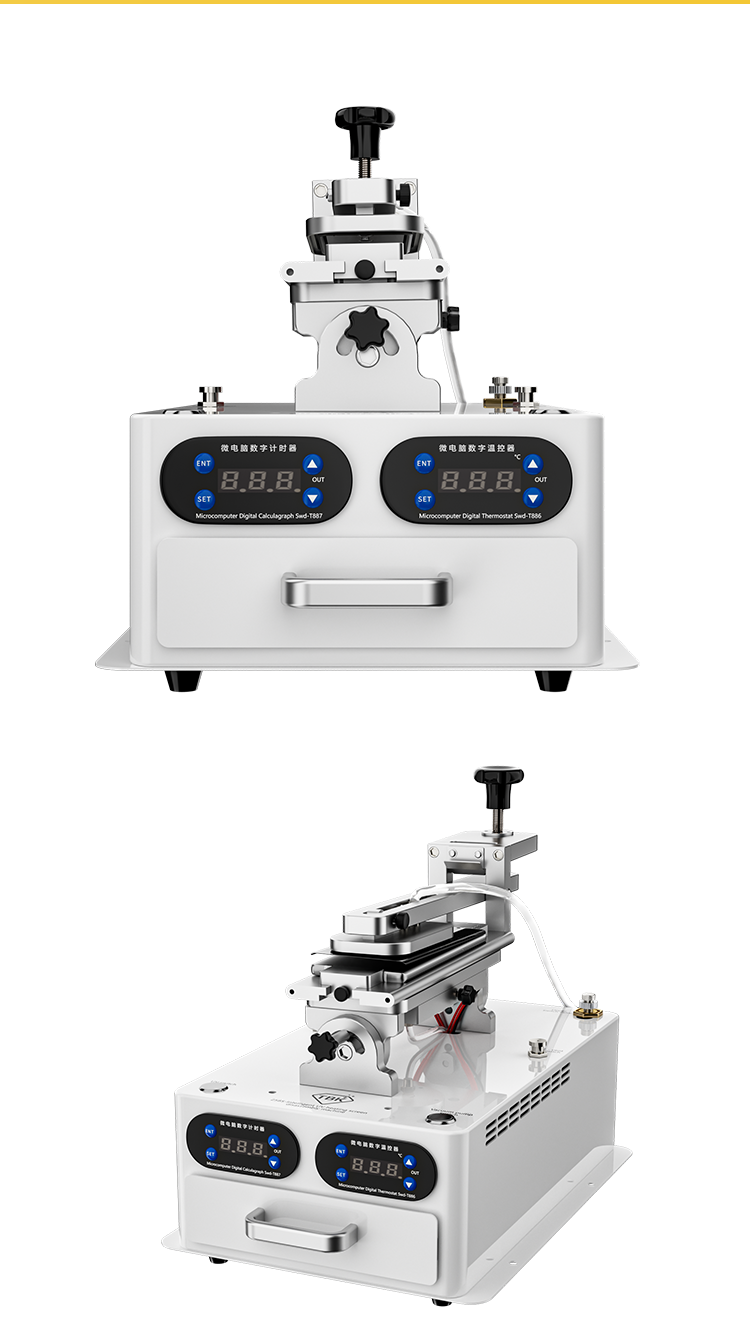

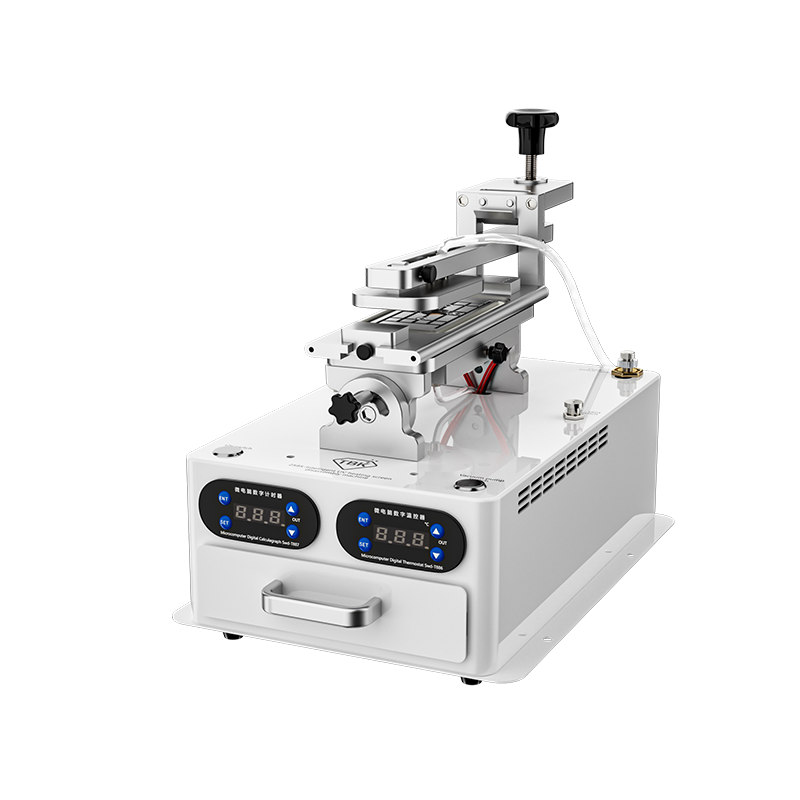

TBK-258S Multifunctional LCD Screen Separator & Frame Remover with Built-in UV Curing

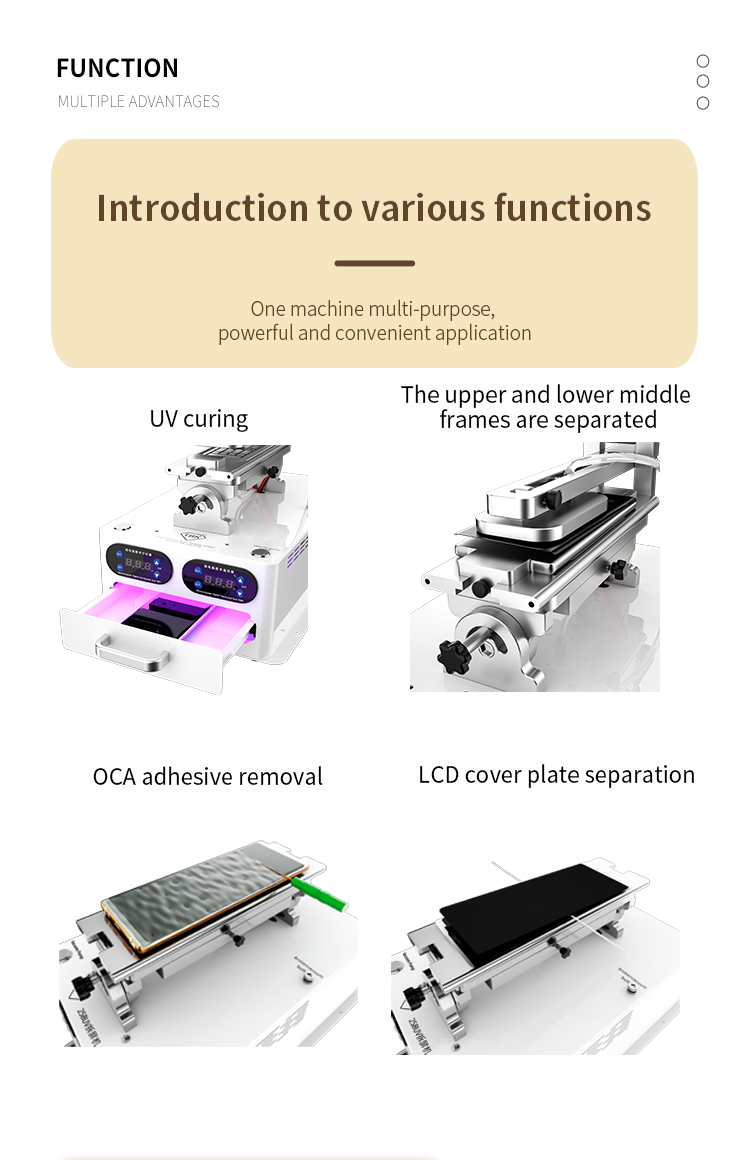

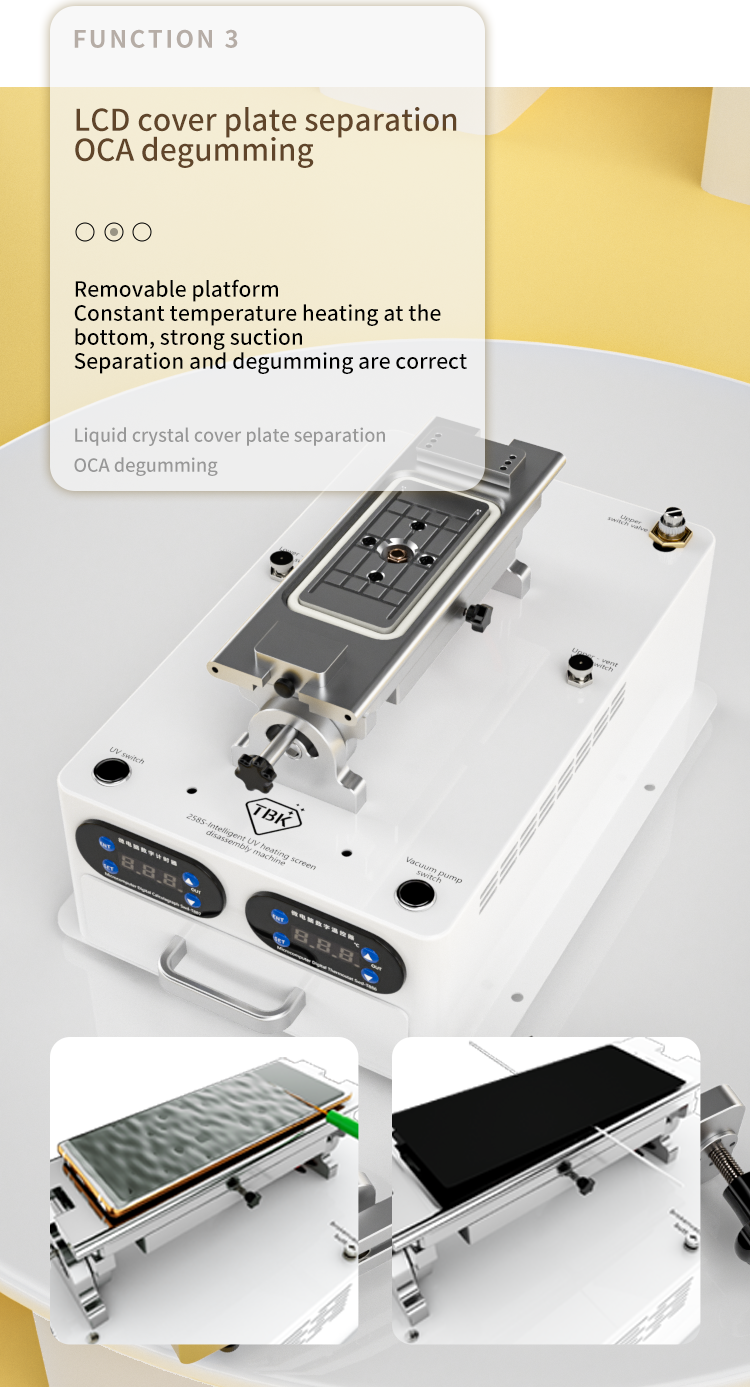

The TBK-258S is a comprehensive repair station that integrates LCD separation, frame disassembly, and UV curing into a single compact unit. Designed to streamline the screen refurbishment process, it features a versatile 360-degree rotating platform capable of tilting left and right, making it compatible with both flat and curved screen maintenance.

The system utilizes a dual vacuum pump architecture to ensure secure adsorption during high-stress operations. It includes a precision disassembly mechanism with manual control for safe frame removal and a built-in UV curing chamber equipped with high-energy lamps for rapid adhesive hardening. This multi-functional design allows technicians to perform screen removal, glue cleaning, and curing without switching equipment.

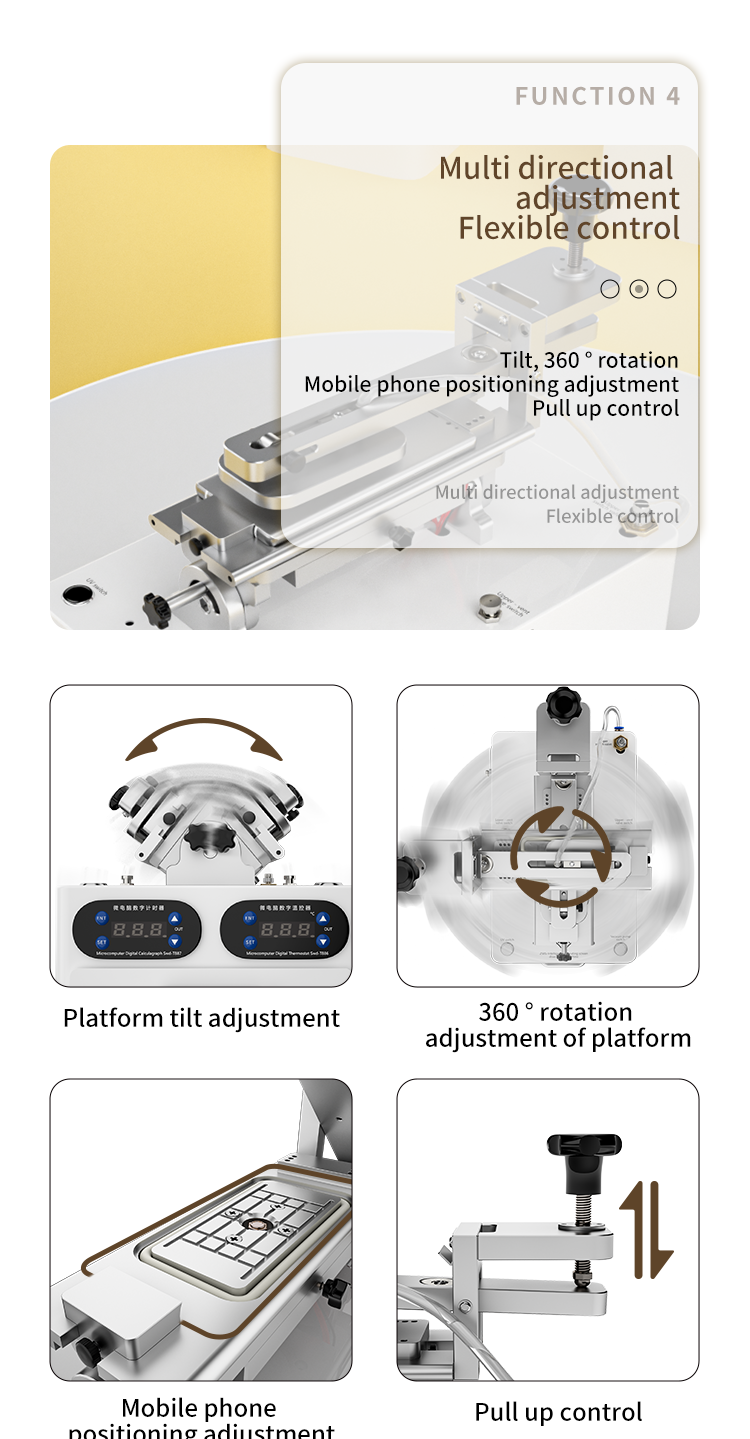

360° Rotating & Tilting Platform: The workstation rotates fully and tilts to adjustable angles, facilitating frame removal, adhesive cleaning, glass separation, and UV curing for both curved and flat screens.

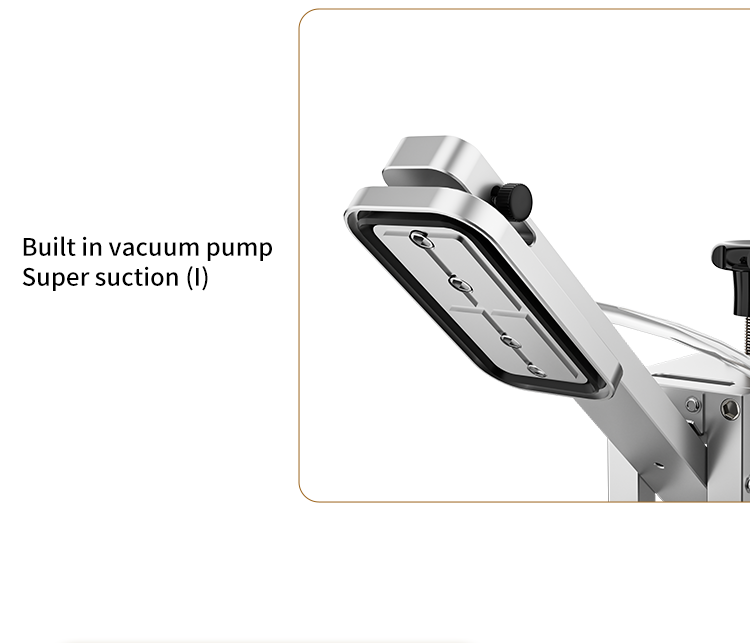

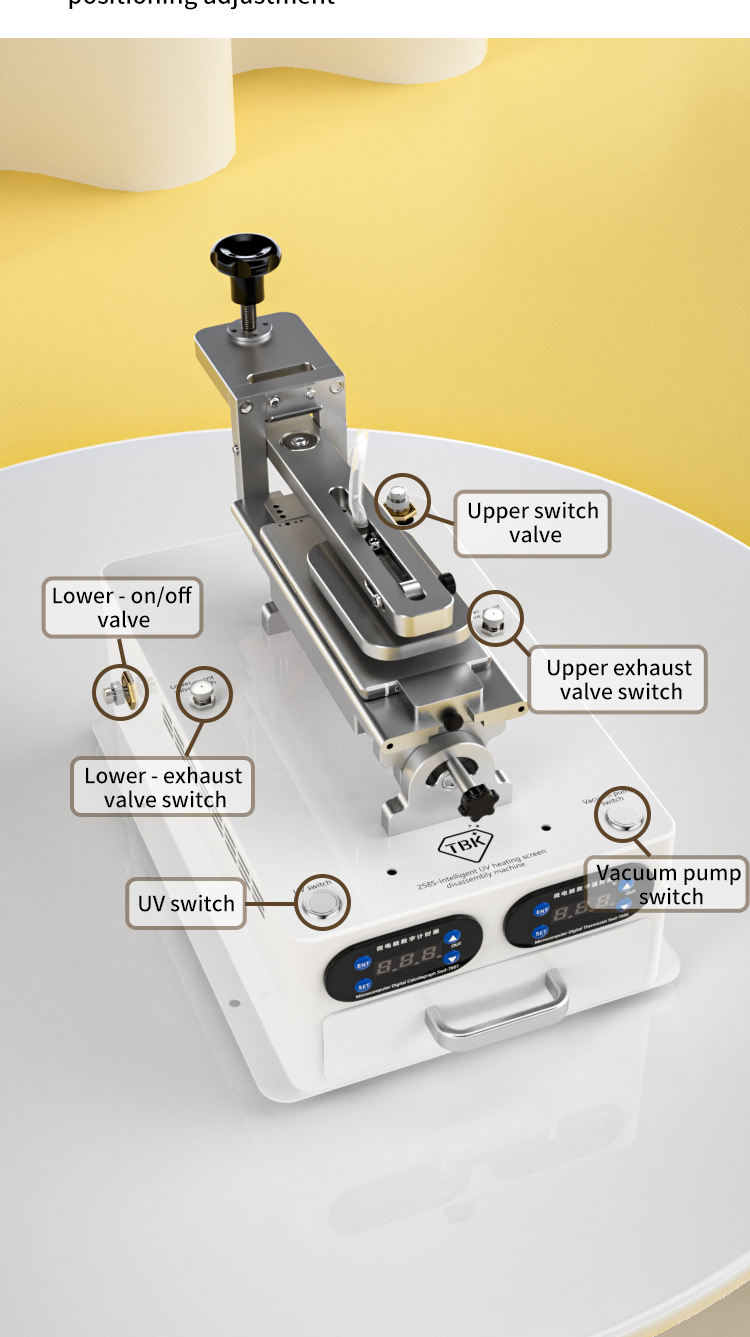

Dual Vacuum Pump System: Engineered with two internal vacuum pumps providing strong, consistent suction. The upper and lower suction levels are adjustable and feature a vacuum release mechanism for safety.

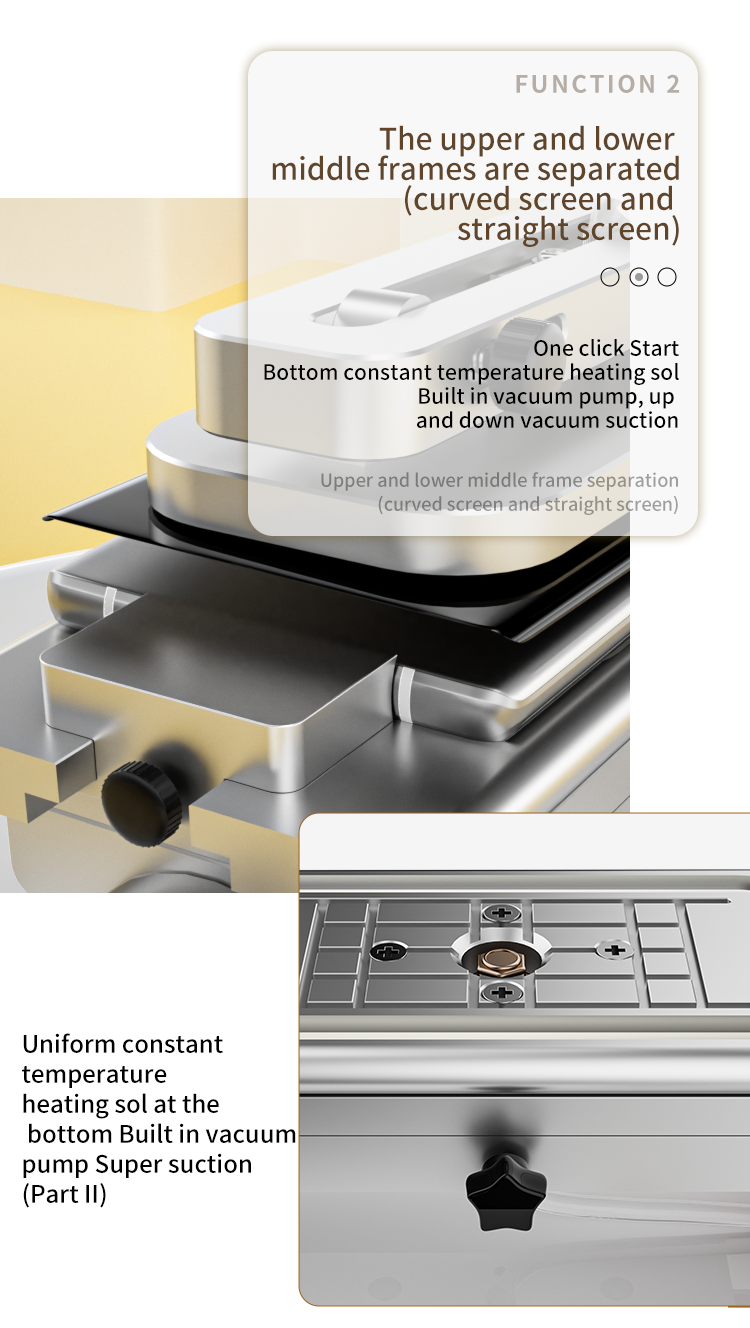

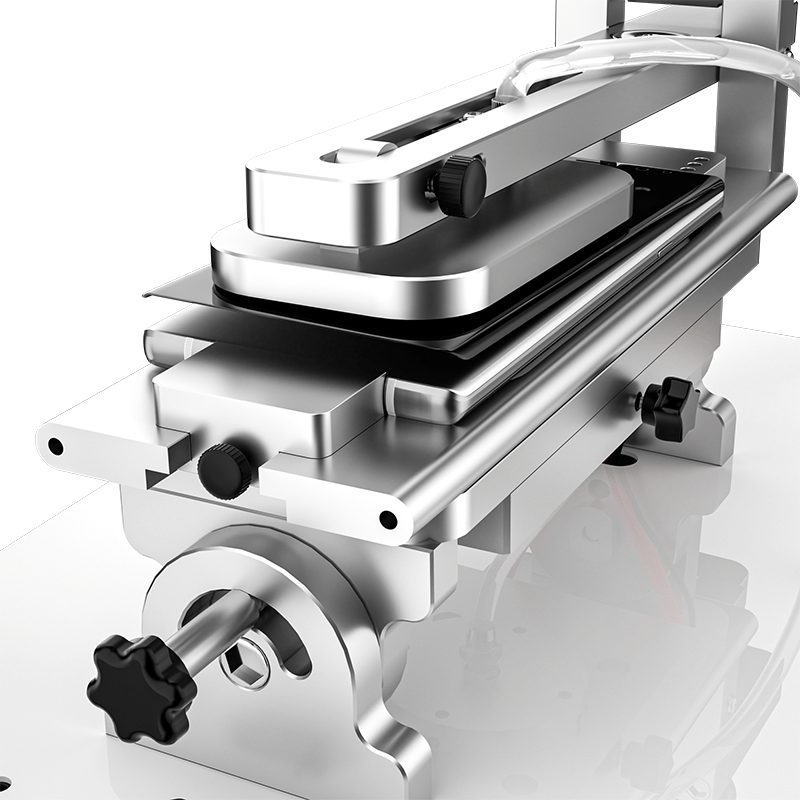

Precision Frame Disassembly: Supports top and bottom separation using large aluminum alloy suction cups for uniform grip. A manual control knob allows for precise regulation of the pulling distance to prevent component damage.

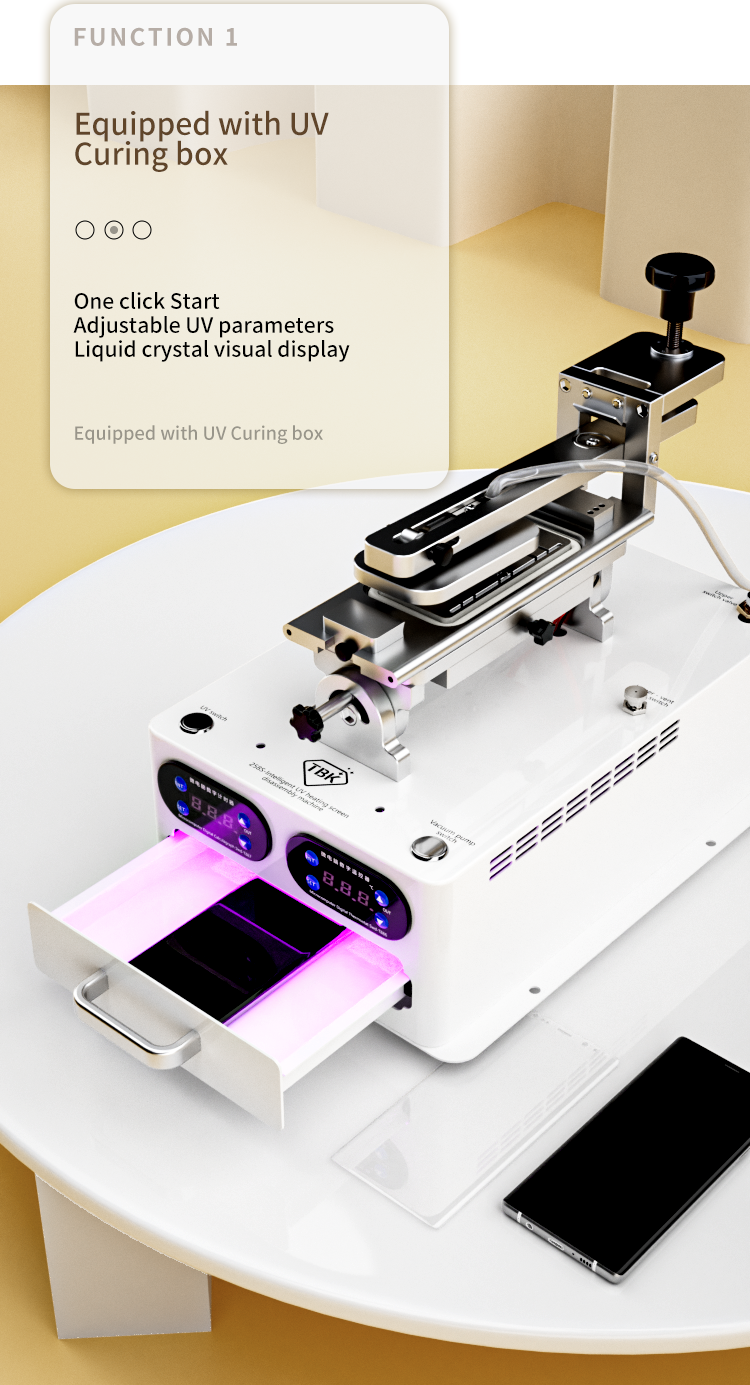

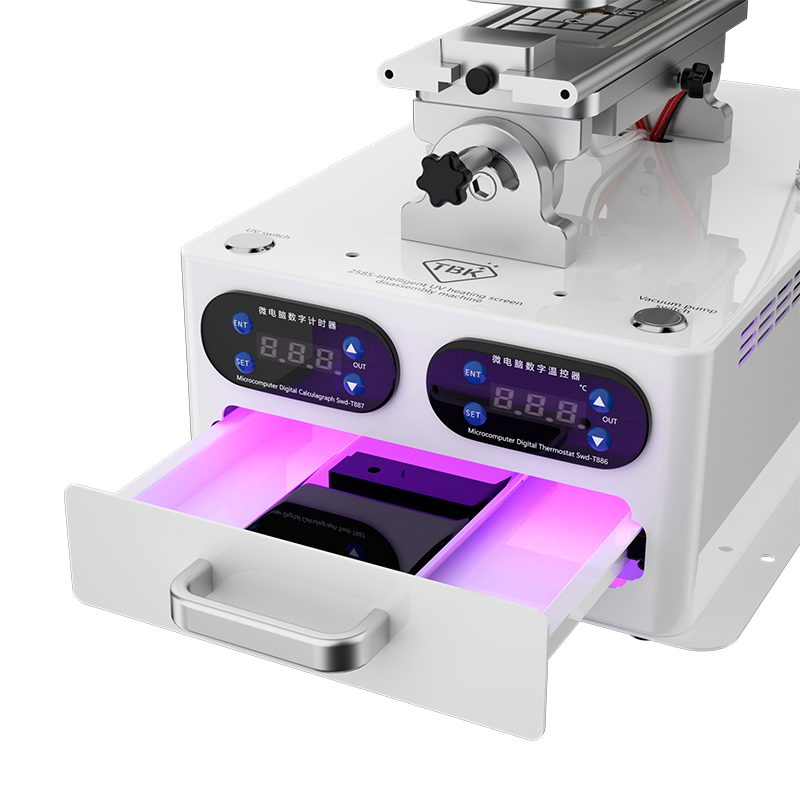

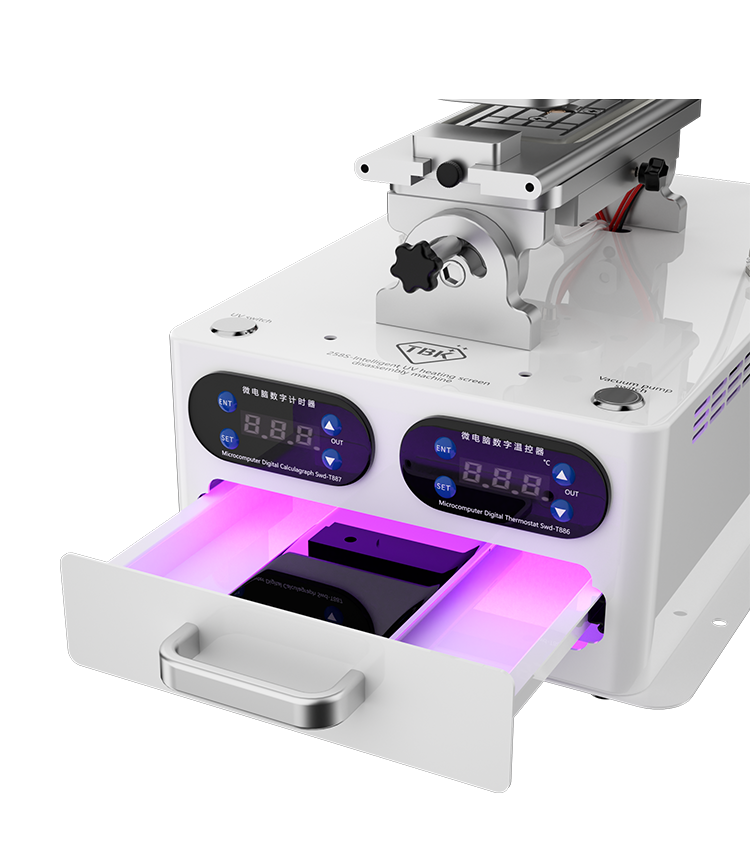

Integrated UV Curing Chamber: Features a built-in curing box designed for UV adhesive solidification and pressure retention, utilizing high-intensity UV LED beads for rapid curing cycles.

Included Maintenance Tools: The unit is supplied with a professional-grade glue scraping tool to assist in the cleaning process.

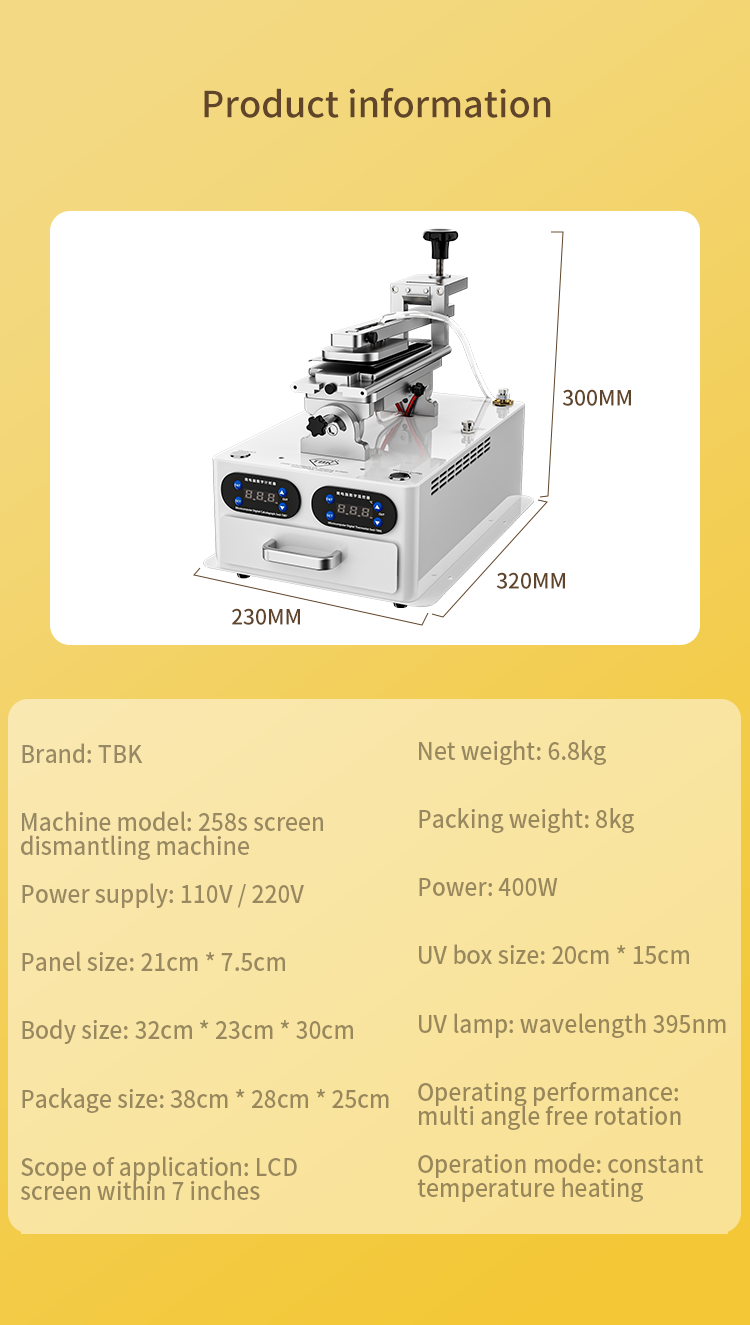

• Brand: TBK
• Model: 258S
• Power Supply: 110V / 220V
• Power: 400W
• Net Weight: 6.8kg
• Packing Weight: 8kg
• Body Size: 32cm * 23cm * 30cm
• Package Size: 38cm * 28cm * 25cm
• UV Box Size: 20cm * 15cm
• UV Lamp Wavelength: 395nm
• Scope of Application: LCD screens within 7 inches

Q1 What are the main functions of the TBK-258S?
A1 The TBK-258S is a multifunctional device that handles LCD screen separation, mid-frame disassembly, glue removal, and UV adhesive curing.

Q2 Does the TBK-258S support curved screens?
A2 Yes, the machine features a 360-degree rotating and tilting platform specifically designed to accommodate both straight and curved mobile phone screens.

Q3 How does the frame disassembly system work?
A3 It uses a top and bottom suction structure with aluminum alloy cups and a manual knob to precisely control the pulling distance, ensuring safe separation of the frame from the glass.

Q4 Is the UV curing function built-in?
A4 Yes, the unit includes an integrated UV curing chamber with high-energy UV lamps, eliminating the need for a separate curing box.

Q5 Can the vacuum suction strength be adjusted?
A5 Yes, the device allows for the adjustment of upper and lower suction levels and includes a vacuum break device for controlled release.
