TBK 2206 Laser Soldering Machine with Thermal Imaging & HD Microscope for Motherboard Repair

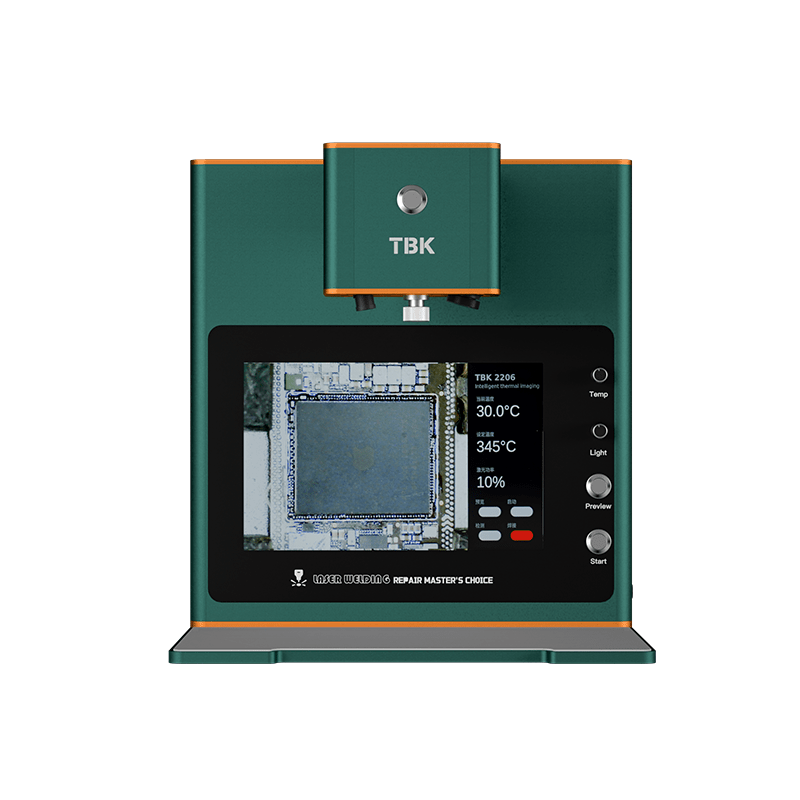

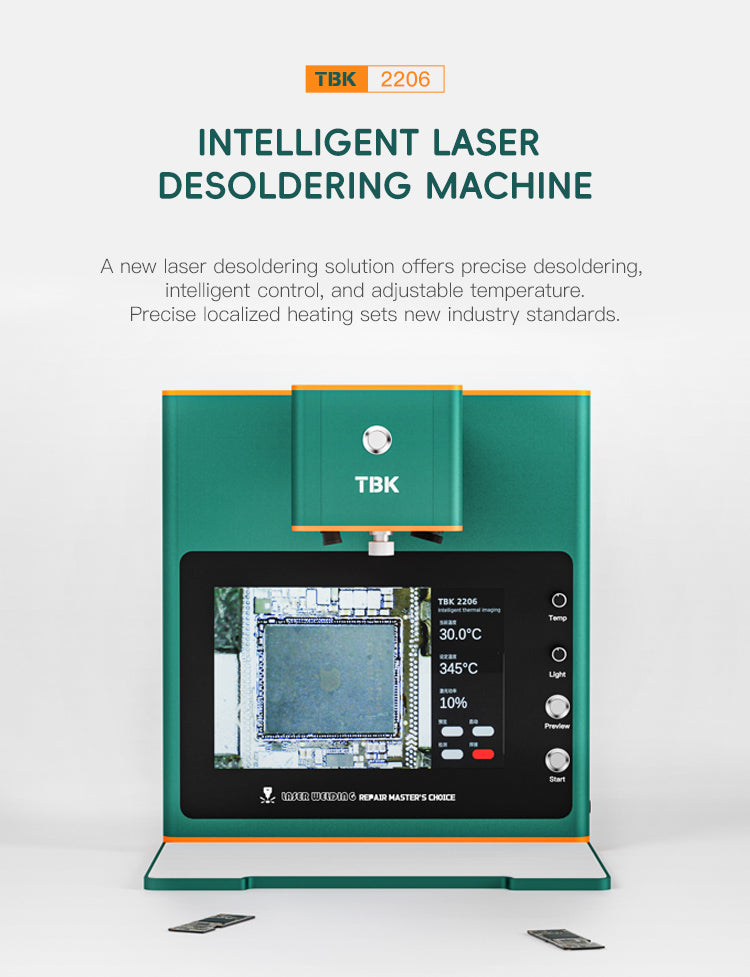

The TBK 2206 is a precision laser soldering station engineered specifically for professional motherboard diagnostics and repair. This system integrates multiple critical functions into a single workstation, providing a controlled alternative to traditional hot air rework methods. Utilizing focused laser technology for heating, the TBK 2206 targets specific components without affecting the surrounding area. This non-contact heating method minimizes thermal stress on adjacent parts, thereby supporting the stability and success rate of complex logic board repairs.

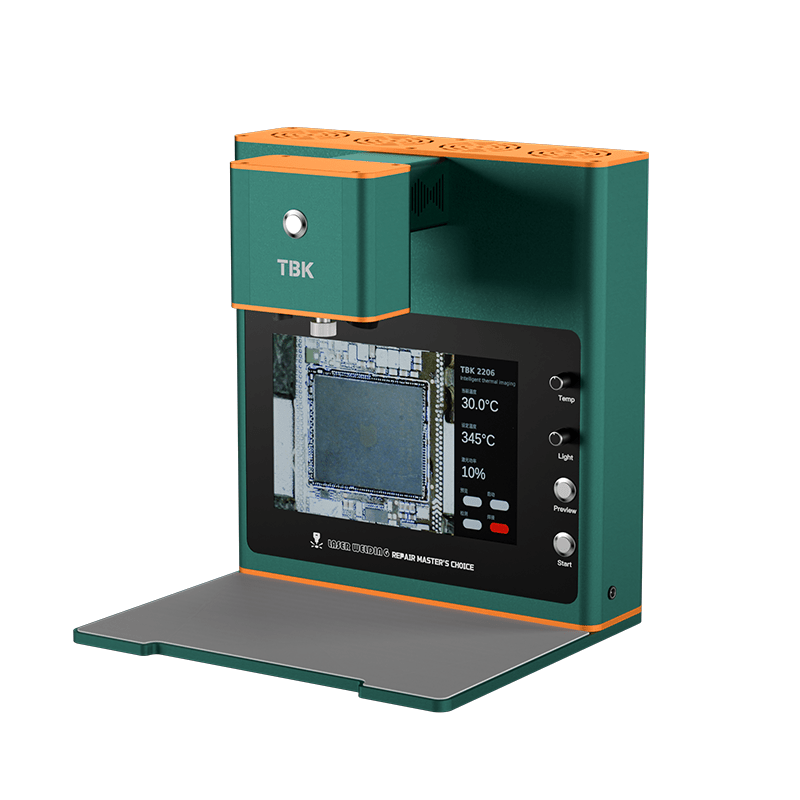

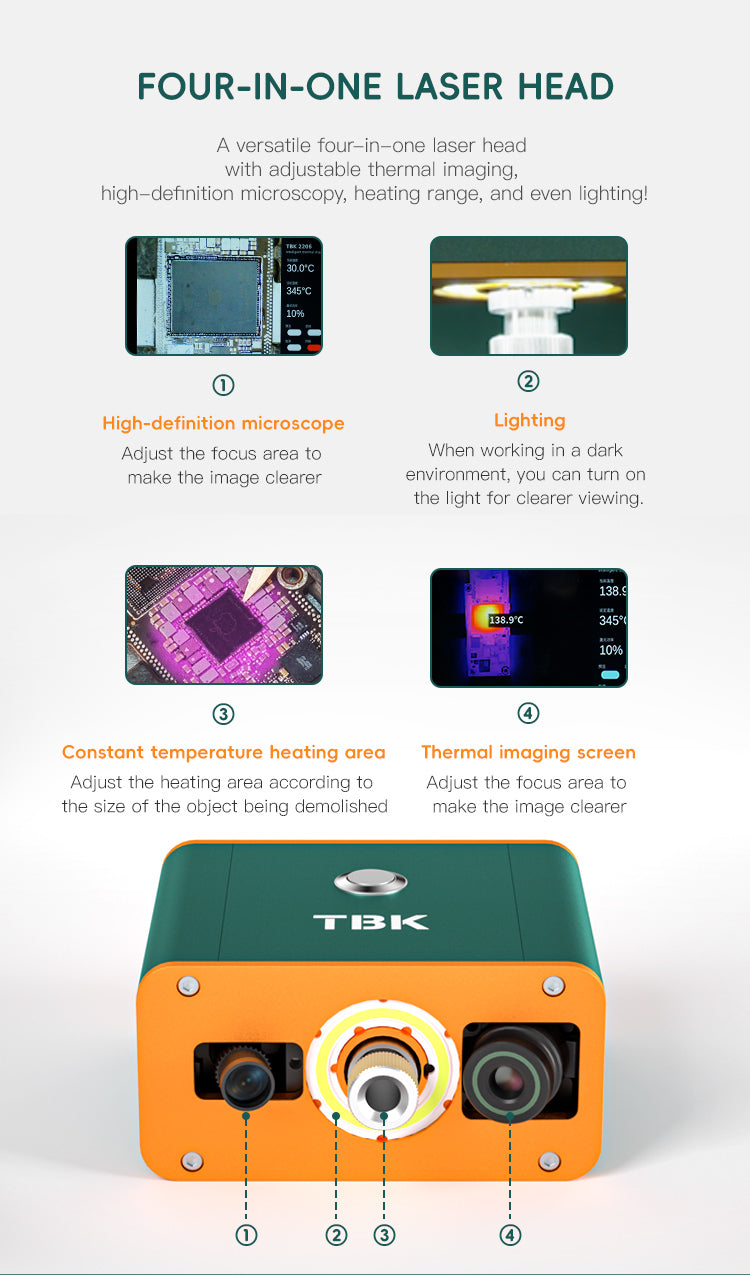

Integrated Four-in-One Functionality: The unit consolidates a high-definition microscope, thermal imaging camera, adjustable laser heater, and illumination system into a unified head design for streamlined workflow.

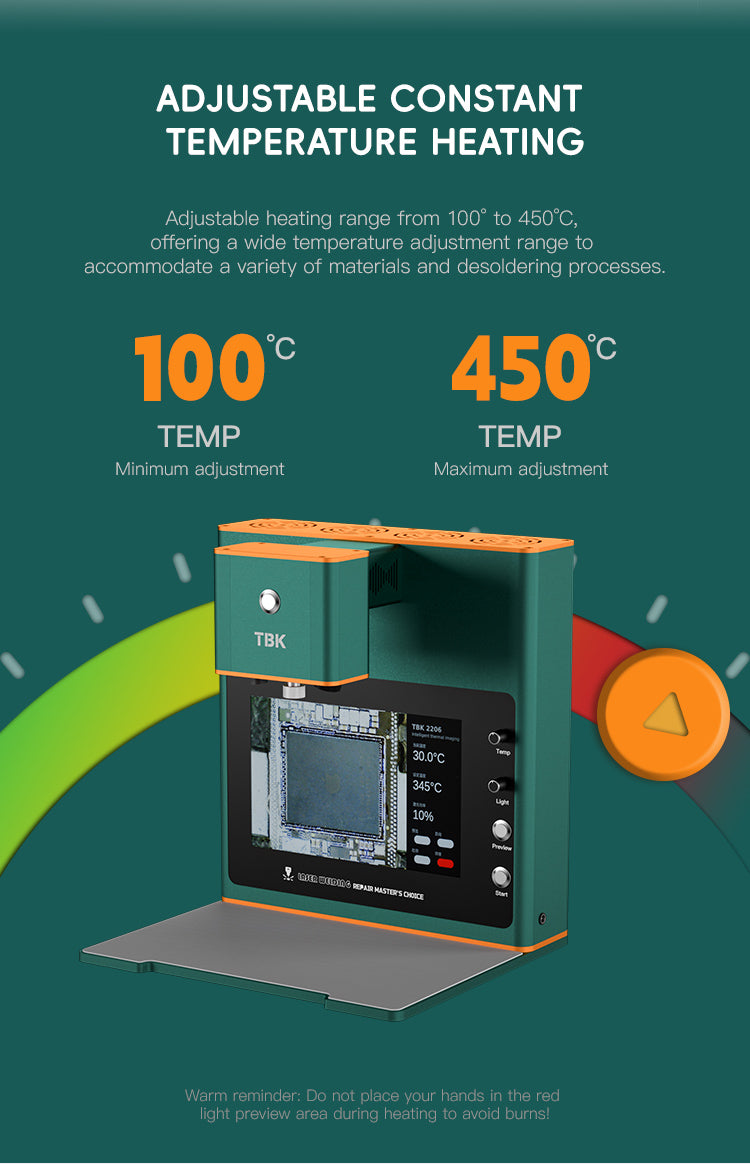

Precision Temperature Control: The laser heating system maintains constant temperature stability with an adjustable range from 100°C to 450°C. The heating area is customizable from 5 mm to 30 mm to match various component sizes.

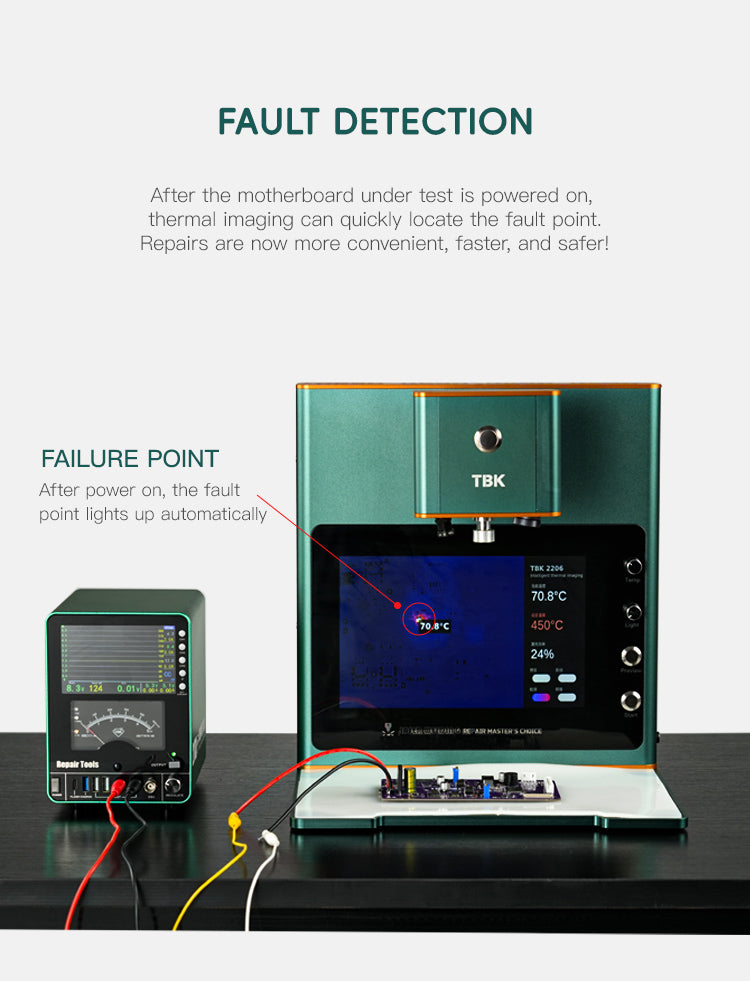

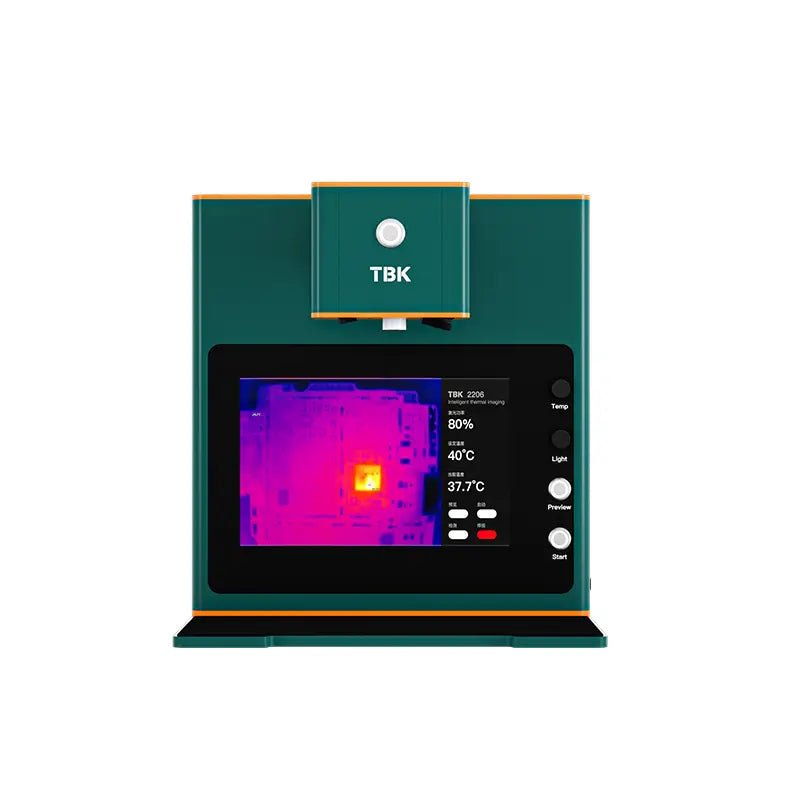

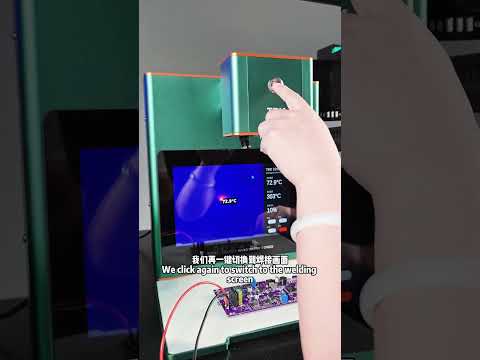

Thermal Imaging Diagnostics: Equipped with thermal imaging capabilities to rapidly detect short circuits and anomalies on powered motherboards. High-temperature fault points are identified and displayed on the screen for immediate analysis.

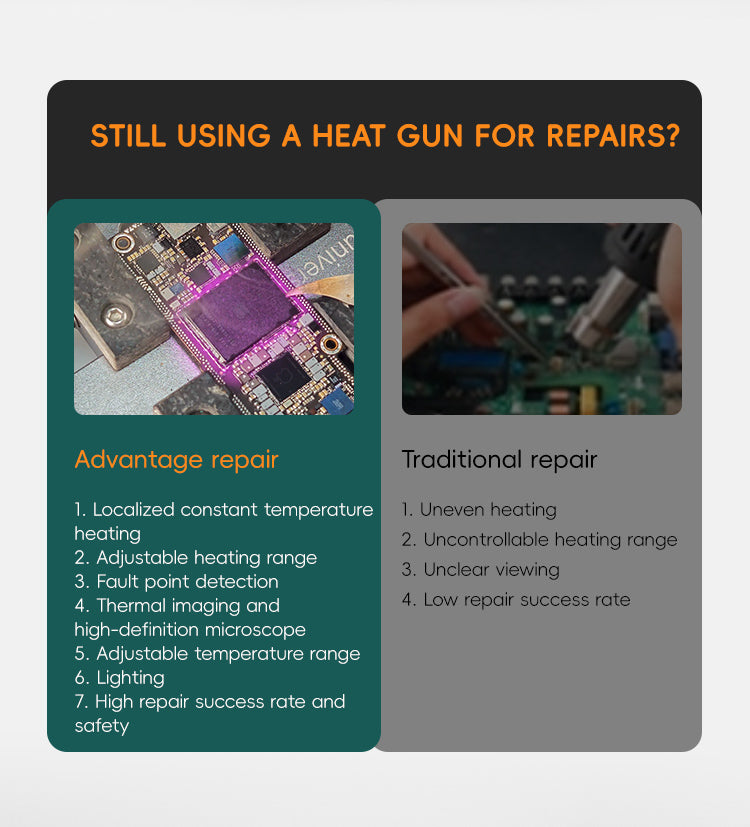

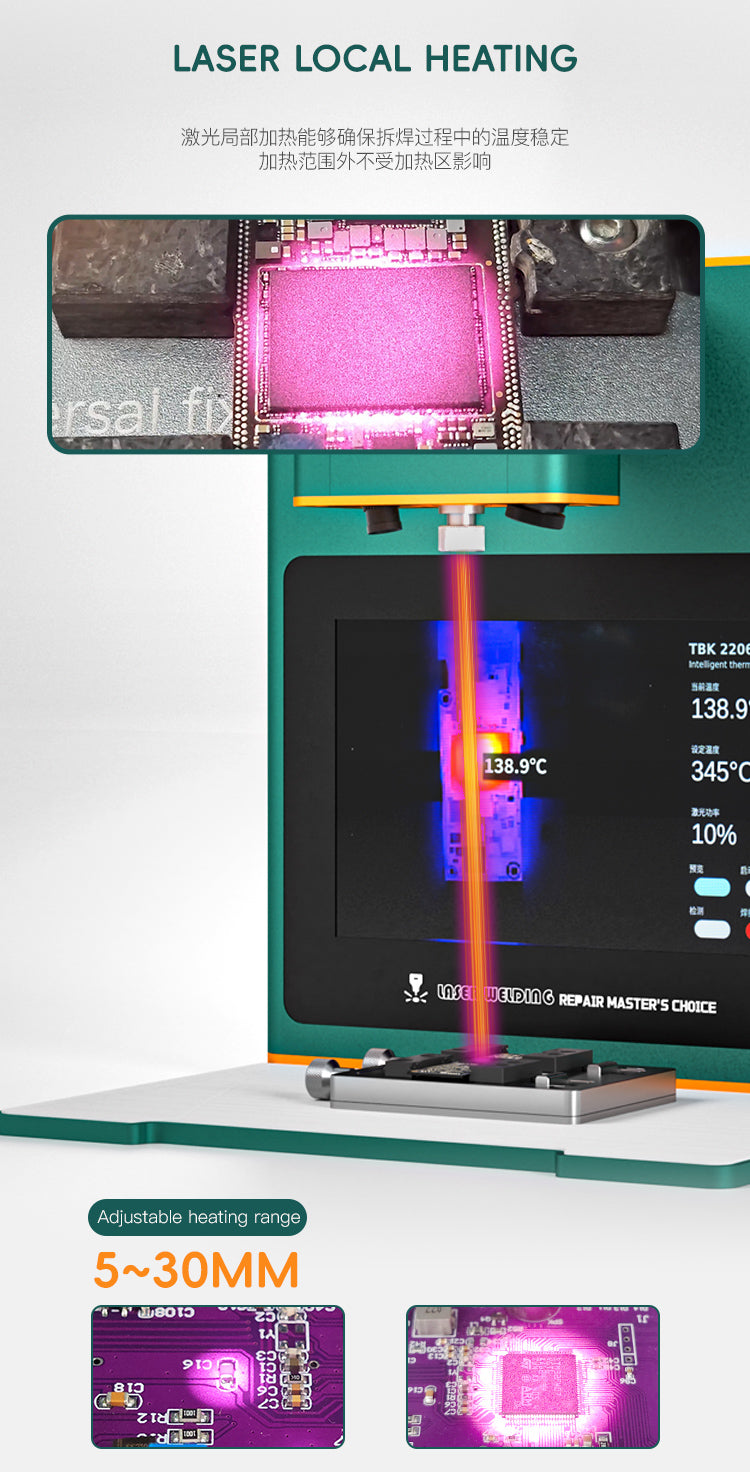

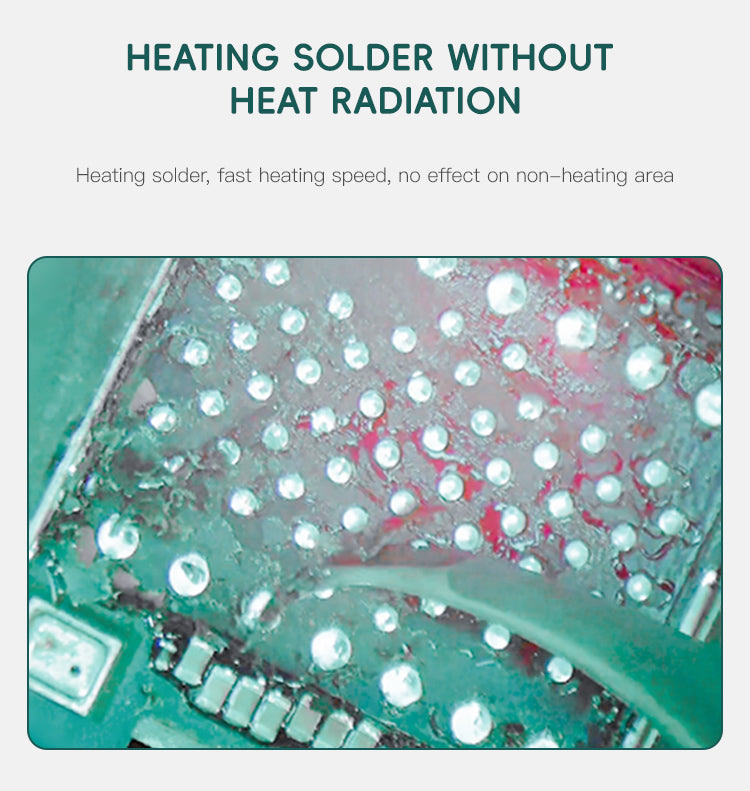

Localized Heating Protection: The laser technology delivers rapid thermal energy directly to the solder joints without significant heat radiation spreading, effectively protecting sensitive adjacent components during operation.

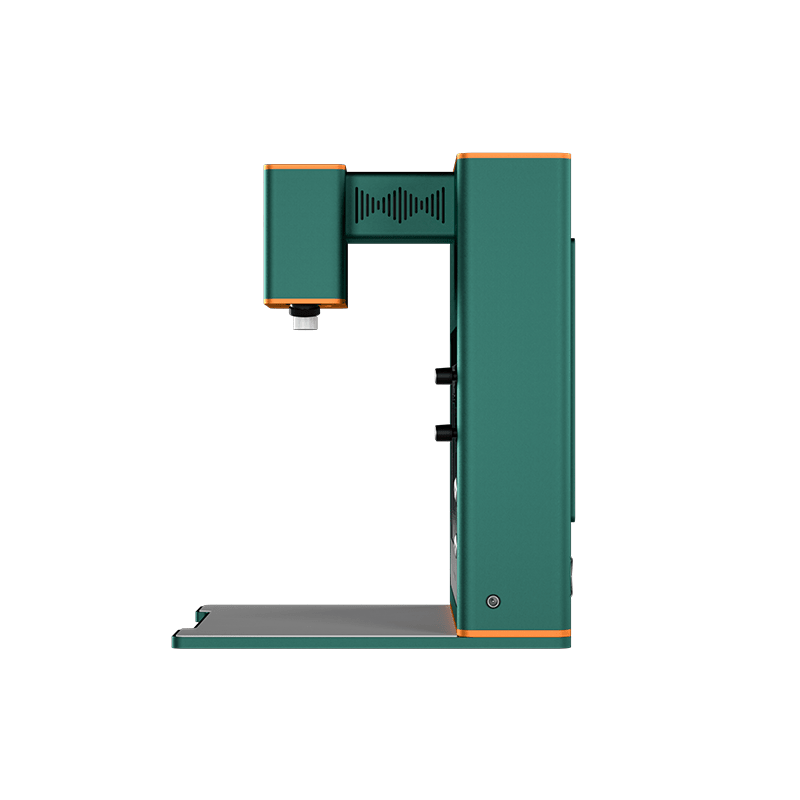

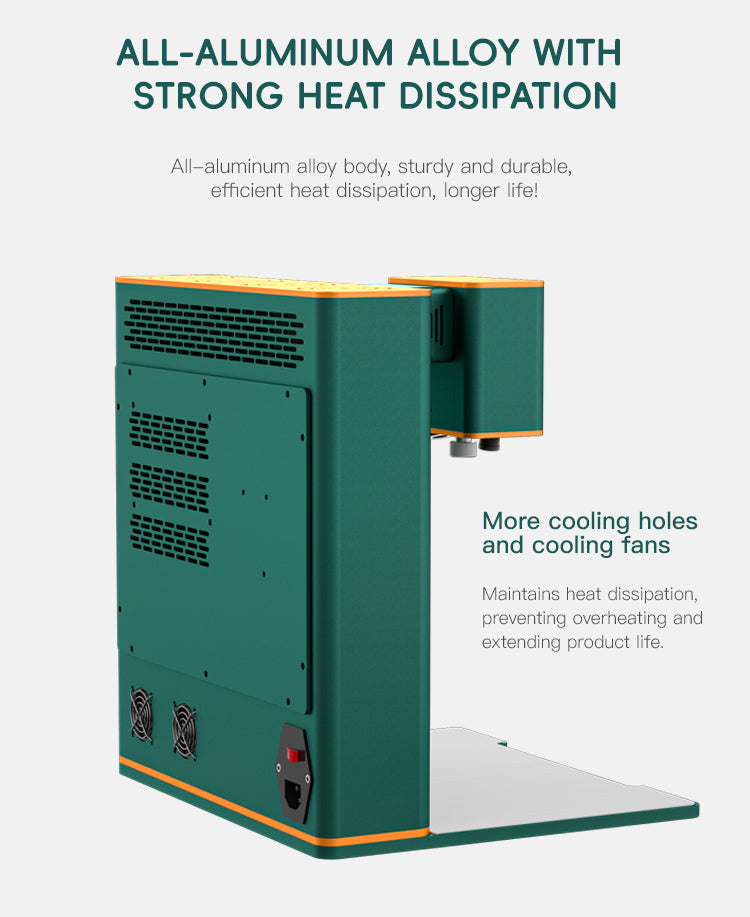

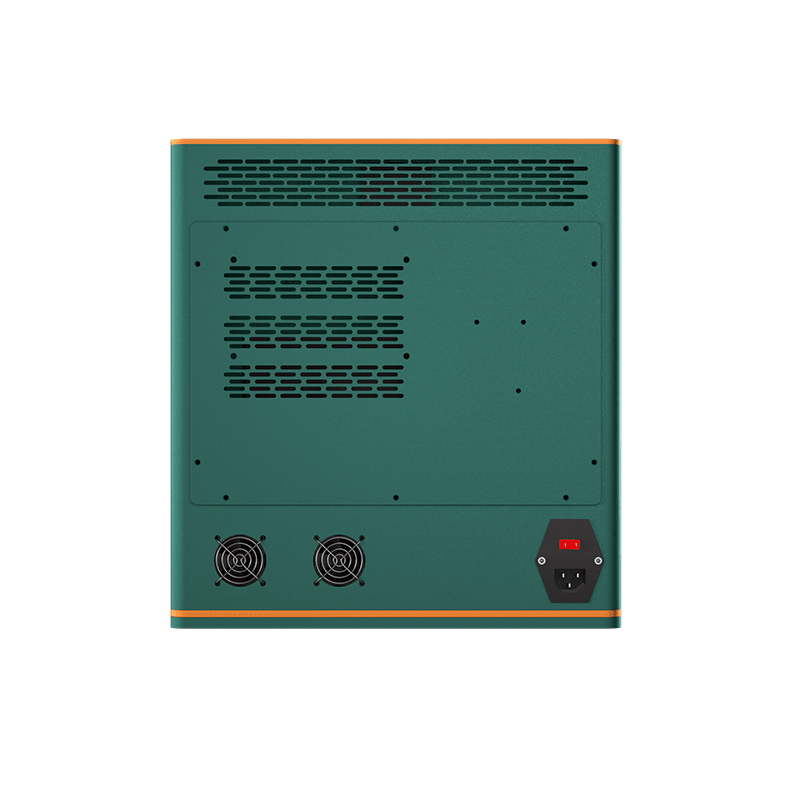

Industrial Grade Construction: Built with an all-aluminum alloy chassis and equipped with multiple cooling fans to ensure efficient heat dissipation and operational stability over extended periods.

Operational Interface: Features a 10-inch display for clear visual monitoring, complemented by straightforward controls and an external foot switch to facilitate hands-free operation during soldering tasks.

Brand: TBK

Model: 2206

Input Voltage: 110V – 220V

Total Power Rating: 100W

Laser Power: 45W

Temperature Control Range: 100°C – 450°C

Heating Area Size: 5 mm – 30 mm (Adjustable)

Display Screen: 10 inches

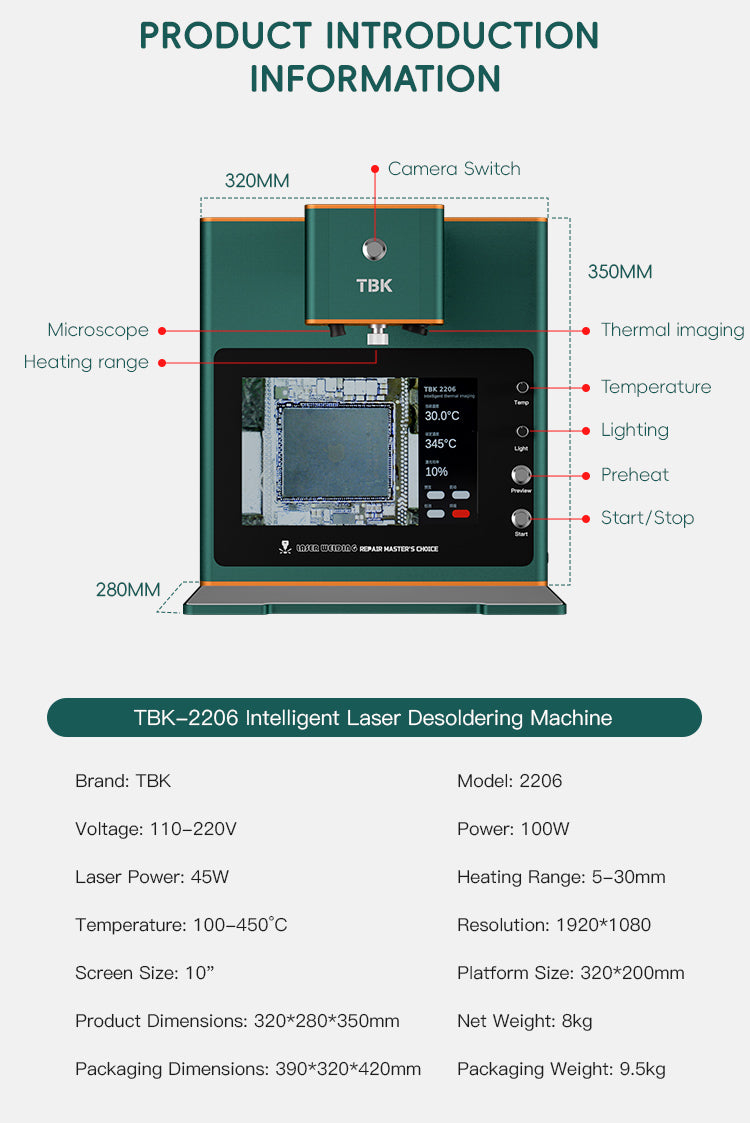

Product Dimensions: 320 mm x 280 mm x 350 mm

Net Weight: 8 kg

Q1: What functions are integrated into the head of the TBK 2206 Laser Soldering Machine?
A1: The TBK 2206 integrates four primary functions into its head: a high-definition microscope for visual inspection, a thermal imaging camera for fault detection, a laser heating system for soldering, and built-in lighting.

Q2: What are the adjustable parameters for the laser heating system?
A2: The laser heating system offers an adjustable temperature range of 100°C to 450°C. Additionally, the heating area spot size can be adjusted from 5 mm to 30 mm to accommodate different chip and component sizes.

Q3: How does the TBK 2206 assist in detecting motherboard faults?
A3: The machine utilizes its built-in thermal imaging function to scan powered motherboards. It automatically highlights high-temperature areas on the 10-inch screen, allowing technicians to quickly identify short circuits or overheating components.

Q4: Is the laser heating method safe for components surrounding the repair area?
A4: Yes, the focused laser heating is designed to apply heat strictly to the target area. This localized application prevents heat radiation from affecting or damaging adjacent components, offering a higher degree of safety compared to traditional hot air guns.

Q5: Does the machine support hands-free operation?
A5: Yes, the TBK 2206 includes a foot switch control, allowing technicians to engage the laser heating mechanism while keeping their hands free to manipulate tweezers or other repair tools.
