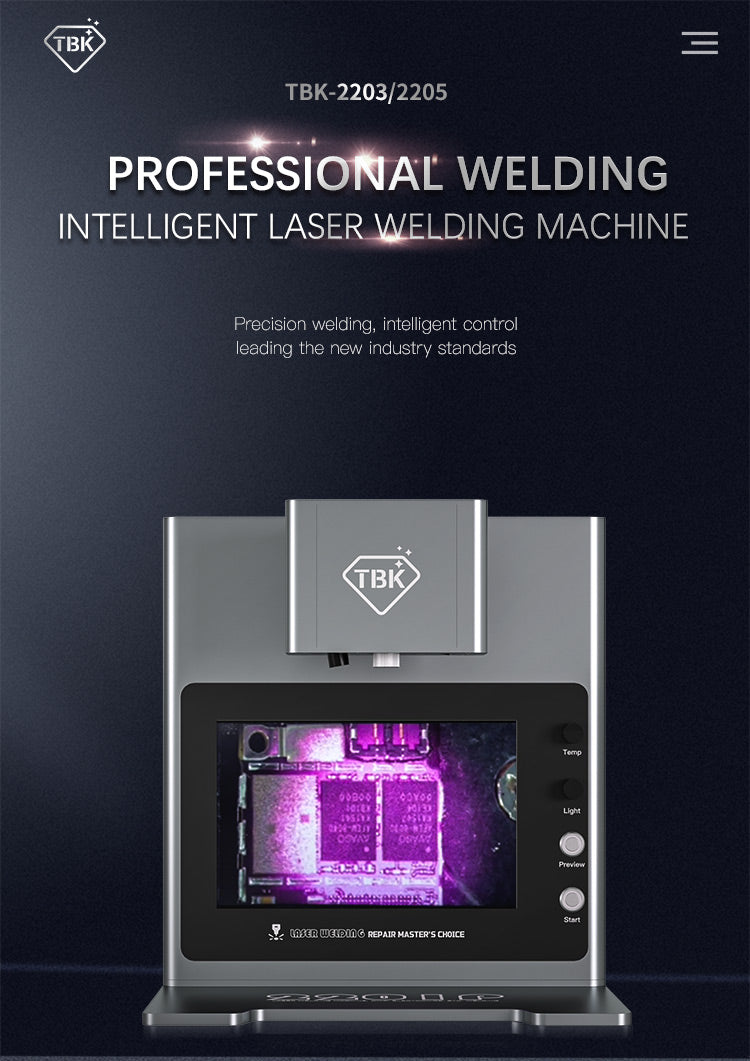

TBK 2203/2205 Laser Soldering Machine | Precision Station for Phone Logic Board, BGA & IC Chip Repair

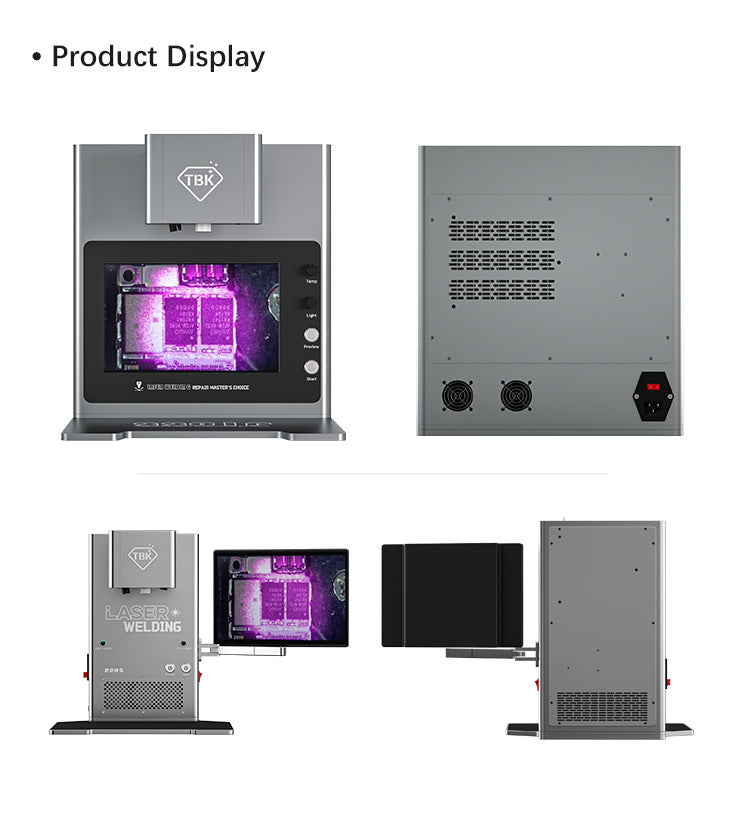

The TBK 2203/2205 is a professional laser soldering station designed for the precision repair of electronic logic boards and components. Unlike traditional hot air rework stations, this unit utilizes a controlled laser heating system to deliver stable thermal energy directly to the target area. This method minimizes heat stress on surrounding components, making it ideal for delicate BGA and IC chip repairs. The machine features a durable all-aluminum alloy body for efficient heat dissipation and integrates an HD camera with a lighting system to ensure a clear, real-time view of the soldering process. With wide voltage compatibility and intuitive controls, it is a versatile tool for professional repair technicians.

Precision Laser Soldering: Delivers accurate thermal control for sensitive electronic repairs, replacing the need for broad-area heating methods.

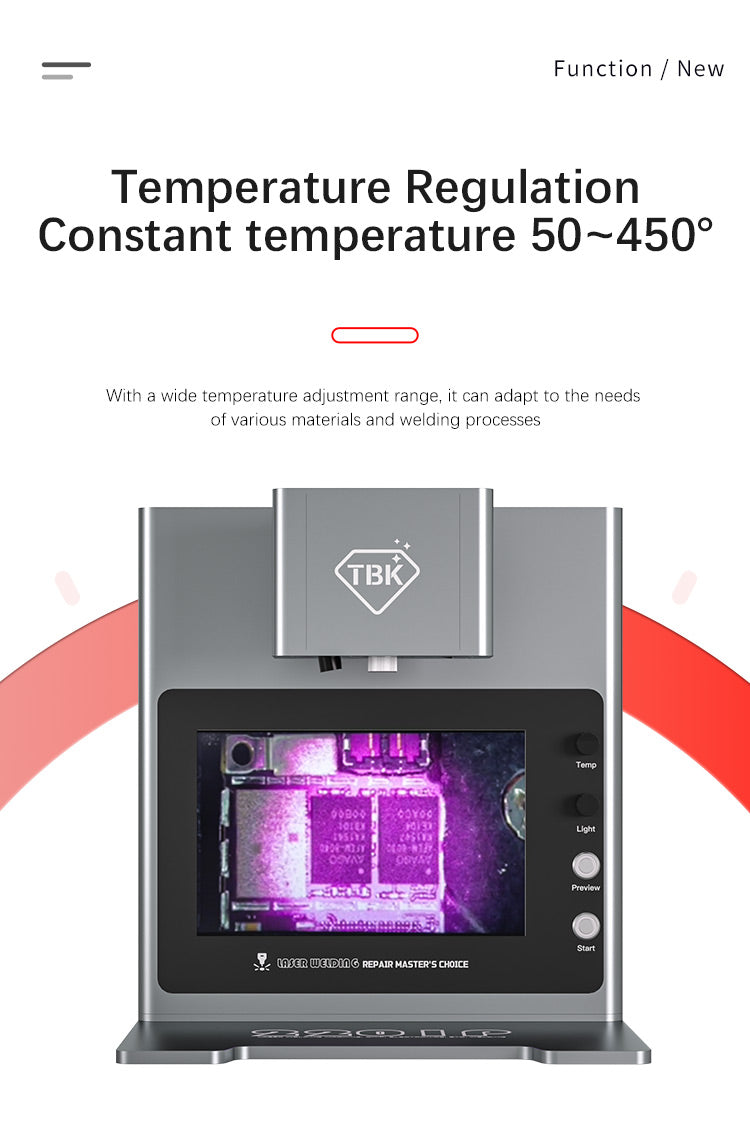

Thermostatic Heating Stability: Maintains a constant soldering temperature with an adjustable range of 50°C to 450°C, ensuring consistent results.

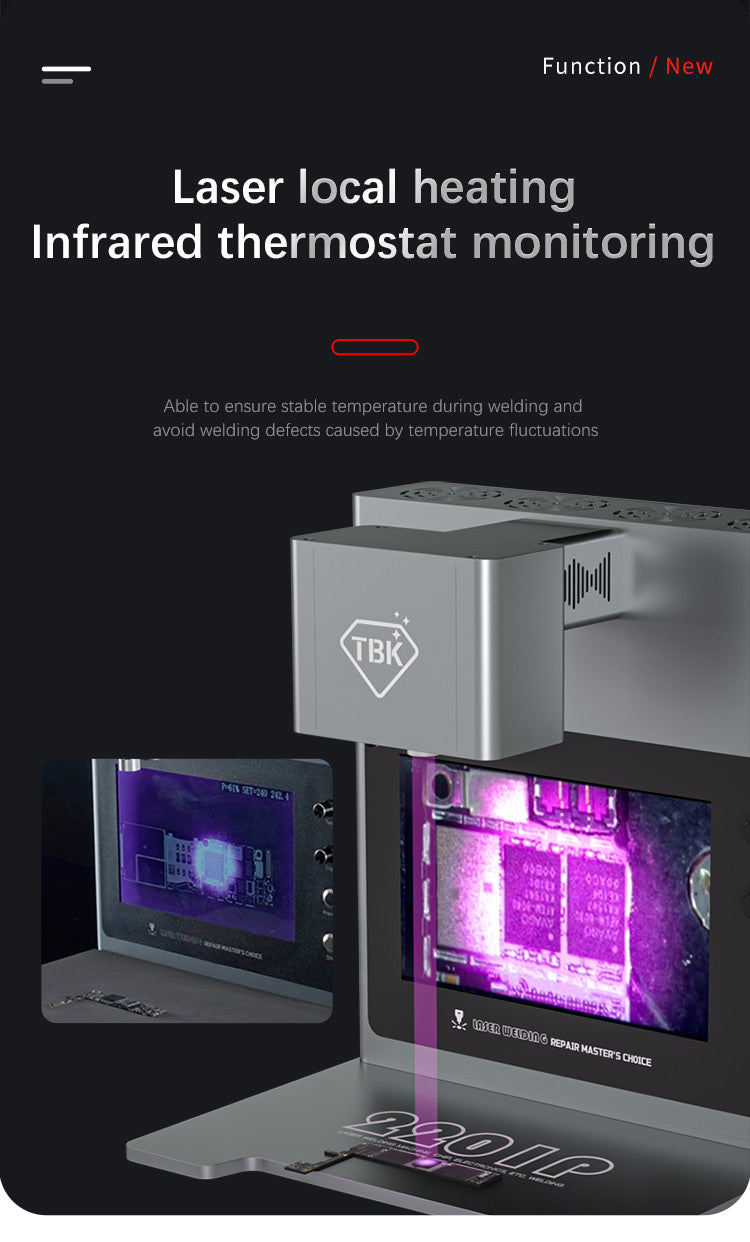

Infrared Temperature Monitoring: Equipped with real-time infrared sensors to monitor the soldering area, preventing defects caused by temperature fluctuations.

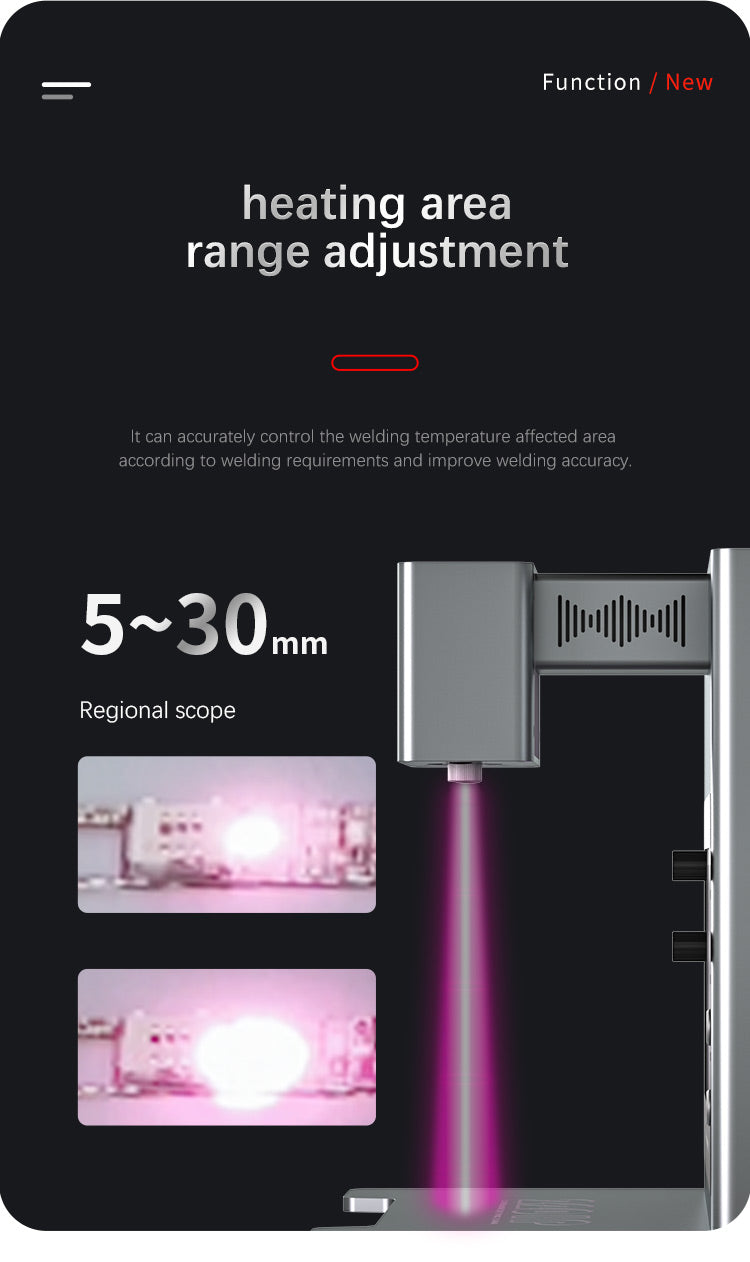

Adjustable Heating Area: The laser spot size can be adjusted from 5 mm to 30 mm, allowing for precise targeting of specific chips or components.

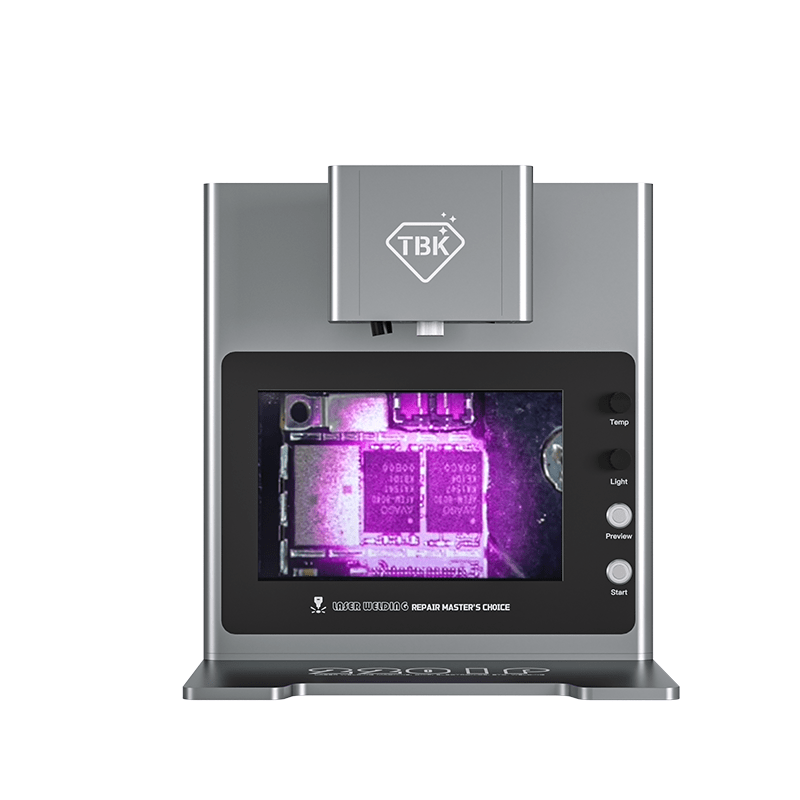

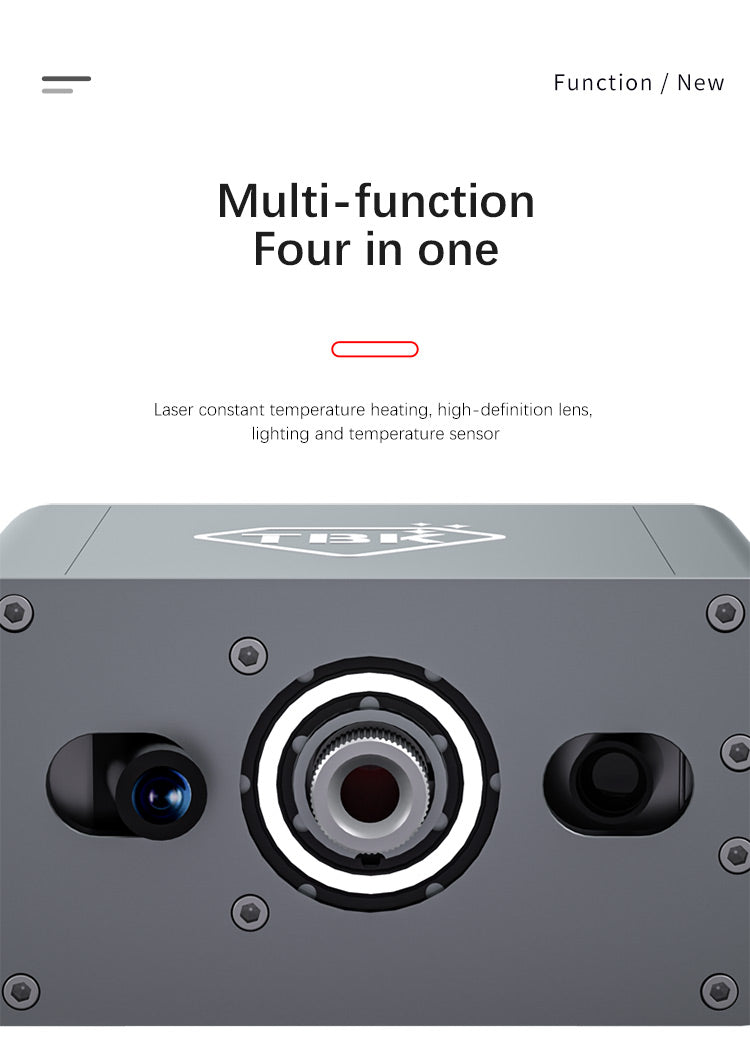

High-Definition Visual System: Features a built-in HD camera that displays the soldering process on the integrated screen for detailed inspection.

Integrated Workspace Lighting: A built-in lighting system illuminates the working area, enhancing visibility and accuracy during operation.

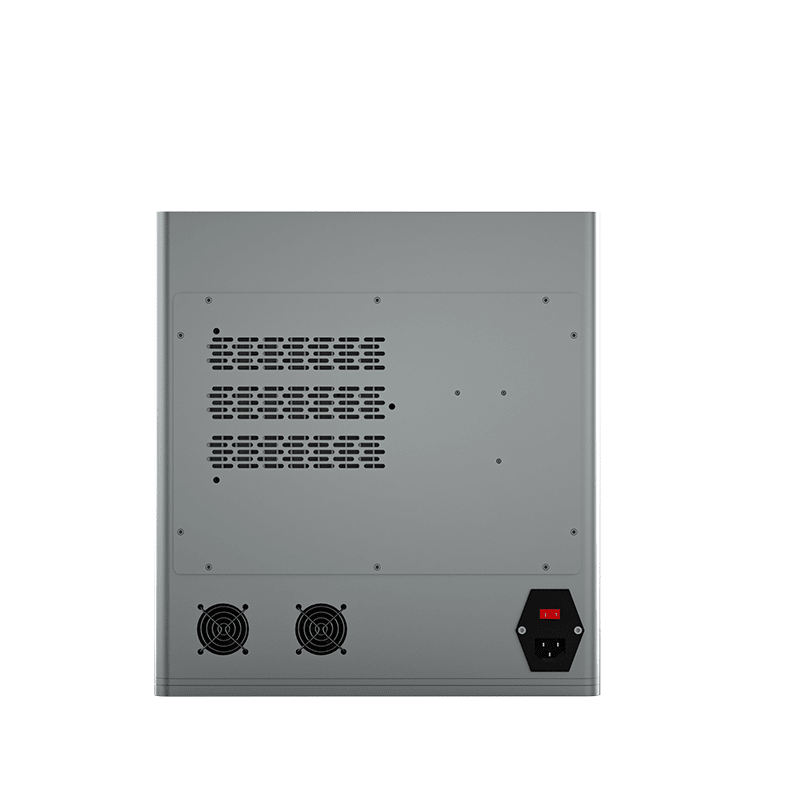

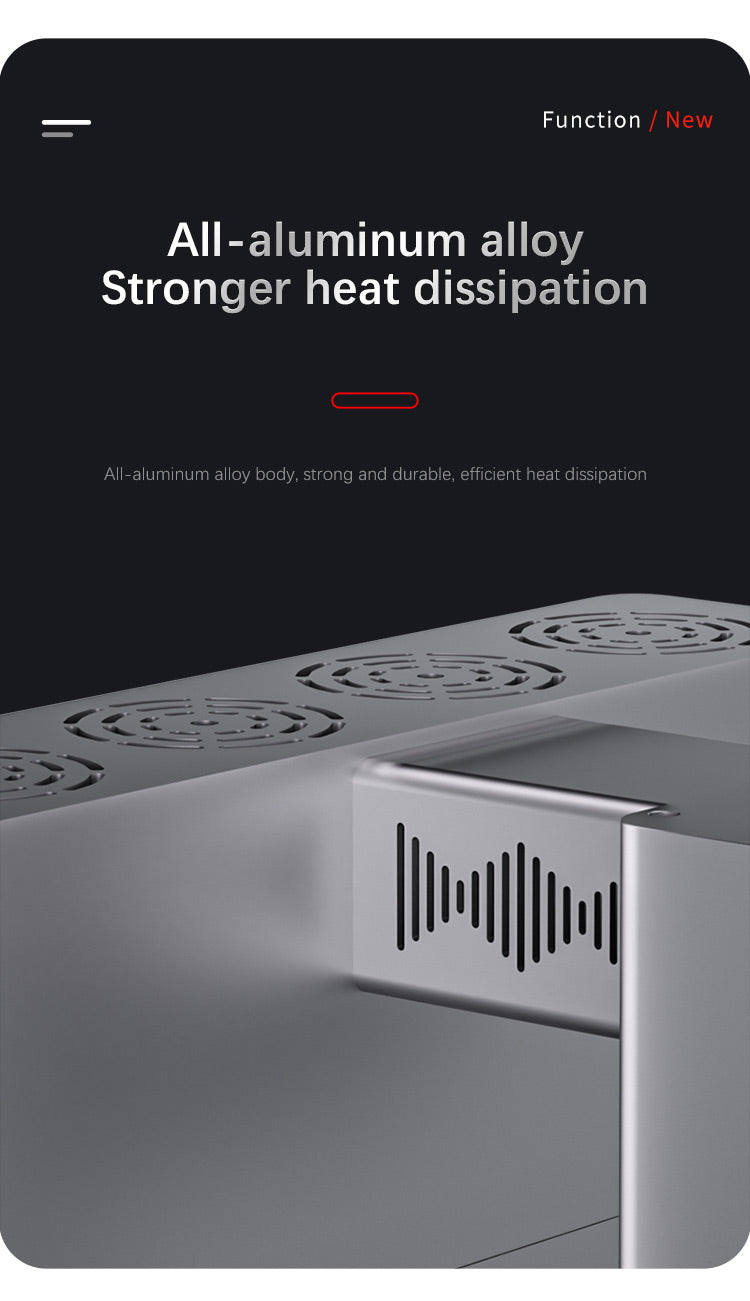

Aluminum Alloy Construction: The robust aluminum body is designed for durability and maximizes heat dissipation during extended use.

Global Voltage Support: Compatible with a wide input voltage range of 100-240V, suitable for use in various regions without external transformers.

User-Friendly Controls: Simple interface for managing temperature settings, lighting, and system parameters.

Operational Safety: Built-in safety protocols ensure secure operation and protection for both the user and the device.

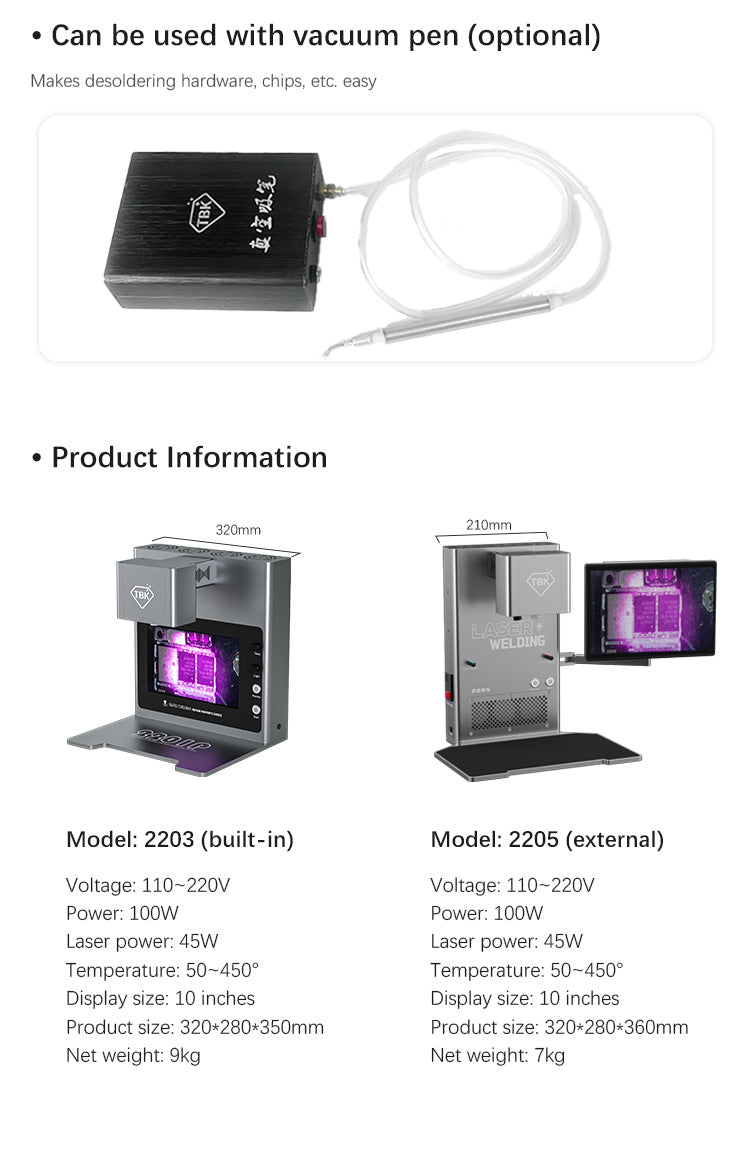

• Product Name: Professional Intelligent Laser Welding Machine

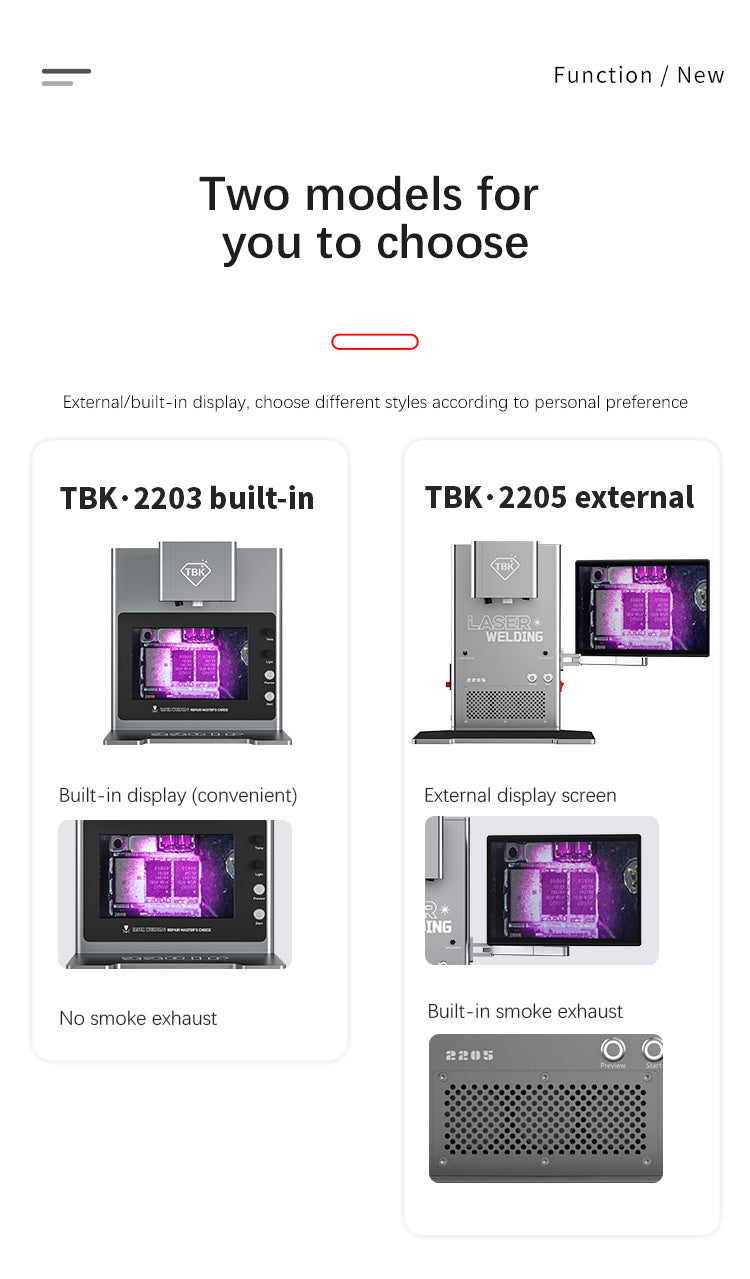

• Model: TBK-2203 / TBK-2205
• Voltage Input: 100-240V
• Temperature Regulation Range: 50°C – 450°C
• Heating Area Adjustment Range: 5mm – 30mm
• Heating Technology: Laser Thermostatic Heating
• Control: Intelligent Control with Infrared Thermostat Monitoring
• Camera: High-Definition (HD) Camera
• Body Material: All-Aluminum Alloy
• Key Features:Integrated LightingReal-time Temperature SensorEasy-to-operate interfaceSafety Protection Mechanisms

Q1: What is the main advantage of using the TBK 2203/2205 for phone repair?
A1: The TBK 2203/2205 uses laser heating to target specific components (5mm-30mm), which prevents heat damage to surrounding parts on the motherboard, a common issue with traditional hot air guns.

Q2: What is the temperature range of this laser soldering machine?
A2: The machine offers a precise temperature control range from 50°C to 450°C, suitable for various types of solder and logic board repairs.

Q3: How does the machine help with visual inspection during soldering?
A3: It includes a high-definition (HD) camera and an integrated lighting system that displays a clear, magnified view of the soldering area on the built-in screen.

Q4: Does the machine regulate temperature automatically?
A4: Yes, it features infrared thermostat monitoring that tracks the temperature in real-time to ensure stability and prevent overheating or cold solder joints.

Q5: Is the TBK 2203/2205 compatible with 110V power outlets?
A5: Yes, the machine supports a wide voltage range of 100-240V, making it fully compatible with both 110V and 220V power outlets globally.
