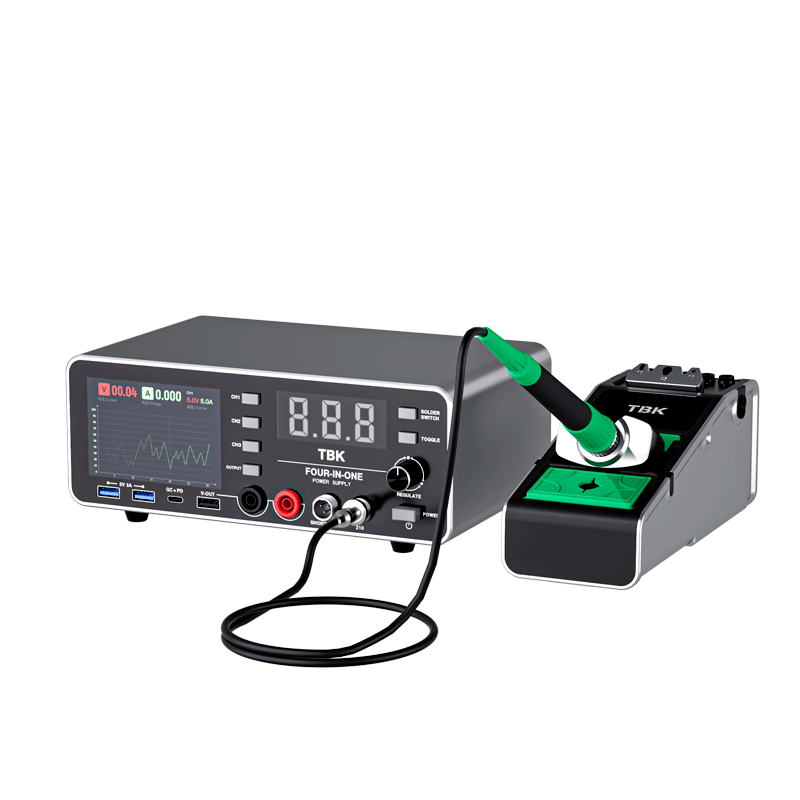

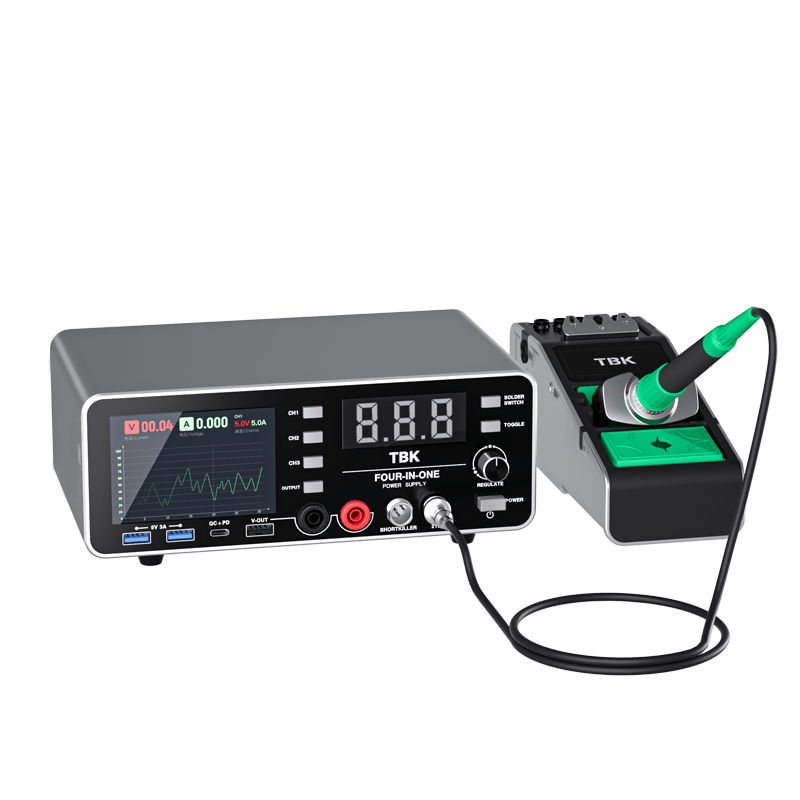

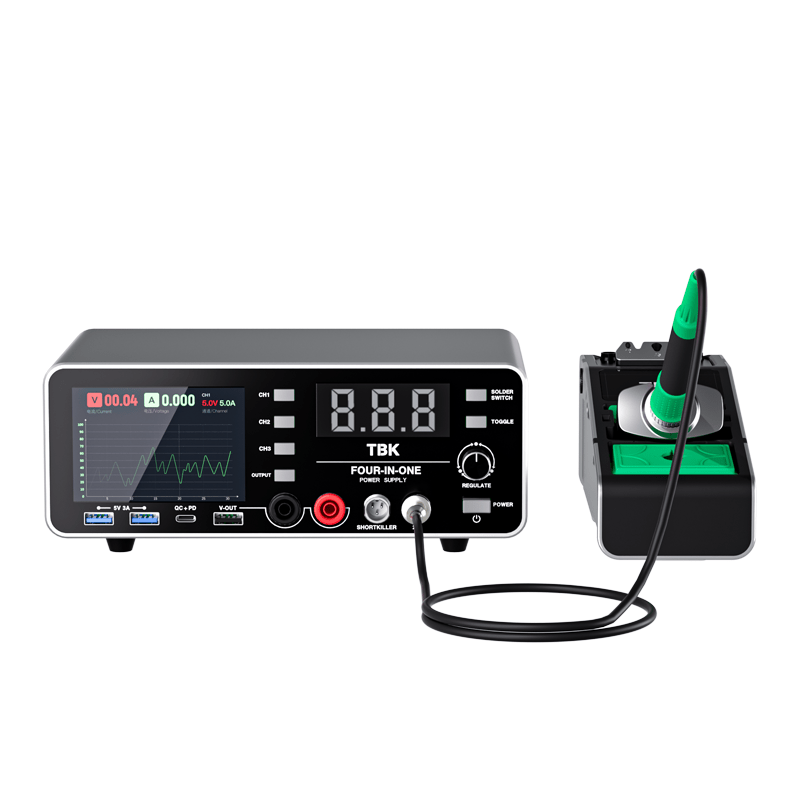

TBK 219 4-in-1 Integrated Soldering Station & DC Power Supply with Short Circuit Detector

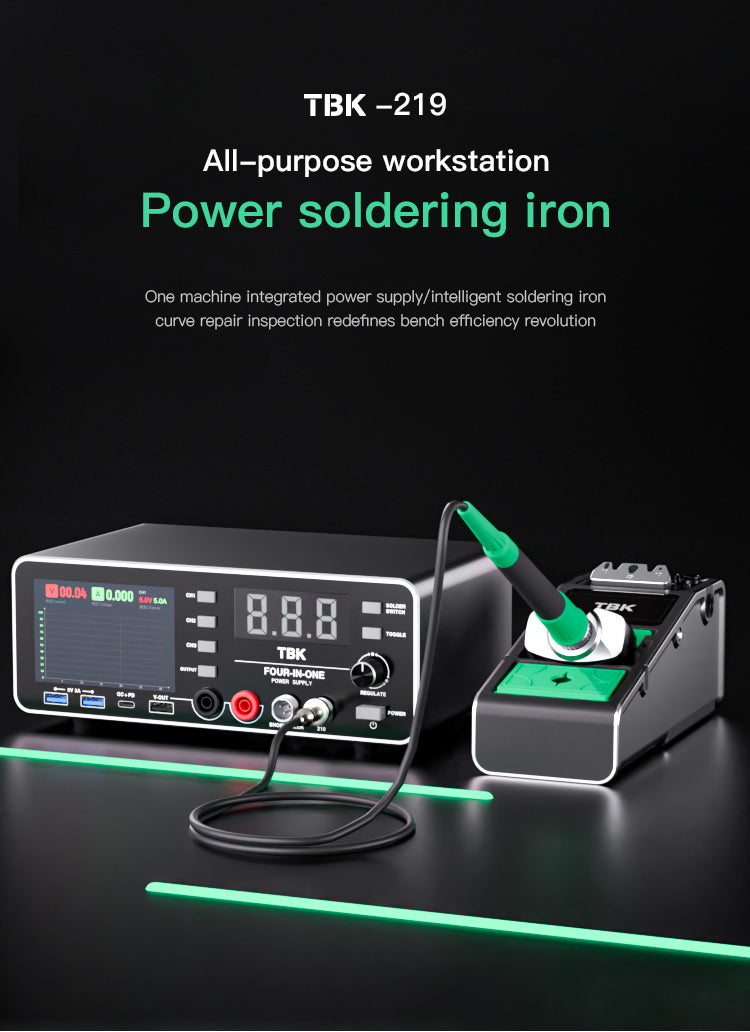

The TBK-219 is a multifunctional workstation engineered to optimize the workflow in mobile phone repair shops and electronics laboratories. This integrated unit consolidates four critical diagnostic and repair tools into a single chassis: a regulated DC power supply, a high-frequency soldering station, a short-circuit fault detector, and a charging protocol monitor. The device features a high-definition LCD interface that visualizes voltage-current output curves and tracks real-time charging metrics for both USB-A and Type-C connections. To improve efficiency for standard repair protocols, the workstation supports three programmable memory channels, allowing technicians to store and retrieve specific voltage and current parameters. Designed with rapid thermal recovery and precise short-circuit analysis capabilities, the TBK-219 maximizes workbench space utility while supporting motherboard maintenance tasks.

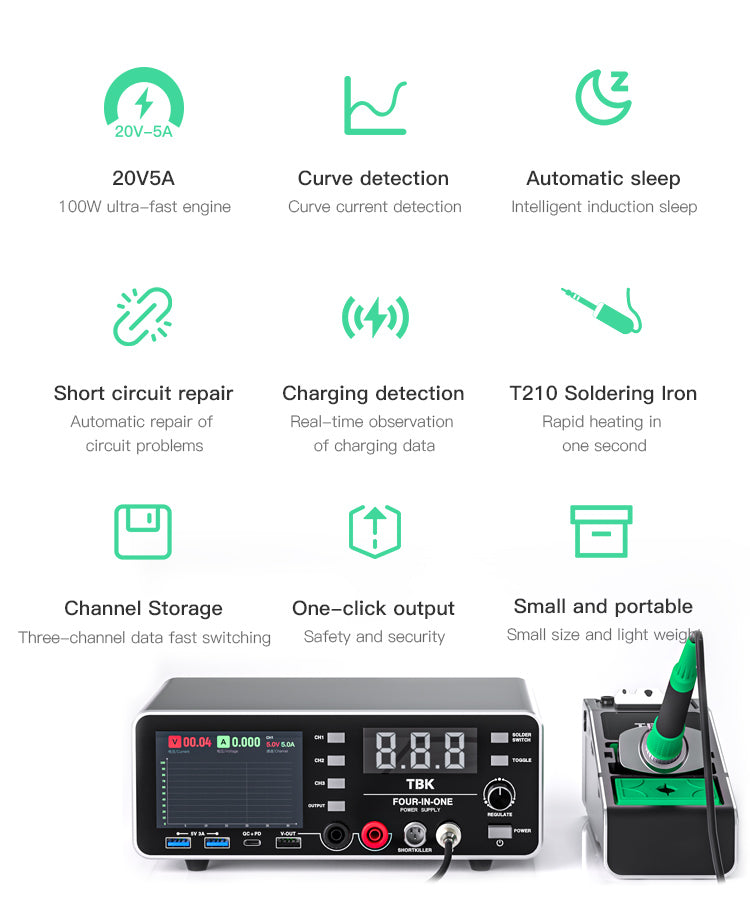

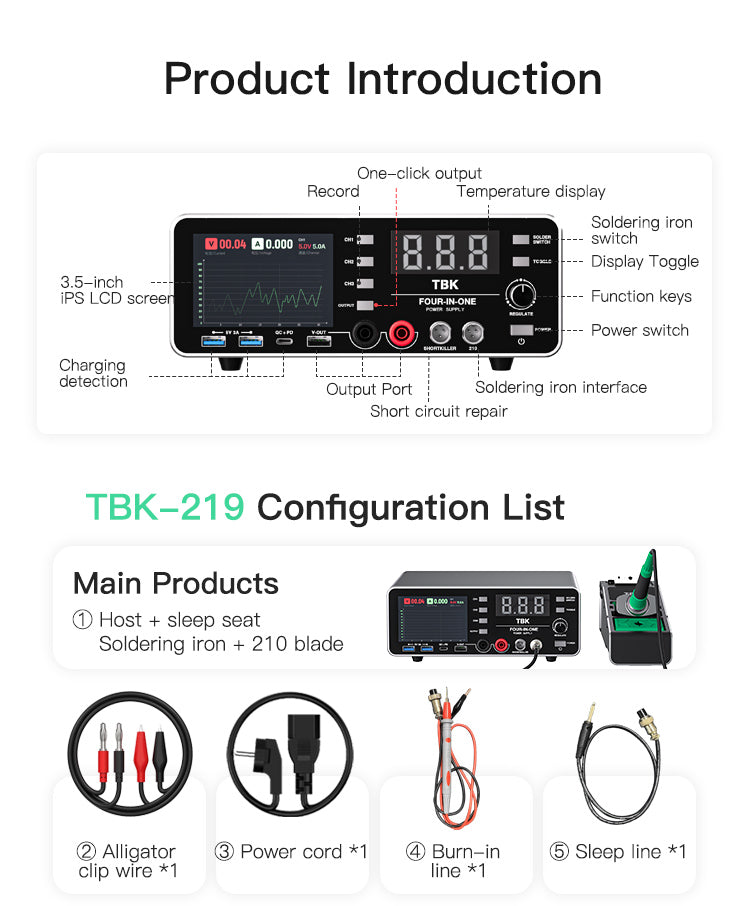

4-in-1 Integrated Architecture: Combines a DC power supply, soldering station, short circuit detector, and charging monitor into one consolidated unit to save workbench space.

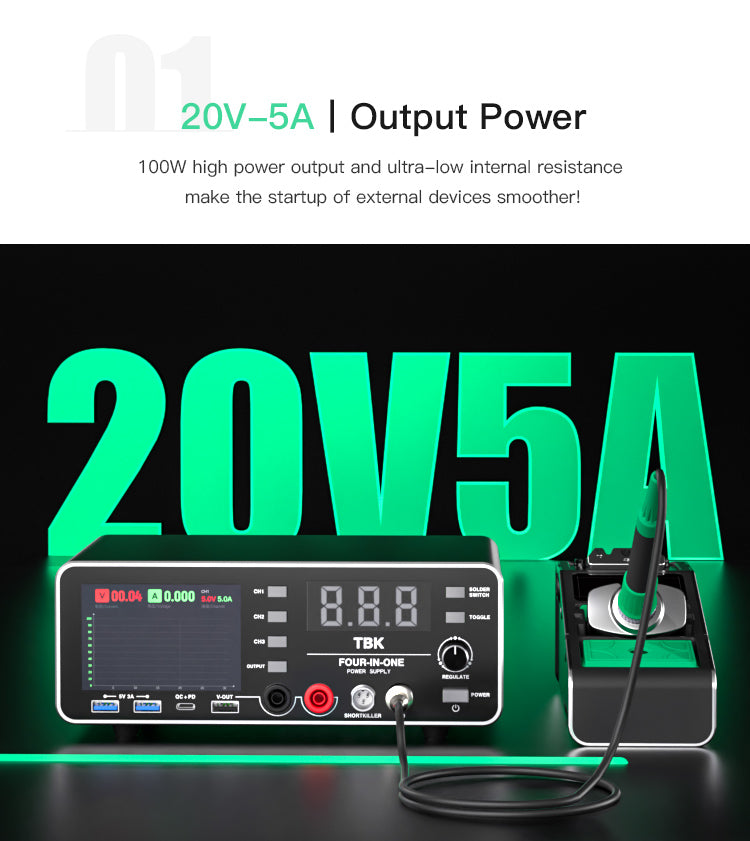

Adjustable Power Output: Provides a maximum output of 100W (20V/5A), suitable for powering and testing a wide range of mobile devices and logic boards.

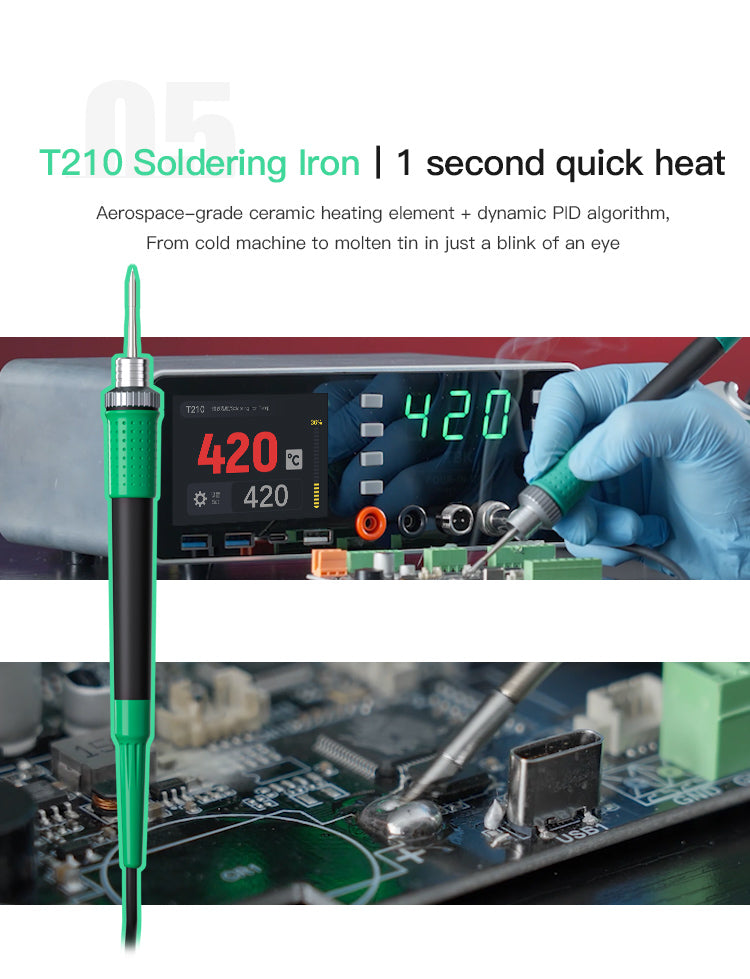

Rapid Thermal Recovery: The soldering iron reaches operating temperature in approximately one second and includes an auto-sleep function to maintain component safety and extend tip life.

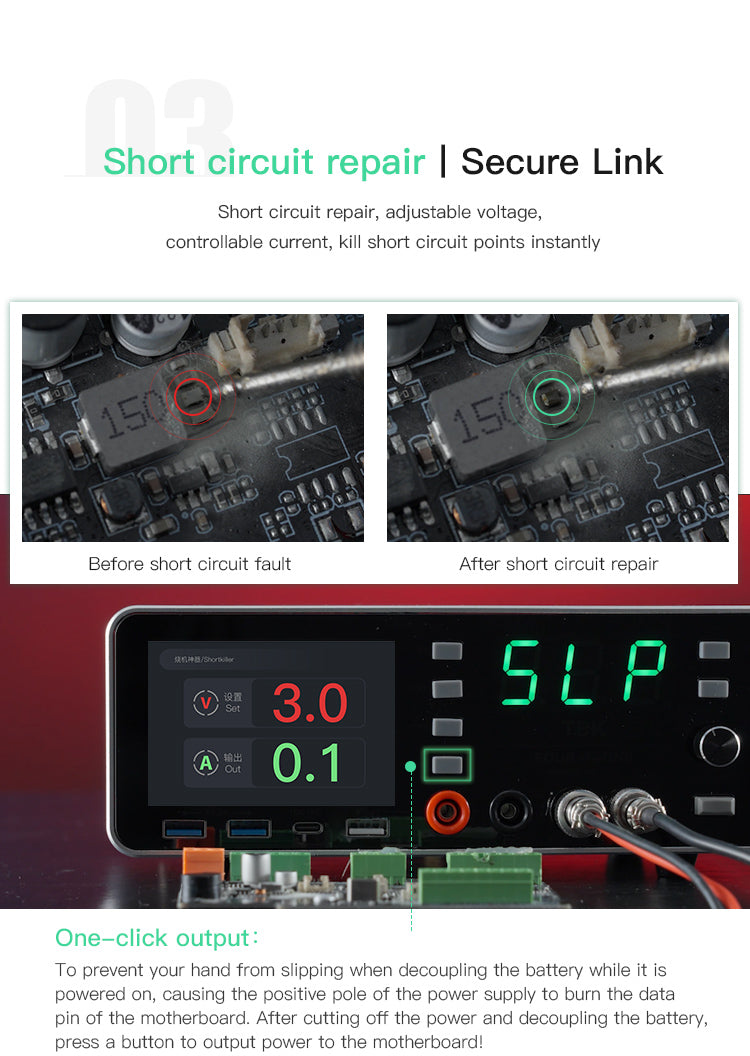

Short Circuit Detection: Features a dedicated mode to locate and assist in resolving short circuit faults on motherboards through adjustable voltage and current injection.

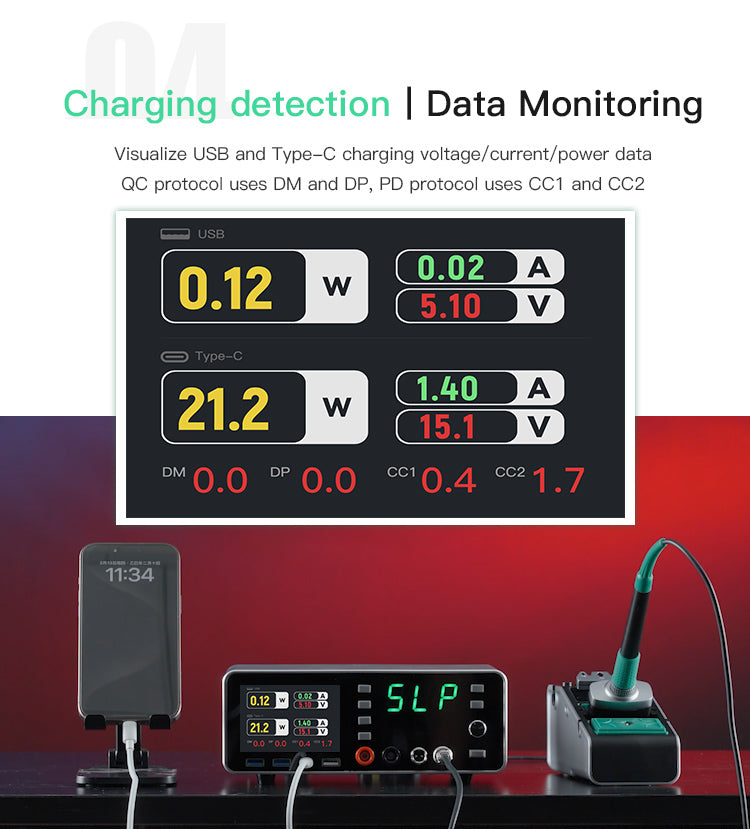

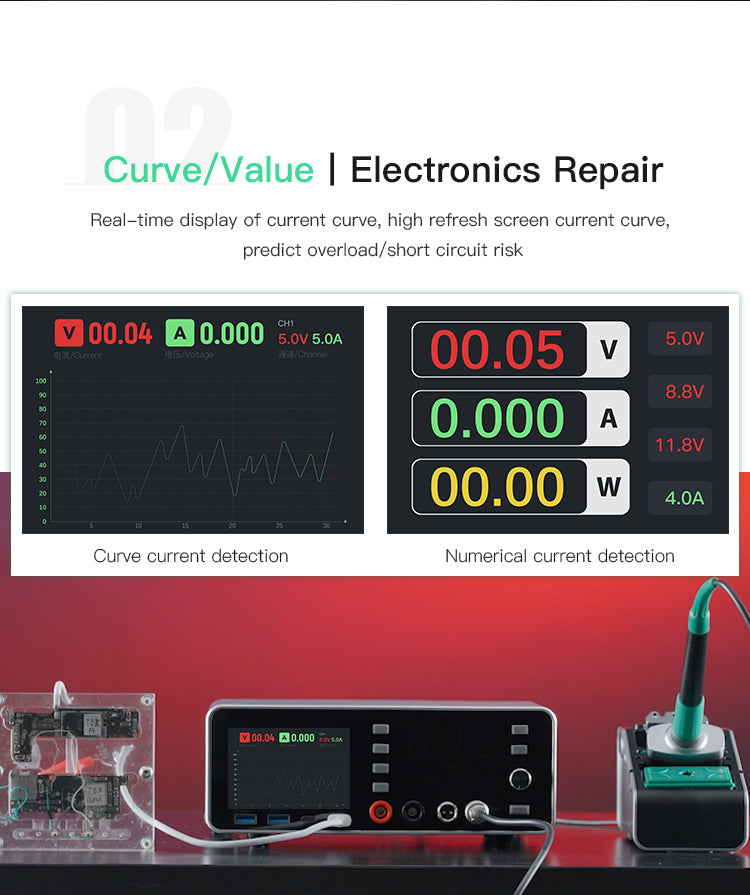

Digital Data Monitoring: Equipped with a 3.5-inch IPS display that presents real-time current curves and charging status (Voltage, Amperage, Wattage) for connected devices.

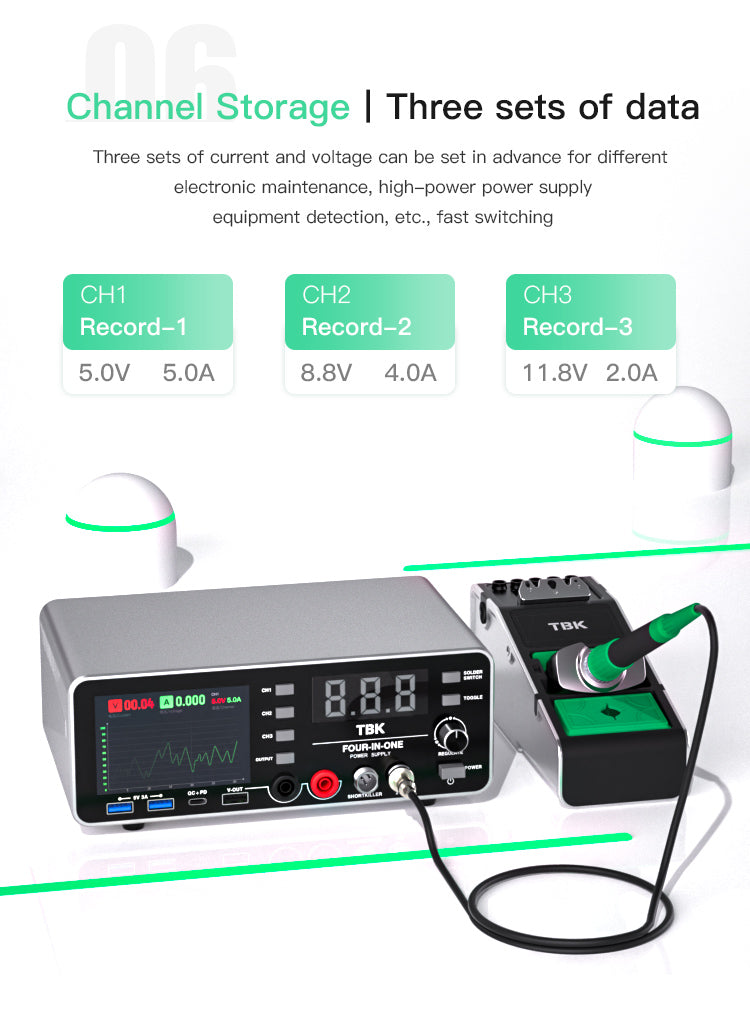

Preset Channel Memory: Allows users to save three distinct voltage and current configurations for quick switching between different repair scenarios.

One-Click Power Control: Includes a dedicated activation button to enable safe and controlled power delivery to the connected device or motherboard.

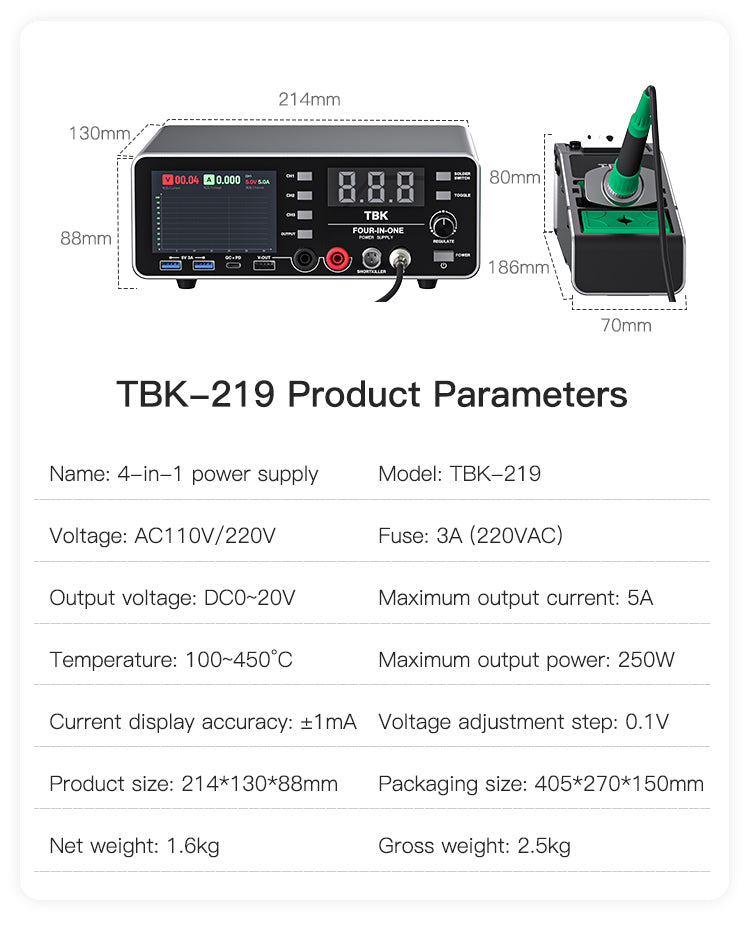

Name: 4-in-1 Power Supply

Model: TBK-219

Voltage: AC 110V / 220V

Fuse: 3A (220VAC)

Output Voltage: DC 0–20V

Maximum Output Current: 5A

Temperature: 100–450°C

Maximum Output Power: 250W

Current Display Accuracy: ±1mA

Voltage Adjustment Step: 0.1V

Product Size: 214 x 130 x 88mm

Packaging Size: 405 x 270 x 150mm

Net Weight: 1.6kg

Gross Weight: 2.5kg

Q1
What are the four main functions integrated into the TBK-219 workstation?
A1
The TBK-219 integrates a DC power supply, a soldering station, a short circuit detector, and a USB/Type-C charging monitor into a single device.

Q2
What are the maximum voltage and current output specifications for the DC power supply?
A2
The unit delivers a maximum power output of 100W, with adjustable voltage up to 20V and current up to 5A.

Q3
Does the soldering station feature temperature management or sleep modes?
A3
Yes, the soldering iron supports rapid heating and includes an intelligent auto-sleep function to prevent oxidation and prolong the lifespan of the soldering tip.

Q4
How does the TBK-219 assist in diagnosing motherboard faults?
A4
It includes a short circuit detection function and a 3.5-inch IPS screen that displays real-time current curves, helping technicians visualize power consumption anomalies during repairs.

Q5
Can I save custom settings for different repair tasks?
A5
Yes, the device features three memory channels that allow technicians to save and instantly recall frequently used voltage and current presets.
