TBK 218 Adjustable DC Bench Power Supply 0-30V 0-10A | Digital Waveform & Analog Meter

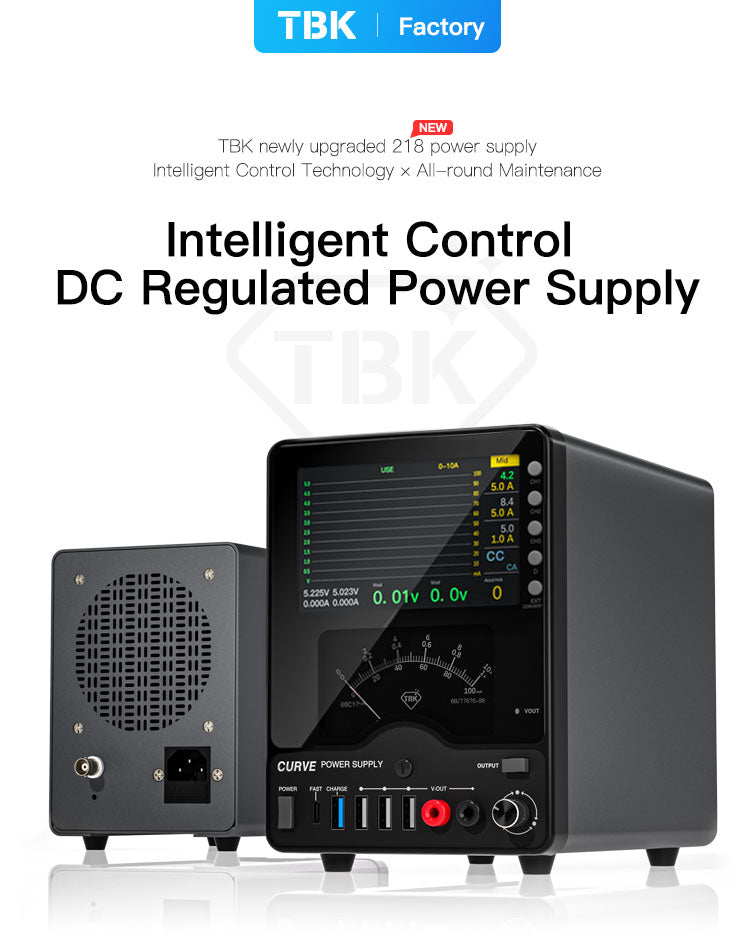

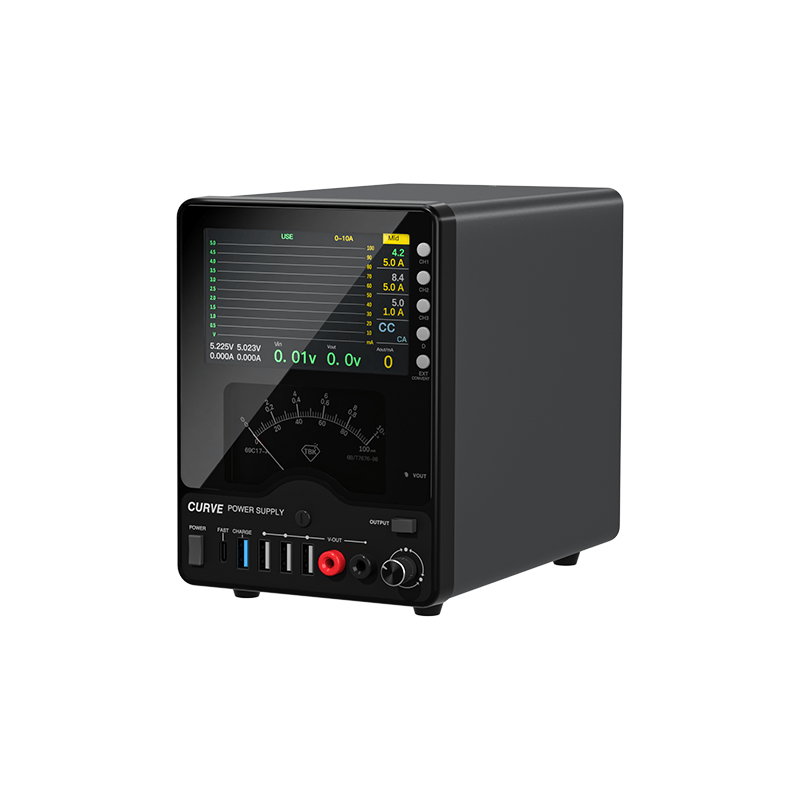

The TBK 218 is a professional-grade DC regulated power supply engineered for precision electronics repair and laboratory testing. Capable of delivering a stable, adjustable output of 0-30V and 0-10A, this unit is powered by a robust 300W toroidal transformer, ensuring low-noise and consistent power delivery even under heavy loads. The device distinguishes itself with a hybrid display system: a 4.3-inch HD IPS screen for digital readouts and real-time waveform plotting, alongside a high-sensitivity analog pointer meter. This combination allows technicians to monitor dynamic current consumption and analyze circuit boot sequences effectively. With integrated short-circuit protection and multiple USB outputs, the TBK 218 serves as a versatile diagnostic center for mobile phone logic board repair and general electronics maintenance.

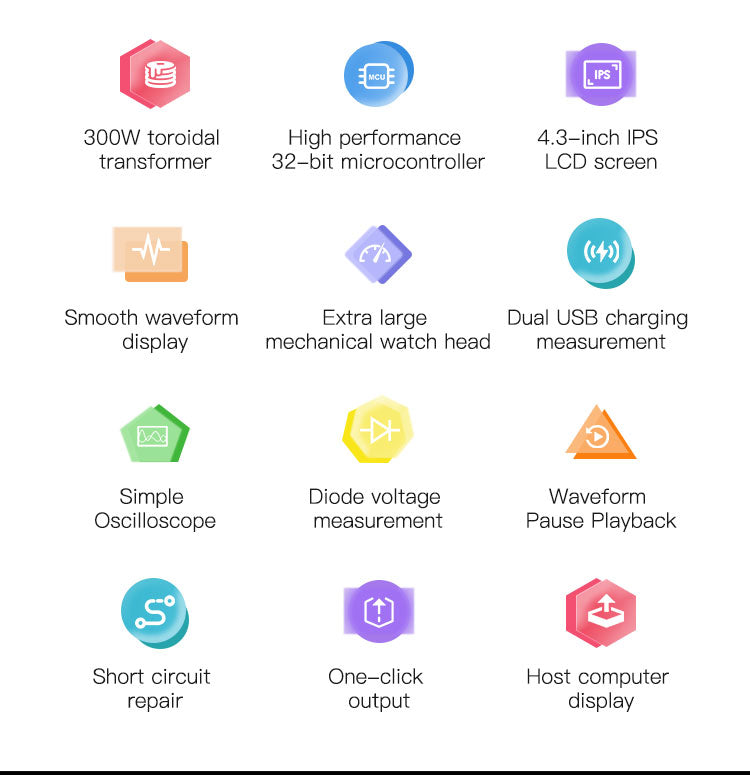

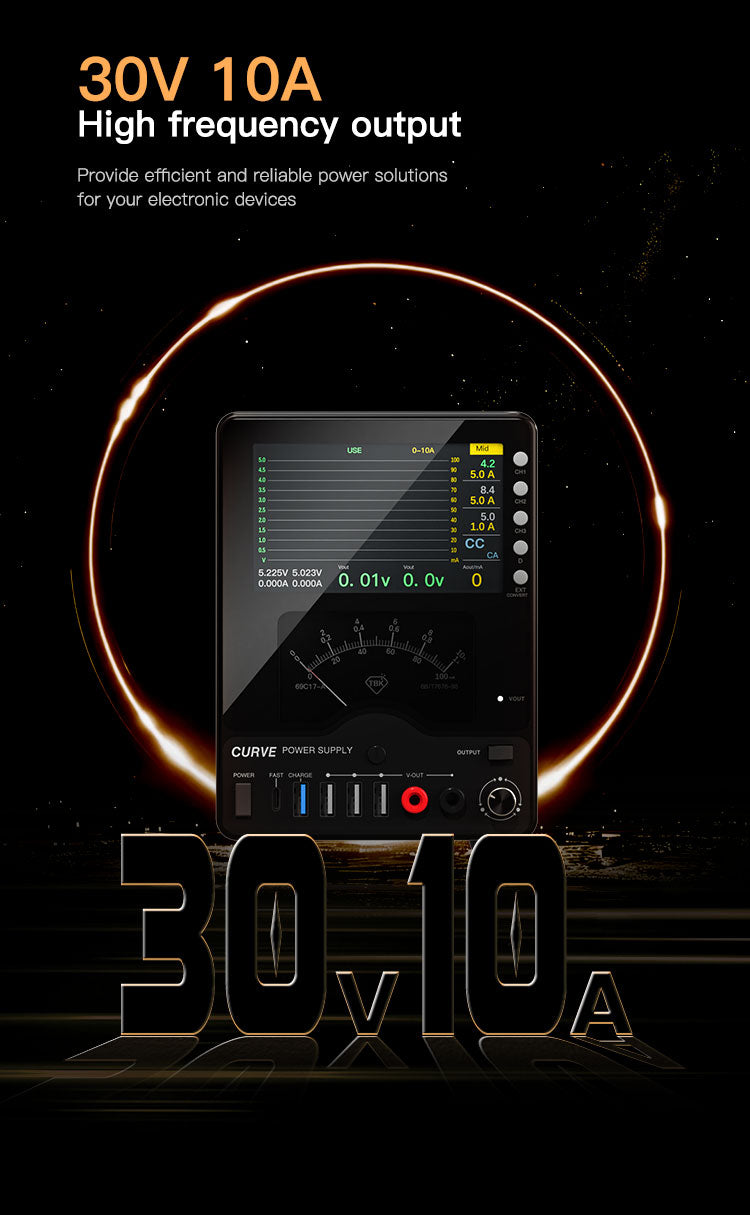

Adjustable High-Power Output: Delivers a fully variable DC output ranging from 0-30V and 0-10A, suitable for powering a wide variety of electronic devices and components.

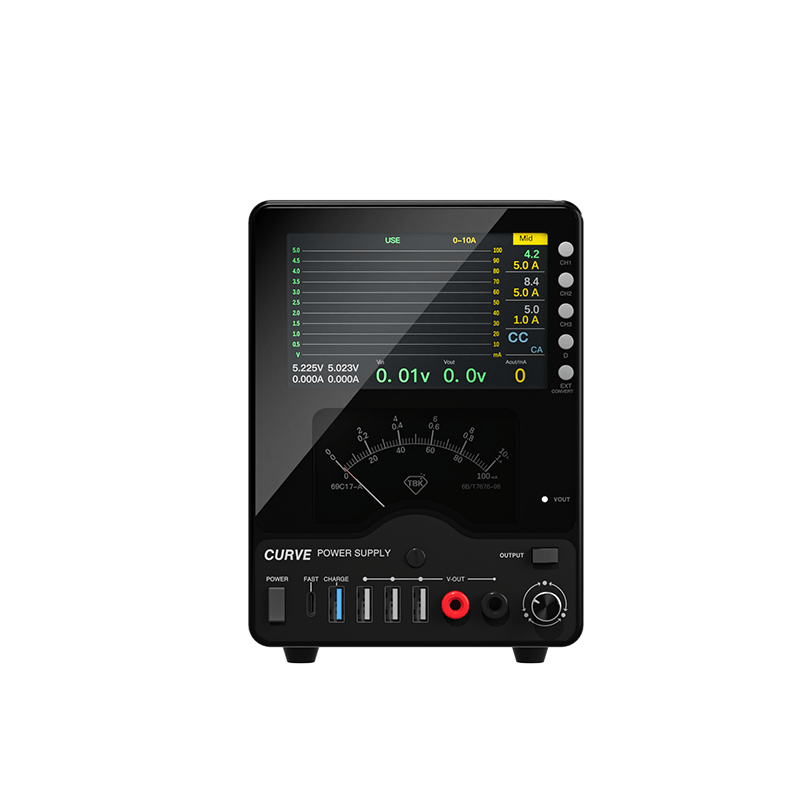

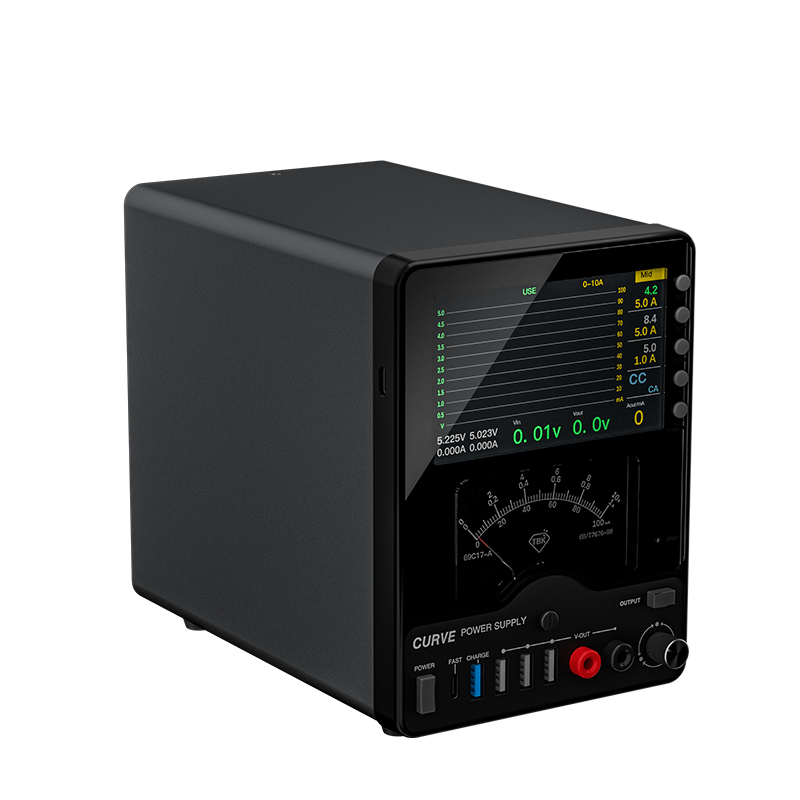

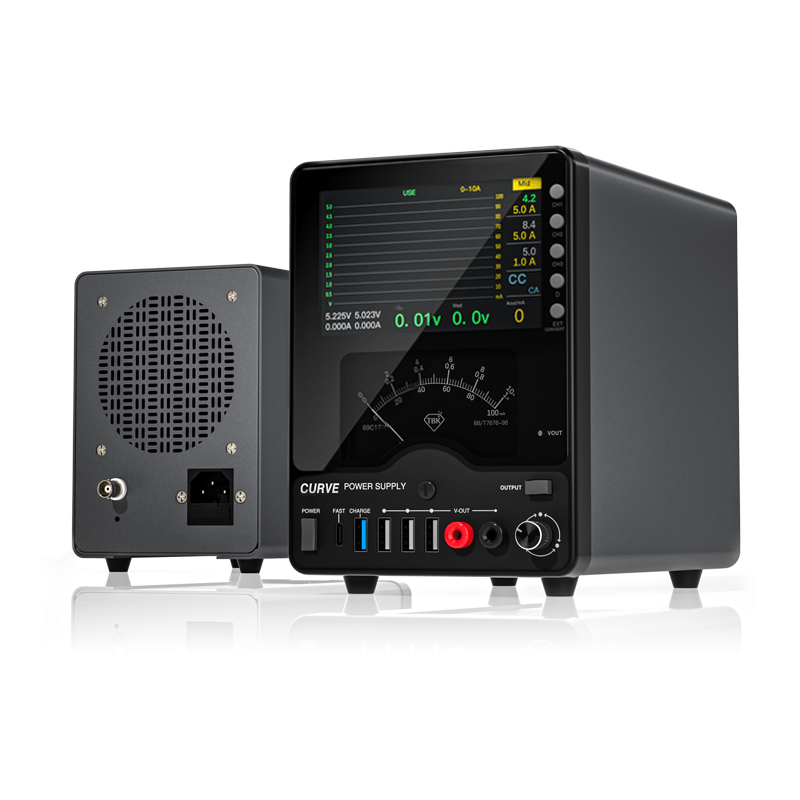

Dual-Display Interface: Features a hybrid visualization system comprising a 4.3-inch color LCD screen for digital precision and waveforms, plus a classic analog needle meter for intuitive real-time monitoring.

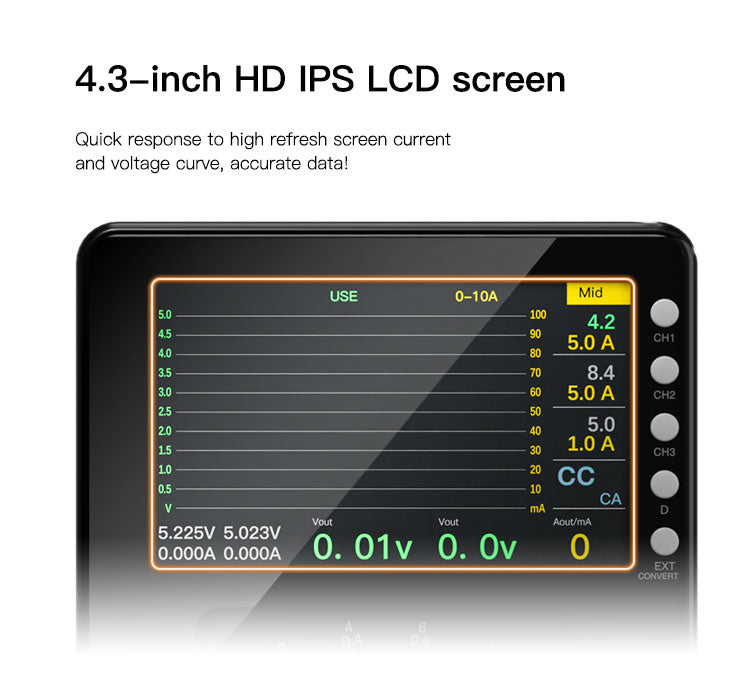

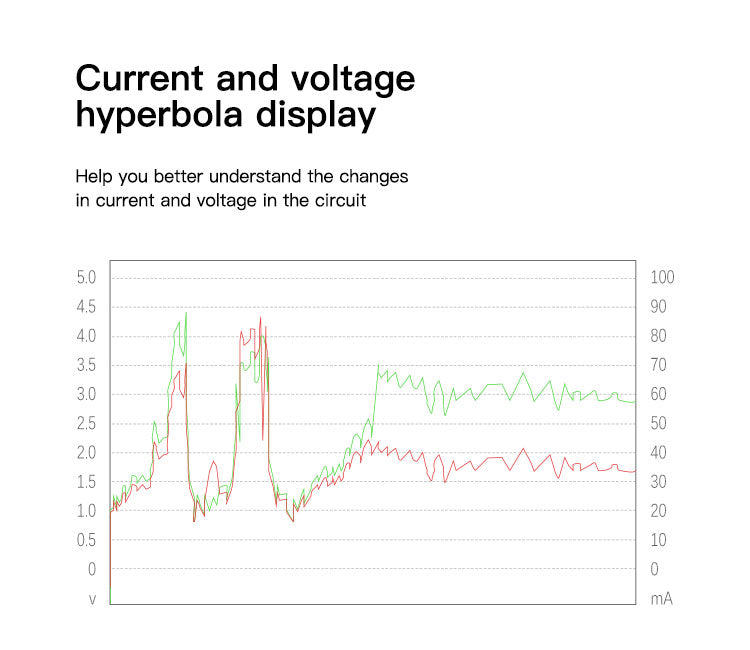

Real-Time Waveform Analysis: The color display plots voltage and current curves in real-time, allowing technicians to visualize boot currents and diagnose circuit faults dynamically.

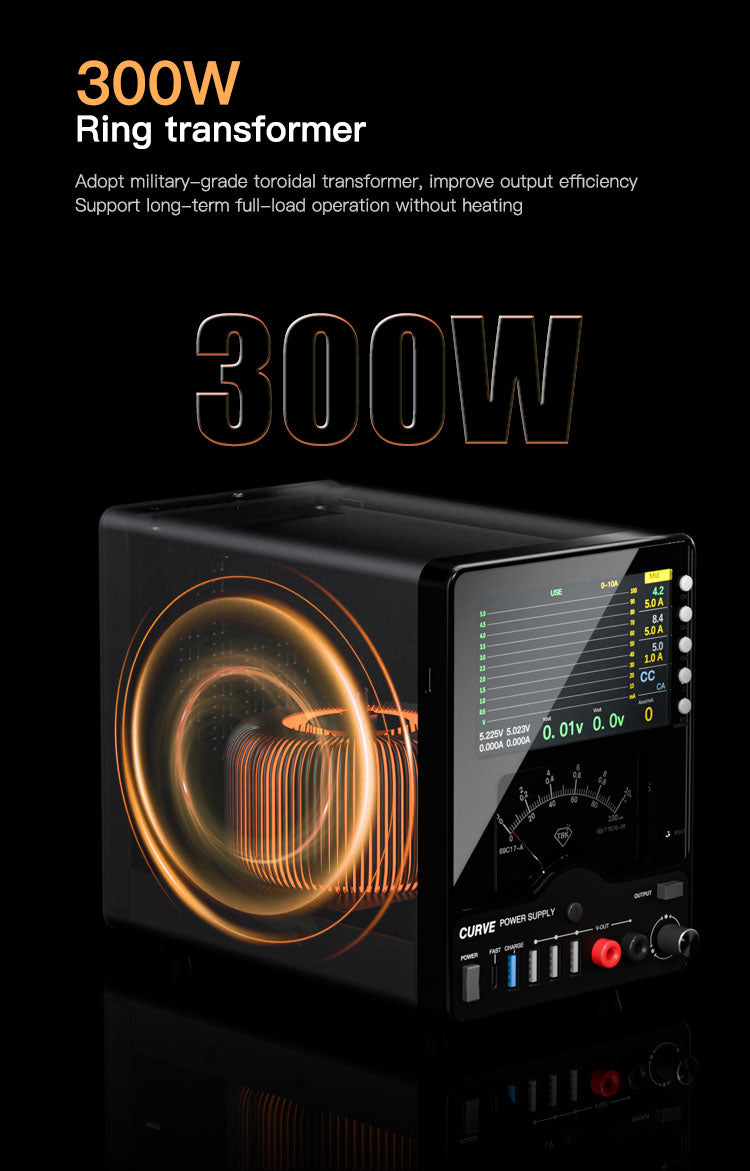

300W Toroidal Transformer: Built with a heavy-duty toroidal transformer to minimize electromagnetic interference (EMI) and provide efficient, stable power with excellent heat dissipation.

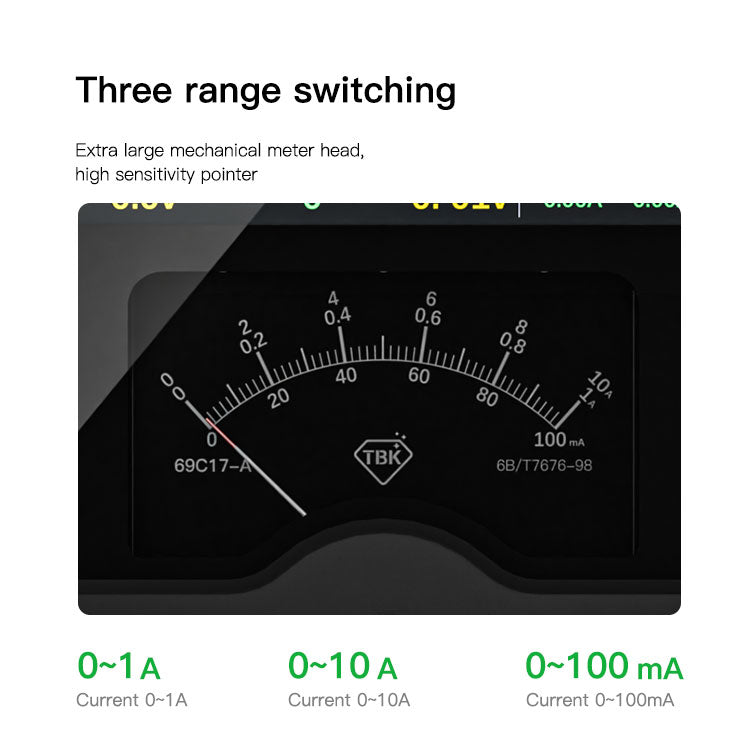

Three-Range Analog Meter: The physical pointer meter offers three switchable sensitivity ranges (0-100mA, 0-1A, and 0-10A), enabling precise observation of minute current changes and leakage.

Diagnostic Functions: Includes a dedicated short-circuit repair mode and diode measurement capabilities to assist in rapid fault isolation.

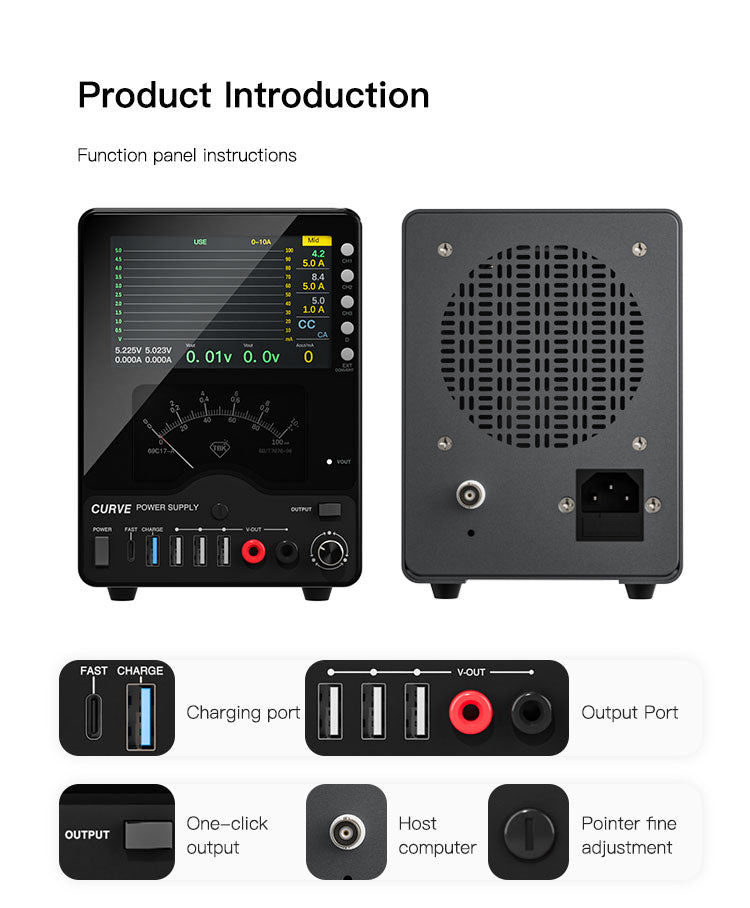

Versatile Connectivity: Equipped with standard banana jack outputs, multiple front-facing USB ports for device charging, and a Type-C interface.

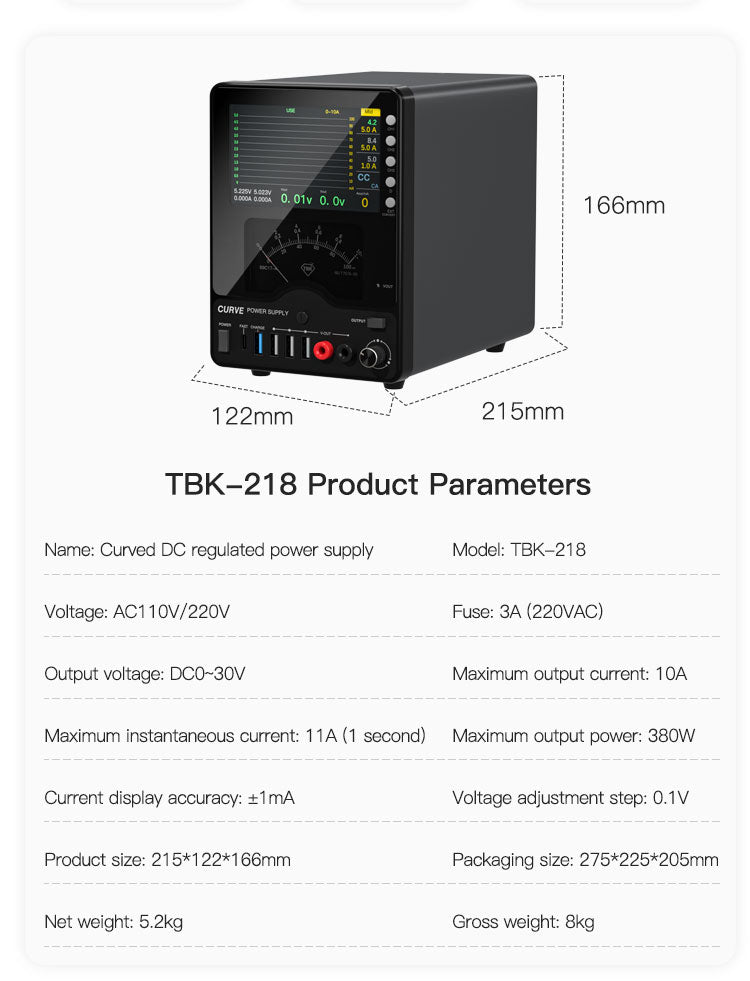

Model: TBK-218

Input Voltage: AC 110V / 220V

Output Voltage Range: DC 0 – 30V

Maximum Output Current: 10A

Peak Instantaneous Current: 11A (for 1 second)

Maximum Output Power: 380W

Current Display Accuracy: ±1mA

Voltage Adjustment Step: 0.1V

Product Dimensions: 215 mm x 122 mm x 166 mm

Net Weight: 5.2 kg

Gross Weight: 8 kg

Q1: What are the maximum voltage and current output of the TBK 218?
A1: The TBK 218 provides a continuously adjustable output voltage of 0-30V and an output current of 0-10A.

Q2: What is the benefit of the dual-display system (LCD and Analog)?
A2: The LCD provides precise digital readings and waveform graphs for analysis, while the analog pointer allows for quick visual detection of current fluctuations, which is particularly useful for spotting unstable consumption trends.

Q3: How does the waveform display help in phone repair?
A3: The real-time current waveform graph acts similarly to an oscilloscope, allowing technicians to see the "boot sequence" of a phone. Irregularities in this curve can help diagnose specific logic board failures.

Q4: What is the advantage of using a toroidal transformer in this power supply?
A4: The 300W toroidal transformer ensures the power supply delivers clean, low-noise power with high efficiency, which is critical when testing sensitive electronic components to avoid interference.

Q5: Can the analog meter measure low currents?
A5: Yes, the analog meter features three switchable ranges: 0-100mA, 0-1A, and 0-10A. The 0-100mA range is specifically designed for detecting small leakage currents or standby power consumption.
