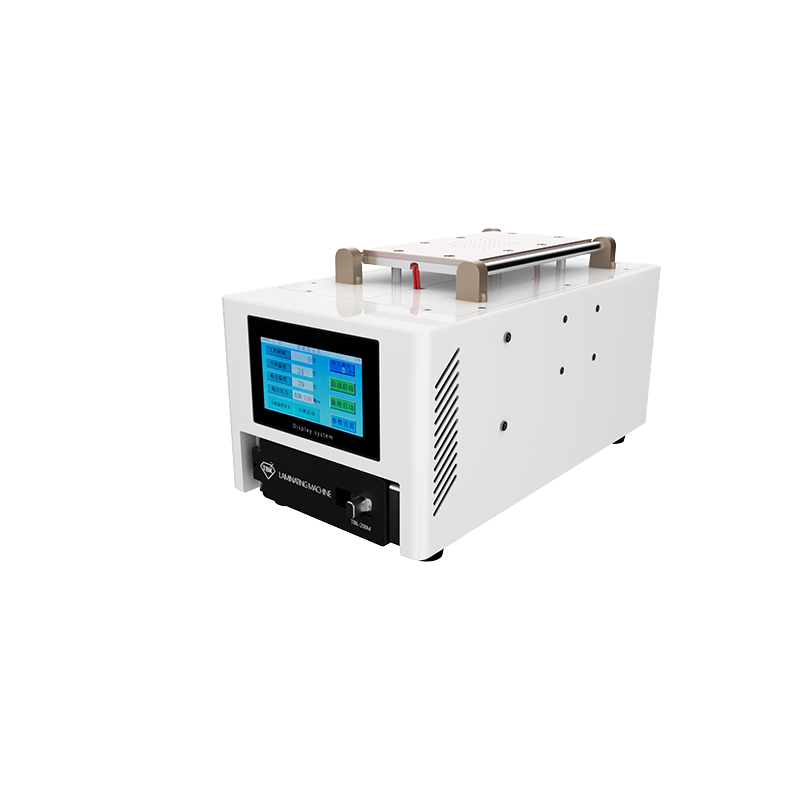

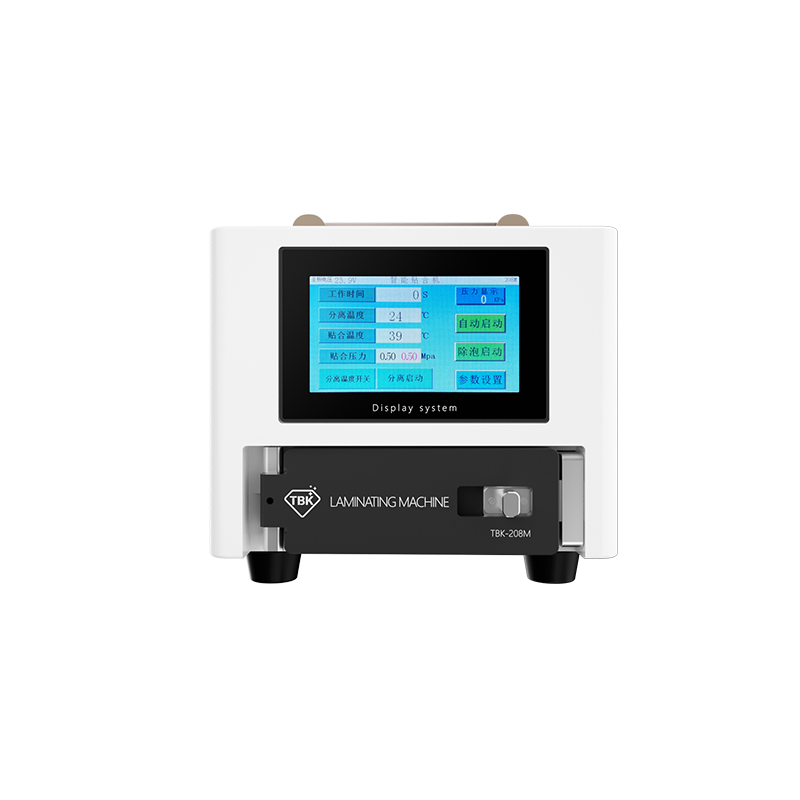

TBK-208M | Intelligent 3-in-1 OCA Laminating Machine with Separator & Bubble Remover

The TBK-208M is a compact, integrated 3-in-1 machine engineered for professional screen refurbishment. This unit consolidates three critical functions—screen separation (glass from LCD/OLED), OCA lamination, and bubble removal—into a single workstation. Featuring a built-in silent air compressor and vacuum pump, the TBK-208M eliminates the need for external peripherals, ensuring a quiet operational environment and immediate deployment capability.

Designed to enhance workflow efficiency, the system supports a synchronized process where lamination and defoaming can be executed in sequence. Despite its compact footprint, the machine is equipped with an 8.5-inch workbench, accommodating a broad spectrum of mobile phones and small tablets. The device is controlled via a high-definition touch display, while an advanced digital constant pressure valve regulates pressure output for consistent lamination results. Equipped with comprehensive safety mechanisms, the TBK-208M offers a stable and secure solution for mobile repair workshops.

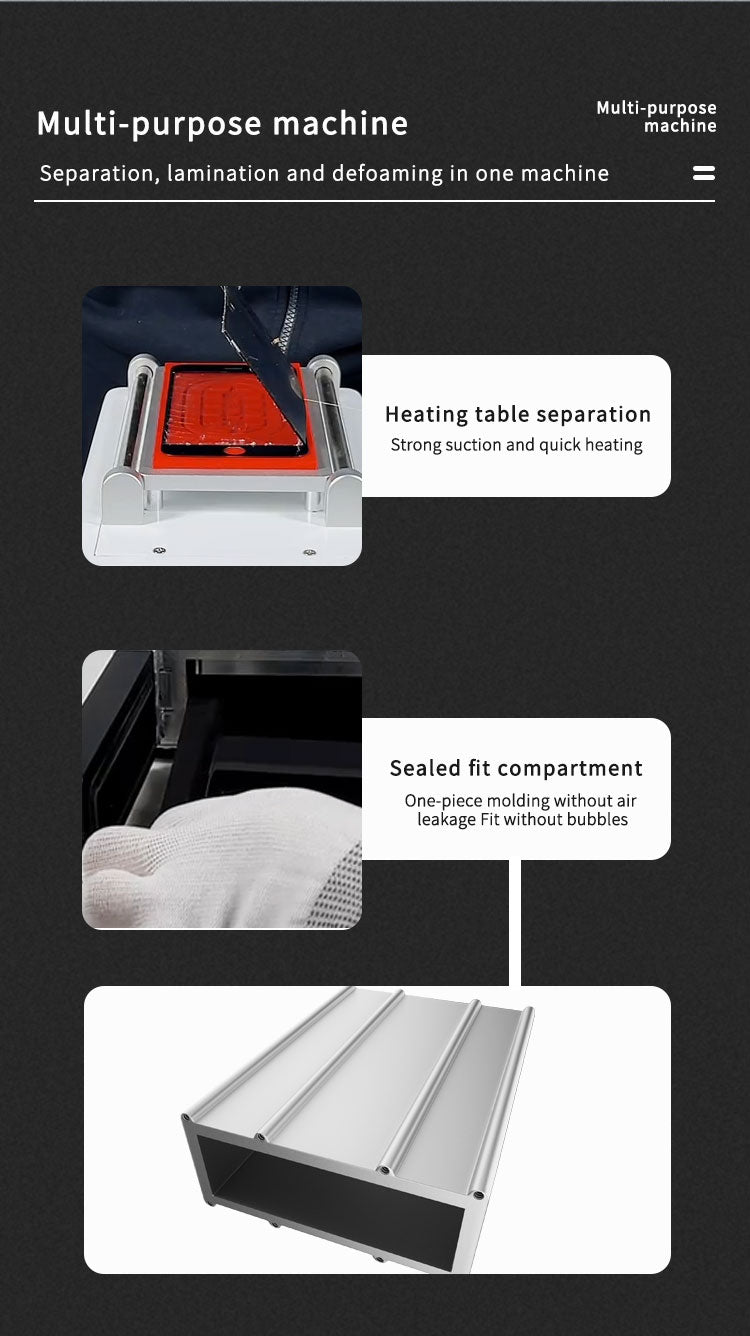

Integrated 3-in-1 Functionality: Combines screen separation, lamination, and bubble removal capabilities, supporting efficient refurbishment workflows for LCD and OLED screens.

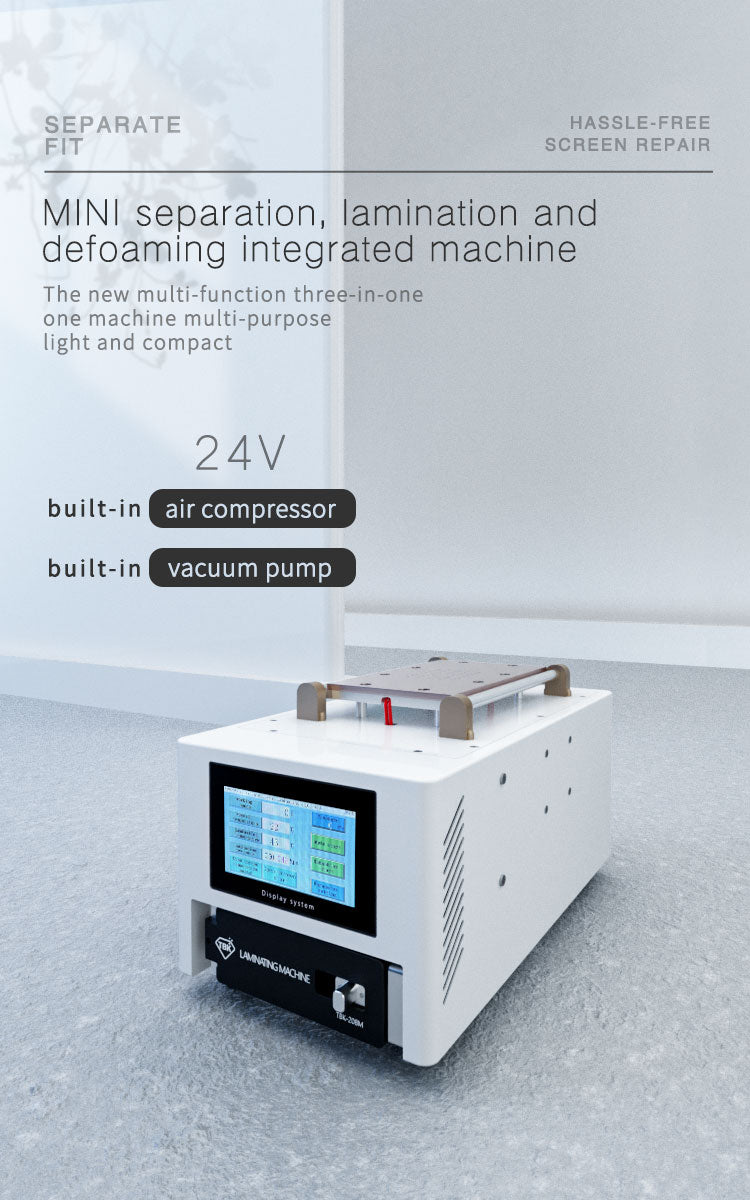

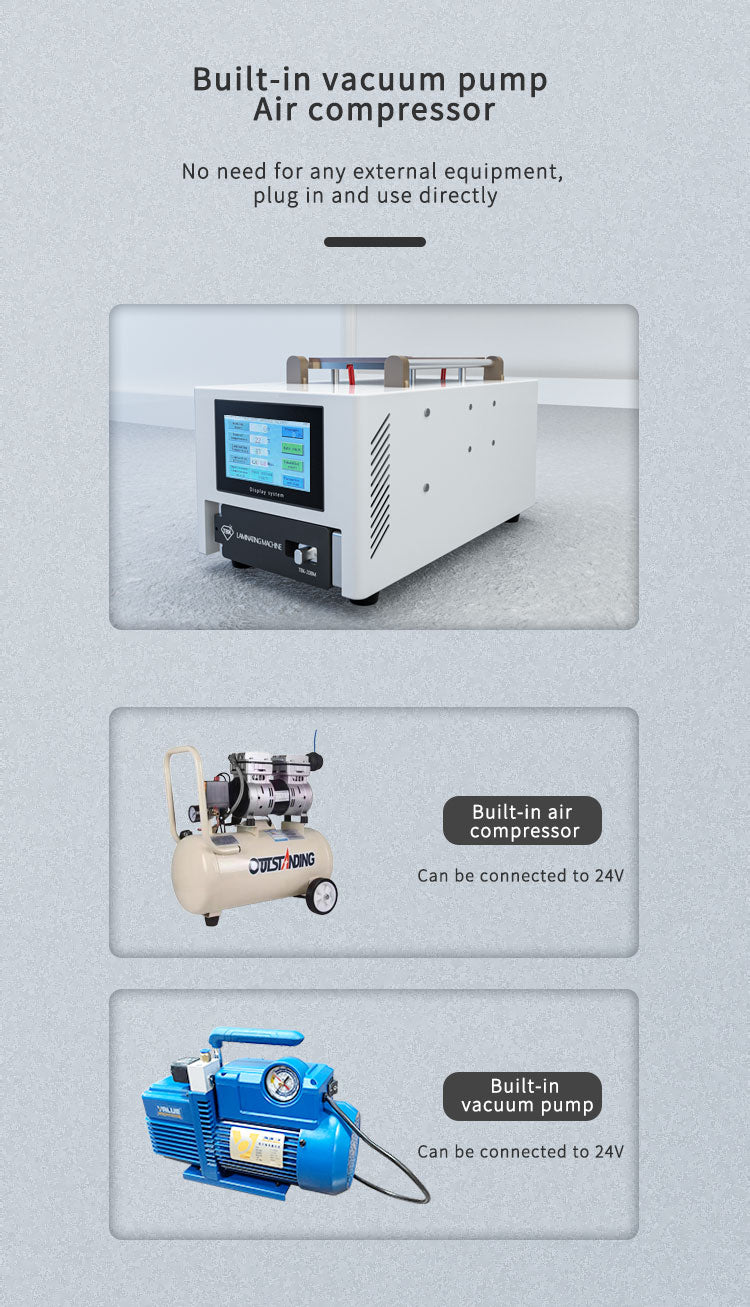

Built-in Pneumatic System: Features an internal silent air compressor and vacuum pump, removing the requirement for external equipment connection.

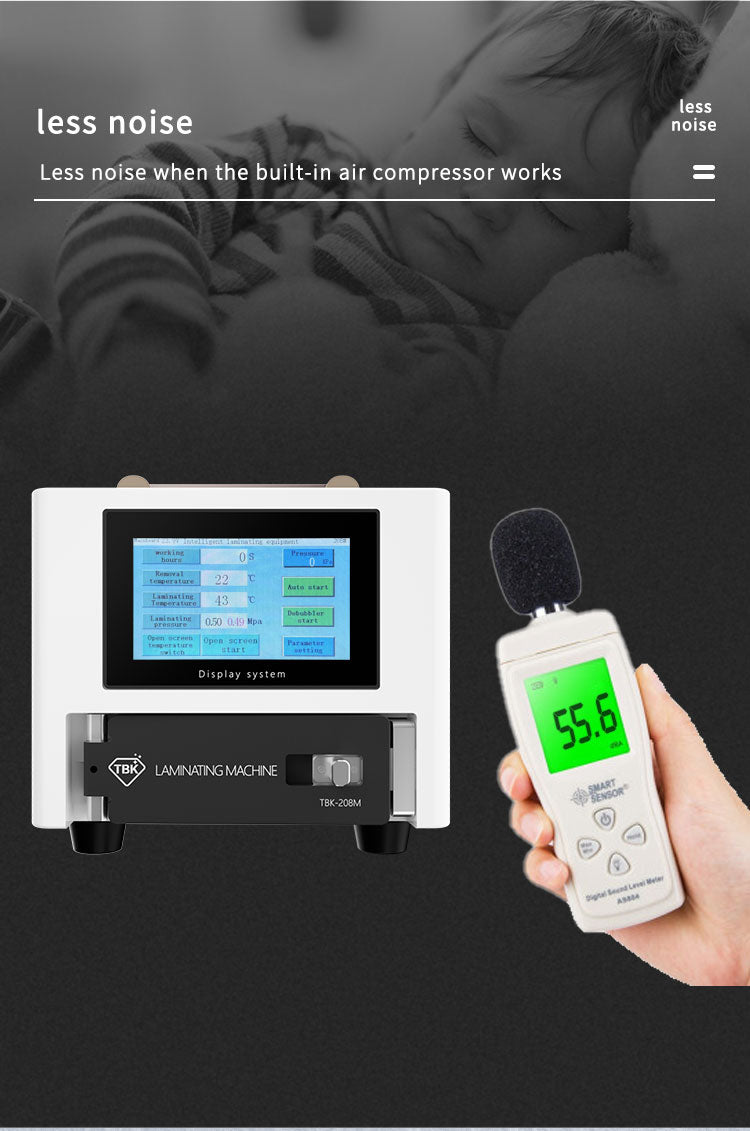

Acoustic Control: The silent compressor design contributes to a lower-noise working environment suitable for repair shops.

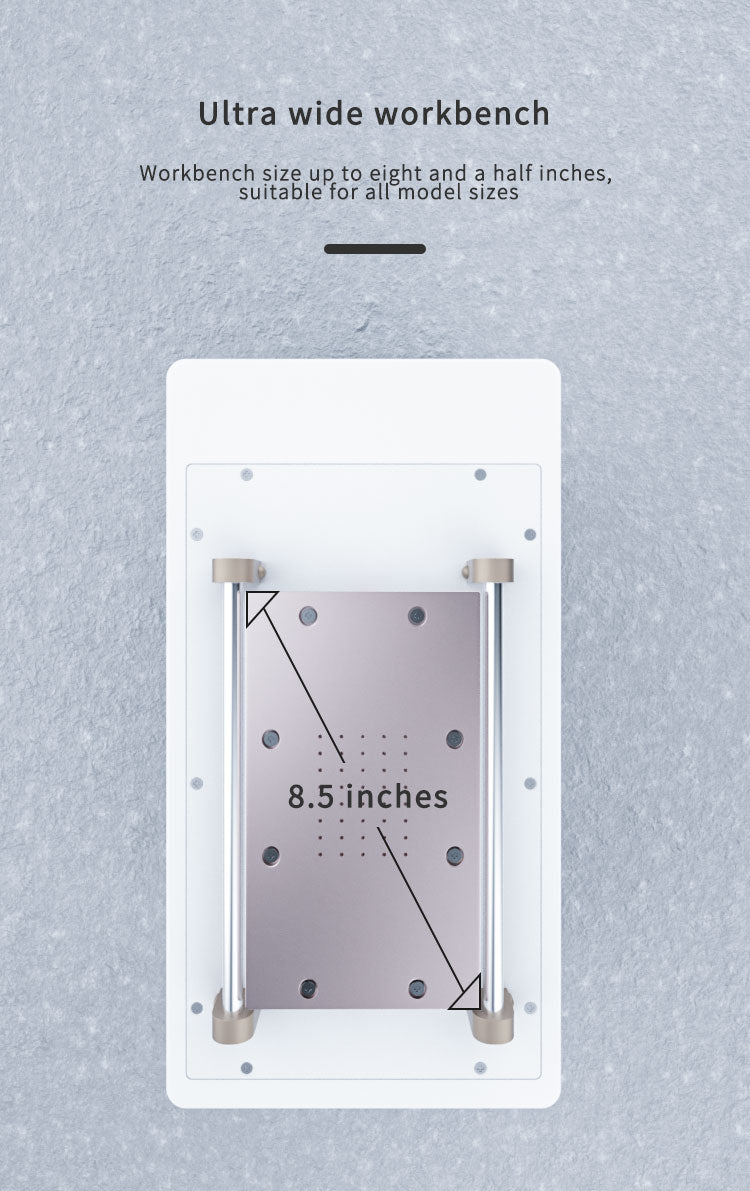

8.5-Inch Work Area: The spacious workbench supports devices with screen sizes up to 8.5 inches, covering most smartphones and small tablets.

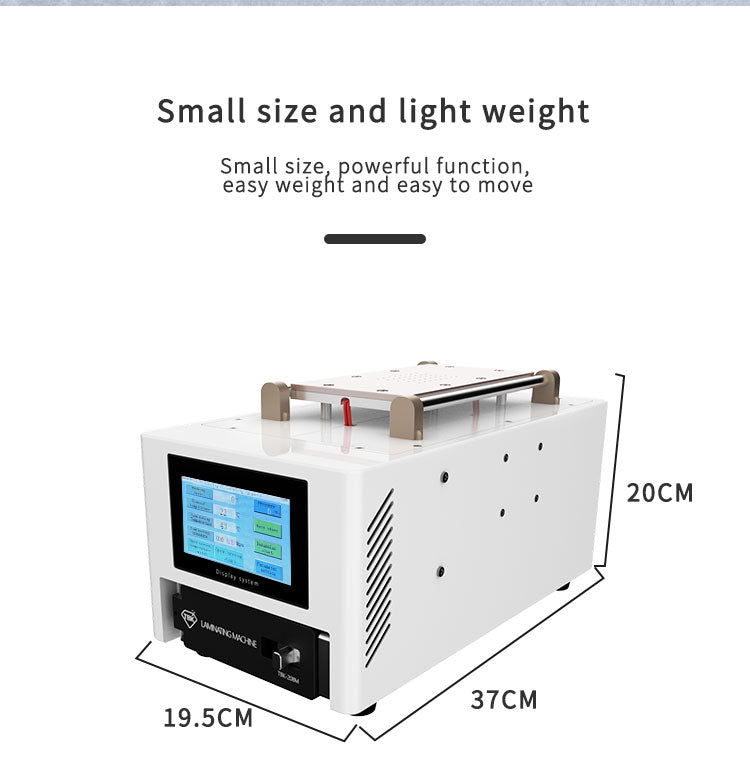

Compact Form Factor: With dimensions of 19.5 x 37 x 20 cm and a weight of 10.8 kg, the unit is designed for space-constrained workbenches.

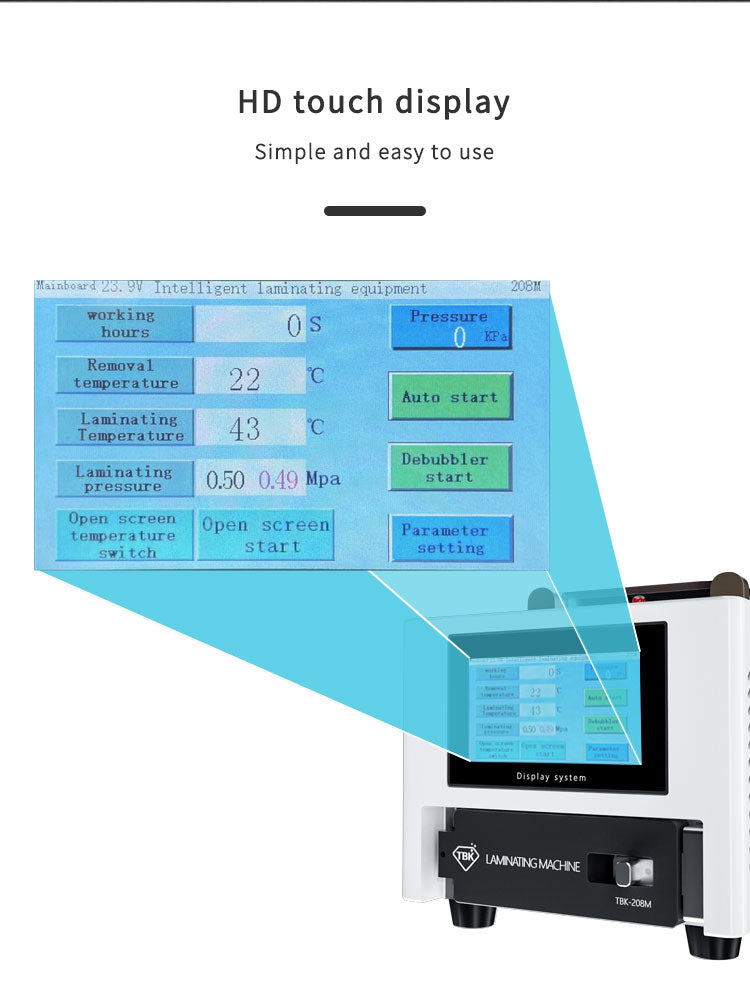

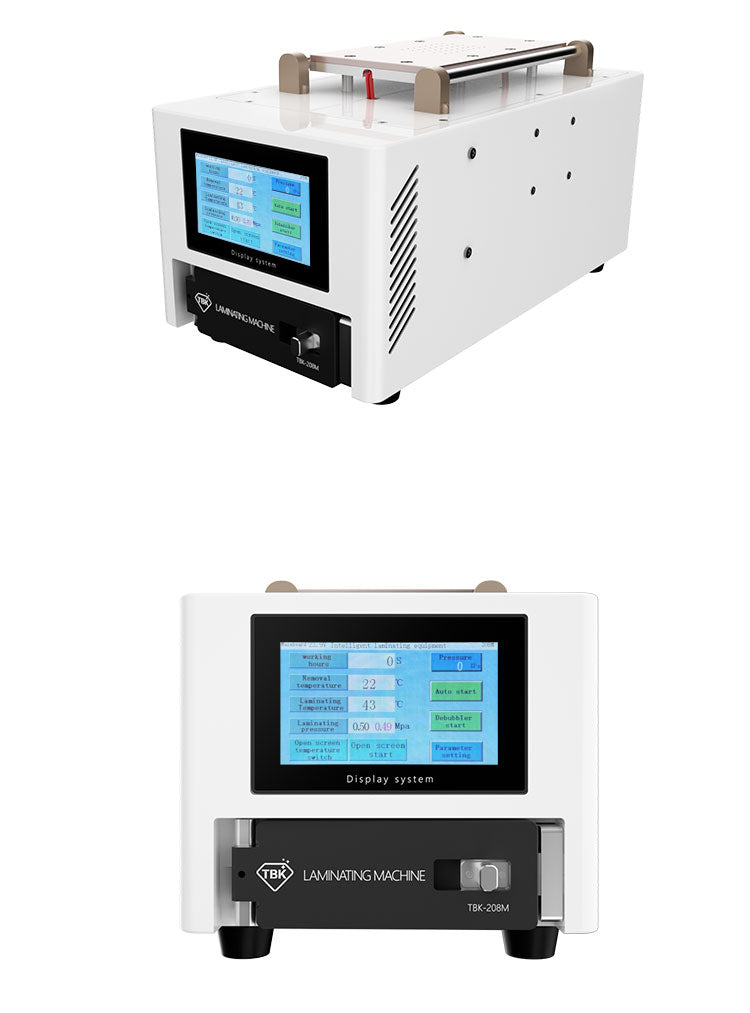

HD Touch Interface: System parameters and operations are managed through an intuitive, high-definition touchscreen panel.

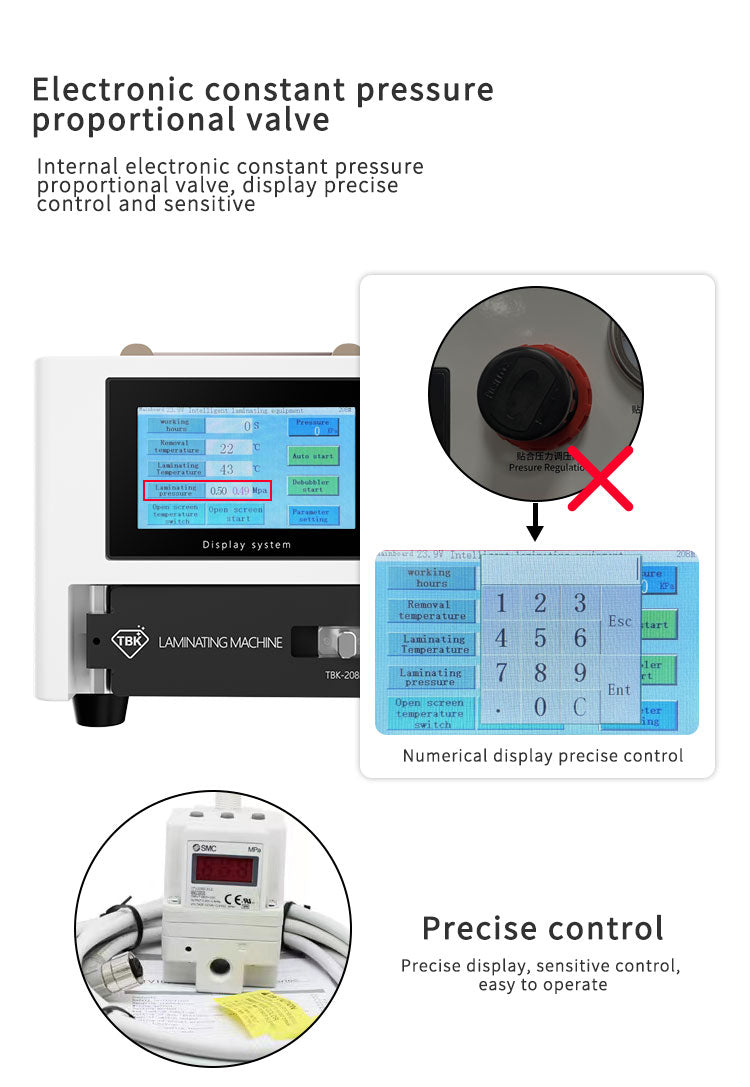

Digital Pressure Regulation: Utilizes a digital constant pressure valve to maintain precise stability during the lamination process.

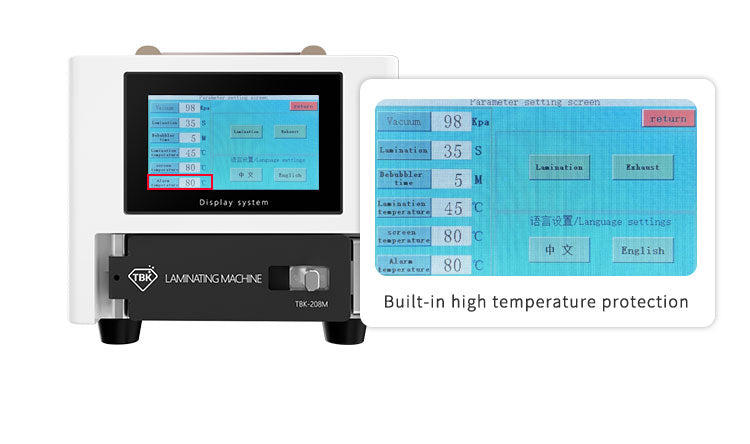

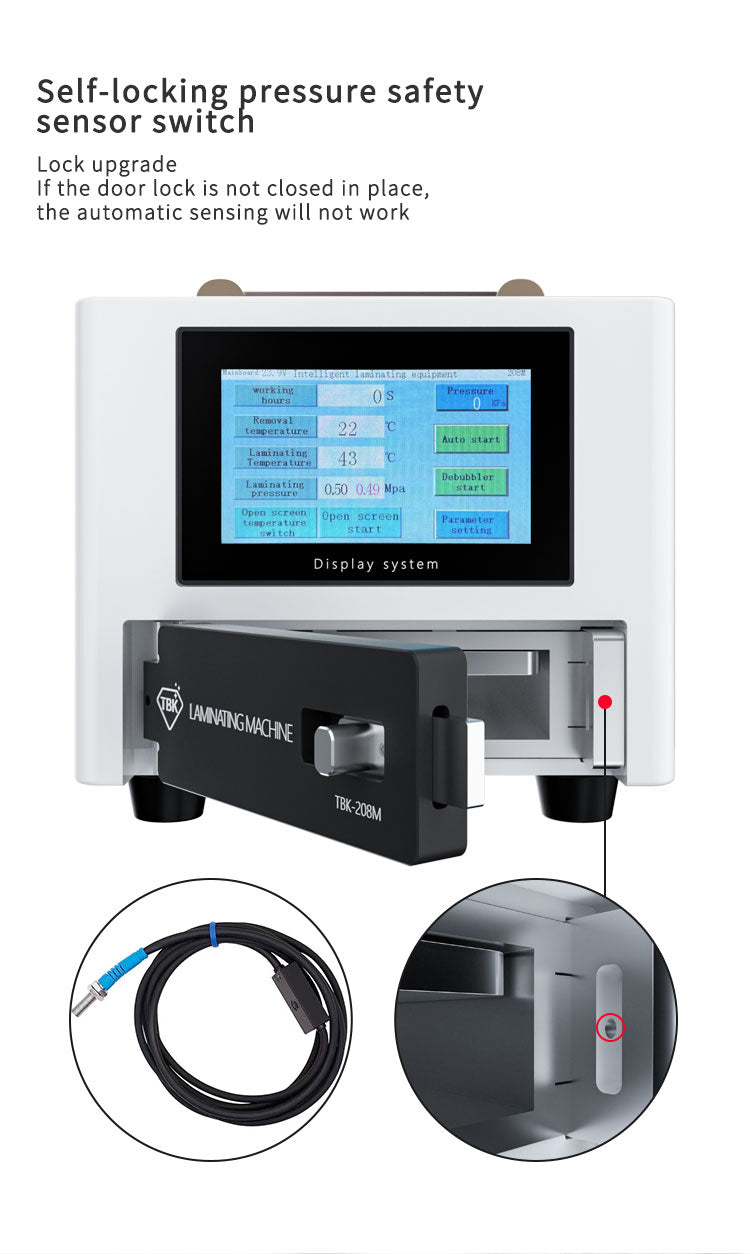

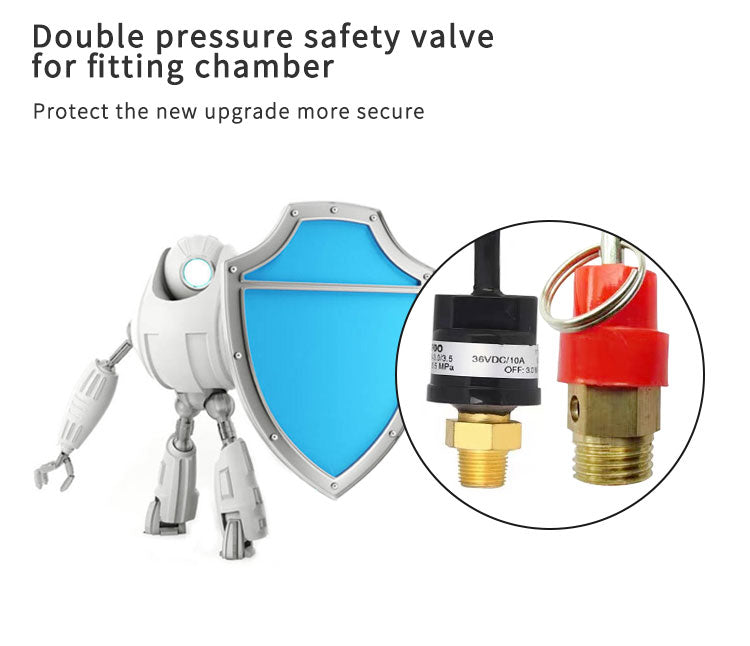

Operational Safety Protocols: Includes a self-locking door sensor, double pressure safety valve, and high-temperature alarm to ensure operator and equipment safety.

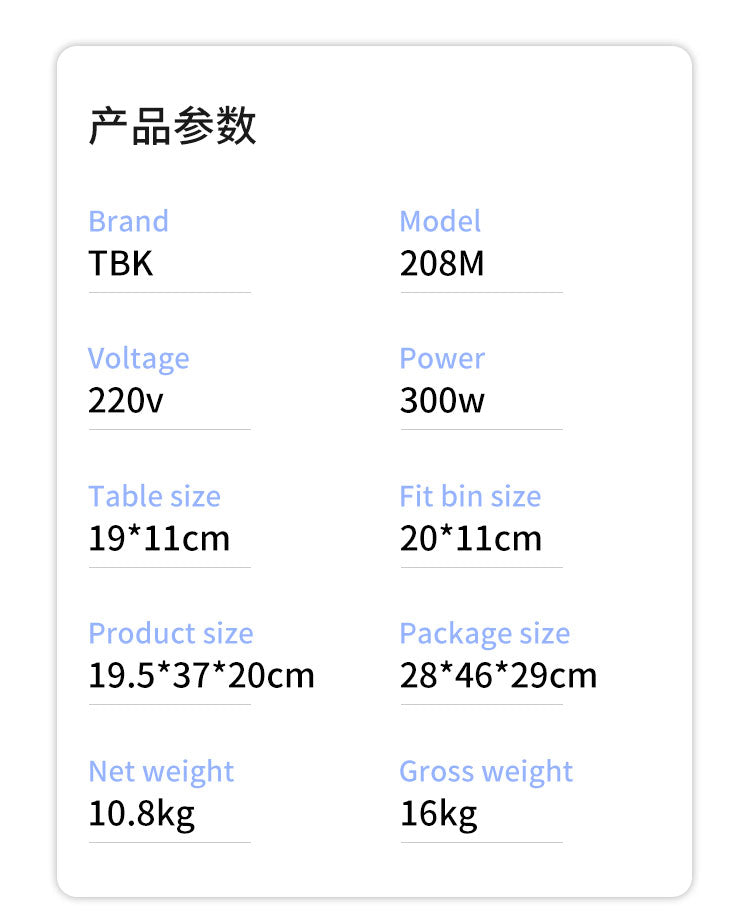

• Brand: TBK
• Model: 208M
• Functions: Screen Separation (for LCD/OLED), Lamination, Bubble Removal
• Voltage: 220V
• Power: 300W
• Max Working Size: 8.5 Inches
• Separation Table Size: 19 x 11 cm
• Lamination Chamber Size: 20 x 11 cm
• Product Dimensions: 19.5 x 37 x 20 cm
• Package Dimensions: 28 x 46 x 29 cm
• Net Weight: 10.8 kg
• Gross Weight: 16 kg

Q1: Does the TBK-208M require an external air compressor or vacuum pump to operate?
A1: No, the TBK-208M is a fully integrated system equipped with a built-in silent air compressor and vacuum pump, allowing it to operate without external pneumatic equipment.

Q2: What is the maximum screen size compatible with the TBK-208M?
A2: The machine features a workbench capable of handling screens up to 8.5 inches, making it suitable for a wide range of mobile phones and small tablets.

Q3: Can the TBK-208M perform lamination and bubble removal simultaneously?
A3: The device is designed for efficiency, allowing for a streamlined process where lamination and defoaming functions can be completed in a single operational step.

Q4: What safety features are included in the TBK-208M?
A4: To ensure secure operation, the machine is equipped with multiple safety protections, including a self-locking door sensor, a double pressure safety valve, and a high-temperature alarm system.

Q5: Is this machine compatible with both LCD and OLED screens?
A5: Yes, the 3-in-1 functionality supports screen separation and refurbishment for both LCD and OLED display technologies.
