TBK 203R Automatic Alignment Jig for Laser Machines | Universal Mobile Phone Centering Fixture & Repair Clamp

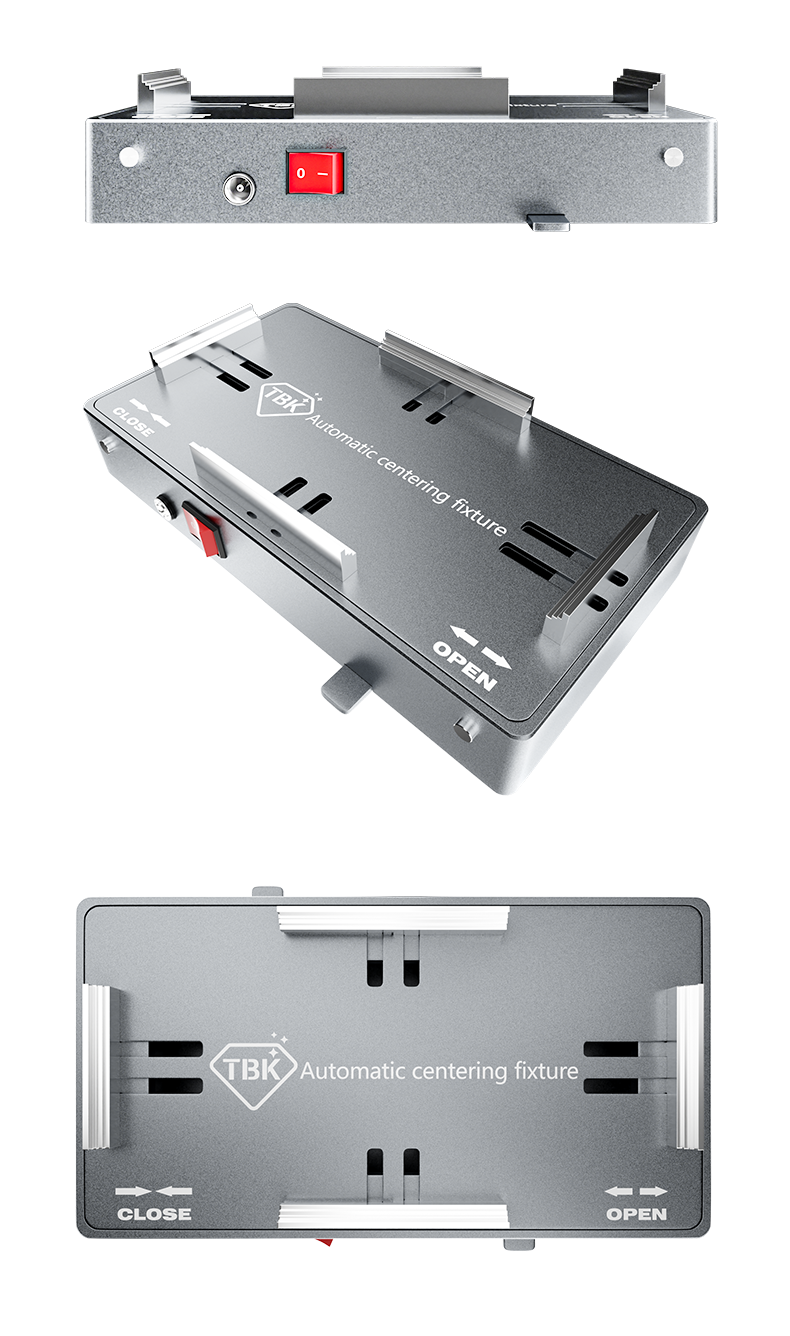

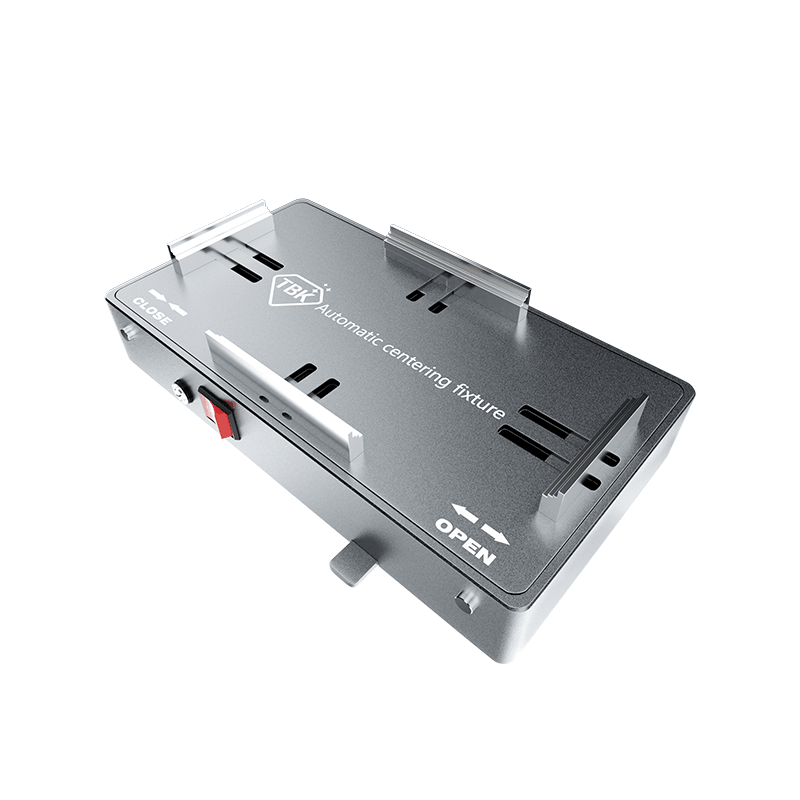

The TBK-203R is an automatic alignment jig engineered for mobile phone repair workflows. Constructed with a metal chassis, this compact tool assists in the positioning of various mobile phone models for applications such as screen disassembly and laser marking. Its design allows devices to be centered via a single-button operation, providing a stable platform intended to assist laser machines in achieving accurate positioning during maintenance tasks.

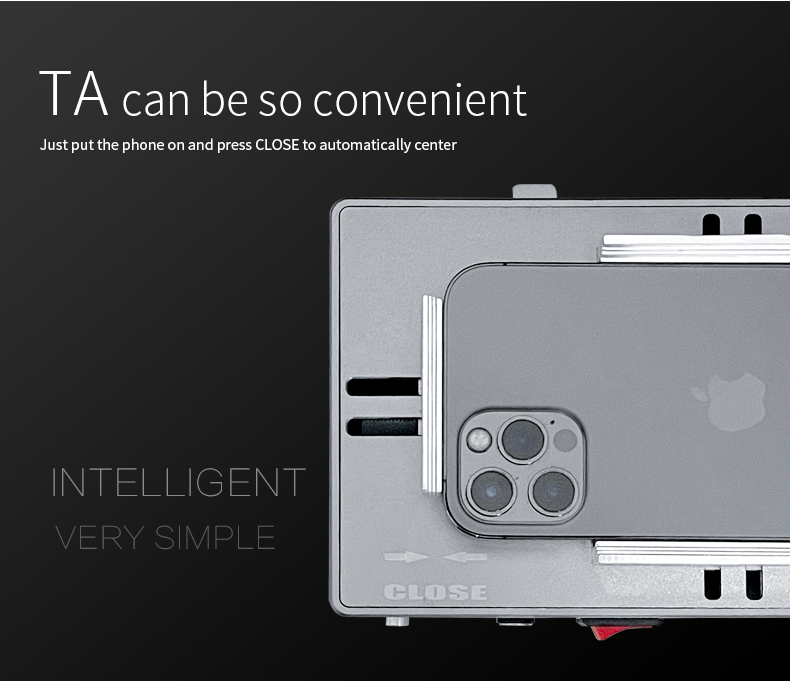

One-Click Automatic Alignment: Features an electric motor that centers the smartphone upon pressing a button, designed to reduce manual positioning time.

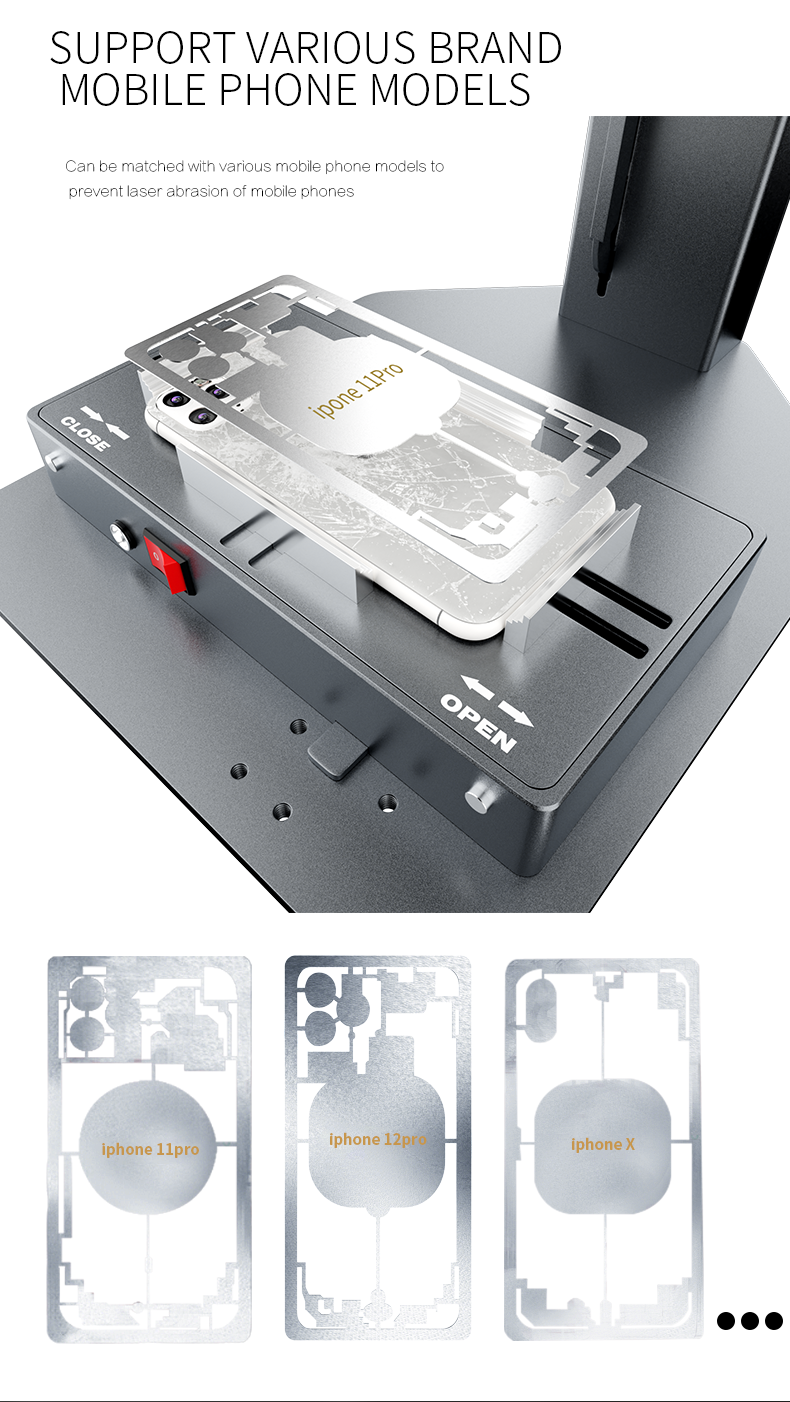

Universal Compatibility: This holding jig is capable of securing a broad range of mobile phone models, functioning as a versatile tool for different repair requirements.

Laser Machine Application: Specifically designed as a fixture to hold devices steady during laser back glass removal and marking operations.

Precise Positioning: Supports accurate alignment for laser work, helping to maintain the position of the device during the repair process.

Metal Construction: Manufactured entirely from metal materials to provide the stability and durability needed for professional repair environments.

Streamlined Operation: The automated mechanism is designed to integrate into repair procedures, supporting workflow efficiency for screen and back cover repairs.

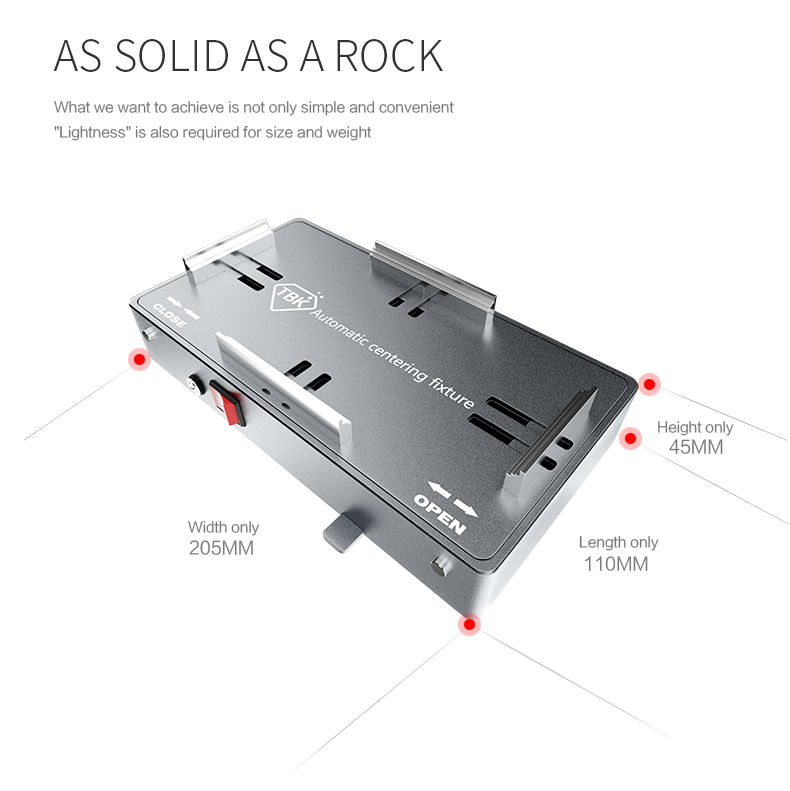

Compact Dimensions: With measurements of 205 x 110 x 45mm and a weight of 0.8kg, the unit offers a stable base while optimizing workspace usage.

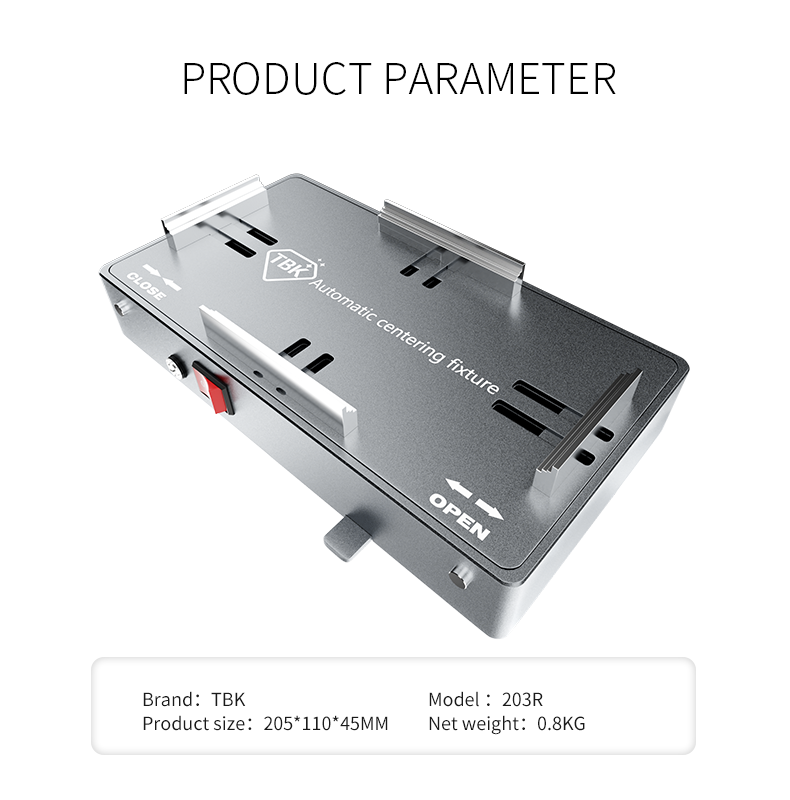

Physical Specifications:

• Brand: TBK
• Model: 203R
• Product Size: 205mm x 110mm x 45mm
• Net Weight: 0.8kg
• Material: Metal Construction

Functions & Features:

• Automatic Centering: One-touch electric clamp automatically centers the mobile phone.
• Precise Positioning: Provides high-precision alignment essential for laser repair work.
• Universal Compatibility: Securely holds various models and sizes of mobile phones.
• Primary Application: Designed for use with laser machines for tasks like back glass removal and marking.
• Simple Operation: Eliminates the need for manual adjustments, increasing efficiency and ease of use.

Q1: How does the automatic alignment feature work on the TBK 203R?
A1: The TBK 203R uses an internal electric motor. When the control button is pressed, the clamps automatically move inward to center the mobile phone within the fixture.

Q2: Is this fixture compatible with all laser repair machines?
A2: The TBK 203R is designed as a universal fixture with a flat base, making it suitable for placement under the galvanometer of most standard laser repair machines used in the industry.

Q3: What are the dimensions and weight of the tool?
A3: The device measures 205mm in length, 110mm in width, and 45mm in height, with a net weight of approximately 0.8kg.

Q4: Can the TBK 203R hold different sizes of phones?
A4: Yes, the fixture features an adjustable clamping range designed to accommodate a wide variety of mobile phone models currently on the market.
