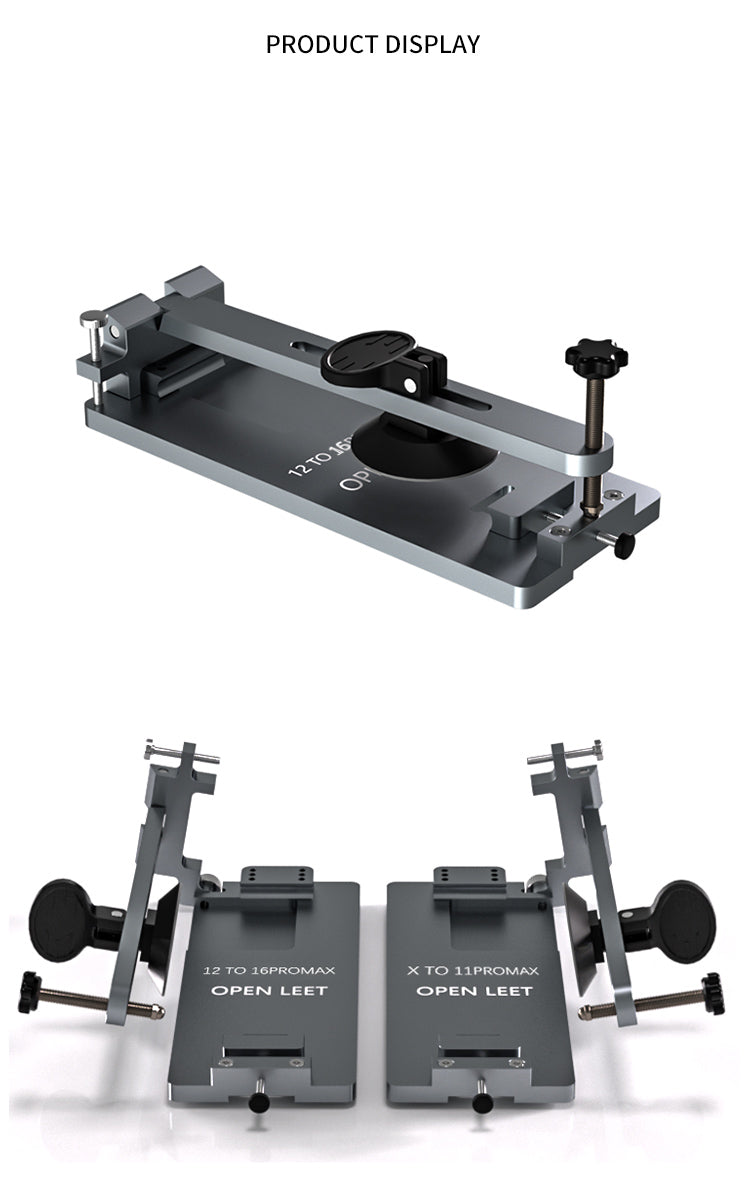

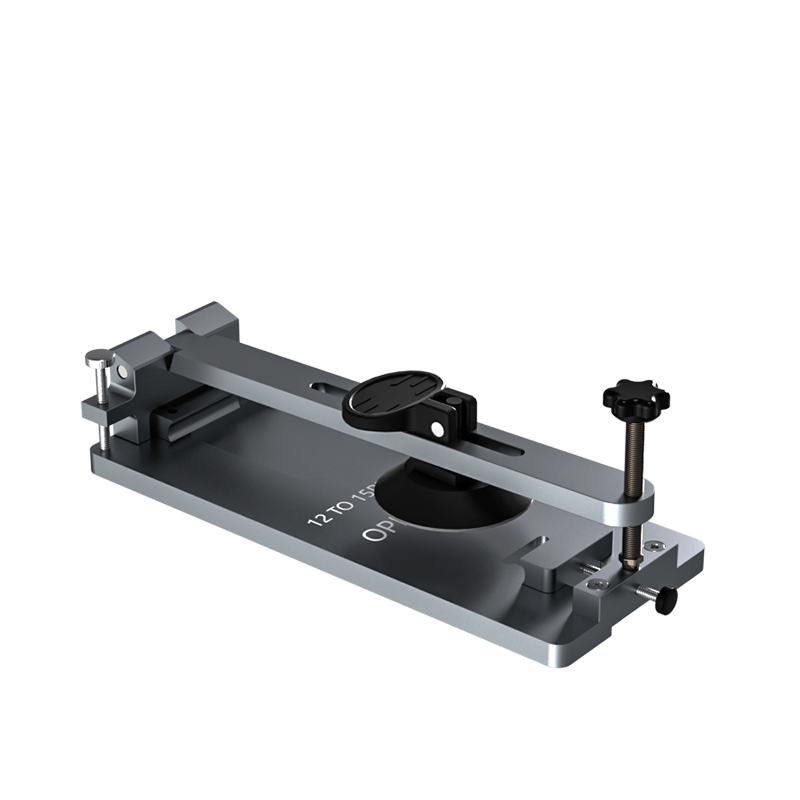

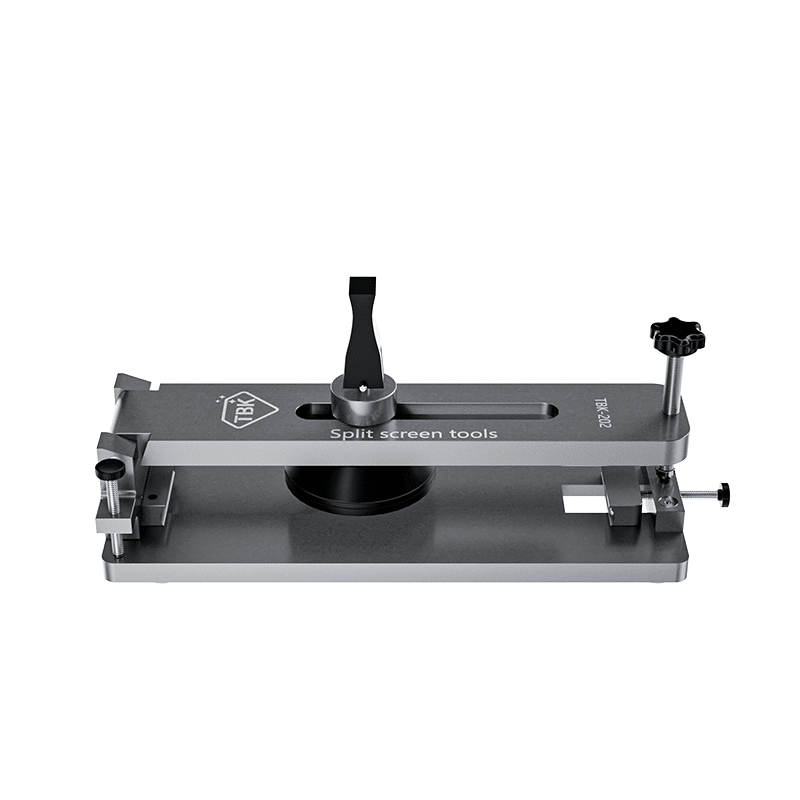

TBK-202 Universal Heat-Free LCD Screen Separator & Opening Fixture for Smartphone Repair

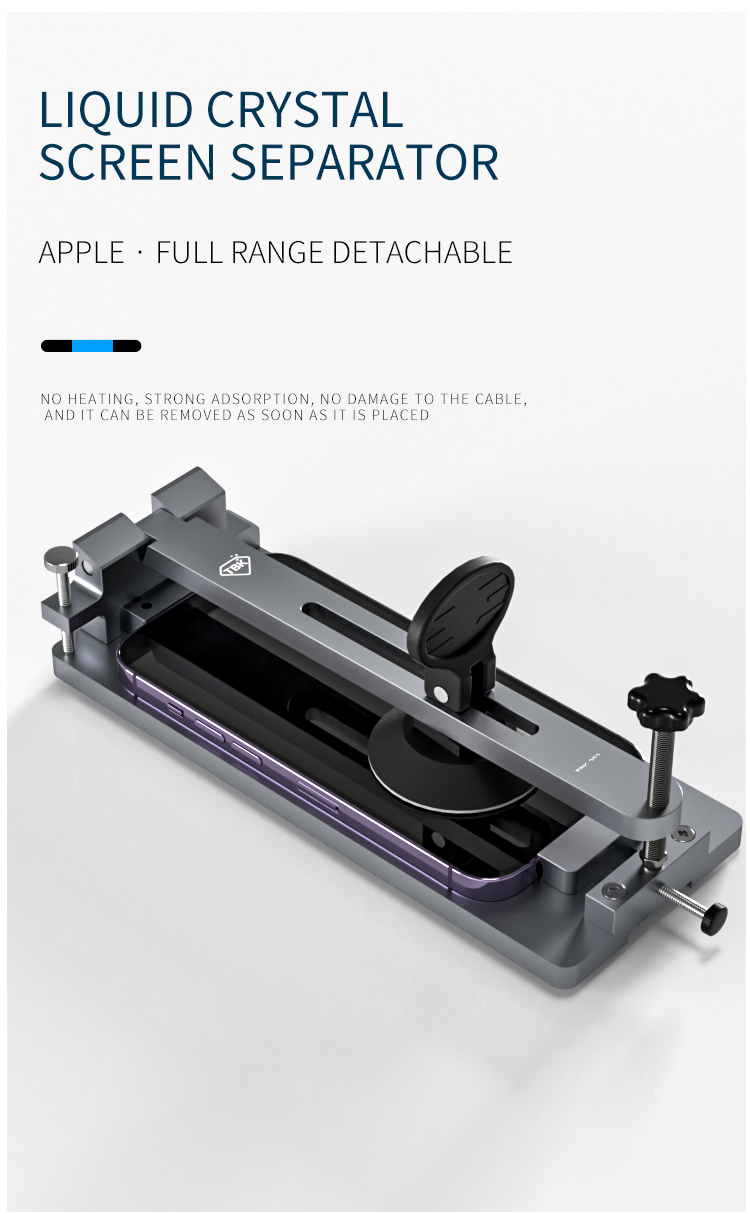

The TBK-202 is a manual LCD screen separator engineered for professional smartphone maintenance. Unlike thermal separation methods, this mechanical fixture utilizes a screw-driven tension system to separate the display assembly from the frame without the application of heat. This cold separation technique mitigates the risk of thermal damage to internal flex cables and sensitive components. The unit features a high-adsorption suction cup for uniform lifting force and an adjustable clamping system to secure various mobile phone models. Additionally, the base incorporates a specific groove design to accommodate rear camera modules, preventing physical compression damage during the opening process. Constructed from aluminum alloy, it serves as a stable and durable workstation tool.

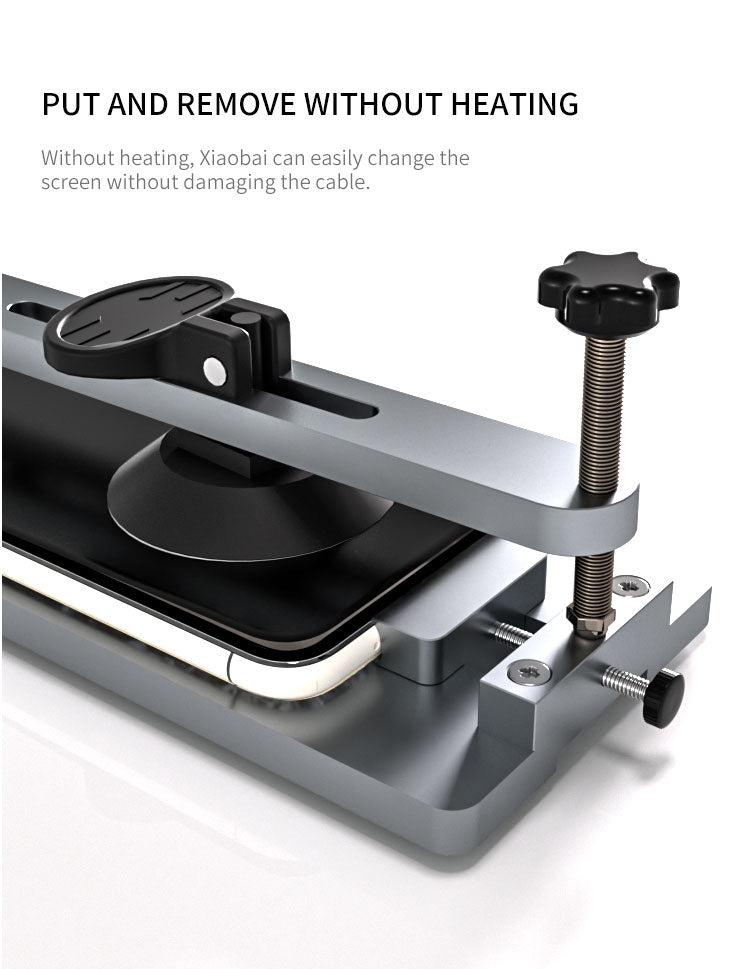

Non-Thermal Separation: Facilitates screen removal without external heating, protecting LCDs, flex cables, and internal logic boards from potential thermal stress.

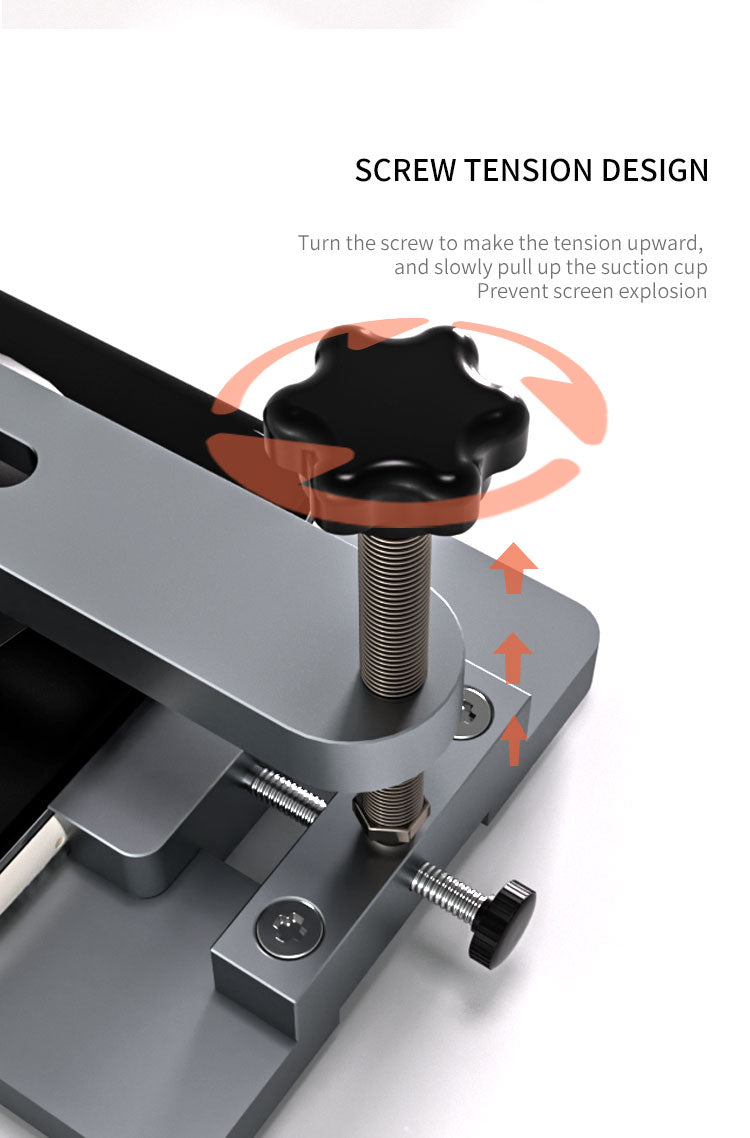

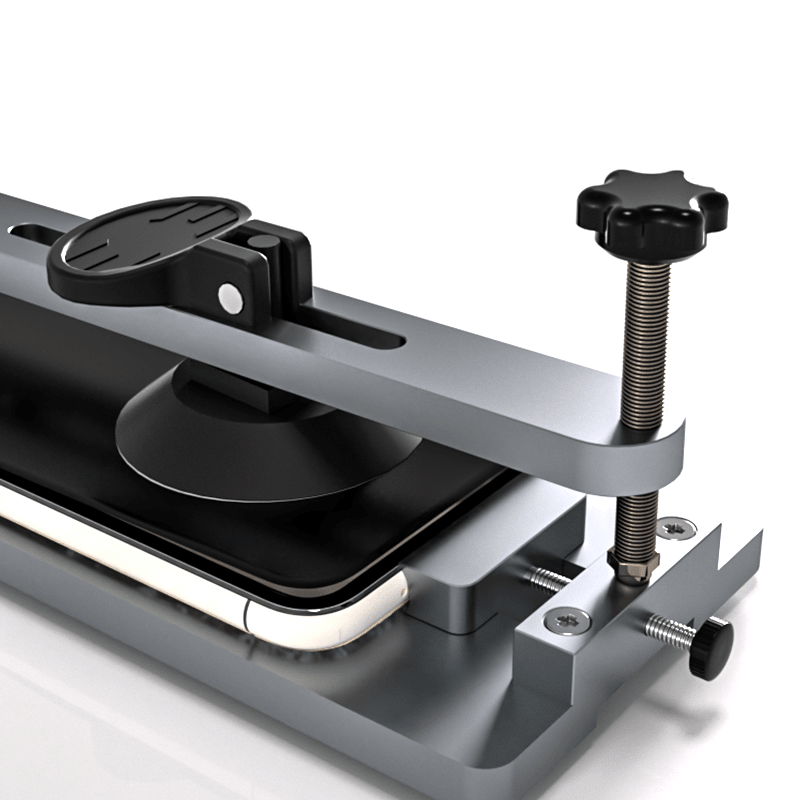

Precision Screw Tension System: The main adjustment knob applies controlled, gradual upward vertical force to separate the screen safely, minimizing the risk of glass breakage.

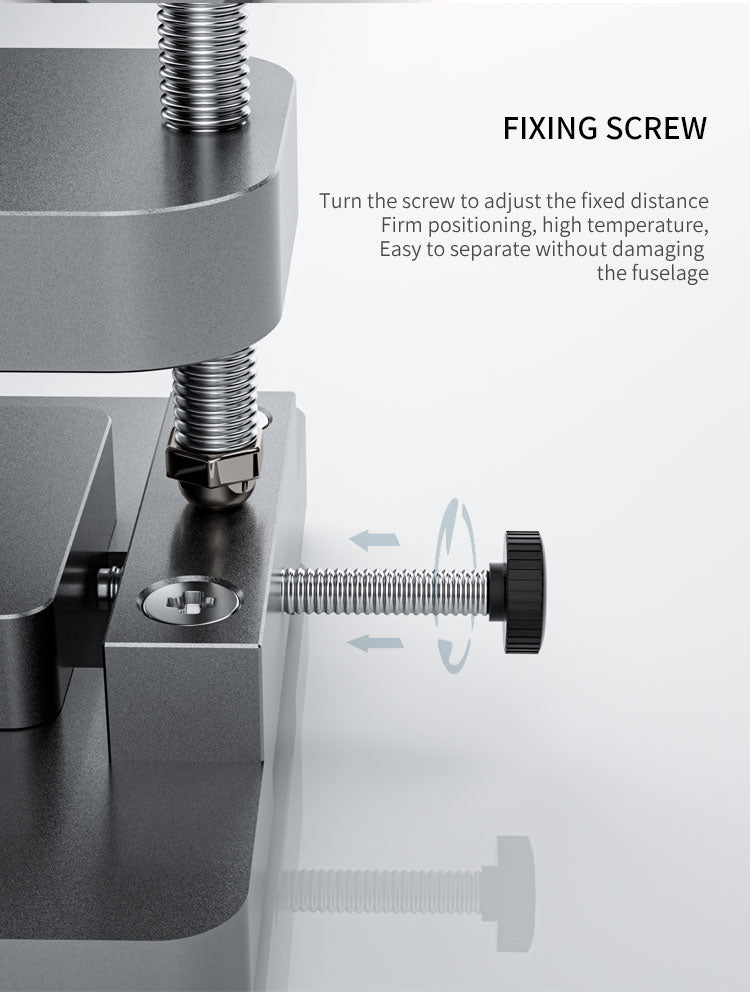

Adjustable Retention Clamp: Features a side-mounted screw mechanism to securely lock the mobile phone frame in position to ensure stability during operation.

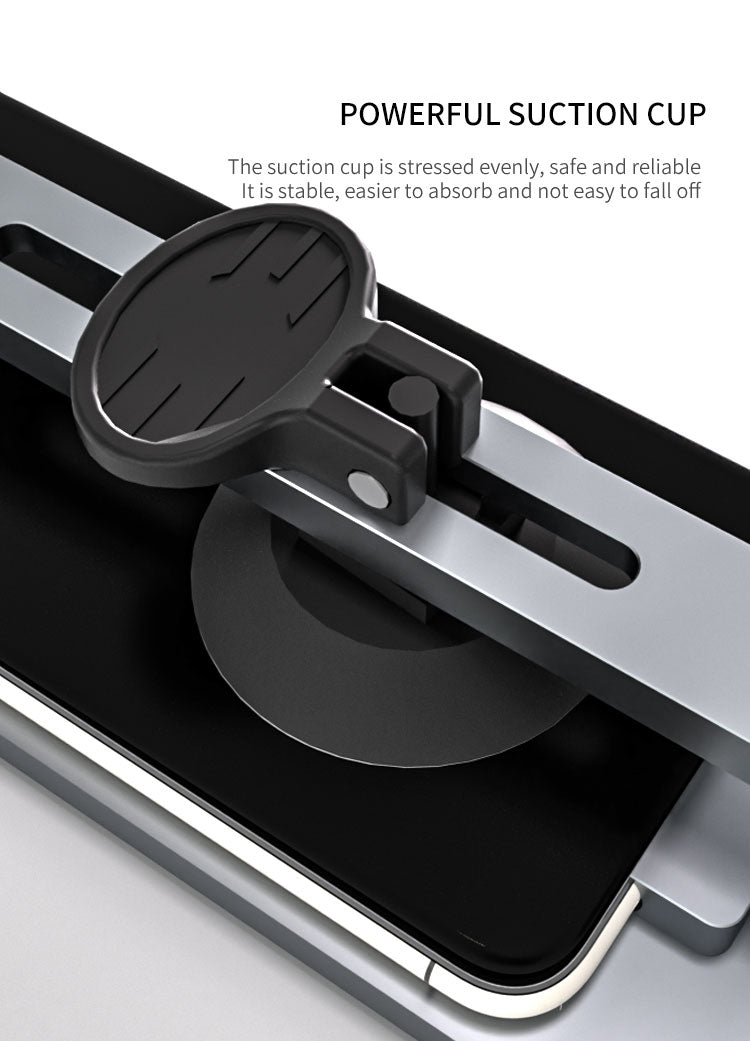

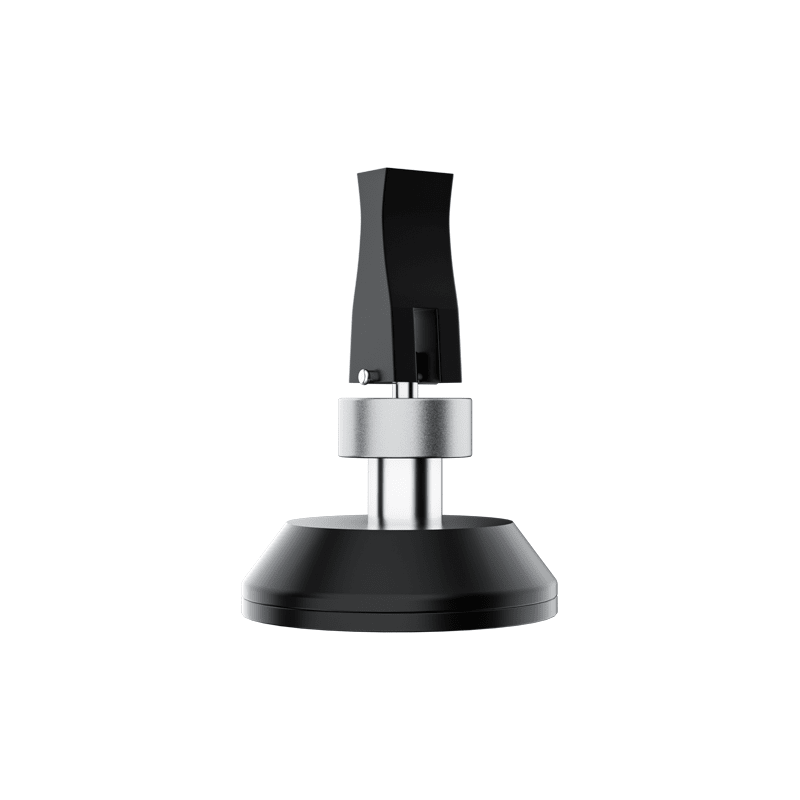

High-Adsorption Suction Cup: Delivers consistent and strong suction pressure for a stable, evenly stressed pull on the display panel.

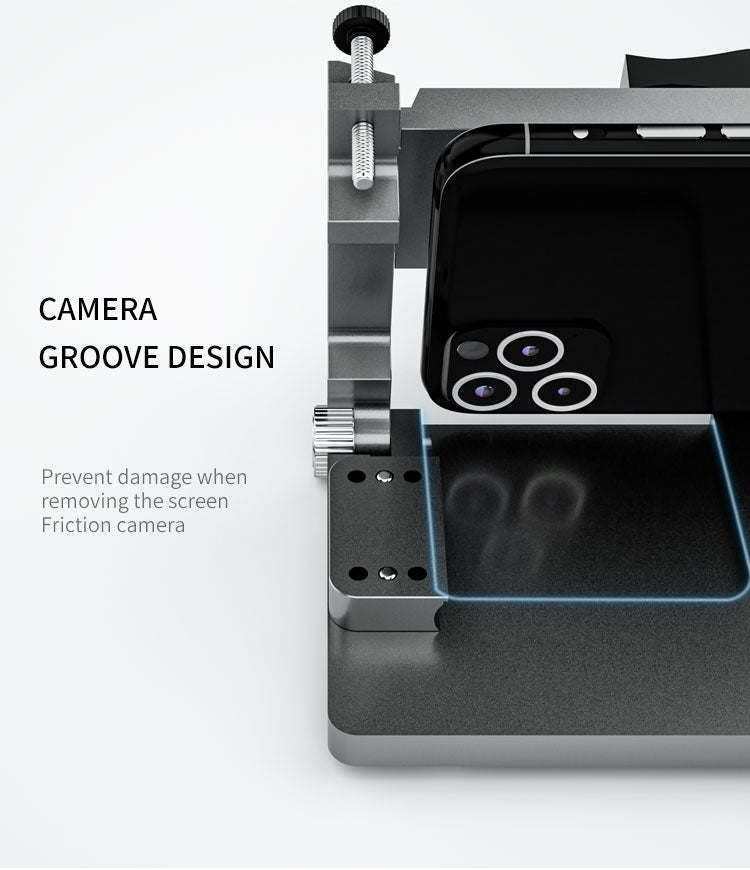

Protective Camera Slot: The metal base is designed with a recessed groove to accommodate protruding rear camera modules, preventing contact damage during clamping.

Aluminum Alloy Construction: Manufactured from high-quality aluminum for structural rigidity, corrosion resistance, and long-term durability in repair shop environments.

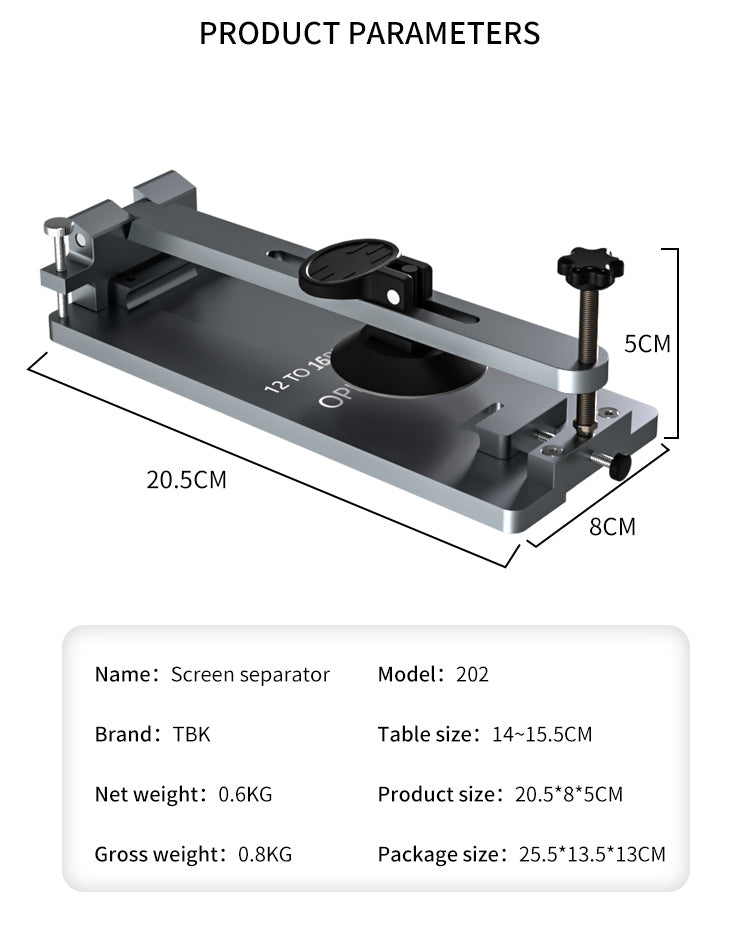

• Product Name: Liquid Crystal Screen Separator
• Brand: TBK
• Model: 202
• Product Size: 20.5 * 8 * 5 CM
• Table Size (Working Area): 14 ~ 15.5 CM
• Net Weight: 0.6 KG
• Gross Weight: 0.8 KG
• Package Size: 25.5 * 13.5 * 13 CM

Q1: How does the TBK-202 separate the screen without using heat?
A1: The tool uses a mechanical approach, combining a strong suction cup with a precision screw tension system to physically lift and separate the screen from the frame using controlled upward force.

Q2: Will this tool damage the rear camera of the phone during the repair process?
A2: No, the base of the TBK-202 features a specific camera groove design that prevents pressure from being applied to the rear camera module while the phone is clamped.

Q3: Is the lifting speed adjustable to prevent screen breakage?
A3: Yes, the separation is controlled manually by a main knob, allowing the technician to apply tension slowly and evenly to prevent sudden stress on the glass.

Q4: What material is the TBK-202 fixture made of?
A4: The device is constructed from durable aluminum alloy, which provides stability, corrosion protection, and resistance to wear.

Q5: Does this tool require an external power source?
A5: No, the TBK-202 is a fully manual tool that operates via mechanical screws and suction, requiring no electricity or heating elements.
